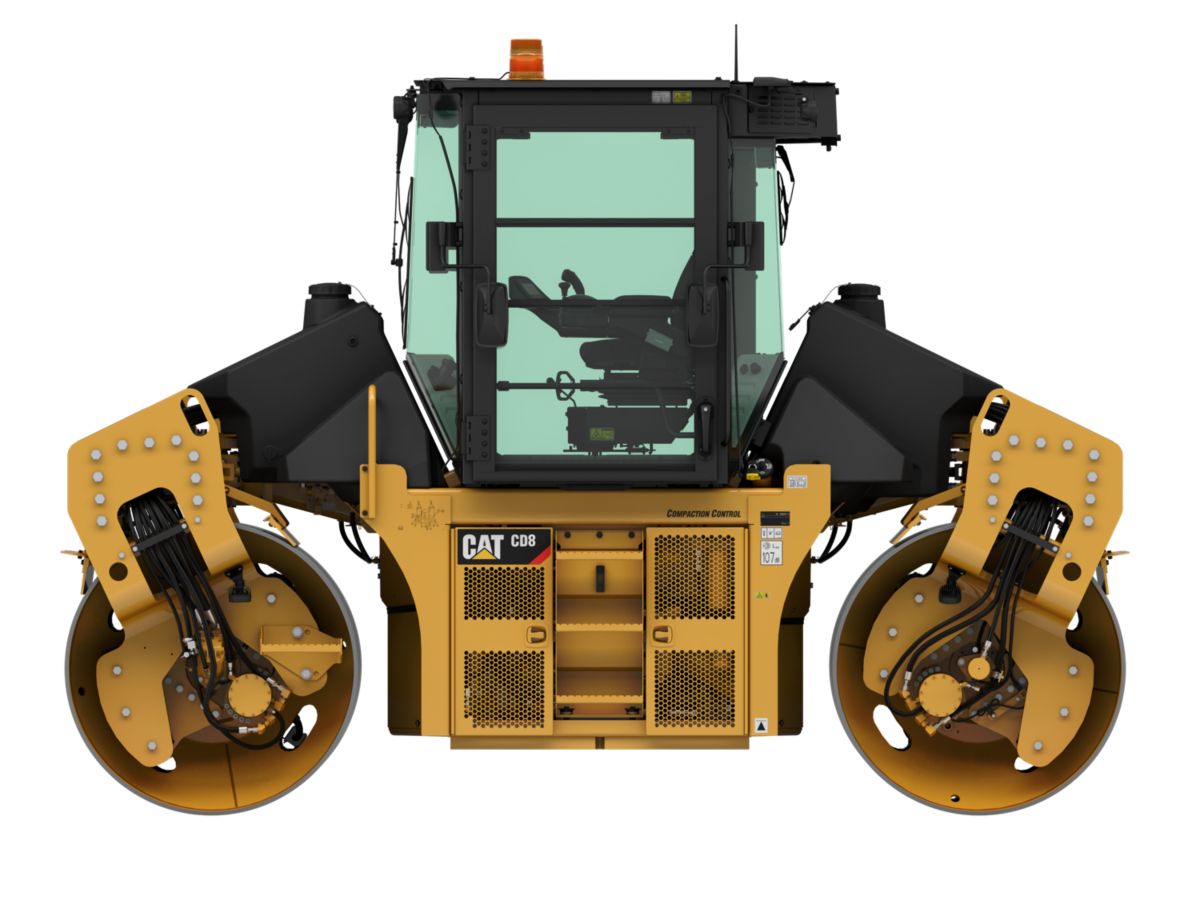

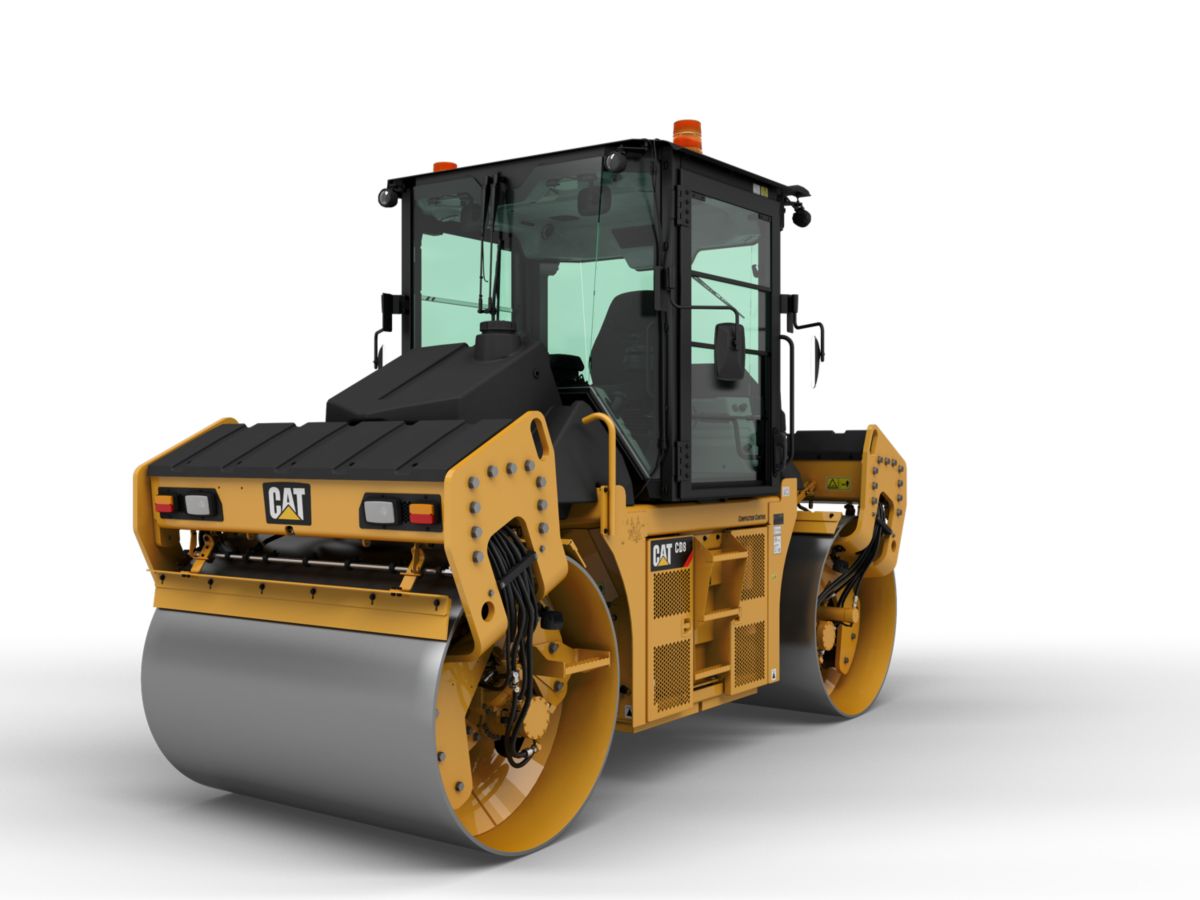

CD8 - Solid Drum
US
Metric
Overview
The CB8 is an 8 metric ton drum steer compactor equipped with 1500 mm (59”) drums. This high production model delivers excellent mat density, good visibility and comfort, fuel efficiency with Eco-mode, and an industry leading water spray system. This model can be equipped with Cat Compaction Control that provides temperature mapping and pass-count mapping as well as "Machine to Machine" communication for more efficient performance.
Weights
Operating Weight
16314.00 lb
7400.00 kg
Standard Operating Weight with Cab
16314.00 lb
7400.00 kg
Maximum Operating Weight with Cab
17593.00 lb
7980.00 kg
Standard Operating Weight with Canopy
15873.00 lb
7200.00 kg
Maximum Operating Weight with Canopy
17108.00 lb
7760.00 kg
Operating Specifications
Standard Compaction Width
59.00 in
1500.00 mm
Drum Offset
51.00 in
1320.00 mm
Maximum Compaction Width
111.00 in
2820.00 mm
Static Linear Load
146.00 lb/in
23.90 kg/cm
Travel Speed - Maximum
7.50 mph
12.00 km/hr
Engine
Engine Model
Cat® C3.4 with ACERT Technology
Gross Power
100.00 hp
75.00 kW
Service Refill Capacities
Fuel Tank Capacity
36.00 gal
135.00 L
Water Spray Tank Capacity
159.00 gal (US)
600.00 l
Vibratory System
Drum Width
59.00 V/m
1500.00 Hz
Vibration Selection
Independent per drum, front only, rear only, both
Centrifugal Force per Drum - Maximum
17603.00 lb
78.30 kN
Centrifugal Force per Drum - Minimum
11982.00 lb
53.30 kN
Maximum Amplitude
0.03 in
0.65 mm
Minimum Amplitude
0.01 in
0.31 mm
Dimensions
Overall Length
13.80 ft
4284.00 mm
Overall Width
5.50 ft
1664.00 mm
Height with ROPS/FOPS
9.60 ft
2940.00 mm
Wheelbase
10.25 ft
3120.00 mm
Operating Specifications
Static Linear Load
146.00 lb/in
23.90 kg/cm
Weights
Maximum Operating Weight with Cab
17593.00 lb
7980.00 kg
Standard Operating Weight with Cab
16314.00 lb
7400.00 kg
Operating Specifications
Drum Offset
51.00 in
1320.00 mm
Maximum Compaction Width
111.00 in
2820.00 mm
Engine
Gross Power
100.00 HP
75.00 kW
Engine Model
Cat® C3.4 with ACERT Technology
Operating Specifications
Travel Speed - Maximum
7.50 mile/h
12.00 km/h
Dimensions
Overall Length
13.80 ft
4284.00 mm
Wheel Base
10.25 ft
3120.00 mm
Height - With ROPS/FOPS
9.60 ft
2940.00 mm
Overall Width
5.50 in
1664.00 mm
Service Refill Capacities
Fuel Tank Capacity
36.00 gal (US)
135.00 l
Weights
Operating Weight
16314.00 lb
7400.00 kg
Vibratory System
Vibration Selection
Independent per drum, front only, rear only, both
Features
Exceptional Visibility and Control
Vibratory System Choices
Cat Compaction Control
Smooth Operating Powertrain
Sales Features
Exceptional Visibility and Control
The CD8 drum steer compactor offer unobstructed sight lines with standard 180° seat positioning for excellent visibility. Also, drum edge and drum surface lighting provide better visibility for nighttime operation. The innovative handwheel steering technology eliminates the front console that is commonly found on other machines for better visibility and precise machine control.Vibratory System Choices
Cat Tandem Vibratory Rollers quickly reach target densities due to their versatile frequency and amplitude selections. These powerful rollers provide finesse when necessary due to their flexible front or rear drum only vibratory capability. This machine offers vibratory choices to match your amplitude and frequency requirements. It performs particularly well in high-production applications. It provides high amplitudes for breakdown and intermediate work, while its high static linear load delivers excellent results for finishing work.Cat Compaction Control
The optional Cat Compaction Control system helps contractors increase efficiency and productivity while recording data for quality control documentation and future planning.Smooth Operating Powertrain
The B-Series tandem rollers are powered by Cat engines with ACERT™ Technology. The engine includes a variety of features that help reduce fuel burn, including automatic Eco-mode, yet still delivers the power required on challenging jobsites. Tough components help extend compactor life.Optional Equipment
- Air Conditioning
- Air Suspension Seat w/heat
- Bio-Degradeable Oil
- Cat Compaction Control
- CMV Sensor
- Edge Cutter
- Freeze Protection Kit
- Halogen Lights with Drum Edge Lighting
- High Ambient Cooling System
- High Intensity Discharge Lights
- IRH Compliant
- LED Lighting
- Machine to Machine Communication
- Mirrors
- Product Link
- Offset Hitch
- Recording Module - cab only
- ROPS/FOPS Open Platform
- Temperature Gauge (single sensor)
- Warning Beacon
- Water Distribution Mats - Cocoa/Rubber
