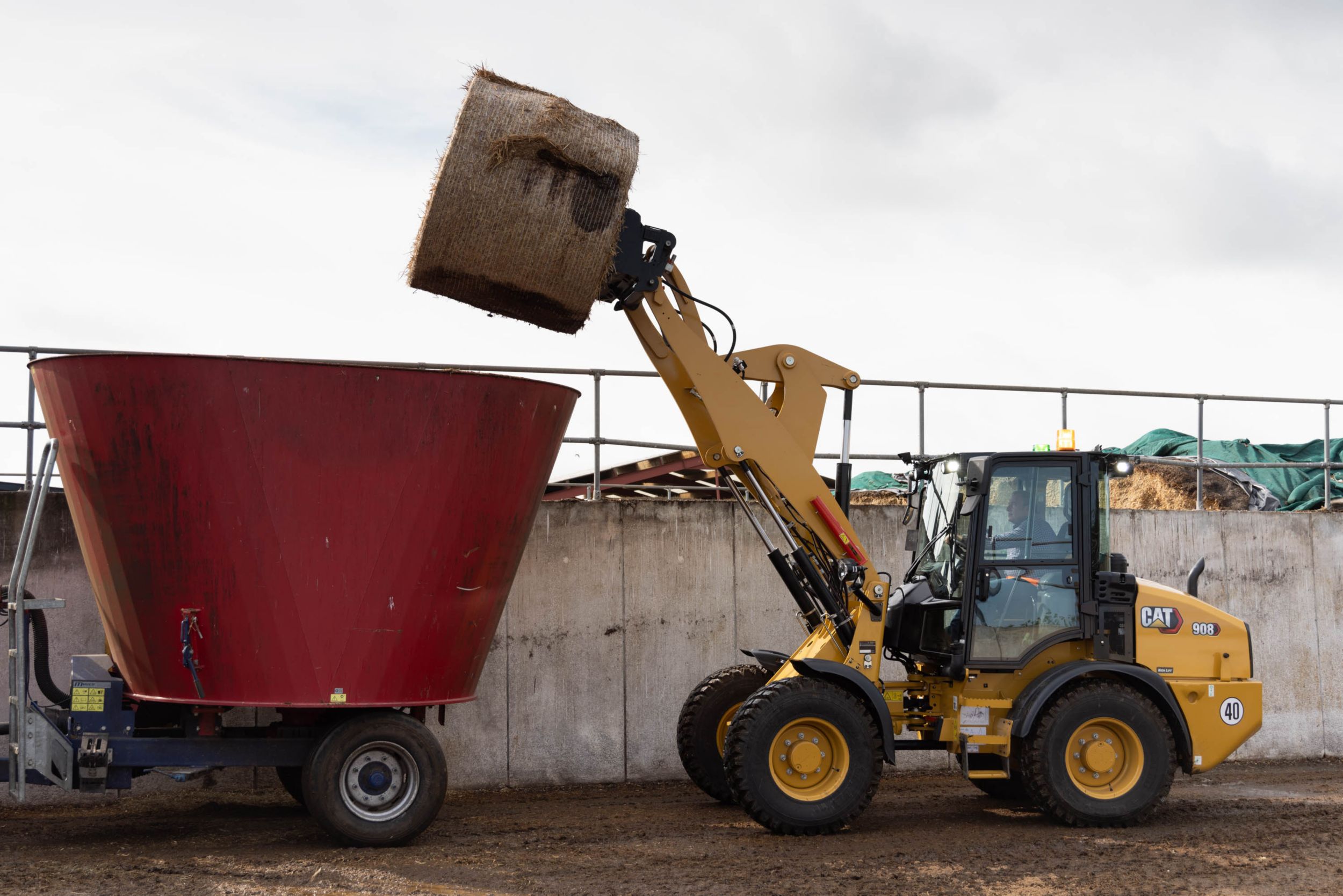

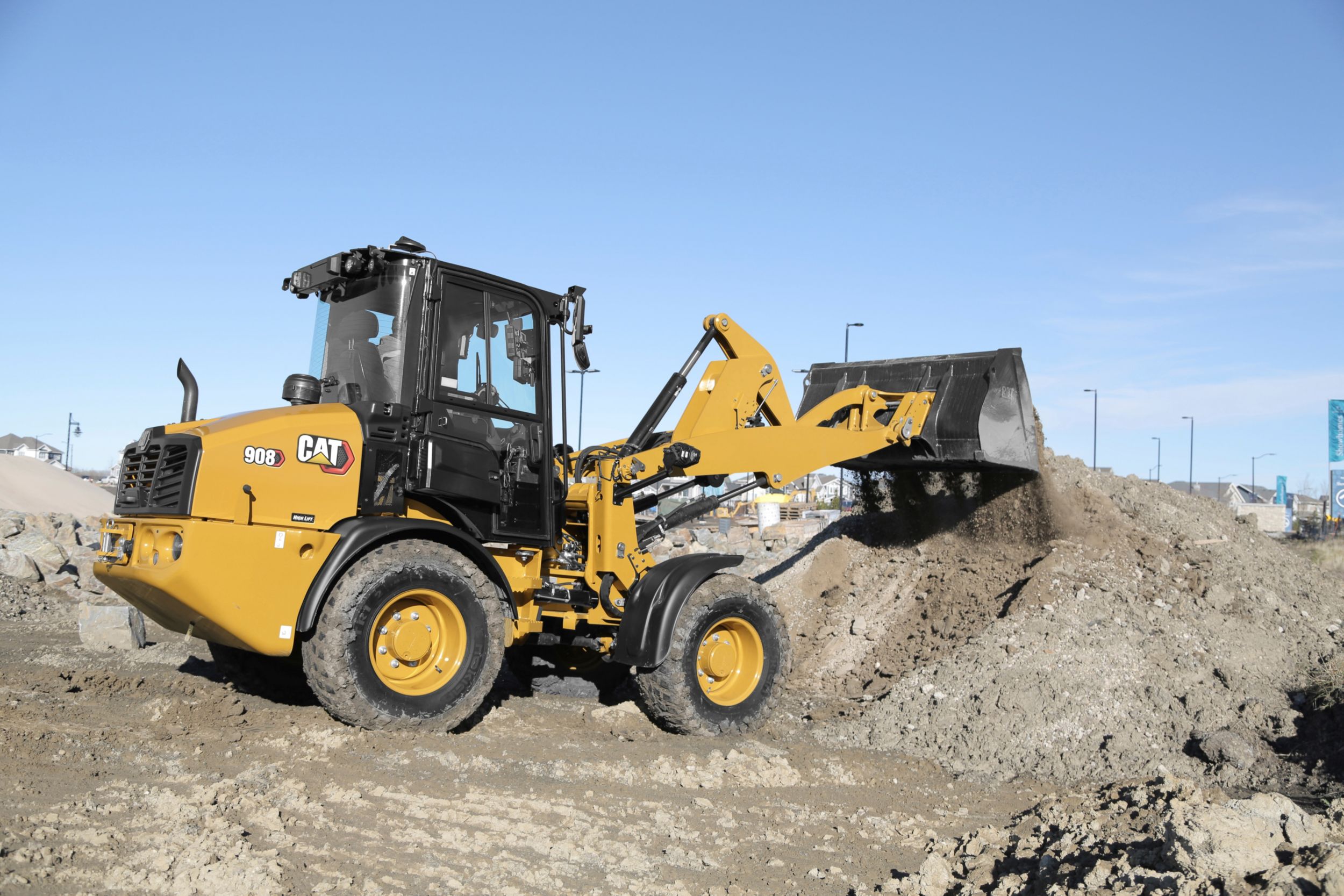

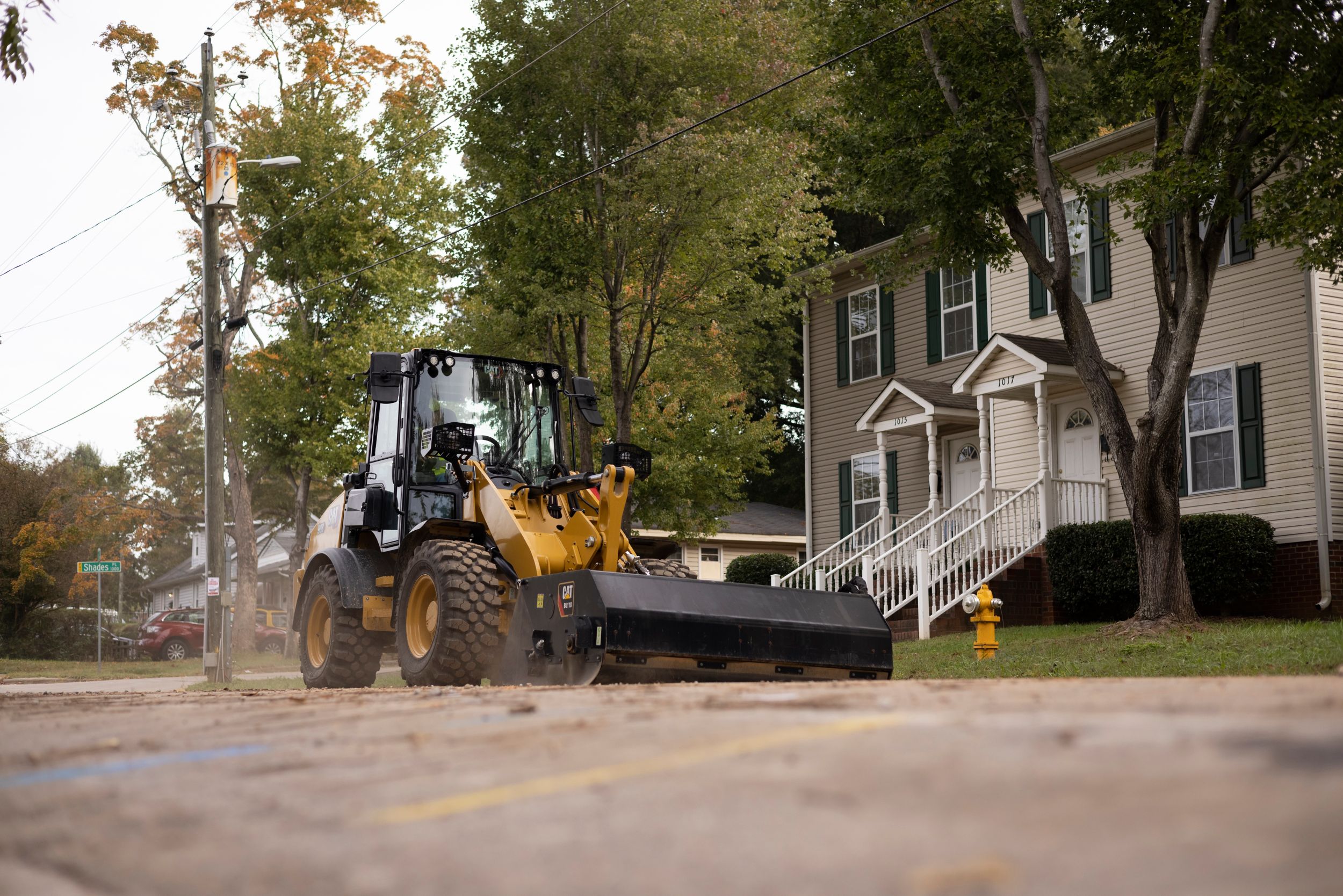

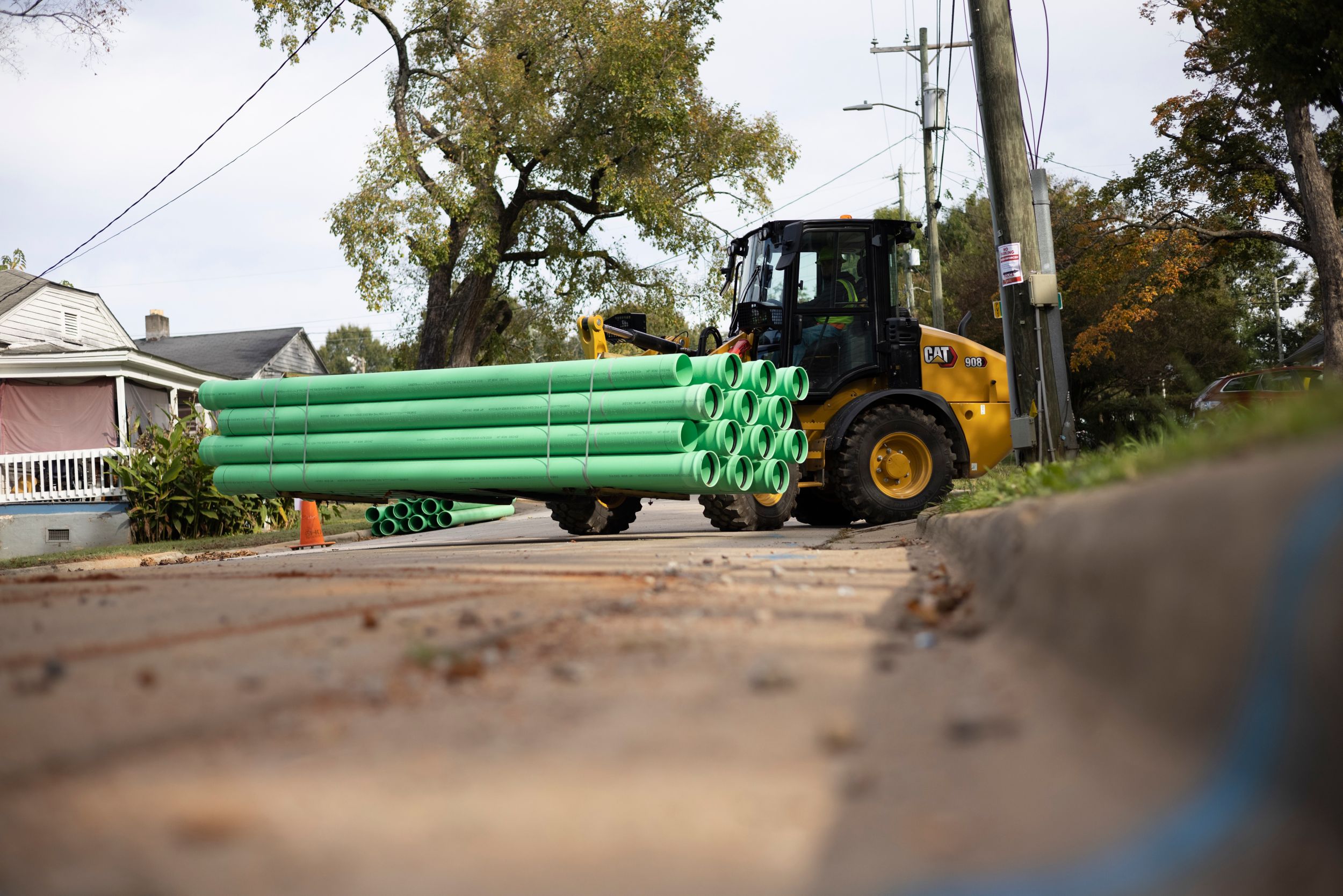

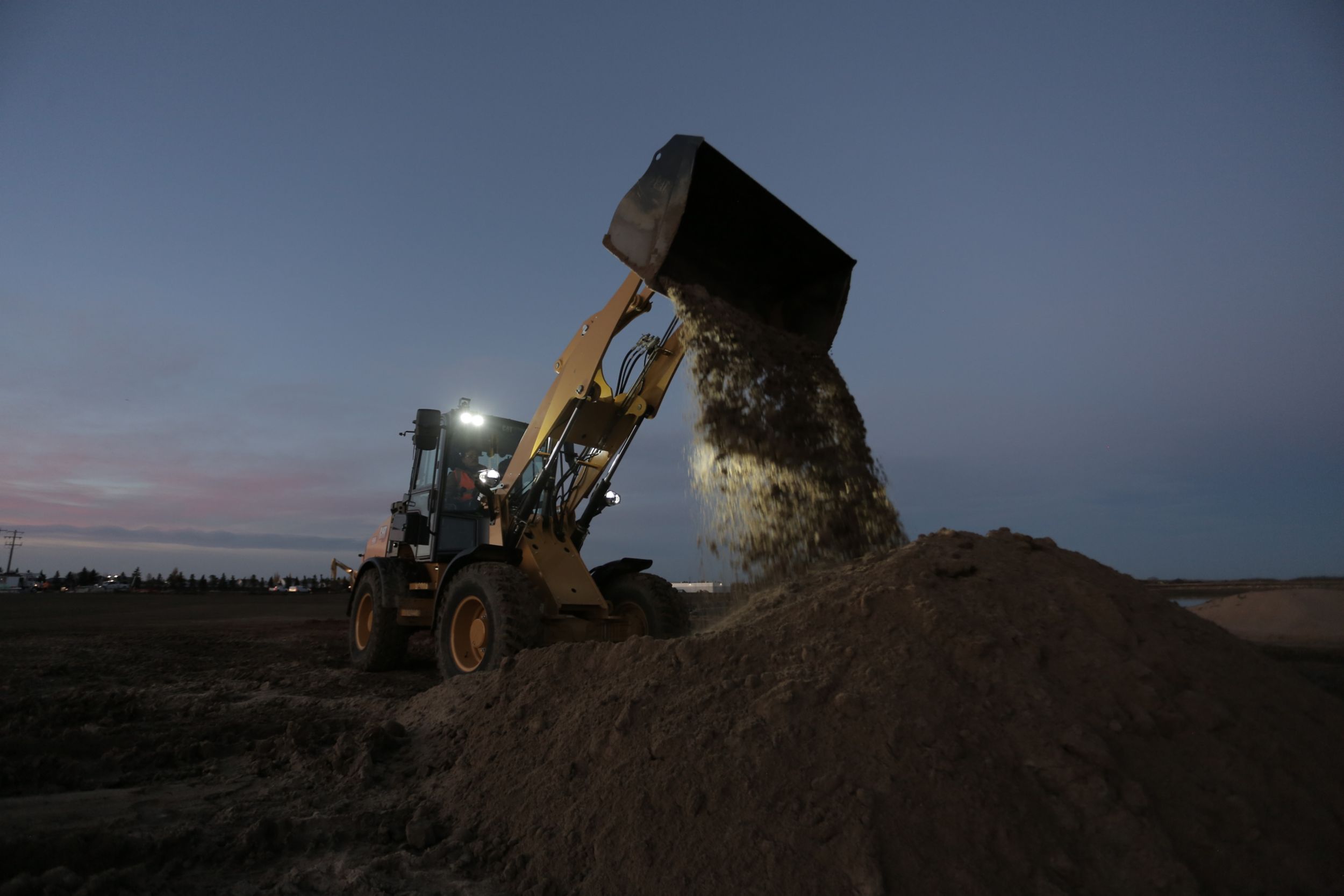

Cat® 908 Compact Wheel Loader
Cat® 908 Compact Wheel Loader
Cat® 908 Compact Wheel Loader
Cat® 908 Compact Wheel Loader
Cat® 908 Compact Wheel Loader
Cat® 908 Compact Wheel Loader
Cat® 908 Compact Wheel Loader
US
Metric

Overview

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.

Engine

Maximum Gross Power
74.70 hp
55.70 kW
Engine Model
Cat C2.8*
Maximum Engine Speed
2550 rpm
Maximum Gross Power - Rated Engine Speed
2400.00 r/min
2400.00 r/min
Maximum Gross Power - SAE J1995
74.70 hp
55.70 kW
Maximum Gross Power - ISO 14396
74.30 hp
55.40 kW
Maximum Gross Power - ISO 14396 (metric)
75.30 mhp
75.30 mhp
Rated Net Power - Rated Engine Speed
2400.00 r/min
2400.00 r/min
Rated Net Power - SAE J1349
72.70 hp
54.20 kW
Rated Net Power - ISO 9249
72.10 hp
53.80 kW
Rated Net Power - 2,400 rpm - ISO 9249 (metric)
73.10 mhp
73.10 mhp
Maximum Gross Torque - SAE J1995
222.00 lb/ft
300.00 N·m
Maximum Gross Torque - ISO 14396
221.00 lb/ft
300.00 N·m
Maximum Net Torque - SAE J1349
218.00 lb/ft
296.00 N·m
Maximum Net Torque - ISO 9249
217.00 lb/ft
295.00 N·m
Displacement
171.00 in³
2.80 l
Bore
3.54 in
90.00 mm
Stroke
4.33 in
110.00 mm
Note
Advertised power is tested per the specified standard in effect at the time of manufacture
Note (1)
Net power advertised is the power available at the flywheel.
Note (2)
*Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) and 1 N·m/0.7 lb-ft higher on gross torque (SAE J1995).
Note (3)
#Maximum gross and net torque measured at 1,600 rpm.

Weights

Operating Weight
14617.00 lb
6632.00 kg

Buckets

Bucket Capacities
0.75-1.55 m³ (1.0-2.0 yd³)
Bucket Capacities - General Purpose
0.80-1.35 m³ (1.0-1.7 yd³)
Multi-Purpose
0.75-1.1 m³ (1.0-1.4 yd³)
Bucket Capacities - Light Material
1.25-1.55 m³ (1.6-2.0 yd³)
Note
Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Note (1)
Bucket capacities stated include BOCE, in line with ISO 7546.

Service Refill Capacities

Fuel Tank
24.00 Gal
90.00 l
Cooling System
3.20 Gal
12.00 l
Engine Crankcase
2.30 Gal
8.80 l
Axles - Front Center Differential
2.30 Gal
8.80 l
Axles - Rear Center Differential
2.30 Gal
8.80 l
Hydraulic System - Including Tank
18.60 Gal
70.50 l
Hydraulic Tank
11.80 Gal
44.60 l
Transmission
0.60 Gal
2.40 l
Note
No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.

Axles

Front
Fixed (standard), Locking Differential (optional)
Rear
Fixed (standard), Locking Differential (optional)
Note
Oscillation of ±11 degrees via hitch between front and rear frames.

Steering

Steering Articulation Angle - Each Direction
39.00 °
39.00 °
Maximum Flow - Steering Pump
12.30 gal/min
46.70 l/min
Maximum Working Pressure - Steering Pump
3336.00 psi
23000.00 kPa
Steering Cycle Times – (full left to full right) – at High Idle
2.80 s
2.80 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left
3.25 turns or 4.00 turns

Transmission

Forward and Reverse - Speed Range Creep#
6.00 mile/h
10.00 km/h
Forward and Reverse - Speed Range 1*
6.00 mile/h
10.00 km/h
Forward and Reverse - Speed Range 2** - High Speed
10.50 mile/h
17.00 km/h
Forward and Reverse - Speed Range 2** - Standard
12.00 mile/h
20.00 km/h
Forward and Reverse - Speed Range 3***
25.00 mile/h
40.00 km/h
Note
#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Note (1)
*Creep function not available in this gear or above.
Note (2)
**Max speed dependent on model and configuration (standard vs. high speed transmission).
Note (3)
***Reverse is 30 km/h (19 mph).

Tires

Tire Size - Standard
*405/70 R20 SPT9
Tire Size - Optional
405/70 R20 Powerloads
Tire Size - Optional (1)
400/70 R20 XMCL/Bibload
Tire Size - Optional (2)
360/80 R20 TRI 2
Tire Size - Optional (3)
40X14-20 TL, SM/TR
Note
*This tire has been used for all dimension, stability and performance data.
Note (1)
Other tire choices are available. Contact your Cat dealer for details.
Note (2)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II
Note (1)
Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.

Loader Hydraulic System

Main Relief - 1st Auxiliary (3rd slice)
3408.00 psi
23500.00 kPa
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*
24.00 gal/min
90.00 l/min
Main Relief - 1st Auxiliary (3rd slice) - High Flow*
33.00 gal/min
125.00 l/min
Main Relief - 2nd Auxiliary (4th slice)
3408.00 psi
23500.00 kPa
Main Relief - 2nd Auxiliary (4th slice) - Flow
12.00 gal/min
45.00 l/min
Hydraulic Cycle Time - Rackback
2.50 s
2.50 s
Hydraulic Cycle Time - Lift
5.80 s
5.80 s
Hydraulic Cycle Time - Dump
1.80 s
1.80 s
Hydraulic Cycle Time - Float Down
3.60 s
3.60 s
Note
* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.

Dimensions - With HPL-V Coupler - Approximate#

Height: Ground to Cab**
8.75 ft
2670.00 mm
Height: Ground to Beacon**
9.33 ft
2849.00 mm
Height: Ground Axle Center**
1.67 ft
519.00 mm
Height: Ground Clearance**
1.00 ft
320.00 mm
Length: Overall*
18.17 ft
5544.00 mm
Length: Rear Axle to Bumper
4.50 ft
1391.00 mm
Length: Hitch to Front Axle
3.50 ft
1085.00 mm
Length: Wheel Base
7.08 ft
2170.00 mm
Clearance: Bucket at 45° *
8.58 ft
2623.00 mm
Clearance: Load over Height**
9.75 ft
2960.00 mm
Clearance: Level Bucket**
10.50 ft
3206.00 mm
Height: Bucket Pin**
11.17 ft
3412.00 mm
Height: Overall**
14.17 ft
4313.00 mm
Reach: Bucket at 45° *
2.33 ft
706.00 mm
Carry Height: Bucket Pin
1.17 ft
367.00 mm
Dig Depth**
0.33 ft
109.00 mm
Width: Bucket
6.75 ft
2080.00 mm
Width: Tread Center
5.08 ft
1570.00 mm
Turning Radius: Over Bucket
14.75 ft
4493.00 mm
Width: Over Tires
6.67 ft
2021.00 mm
Turning Radius: Outside of Tires
13.17 ft
4005.00 mm
Turning Radius: Inside of Tires
6.50 ft
1981.00 mm
Rack Angle at Full Lift
53°
Dump Angle at Full Lift
45°
Rack Angle at Carry
51°
Departure Angle - Degrees
30°
Articulation Angle - Degrees
39°
Operating Weight: Bucket ^
14633.00 lb
6637.00 kg
Tipping Load - Straight - ISO 14397-1 †
10626.00 lb
4820.00 kg
Tipping Load - Full Turn - ISO 14397-1 †
8895.00 lb
4035.00 kg
Operating Weight: Carriage and Tines ^^
14252.00 lb
6467.00 kg
Tipping Load - Straight †
10626.00 lb
3297.00 kg
80% of Tip: Firm and Level EN474-3 ††
5815.00 lb
2638.00 kg
Note (1)
*Vary with bucket
Note (2)
**Vary with tire
Note (3)
^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)
^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)
†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)
††Full compliance to EN474-3 and SAE J1197.
Note (7)
#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)
Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)
Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Length: Front Axle to Front of Coupler
3.92 ft
1200.00 mm

Dimensions - With SSL Coupler - Approximate

Height - Ground to Cab
8.75 ft
2670.00 mm
Height: Ground to Beacon**
9.33 ft
2849.00 mm
Height: Ground Axle Center**
1.67 ft
519.00 mm
Height - Ground Clearance
1.00 ft
320.00 mm
Length - Overall with Bucket
18.67 ft
5707.00 mm
Length: Rear Axle to Bumper
4.50 ft
1391.00 mm
Length: Hitch to Front Axle
3.50 ft
1085.00 mm
Length - Wheel Base
7.08 ft
2170.00 mm
Clearance - Bucket at 45°
8.25 ft
2511.00 mm
Clearance: Load over Height**
9.75 ft
2960.00 mm
Clearance - Level Bucket
10.50 ft
3197.00 mm
Height - Bucket Pin
11.17 ft
3412.00 mm
Height: Overall**
14.42 ft
4403.00 mm
Reach - Bucket at 45°
2.67 ft
811.00 mm
Carry Height: Bucket Pin
1.25 ft
388.00 mm
Dig Depth
0.45 ft
117.00 mm
Width - Bucket
6.75 ft
2080.00 mm
Width - Tread Center
5.08 ft
1570.00 mm
Turning Radius - Over Bucket
15.08 ft
4607.00 mm
Width - Over Tires
6.67 ft
2021.00 mm
Turning Radius: Outside of Tires
13.17 ft
4005.00 mm
Turning Radius - Inside Tire
6.67 ft
2033.00 mm
Rack Angle at Full Lift
50°
Dump Angle at Full Lift
48°
Rack Angle at Carry
54°
Departure Angle - Degrees
30°
Articulation Angle - Degrees
39°
Operating Weight: Bucket ^
14752.00 lb
6691.00 kg
Tipping Load – Straight – ISO 14397-1 †
9581.00 lb
4347.00 kg
Tipping Load – Full Turn – ISO 14397-1 †
8141.00 lb
3693.00 kg
Operating Weight: Carriage and Tines ^^
14391.00 lb
6530.00 kg
Tipping Load - Straight †
9753.00 lb
4424.00 kg
80% of Tip: Firm and Level EN474-3 ††
5438.00 lb
2468.00 kg
Note (1)
*Vary with bucket
Note (2)
**Vary with tire
Note (3)
^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)
^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)
†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)
††Full compliance to EN474-3 and SAE J1197.
Note (7)
#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)
Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)
Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Tipping Load - Full Turn - ISO 14397-1†
6800.00 lb
3085.00 kg
Length: Front Axle to Front of Coupler
4.75 ft
1436.00 mm

Dimensions - High Lift - With HPL-V Coupler - Approximate#

Height: Ground to Cab**
8.75 ft
2670.00 mm
Height: Ground to Beacon**
9.33 ft
2849.00 mm
Height: Ground Axle Center**
1.67 ft
519.00 mm
Height: Ground Clearance**
1.00 ft
320.00 mm
Length: Overall*
19.67 ft
6000.00 mm
Length: Rear Axle to Bumper
4.50 ft
1391.00 mm
Length: Hitch to Front Axle
3.50 ft
1085.00 mm
Length: Wheel Base
7.08 ft
2170.00 mm
Clearance: Bucket at 45° *
10.92 ft
3338.00 mm
Clearance: Load over Height**
10.75 ft
3282.00 mm
Clearance: Level Bucket**
12.08 ft
3693.00 mm
Height: Bucket Pin**
12.75 ft
3898.00 mm
Height: Overall**
15.67 ft
4769.00 mm
Reach: Bucket at 45° *
3.25 ft
990.00 mm
Carry Height: Bucket Pin
1.17 ft
367.00 mm
Dig Depth**
0.33 ft
109.00 mm
Width: Bucket
6.75 ft
2045.00 mm
Width: Tread Center
5.08 ft
1570.00 mm
Turning Radius: Over Bucket
15.83 ft
4825.00 mm
Width: Over Tires
6.67 ft
2021.00 mm
Turning Radius: Outside of Tires
13.17 ft
4005.00 mm
Turning Radius: Inside of Tires
6.50 ft
1981.00 mm
Rack Angle at Full Lift
69°
Dump Angle at Full Lift
40°
Rack Angle at Carry
48°
Departure Angle - Degrees
30°
Articulation Angle - Degrees
39°
Operating Weight: Bucket ^
14848.00 lb
6735.00 kg
Tipping Load - Straight - ISO 14397-1 †
9187.00 lb
4167.00 kg
Tipping Load - Full Turn - ISO 14397-1 †
7645.00 lb
3468.00 kg
Operating Weight: Carriage and Tines ^^
14542.00 lb
6596.00 kg
Tipping Load - Straight †
9187.00 lb
4167.00 kg
80% of Tip: Firm and Level EN474-3 ††
4706.00 lb
2135.00 kg
Note (1)
*Vary with bucket
Note (2)
**Vary with tire
Note (3)
^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)
^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)
†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)
††Full compliance to EN474-3 and SAE J1197.
Note (7)
#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)
Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)
Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9

Dimensions - High Lift - With SSL Coupler - Approximate

Height: Ground to Cab**
8.75 ft
2670.00 mm
Height: Ground to Beacon**
9.33 ft
2849.00 mm
Height: Ground Axle Center**
1.67 ft
519.00 mm
Height: Ground Clearance**
1.00 ft
320.00 mm
Length: Overall*
20.17 ft
6157.00 mm
Length: Rear Axle to Bumper
4.50 ft
1391.00 mm
Length: Hitch to Front Axle
3.50 ft
1085.00 mm
Length: Wheel Base
7.08 ft
2170.00 mm
Clearance: Bucket at 45° *
10.42 ft
3181.00 mm
Clearance: Load over Height**
10.75 ft
3282.00 mm
Clearance: Level Bucket**
12.08 ft
3684.00 mm
Height: Bucket Pin**
12.75 ft
3898.00 mm
Height: Overall**
15.92 ft
4859.00 mm
Reach: Bucket at 45° *
3.42 ft
1048.00 mm
Carry Height: Bucket Pin
1.25 ft
388.00 mm
Dig Depth**
0.42 ft
117.00 mm
Width: Bucket
6.75 ft
2045.00 mm
Width: Tread Center
5.08 ft
1570.00 mm
Turning Radius: Over Bucket
16.17 ft
4919.00 mm
Width: Over Tires
6.67 ft
2021.00 mm
Turning Radius: Outside of Tires
13.17 ft
4005.00 mm
Turning Radius: Inside of Tires
6.50 ft
1981.00 mm
Rack Angle at Full Lift
66°
Dump Angle at Full Lift
40°
Rack Angle at Carry
42°
Departure Angle - Degrees
30°
Articulation Angle - Degrees
39°
Operating Weight: Bucket ^
15070.00 lb
6836.00 kg
Tipping Load - Straight - ISO 14397-1 †
8385.00 lb
3803.00 kg
Tipping Load - Full Turn - ISO 14397-1 †
6943.00 lb
3149.00 kg
Operating Weight: Carriage and Tines ^^
14714.00 lb
6674.00 kg
Tipping Load - Straight †
8385.00 lb
3803.00 kg
80% of Tip: Firm and Level EN474-3 ††
4375.00 lb
1984.00 kg
Note (1)
*Vary with bucket
Note (2)
**Vary with tire
Note (3)
^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4)
^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)
†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)
††Full compliance to EN474-3 and SAE J1197.
Note (7)
#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)
Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)
Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9

Sustainability

Recyclability
93%
Features

CONFIGURED FOR SUCCESS

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has ahigh torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand or emit equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

ENJOY ALL DAY COMFORT

  • All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
  • Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.

EFFICIENTLY POWERFUL

  • Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
  • “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.

WORK MADE EASY

  • All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.

CUSTOMIZE YOUR EXPERIENCE

  • Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
  • Machine security is enhanced with a standard keycode or optional Bluetooth® technology.

PURPOSE BUILT SPECIALTY MODELS

  • Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
  • The 908 is availble with the following specific handler arrangements: Ag Handler and Waste Handler

AFTERMARKET AND SERVICES

  • Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
  • Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
  • Integrated Technology available to reduce service costs and maintenance.

SUSTAINABILITY

  • The Cat® C2.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
  • Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
  • Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
  • Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
  • Efficient HVAC regulates temperature control. No need to leave the machine running to cool the cab.
  • Shift on the go transmission, means no need to stop so you keep your momentum.
Standard Equipment
  • POWER TRAIN
    • Emissions compliant, two options (Dependent on regional regulations.)
      – U.S. EPA Tier 4 Final and EU Stage V
      – U.S. EPA Tier 3 and EU Stage IIIA equivalent
    • Cat C2.8 engine
      – Diesel particulate filter (Fit for Life) or muffler (Dependent on regional regulations.)
      – Fuel, diesel, ultra low or low Sulphur (Dependent on regional regulations.)
      – Hydrostatic transmission, two speed, with inching function, “shift on the go”
      – Power train mode, hystat
    • Air cleaner, two stage filter, with in cab audio/visual indicator on display
    • Axles, heavy duty, frame mounted with outboard planetary reduction
    • Closed circuit breather
    • Coolant, extended life, –36° C (–33° F)
    • Drive shaft, sealed for life, universal joints
    • Engine, auto idle shutdown, hibernation mode
    • Engine oil, ECO drain tap and hose
    • Fuel pump, priming (manual)/water separator/drain
  • HYDRAULICS
    • Hydraulic pilot shut off switch, in cab
    • Electro-hydraulic, fully proportional controls
    • Dead engine lower, lift valve, manual
    • Demand cooling fan, hydraulically drive
    • Coupler/pin on attachment ready
    • Caterpillar HYDO™ Advanced 10 hydraulic oil
    • Hystat displacement pump, infinitely variable
    • Implement valve, pressure compensated
    • Joystick, single lever, single auxiliary roller
    • Multi-function lift and tilt with loader arm float
    • Motor, single drive with dedicated implement and steering pumps
  • ELECTRICAL
    • Alternator, 100 amp sealed
    • Battery, heavy duty, 12V, 90Ah and 1,000 CCA
    • Battery disconnect switch
    • Cab mounted fuse panel
    • Lights, rear stop and turn, LED
    • Lights, roading, front halogen
    • Service (Electronic Technician™)
    • Product Link™
  • OPERATOR ENVIRONMENT
    • ROPS/FOPS certified canopy/cab
      – 12V power outlets, interior/exterior
      – Pedals, raised, foot, brake/inching, accelerator
      – Lever, parking brake
      – Cup holders (2)
      – CB radio clip, phone holder
      – Door release, internal (left and right)
      – Hook, large, coat and hard hat
      – Floormat, heavy duty, easy clean
      – Mirrors, (2) external breakaway, (1) internal
      – Operator station on isolation mounts
      – Steering wheel, spinner knob, horn in center
      – Seat belt, orange, retractable, 51 mm (2 in)
      – Storage, personal (trays [3], seat pocket)
      – Steering column, tilt adjusted
      – Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
      – Quick coupler switch, in cab
    • Display, analog and digital
      – Gauges (2), hydraulic oil, engine coolant
      – Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages)
    • Joystick, seat mounted, standard multifunction
      – FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
      – Arm rest, padded right, multiple position vertical height
    • Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
    • Cab
      – Doors (2), fixed glass
      – Wipers, front and rear, full front coverage
      – Windshield, front single piece
      – Window, rear heated
      – Radio ready, speakers and wiring
      – Air vents, (4) screen, (7) directional
      – Heating, mechanical control unit
      – Sun visor, solid, front full width
      – Interior light (incandescent)
  • OTHER
    • Fenders, front and rear
    • Ground level easy access daily service points
    • Loader arm safety brace
    • Lockable main and side engine enclosures
    • Lockable, fuel cap, HVAC filters, nose cone
    • Machine lifting/tie down points
    • Paint, Electro-Coat primer, gloss topcoat
    • Recovery hitch with pin
    • Scheduled Oil Sampling (S·O·S℠) ports, engine oil and hydraulic oil
Optional Equipment
  • POWER TRAIN
    • Antifreeze, extended life coolant, –50° C (–58° F)
    • Cold start – jacket water heater, bypass valve
    • Creep and throttle lock function
    • Fuel pump, priming, electric (Dependent on regional regulations.)
    • 40 km/h (25 mph) hydrostatic transmission, 3-speed, “shift on the go”, secondary steering and boosted brakes
    • Power train mode, utility (includes keypad)
  • ELECTRICAL
    • Lighting packages, multiple; front, rear, engine bay (LED or HAL)
    • Push to start
    • Work tool wiring harness, (3) in cab switches
  • HYDRAULICS
    • Auxiliary flow, single standard (3) valve, single high flow (3) valve, dual high flow (4) valve
    • Caterpillar Bio HYDO Advanced hydraulic oil
    • Connect under pressure and case drain
    • Ride Control or load check valves*
    • Reversing fan
    • Quick disconnect auxiliary hydraulics
  • OPERATOR STATION
    • Air Conditioning, automatic temperature control (ATC)
    • Doors, sliding windows (left and right)
    • Interior light, door activated
    • Joystick, FNR, twin auxiliary roller, differential lock, horn
    • Joystick, seat mounted, multifunction
    • Mirrors (2) electronically adjustable, heated external, plus lower parabolic mirror
    • Phone holder, spring loaded
    • Radio, FM or digital audio broadcast
    • Seat belt options, multiple
    • Seat packages; deluxe or premium
    • Secondary display, front or rear view camera
    • Soft touch keypad options, 8 or 16 button
    • Storage, lockable box or lockable cooled box
    • Sun visor, rear perforated
    • USB ports (2), interior
  • OTHER
    • Couplers, vertical (SSL), horizontal (HPL-V, HPL-A)
    • Rotary sensors (snubbing, kickouts, parallel)
    • High lift option
