Material Handling Arms - Loader

Material Handling Arm For Compact Products

Request A Quote New and Used Inventory

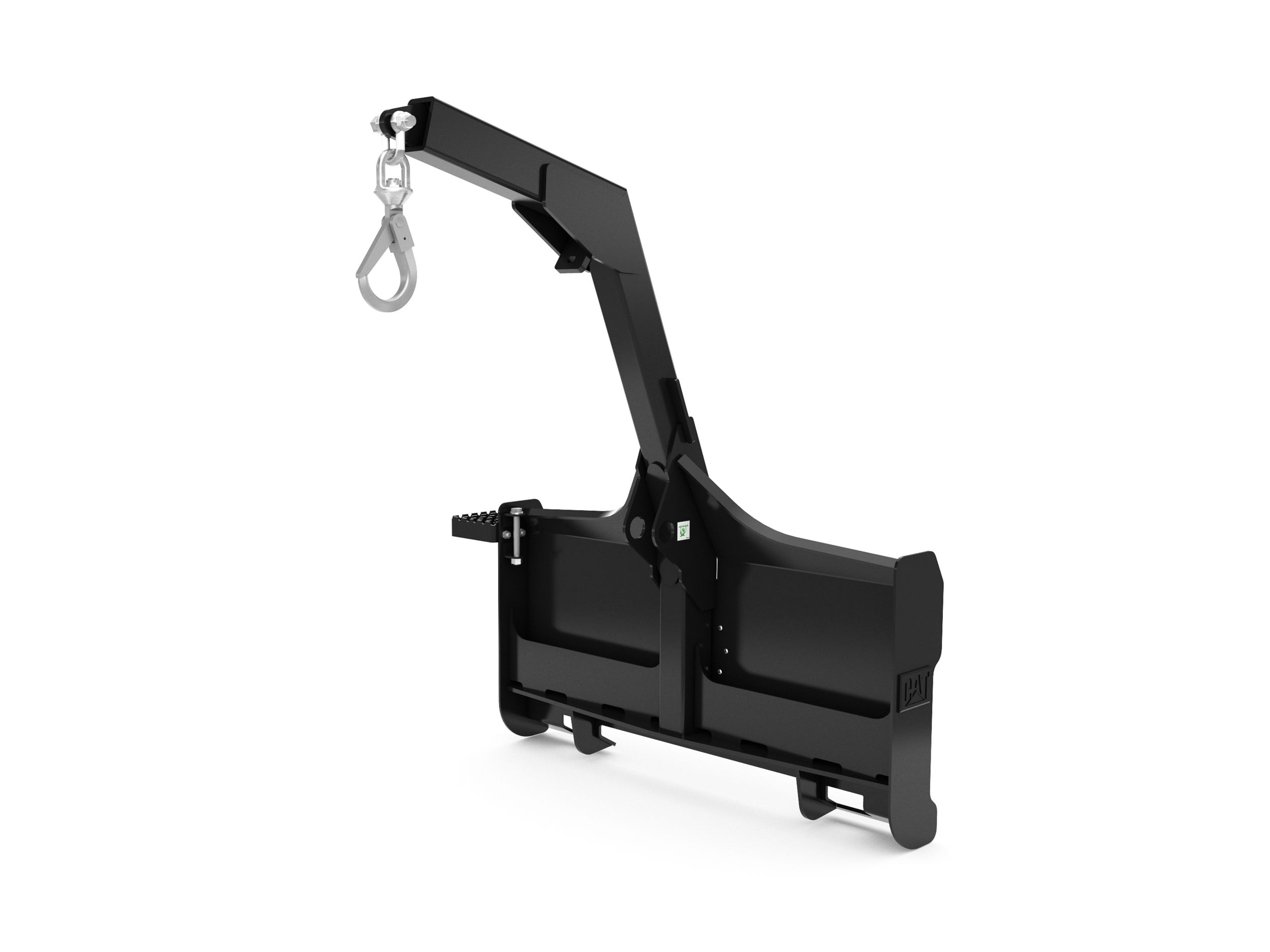

Studio Shot

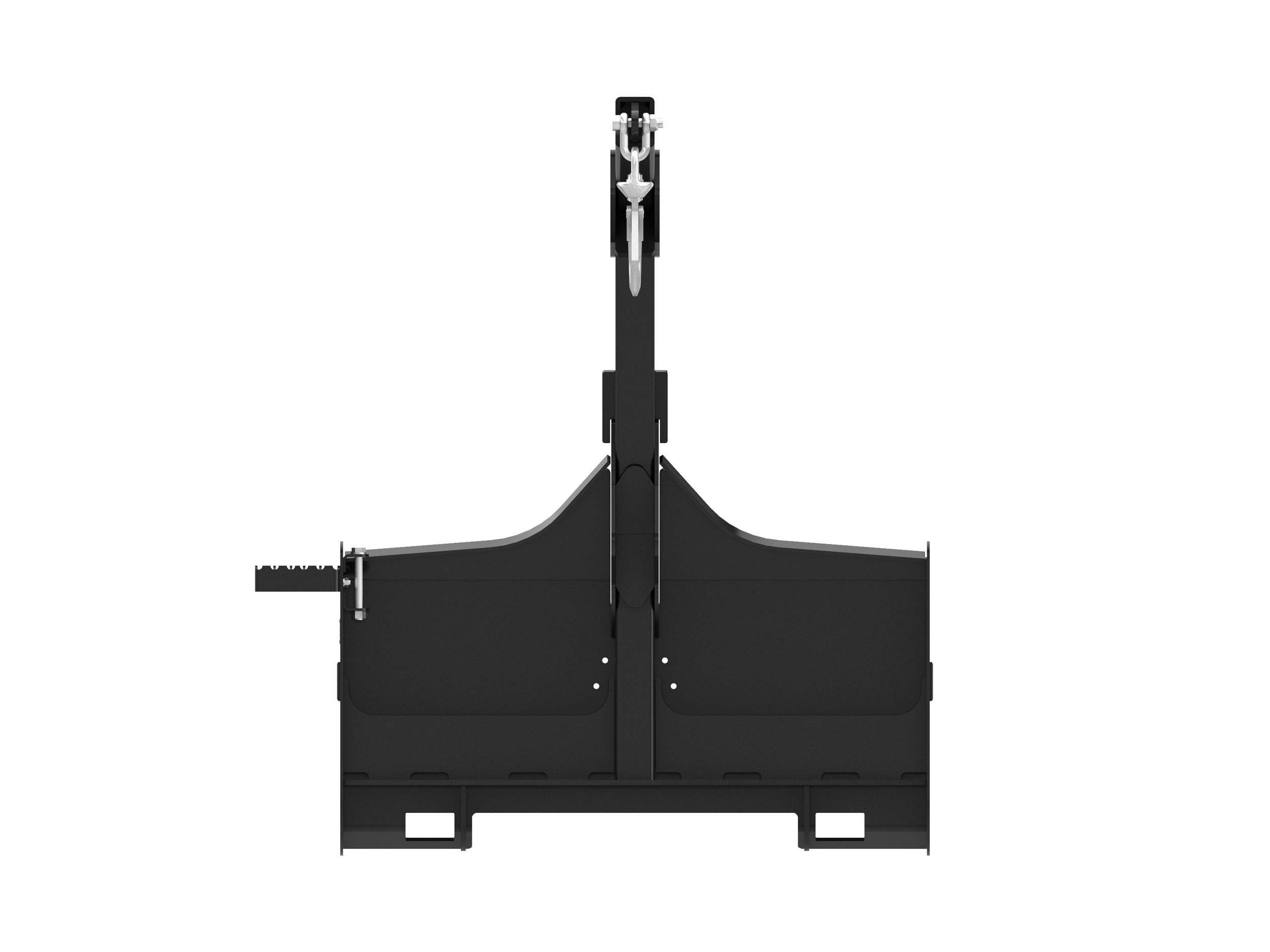

Front View

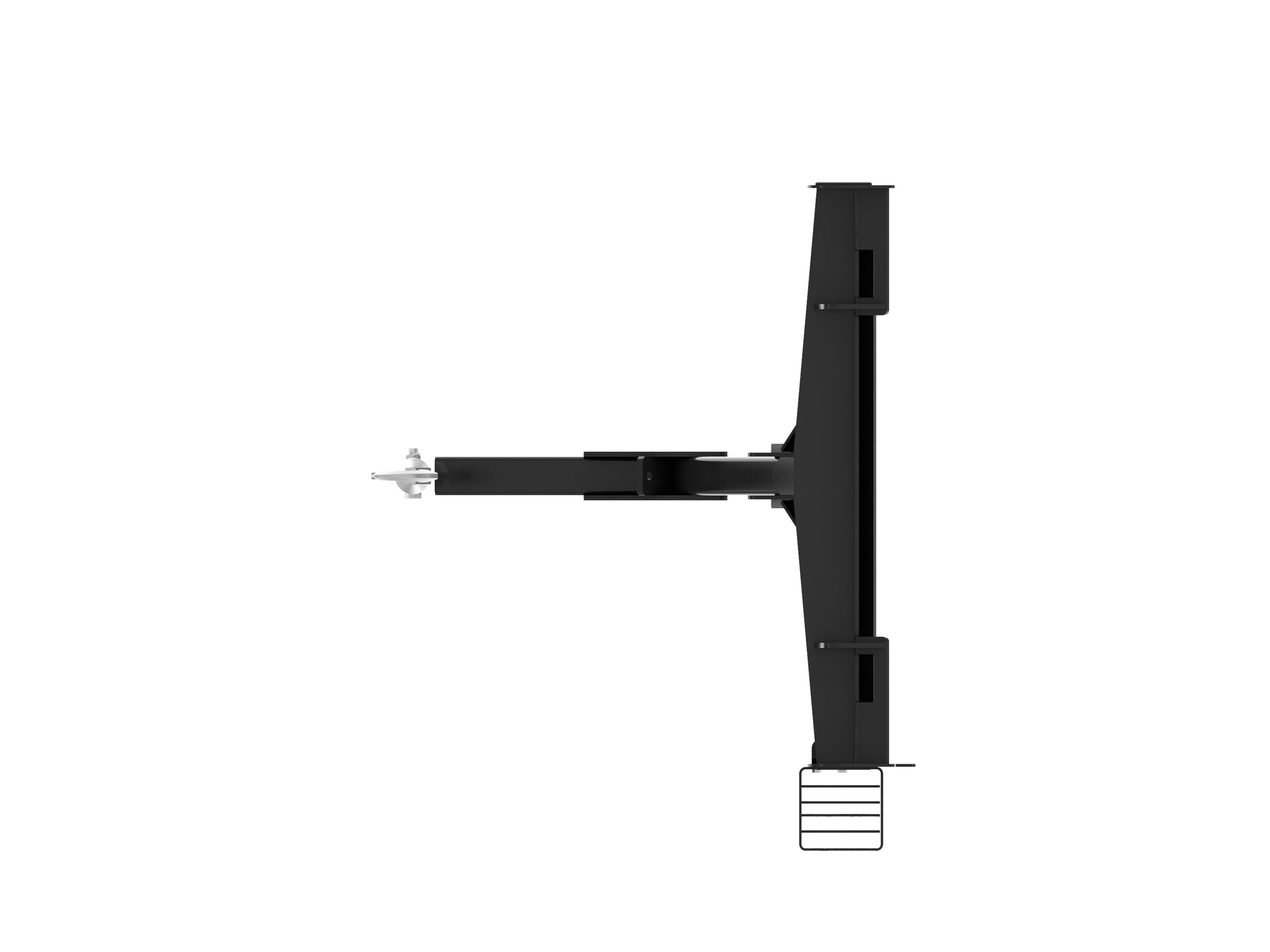

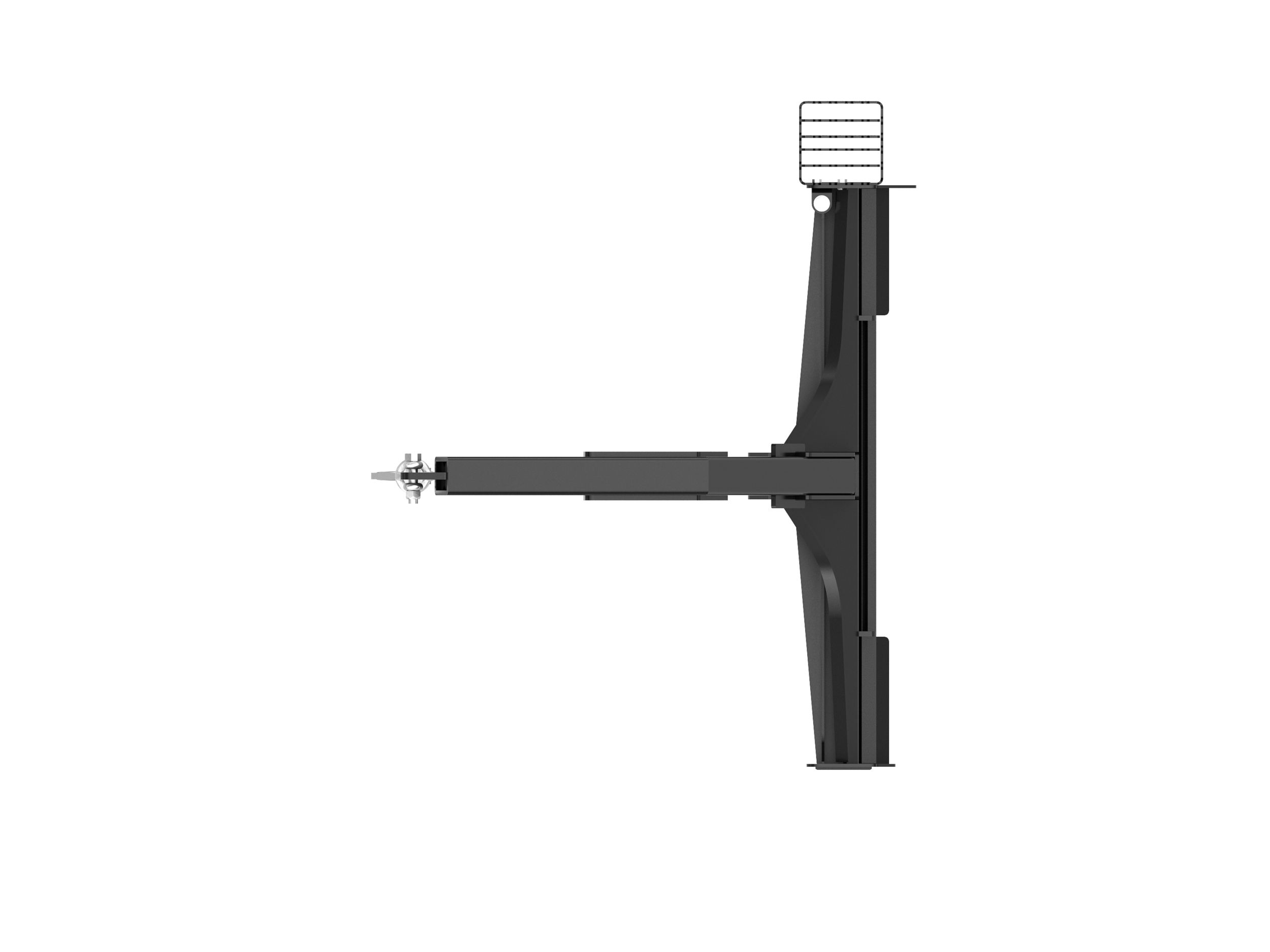

Top View

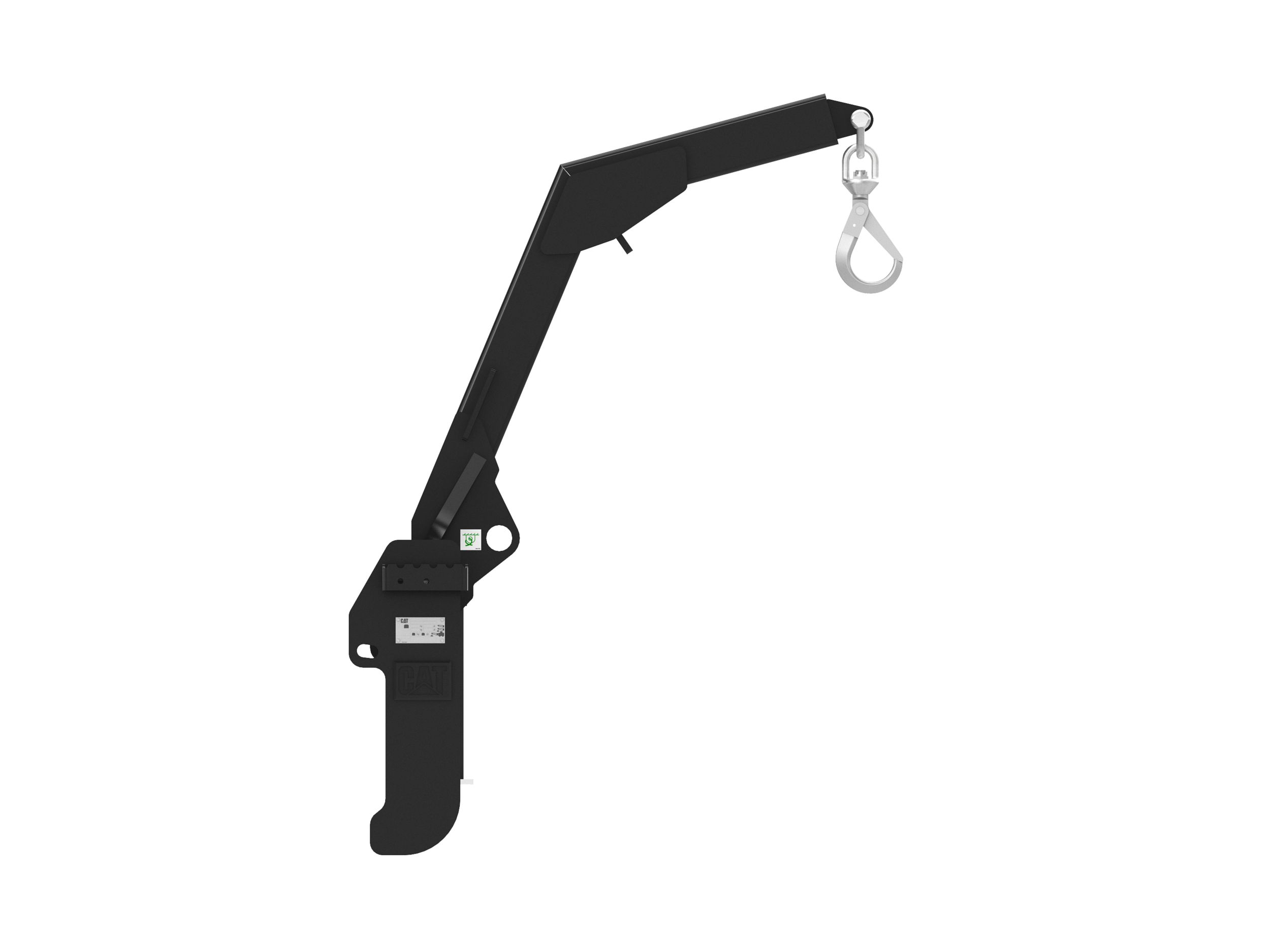

Left View

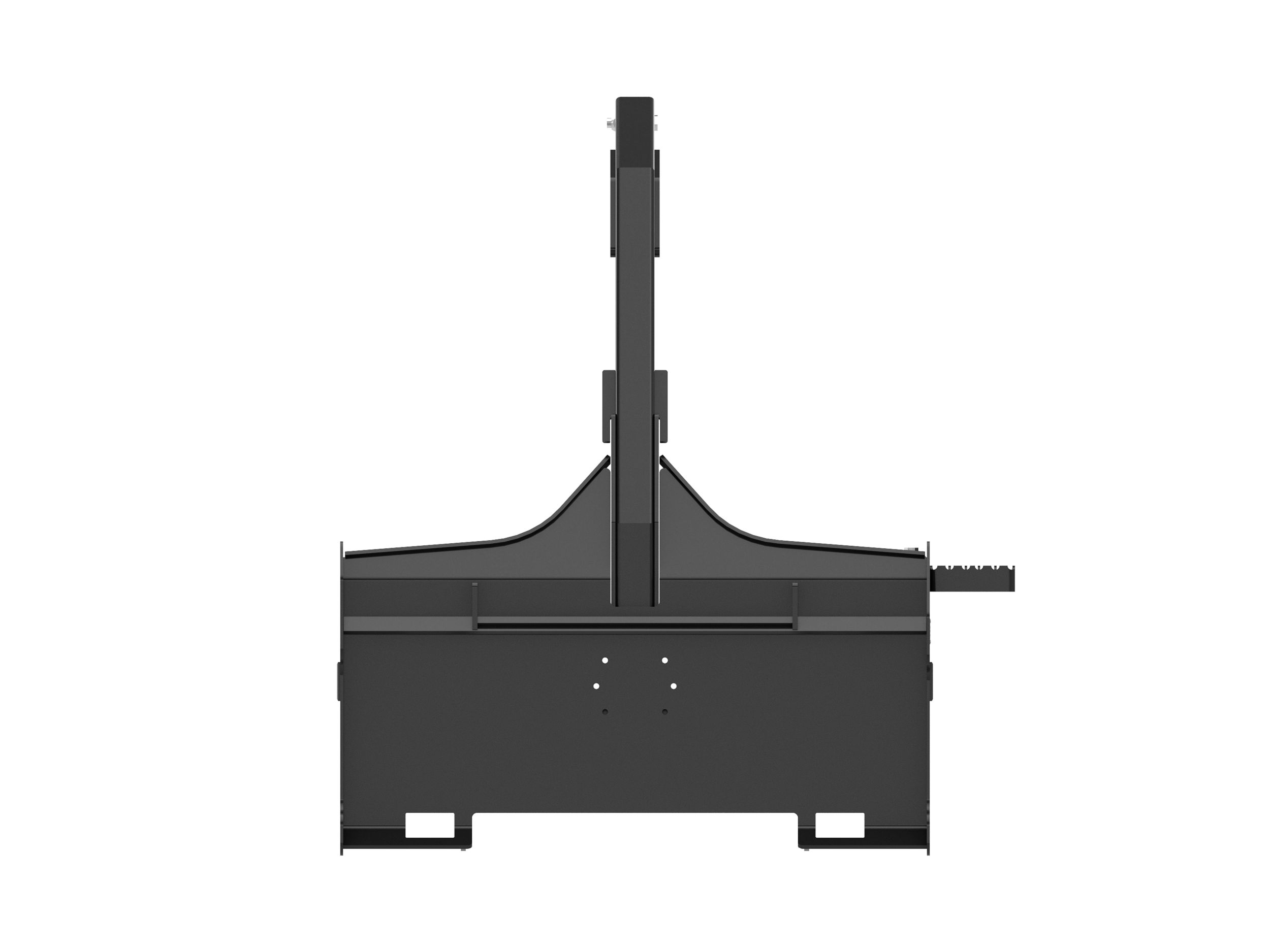

Rear View
Bottom View

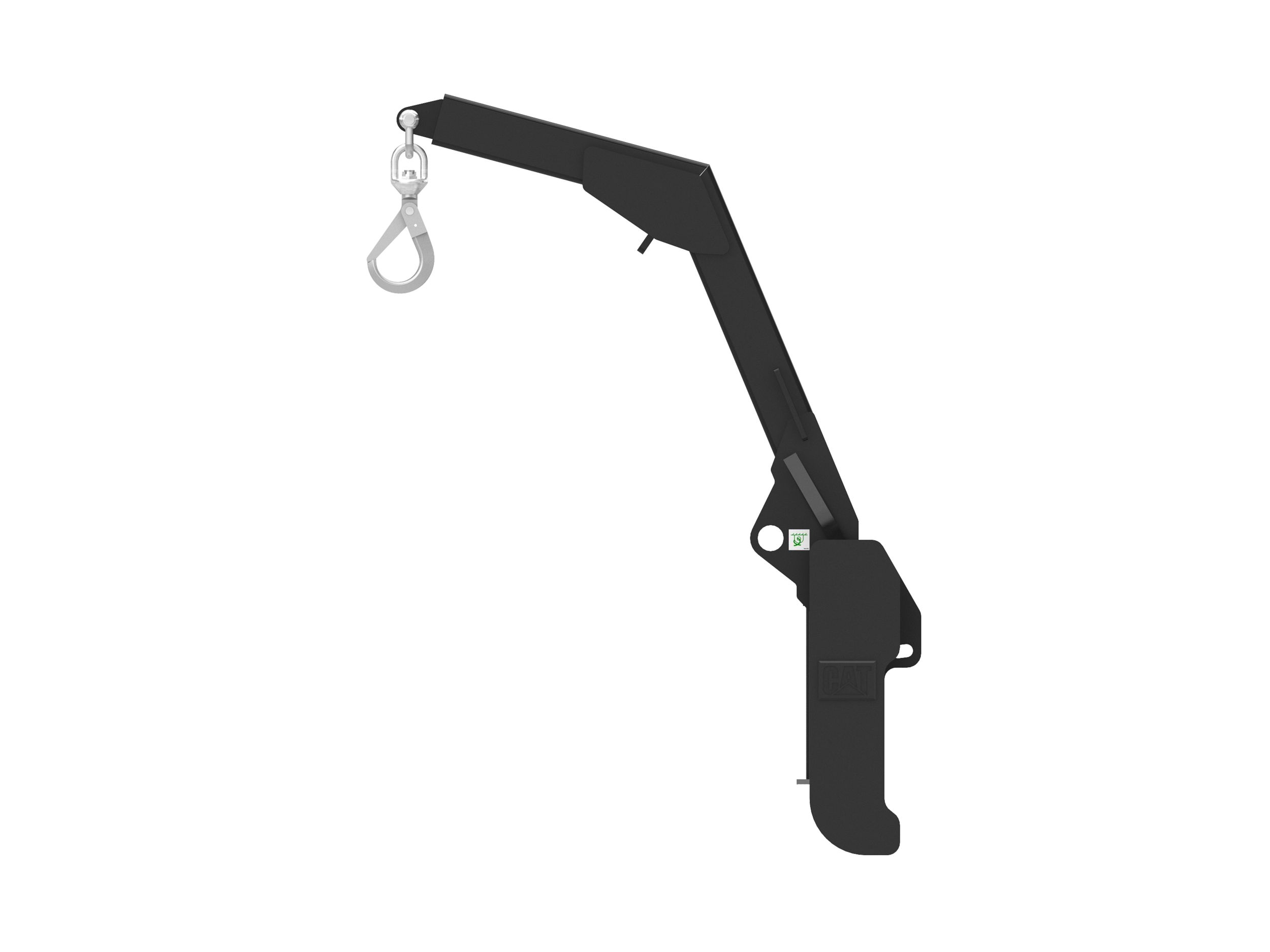

Right View
US
Metric

Overview

The Cat® Material Handling Arm for compact products is a useful tool for virtually all types of applications, including industrial, construction and agricultural, to pick, carry and load a variety of materials and equipment. The heavy duty design is also well suited for landscaping to load, carry and set trees and large shrubs.
Overall Width
51.80 in
1316.00 mm
Maximum Load Rating
1999.60 lb
907.00 kg
Maximum Horizontal Reach
84.00 in
2134.00 mm
Weight
280.00 lb
127.00 kg
Overall Height
58.00 in
1473.00 mm
Retracted Length
40.00 in
1016.00 mm
Interface Type
Skid Steer Coupler
Features

Application

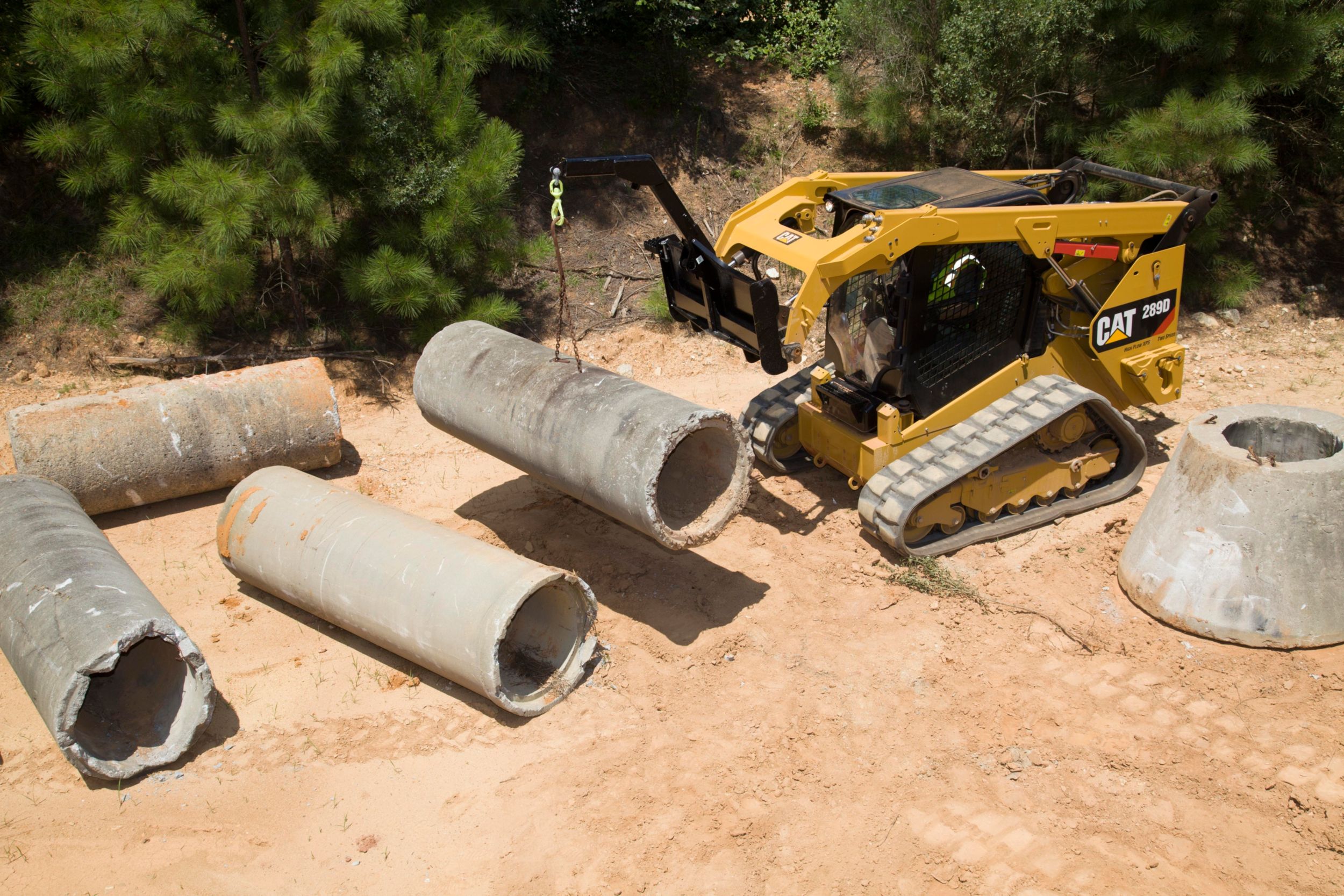

Designed to pick up, carry and load a variety of materials and equipment. Also well suited for loading, carrying and setting trees and large shrubs in landscaping applications.

Multi-Angled Boom

Single, multi-angled boom provides excellent visibility to the load.

Two Lift Points

Two lift points, one at the far end of the boom and one closer to the machine mid point, offer excellent reach plus load and carry capabilities.

Two Storage Compartments

Two compartments on the front arm provide ample storage for chains and hooks.

Dual Tie-Down Holes

Dual tie-down holes provide load support during transport.

Heavy-Duty Locking Clasp

Heavy-duty locking clasp swivels a full 360° and can be used at either lift point.

Serrated Step

Serrated bolt-on step provides safe ingress and egress from machine cab and is replaceable if damaged.
