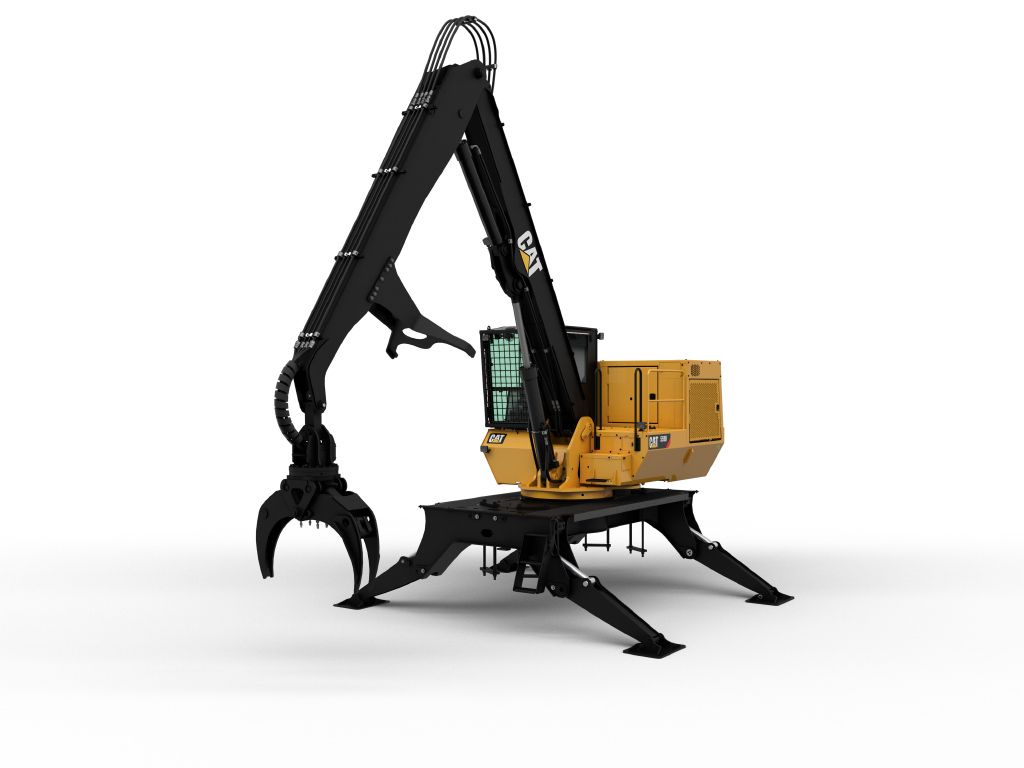

559D Knuckleboom Loader
US
Metric
Overview
Engine
Gross Power
173.00 hp
129.30 kW
Engine Model
Cat C4.4 ACERT
Gross Power at 1,800 rpm
173.00 hp
129.30 kW
Operating Specifications
Knuckleboom Length
32.00 ft
9.80 m
Swing Speed
11.00 rpm
11.00 rpm
Maximum Reach - Standard Boom
32.00 ft
9.80 m
Note
*Theoretical
Swing Bearing - Diameter - Ball Path
43.50 in
1105.00 mm
Swing Torque*
49173.00 ft·lbf
66870.00 N·m
Tail Swing
106.00 in
2692.00 mm
Weights
Operating Weight
33800.00 lb
15331.00 kg
Operating Weight - Without Grapple
33800.00 lb
15331.00 kg
Counterweight
N/A
Hydraulic System
Cylinders – Main
one
Cylinders – Stick
one
Hydraulic Pressure – Swing
3625.00 psi
24994.00 kPa
Hydraulic Pressure – System
3625.00 psi
24994.00 kPa
Cylinders - Stabilizers
four
Hydraulic Oil Flow at 1,800 rpm
230/174 L/min (60/46 gal/min)
Service Refill Capacities
Fuel Tank
100.00 gal
378.00 L
Hydraulic Tank
80.00 gal
302.00 L
Engine Oil
2.10 gal
8.00 L
Cooling System
7.50 gal
29.00 L
Swing Drive
1.00 gal
4.00 L
Dimensions
Stabilizer Pad Size
508 × 711 mm (20 × 28 in)
Stabilizer Reach Below Grade
17.00 in
433.00 mm
Stabilizer Spread - Maximum Down Reach
166.80 in
4237.00 mm
Stabilizer Spread - Grade
187.30 in
4758.00 mm
Height to Top of Cab
157.60 in
4003.00 mm
Standards
OFPS
OFPS cab meets SAE J2267
Shipping Dimensions - Mounted Trailer
Width
101.30 in
2573.00 mm
Height
157.60 in
4003.00 mm
Service Refill Capacities
DEF Tank
5.00 gal
19.00 L
Dimensions
Note
559D dimensions are on non-suspension trailer.
GLK Series Grapples - GLK55
Height - Open - Excluding Rotation
46.70 in
1186.00 mm
Height - Open - Including Rotation
68.00 in
1724.00 mm
Weight - Excluding Rotation
1411.00 lb
640.00 kg
Weight - Including Rotation
1911.00 lb
867.00 kg
Area (tip to tip)
3.80 ft²
1.15 m²
Open
54.00 in
1372.00 mm
Close
5.00 in
127.00 mm
Note
All specifications are approximate.
GLK Series Grapples - GLK48
Height - Open - Excluding Rotation
45.10 in
1146.00 mm
Height - Open - Including Rotation
66.00 in
1685.00 mm
Weight - Excluding Rotation
1407.00 lb
638.00 kg
Weight - Including Rotation
1907.00 lb
865.00 kg
Area (tip to tip)
3.00 ft²
0.91 m²
Open
48.00 in
1219.00 mm
Close
4.50 in
114.00 mm
Note
All specifications are approximate.
Engine
Gross Power
173.00 HP
129.30 kW
Engine Model
Cat C4.4 ACERT
Gross Power - 1,800 rpm
173.00 HP
129.30 kW
Weights
Operating Weight
33800.00 lb
15331.00 kg
Operating Specifications
Knuckleboom Length
32.00 ft
9.80 m
Swing Speed
11.00 r/min
11.00 r/min
Note
*Theoretical
Service Refill Capacities
Hydraulic Tank
80.00 gal (US)
302.00 l
Fuel Tank
100.00 gal (US)
378.00 l
Cooling System
7.50 gal (US)
29.00 l
Engine Oil
2.10 gal (US)
8.00 l
Swing Drive
1.00 gal (US)
4.00 l
Hydraulic System
Cylinders - Main
one
Cylinders - Stick
one
Hydraulic Pressure - Swing
3625.00 psi
24994.00 kPa
Hydraulic Pressure - System
3625.00 psi
24994.00 kPa
Dimensions
Height - Top of Cab
157.60 in
4003.00 mm
Note
559D dimensions are on non-suspension trailer.
Service Refill Capacities
DEF Tank
5.00 gal (US)
19.00 l
Features
Performance
- The Cat® C4.4 ACERT™ U.S. EPA Tier 4 Final engine provides equivalent power (129.3 kW/173 hp) and optimized performance compared to C Series while minimizing overall fluid consumption
- Advanced controls manage pump and engine interface to optimize performance and fuel efficiency
- Leading hydraulic multi-functioning capability enables operator to lift, swing, and rotate grapple simultaneously without impairing performance
Efficiency
- Auto idle minimizes fuel consumption when machine is on and not actively working
- High capacity cooling system only pulls in cool external air to maximize efficiency
- Electrically controlled variable speed fan is modulated to provide cooling only as required, reducing fluid consumption
Comfort
- Smooth hydraulic controls and superior balance provide market leading comfort and controllability
- High capacity HVAC system provides dependable cooling and heating for maximum comfort
- Improved stabilizer controls to equalize stabilizer actuation resulting in optimized uniformity of footing in varying ground conditions
Safety
- Stabilizer movement alarm alerts bystanders of stabilizer movement
- Pilot enable alarm alerts bystanders when pilot function is engaged
- Ground level access of engine, fuel, pilot, and case drain filters as well as electrical service box
Durability
- Reinforced fabricated booms with optimized cross sections designed to withstand heavy side-to-side delimbing applications and maximize lift capability
- Field proven cooling system keeps engine and robust hydraulic system cool, extending component life
- Larger diameter pins feature heavy-duty plating for improved durability and excluder seals to retain grease and keep free of SP contaminant
Serviceability
- Single cylinder main boom has fewer parts to service than traditional dual cylinder lift system
- Standard electric fill pump for hydraulic oil is at ground level for safe, easy service
- Hinged doors provide industry-leading access to core components, daily check points, and service locations
Cat Work Tools
- Optimized Cat XT™-6 ToughGuard™ hose routings on GLK Series grapple designed to minimize loosening of fittings and improve hose life
- Larger GLK Series cylinder pins and bushings reduce bearing stress by 25 percent
- Available now in both a TW “Tapered Wide” and SN “Straight Narrow,” the GLK Series grapple is suitable for additional applications
- Standard hold valves on GLK Series log grapples improve log retention
- GLK Series grapples feature optional three port swivel which allows mounting of grapple saw
- DLK426 delimber knives now have larger diameter pins that reduce bearing stress by 12 percent
