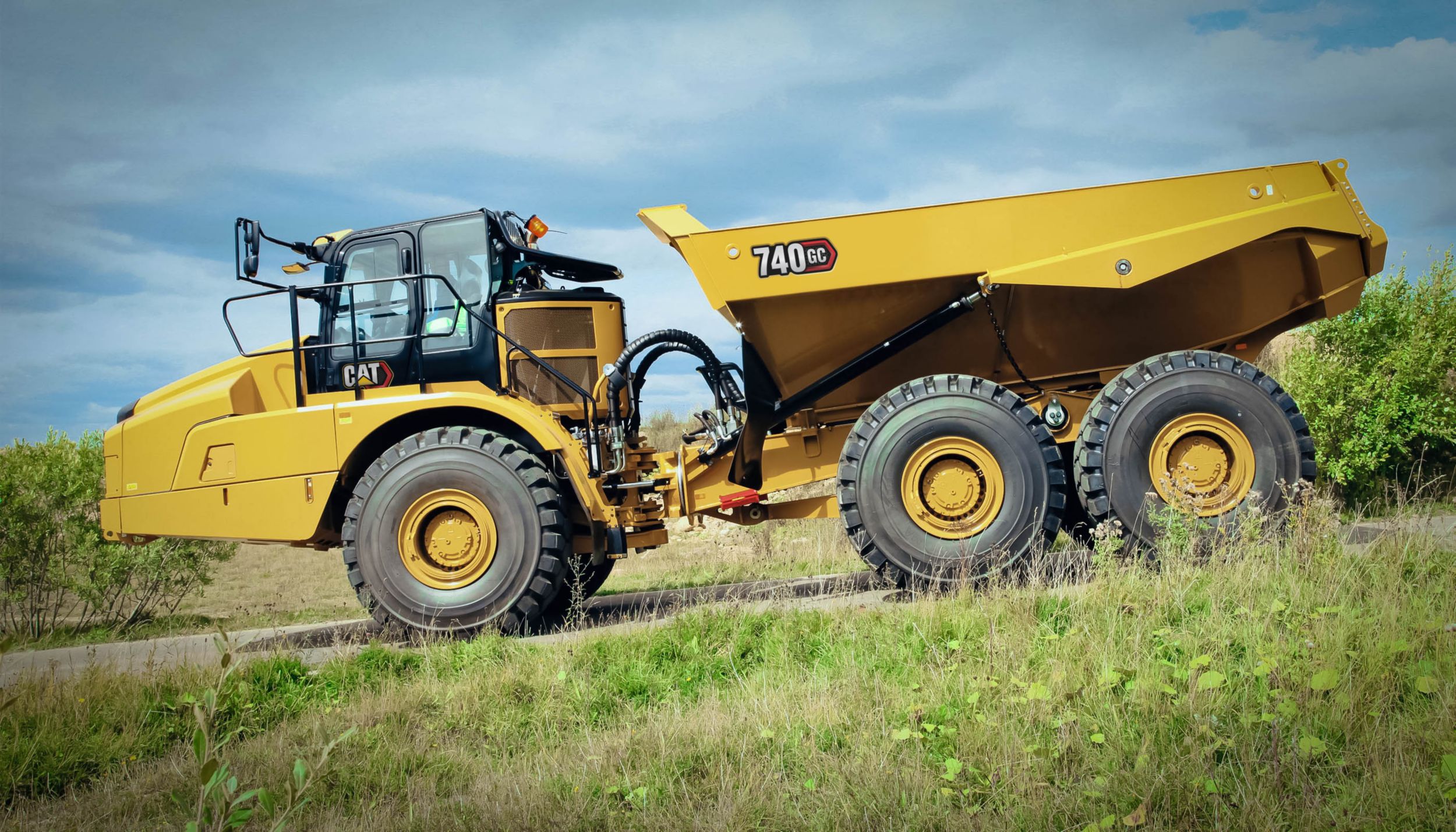

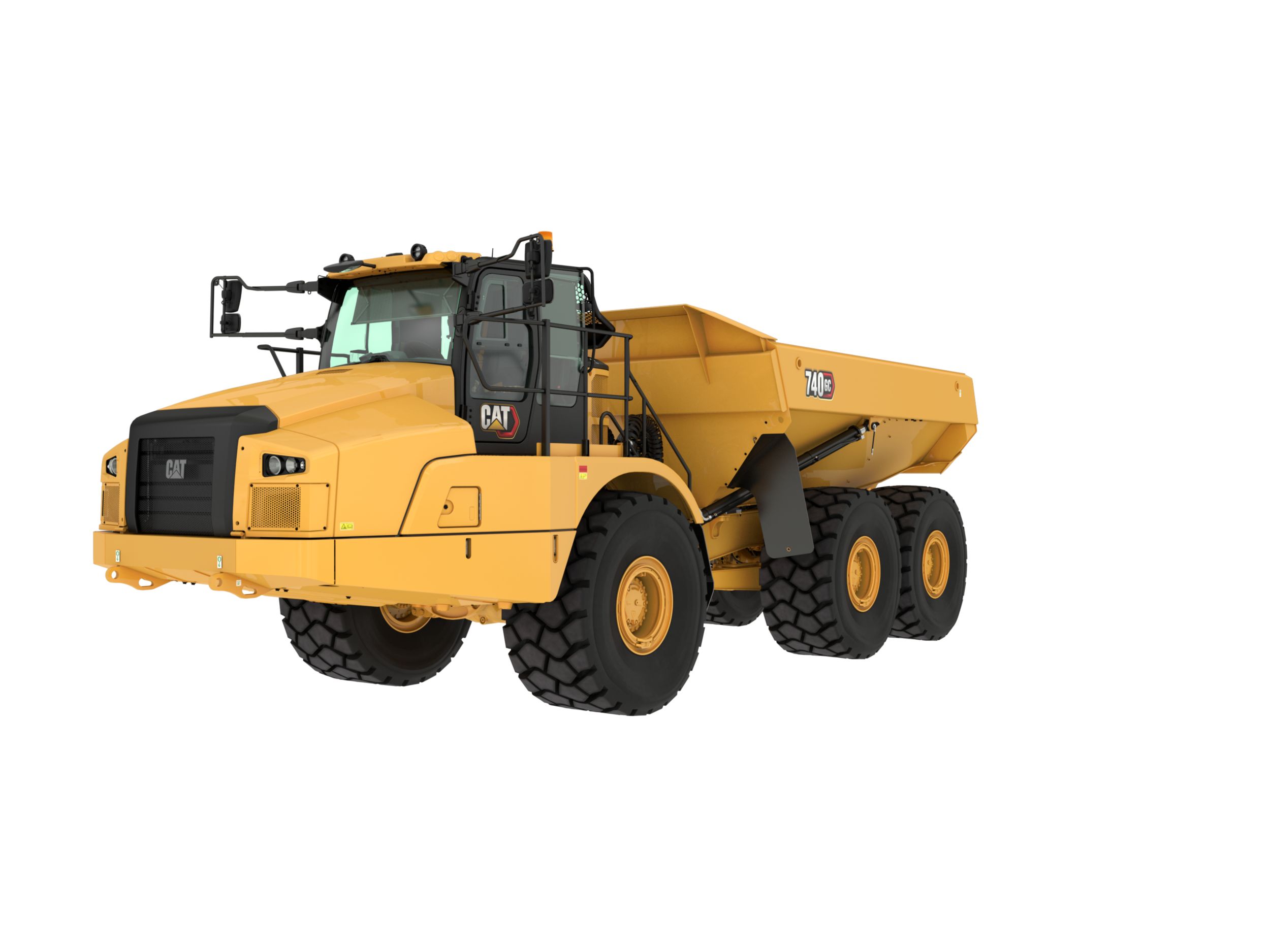

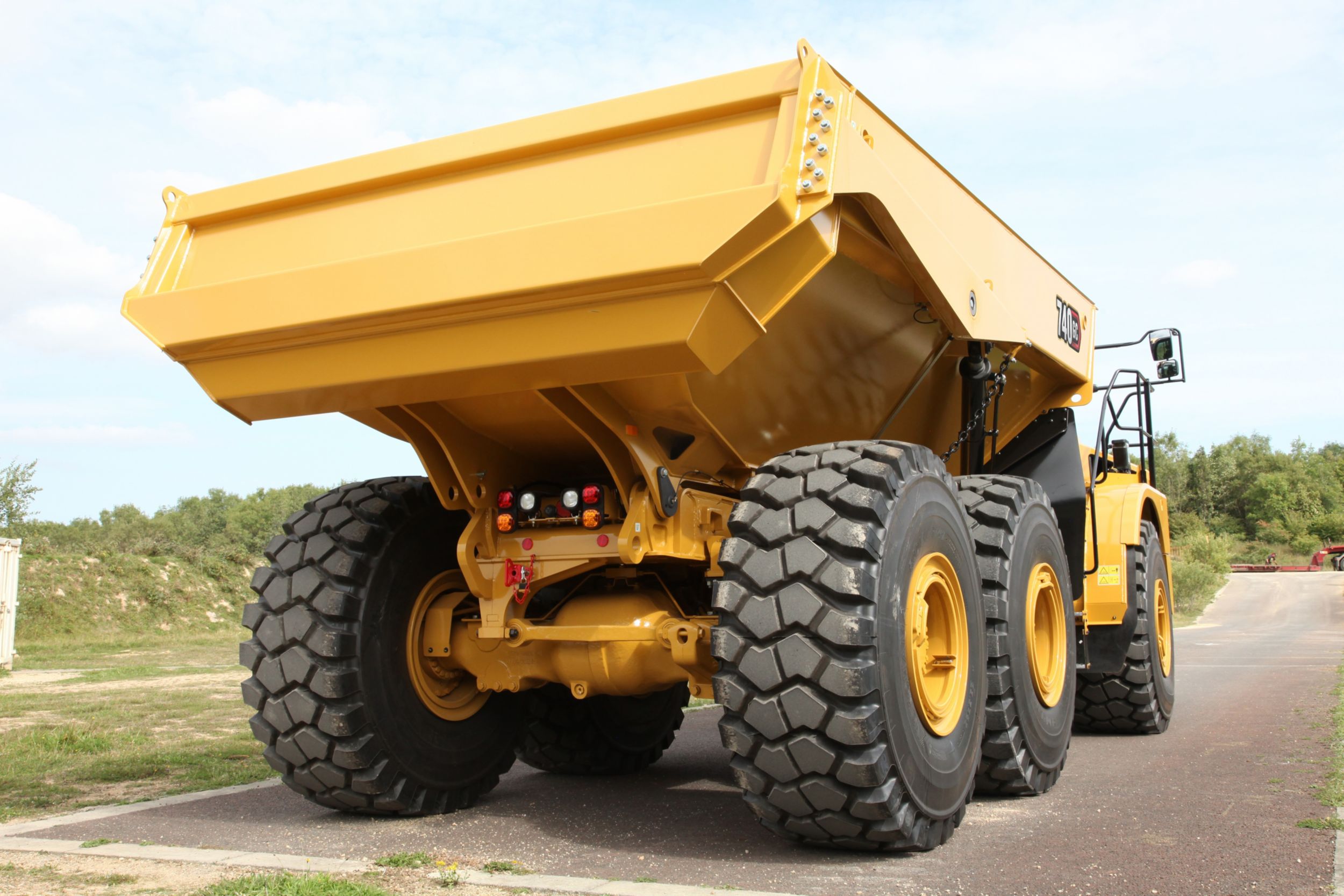

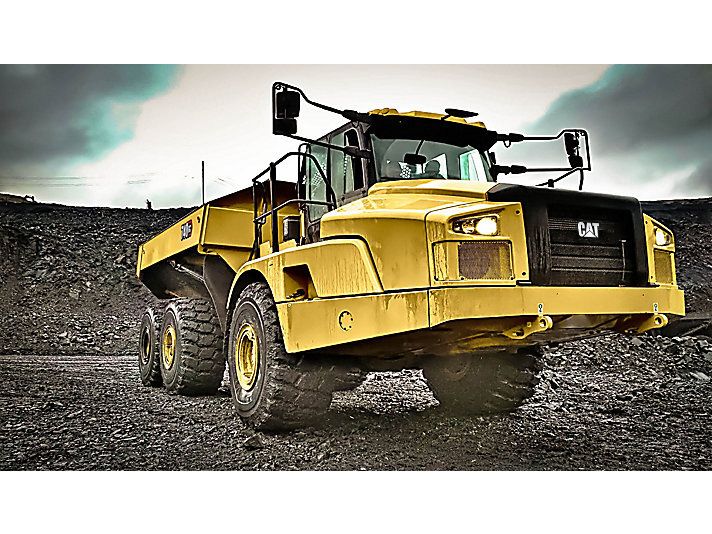

740 GC Articulated Truck
US
Metric
Overview
The Cat 740 GC with a 22.7 m³ (29.7 yd³)/36.3 tonne (40 ton) capacity, offers reliability, durability and efficient performance, including the latest, world-class operator’s station found on other Cat Articulated Trucks. The 740 GC offers a highly efficient value proposition within the 40 ton AT size class. Automated, assisted and intuitive controls bring Safety and Ease of Operation to the forefront – helping reduce operator workload and training. Ideally matched to popular loading tools, the 740 GC is a productive machine in any fleet.
Engine
Note (5)
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
Engine Model
Cat® C15
Bore
5.40 in
137.00 mm
Stroke
6.75 in
171.50 mm
Displacement
926.00 in³
15.20 l
Emissions
The C15 engine meets Tier 4 Final and Stage V emission standards.
Engine Model - U.S. EPA Tier 4 Final/EU Stage V
Cat C15
Gross Power - SAE J1995
452.00 hp
337.00 kW
Net Power - ISO 14396
447.00 hp
333.00 kW
Net Power - SAE J1349
439.00 hp
327.00 kW
No Engine De-rating Below
10000.00 ft
3050.00 m
Peak Engine Torque Gross (SAE J1995)
1711.00 ft·lbf
2320.00 N·m
Peak Engine Torque Net (SAE J1349)
1670.00 ft·lbf
2264.00 N·m
Peak Engine Torque Speed
1200.00 r/min
1200.00 r/min
Weights
Rated Payload
40.00 ton (US)
36.30 t
Body Capacities
Heaped (SAE 2:1)
29.70 yd³
22.70 m³
Struck
23.20 yd³
17.00 m³
Tailgate Heaped SAE 2:1
32.00 yd³
24.50 m³
Tailgate Struck
24.40 yd³
18.70 m³
Transmission
Forward - 1
4.00 mile/h
6.40 km/h
Forward - 2
5.30 mile/h
8.50 km/h
Forward - 3
7.30 mile/h
11.50 km/h
Forward - 4
9.20 mile/h
14.80 km/h
Forward - 5
12.20 mile/h
19.70 km/h
Forward - 6
14.90 mile/h
24.00 km/h
Reverse - 1
4.20 mile/h
6.80 km/h
Forward - 7
20.60 mile/h
33.10 km/h
Forward - 8
24.70 mile/h
39.80 km/h
Forward - 9
35.70 mile/h
57.50 km/h
Reverse - 2
9.80 mile/h
15.70 km/h
Sound Levels
Interior Cab
72.00 dB(A)
72.00 dB(A)
Operating Weights
Center Axle - Empty
14804.00 lb
6715.00 kg
Center Axle - Loaded
51317.00 lb
23277.00 kg
Center Axle - Rated Load
36513.00 lb
16562.00 kg
Front Axle - Empty
43200.00 lb
19595.00 kg
Front Axle - Loaded
50201.00 lb
22771.00 kg
Front Axle - Rated Load
7002.00 lb
3176.00 kg
Rear Axle - Empty
14562.00 lb
6605.00 kg
Rear Axle - Loaded
51074.00 lb
23167.00 kg
Rear Axle - Rated Load
36513.00 lb
16562.00 kg
Total - Empty
72565.00 lb
32915.00 kg
Total - Loaded
152593.00 lb
69215.00 kg
Total - Rated Load
80027.00 lb
36300.00 kg
Service Refill Capacities
Fuel Tank
145.30 gal (US)
550.00 l
Cooling System
23.70 gal (US)
90.00 l
Engine Crankcase
13.70 gal (US)
52.00 l
Axles - Each
15.80 gal (US)
60.00 l
Brake Cooling Tank
17.70 gal (US)
67.00 l
DEF Tank
6.50 gal (US)
25.00 l
Final Drive - Each
1.30 gal (US)
5.00 l
Steering/Hoist Hydraulic System
36.90 gal (US)
140.00 l
Transmission - OTG
19.80 gal (US)
75.00 l

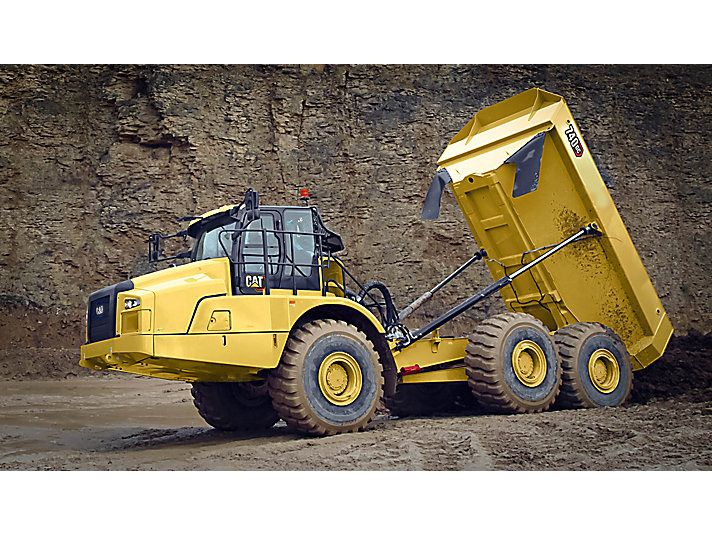

Body Hoist
Raise Time
12.00 s
12.00 s
Lower Time
12.00 s
12.00 s
Steering
Lock to Lock
4.75 seconds @ 60 rpm
Standards
Brakes
ISO 3450 – 2011
Cab - FOPS
ISO 3449 Level II – 2005
Cab - ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2007
Body Plate
Type
High strength Brinell HB450 wear resistant steel
Turning Circle
Note
Dimensions are for machines equipped with 29.5 R25 tires.
Turning Dimensions - Aisle Width
220.00 in
5595.00 mm
Turning Dimensions - Clearance Radius
330.00 in
8395.00 mm
Turning Dimensions - Inside Radius
156.00 in
3960.00 mm
Turning Dimensions - SAE Turning Radius
303.00 in
7698.00 mm
Turning Dimensions - Steer Angle - Left/Right
45°
Body Plate Thickness
Base Plate
0.51 in
13.00 mm
Front Plate
0.28 in
7.00 mm
Side Plates
0.43 in
11.00 mm
Engine
Note (1)
The references to Tier 4 Final/Stage V include U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards.
Note (2)
The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.
Note (3)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note (4)
Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions.
Optimal Loader/Truck Pass Matching
Hydraulic Excavator: 352F - Passes
5–6
Hydraulic Excavator: 374F - Passes
3–4
Note
An optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Wheel Loader: 962M - Passes
5
Wheel Loader: 966M - Passes
4–5
Wheel Loader: 972M - Passes
3
Sound Levels
Note (1)
The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Optimal Loader/Truck Pass Matching
Hydraulic Excavator: 374 - Passes
3-4
Wheel Loader: 972 - Passes
3
Features
MAXIMIZE PERFORMANCE
AUTOMATIC CONTROLS
HEAVY DUTY CONSTRUCTION
OPERATOR COMFORT AND CONTROL
BUILT TO PERFORM
TECHNOLOGY THAT GETS WORK DONE
BECAUSE UPTIME COUNTS
MORE SUSTAINABLE FUTURE
BUILT-IN SAFETY FEATURES
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Heater and defroster with four-speed fan
- Mirrors: extensive arrangement for improved visibility
- Two seats both with seat belts, operator’s retractable
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Operation and Maintenance Manual (OMM)
– Primary steering failure (warning)
– Seat belt warning
– Secondary steering failure
– Diesel Particulate Filter (DPF) regeneration filter
– Machine Security System (MSS)
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Adjustable air vents
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Transmission fault
– Traction control system
– Check engine lamp - Storage:
– Cup holder
– Flask receptacle (under the secondary seat)
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook - Windows (tinted) opening both sides
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Combined gear selection and hoist control lever
- Sun visor
- Tilt and telescopic steering wheel
- Secondary steering – electro hydraulic
- Touchscreen display incorporating the rearview camera video feed
- Air conditioning with R134A refrigerant
- Windshield wiper and washer, two speed, intermittent (front)
- CAT TECHNOLOGIES
- Cat Detect with Stability Assist
- Product Link: PL631E or PL641E dependent on location and licensing agreement
- ELECTRICAL AND LIGHTING
- Batteries (two) maintenance free
- Main disconnect switch
- Remote starting receptacle (cables not included)
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Horn
- POWER TRAIN
- Dual circuit oil immersed, enclosed brakes – all wheels
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Auto shift nine-speed forward and two reverse transmission
- Three axle, six-wheel drive
- Cat C15 engine
- Retarder: engine compression brake
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- SAFETY
- Rearview camera
- ROPS/FOPS cab
- Reverse alarm
- GUARDS
- Crankcase
- Front dump body spill guard, integral part of fabricated body
- Rear window
- Radiator
- Axle
- OTHER STANDARD EQUIPMENT
- S·O·S sampling valves
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Tires, six 29.5 R25
- Sound suppression (only standard in Europe)
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPTIONAL EQUIPMENT
- Machine Security System (MSS)
- Product Link Elite: PLE631E (satellite), PLE641E (cellular)
- Ether start
- Flashing LED beacon
- Four-point seat belt
- Cold weather start attachment
- Body liners
- Engine block heater
- Window blinds
- Cold weather coolant –51° C (–60° F)
- Heated rearview motorized mirrors
- Roof mounted High Intensity Discharge (HID) work lights
- Scissor tailgate
- Windshield wiper and washer, two speed (rear)
- Bluetooth radio stereo system
- Bare chassis (no body) standard wheel base
- Wheel chocks
- Heated/cooled seat
- Fast fuel fill
- Exhaust heated body
- Sound suppression (only standard in Europe)
- Infrared glass – high ambient cab
- Fuel additive – anti-waxing
- Bare chassis (no body) long wheel base
- Auto lube installation for automatic greasing of bearings
- Cat Production Measurement payload monitoring system
