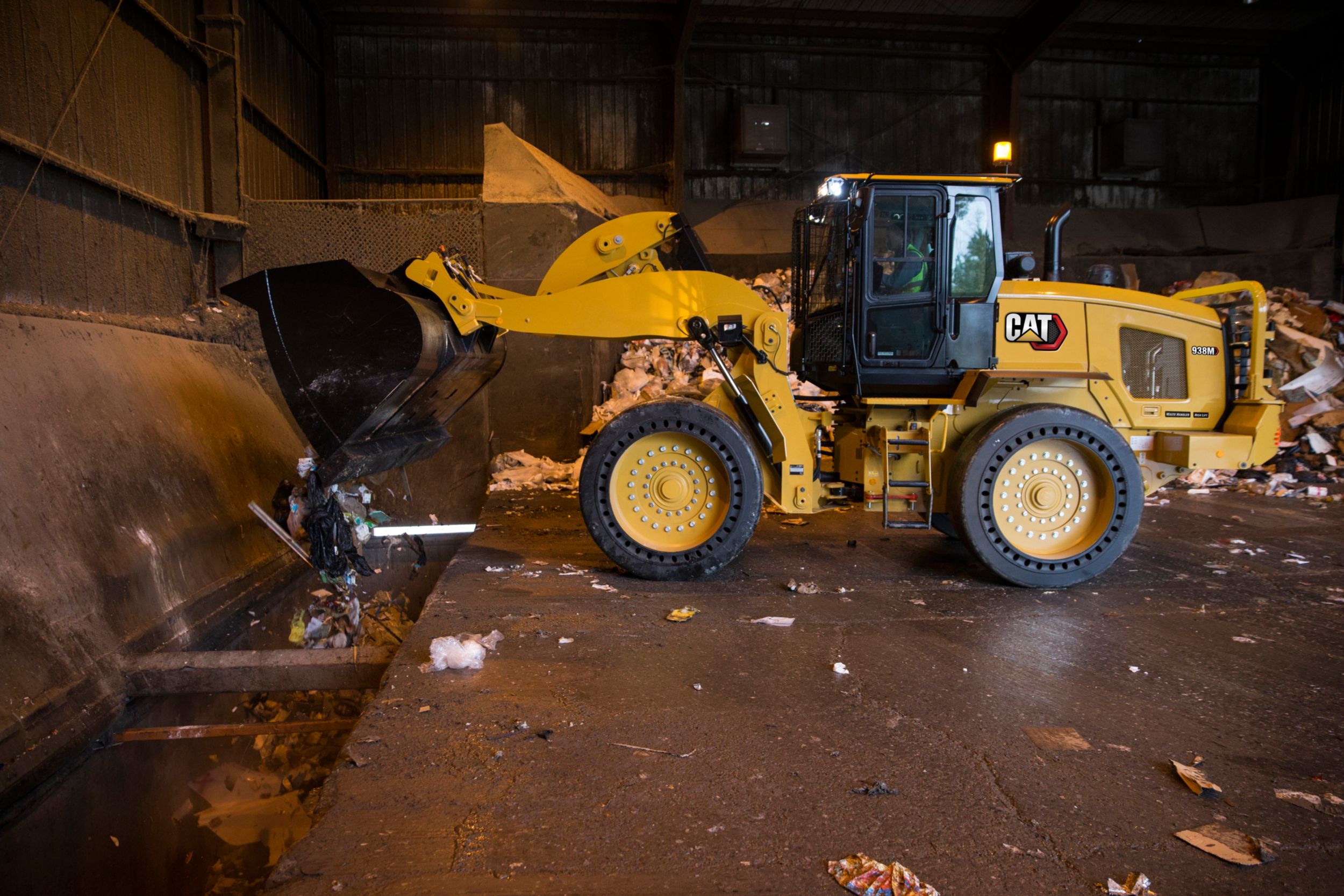

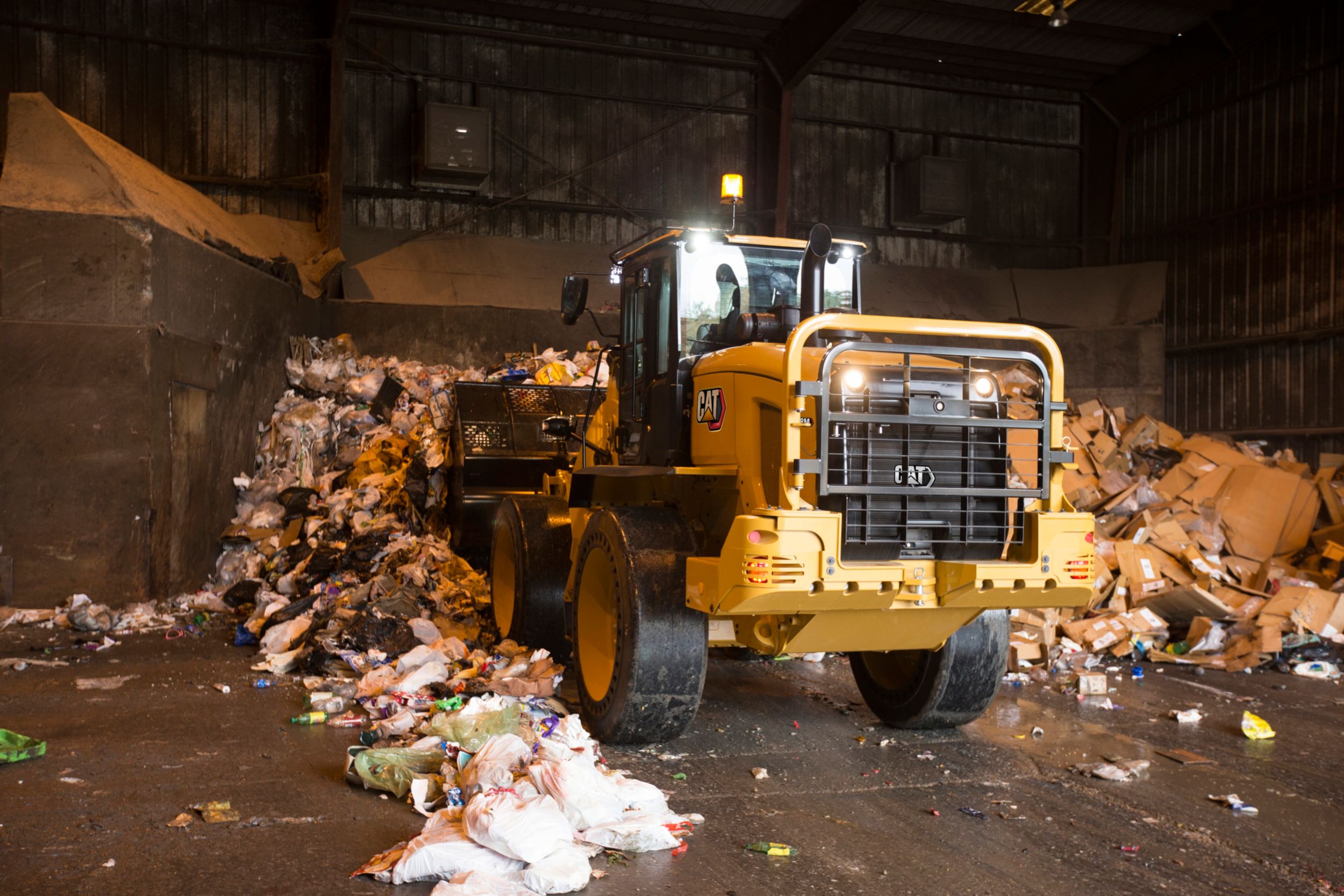

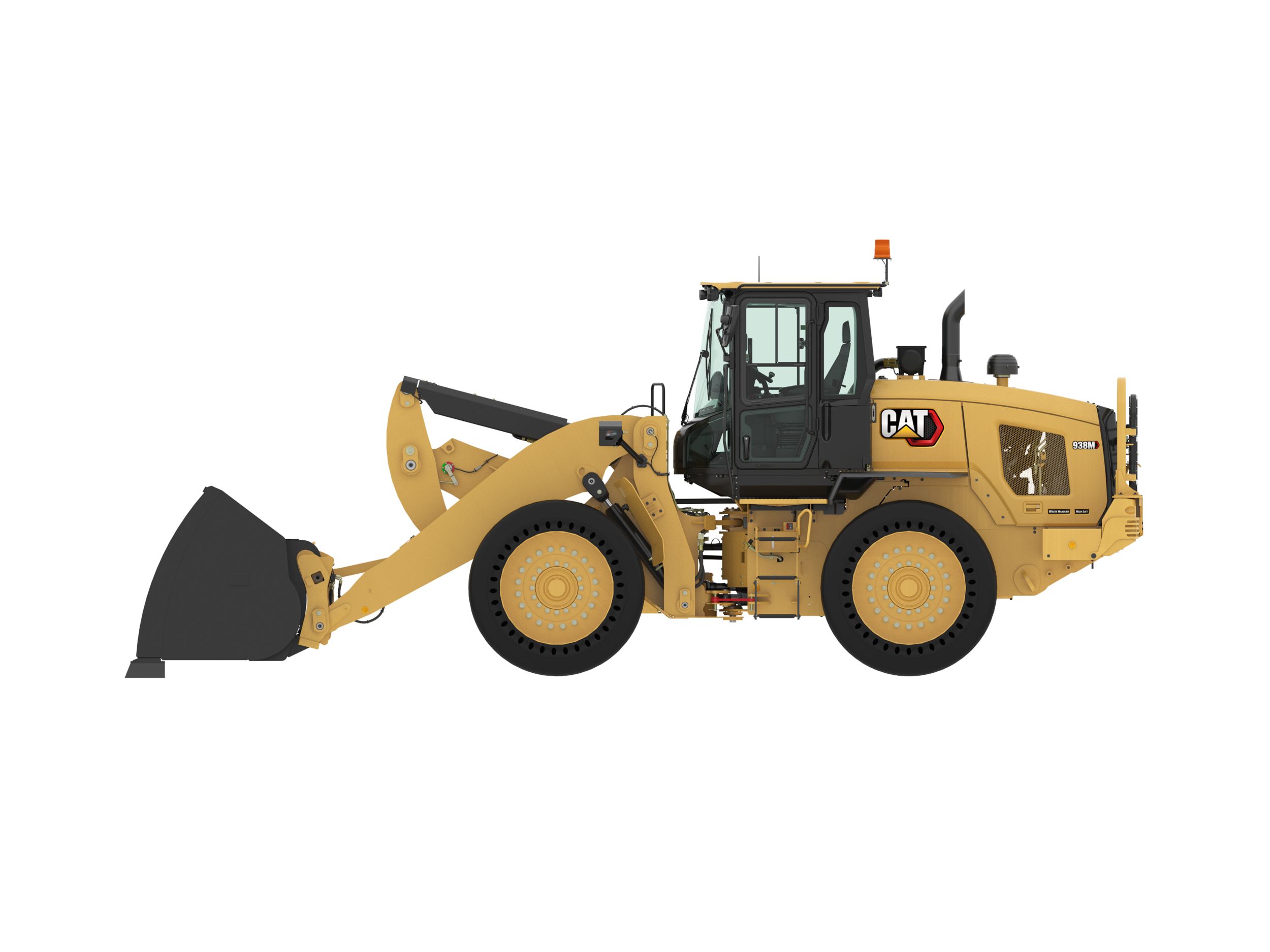

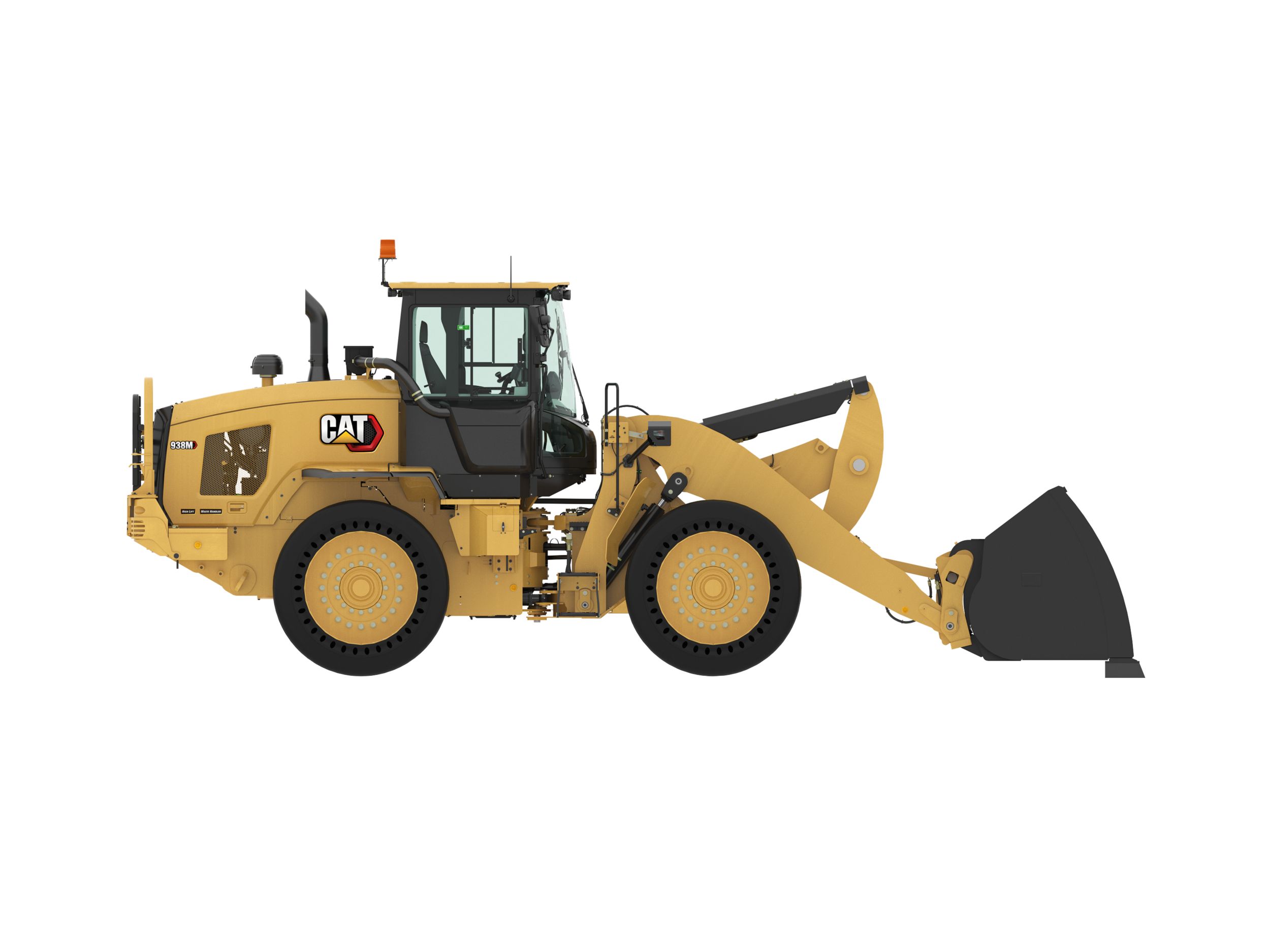

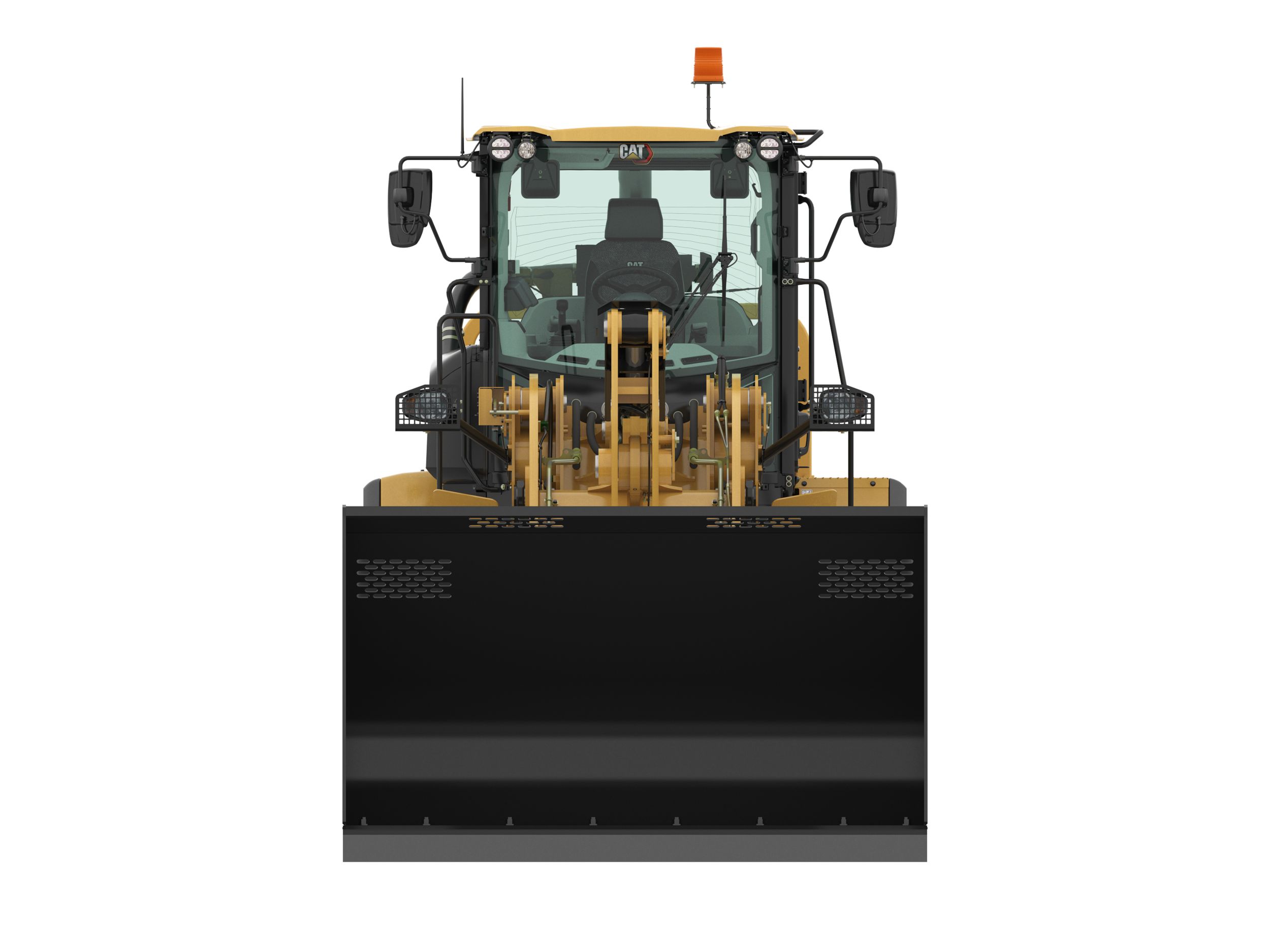

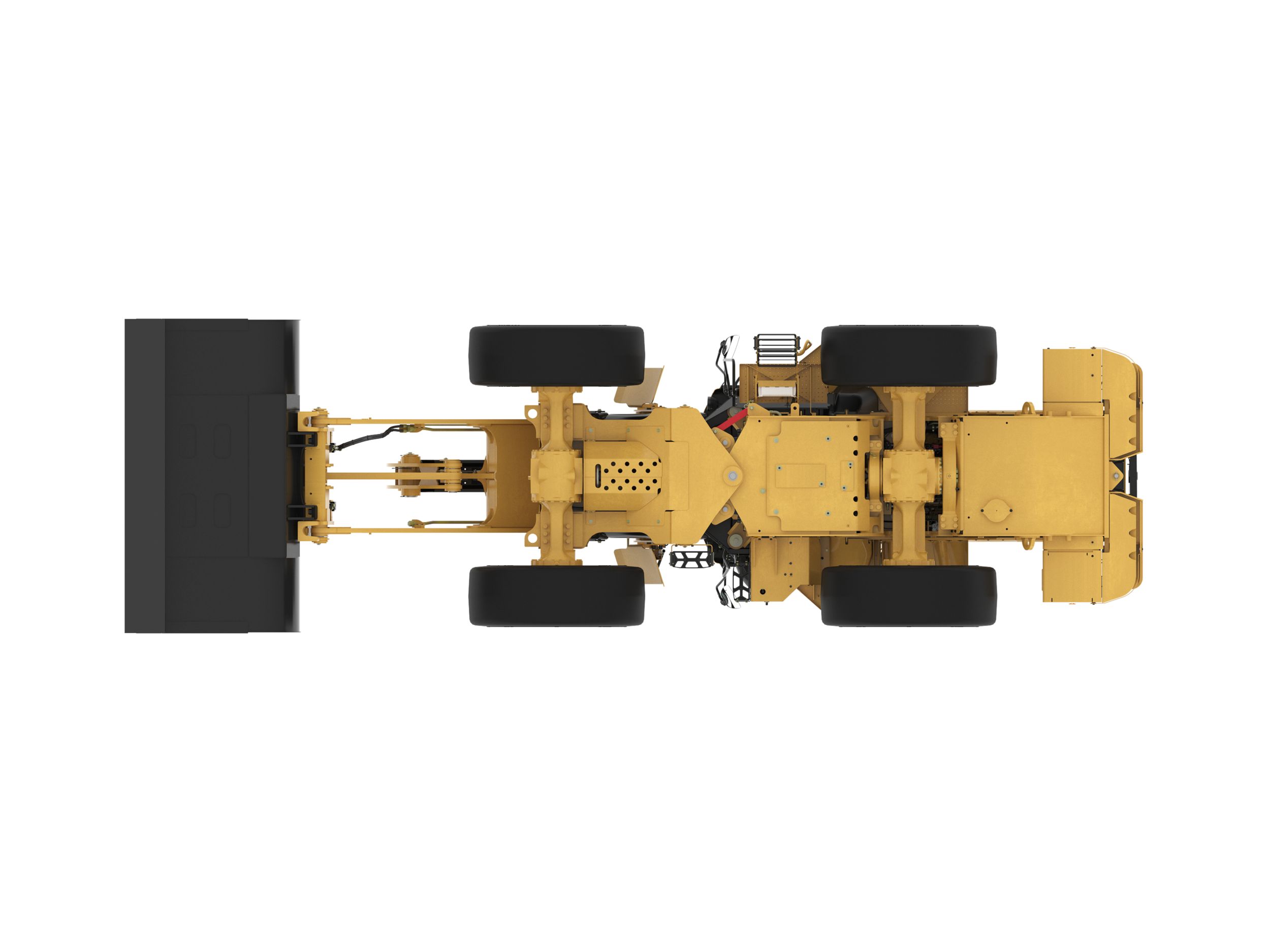

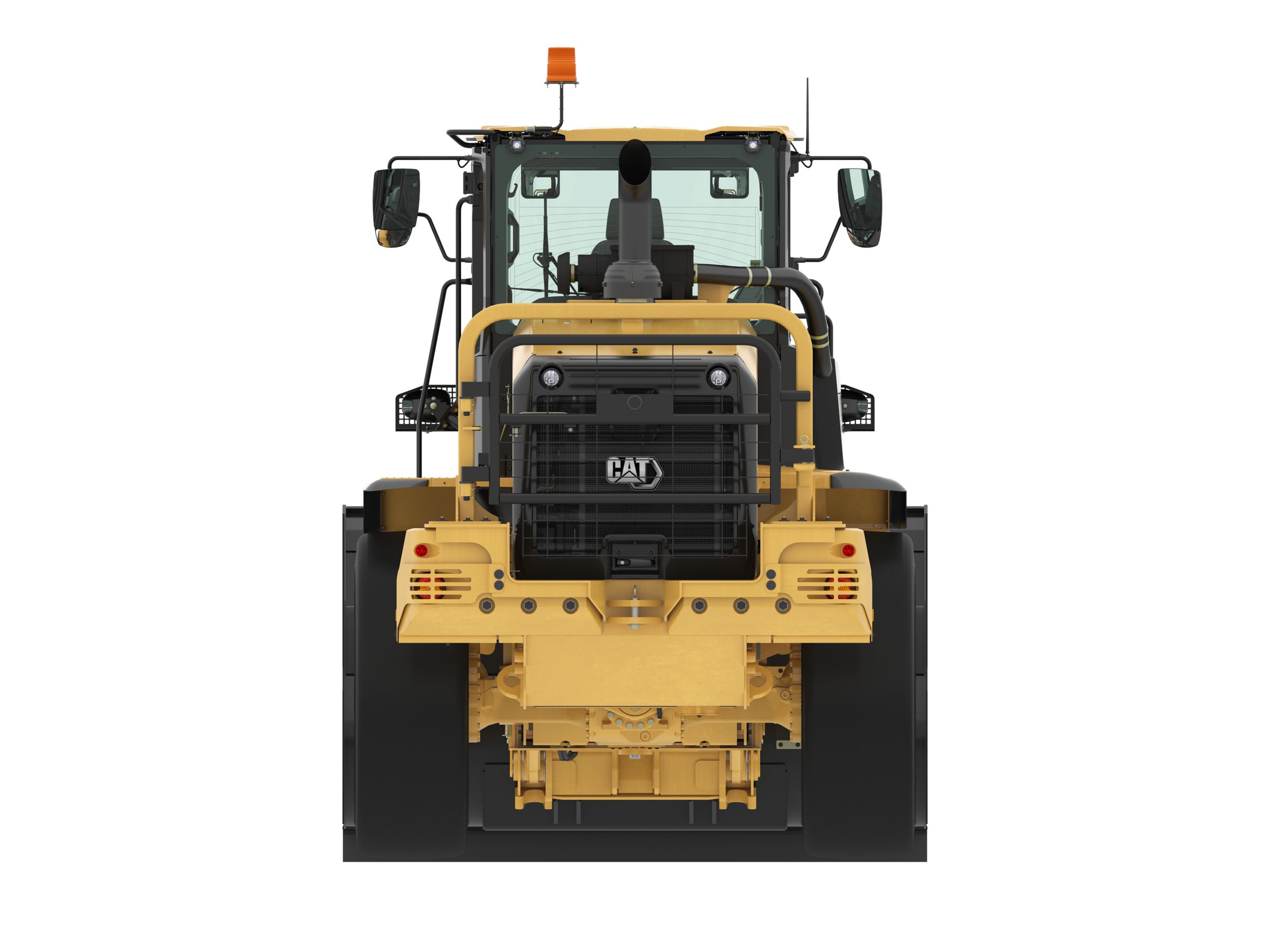

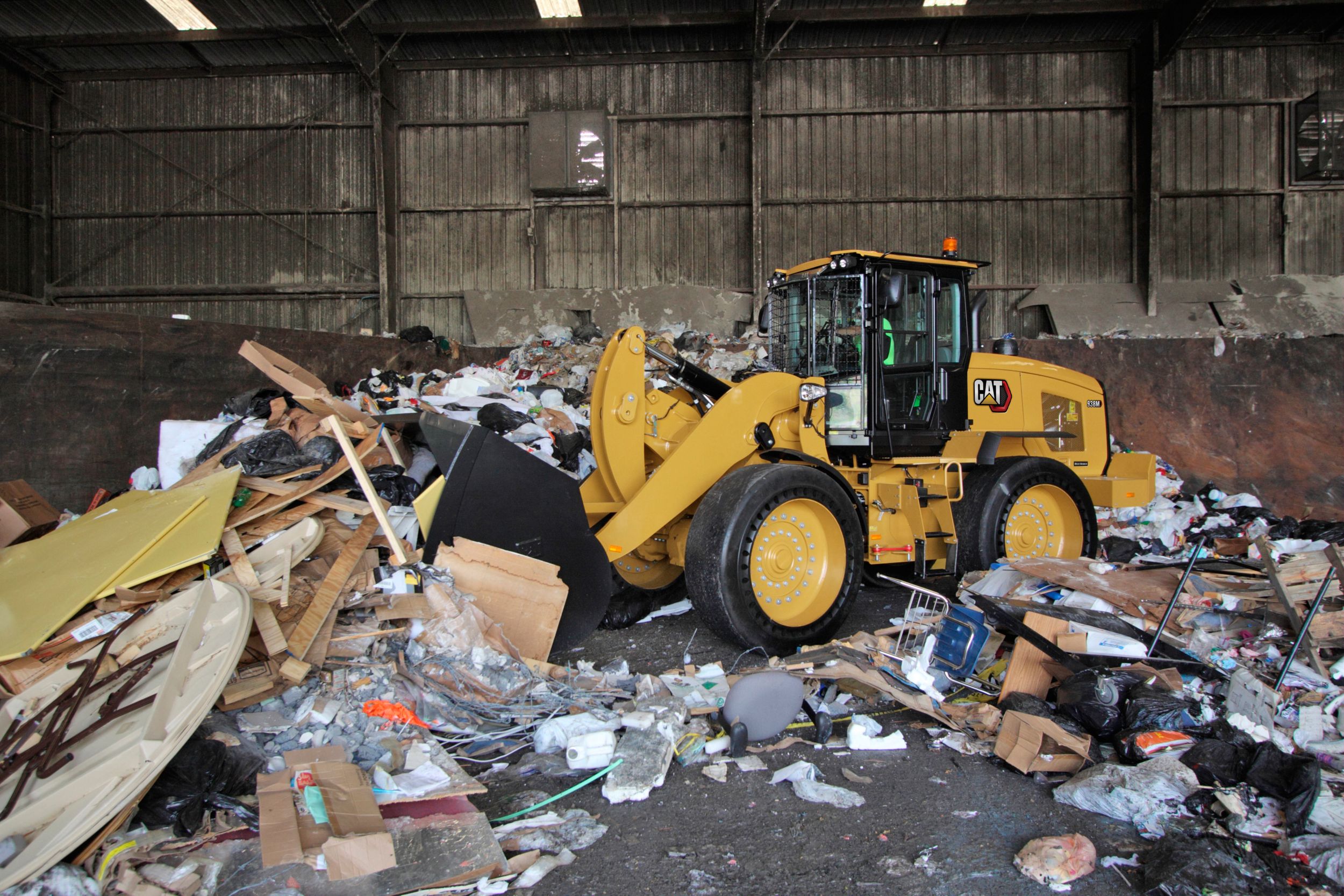

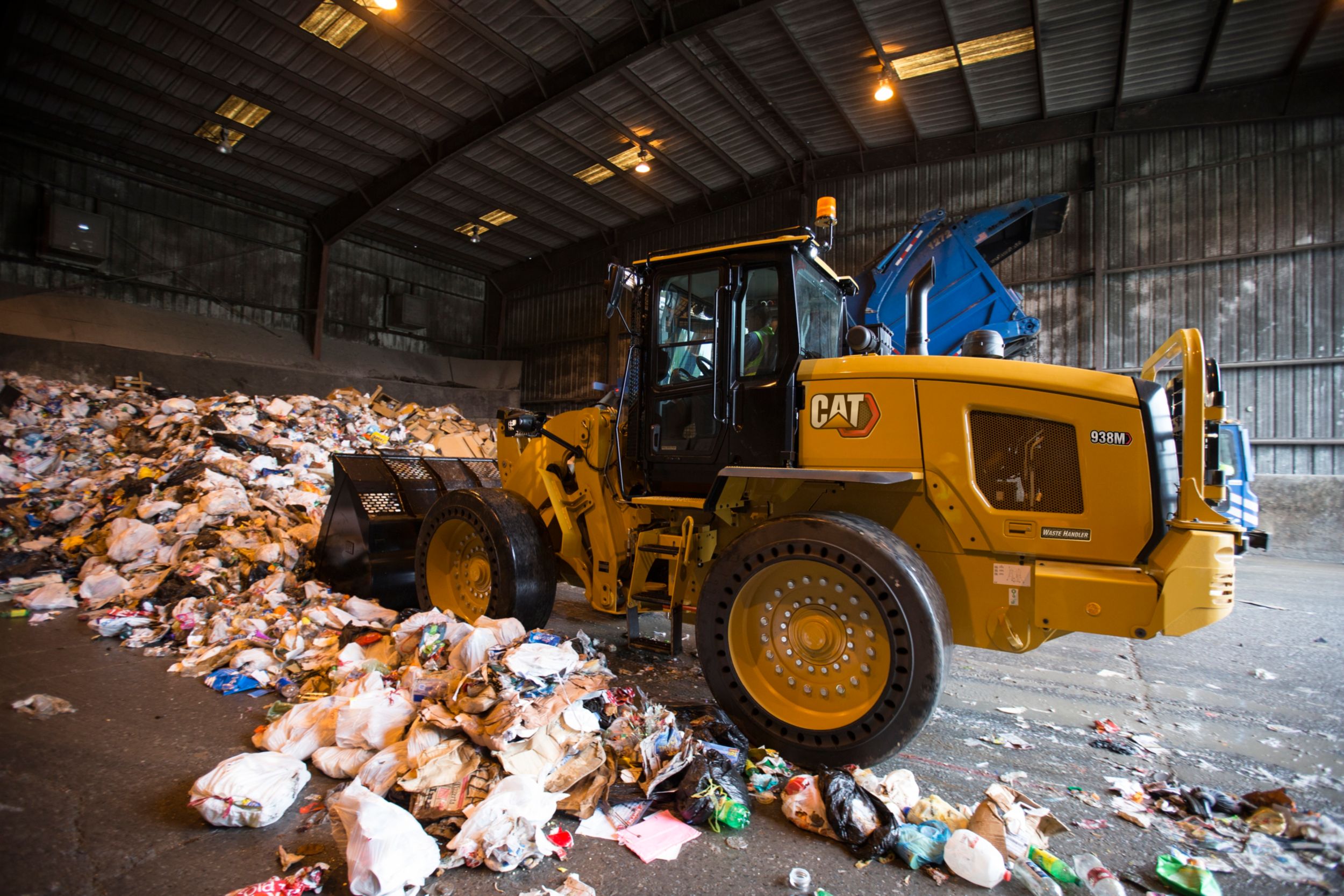

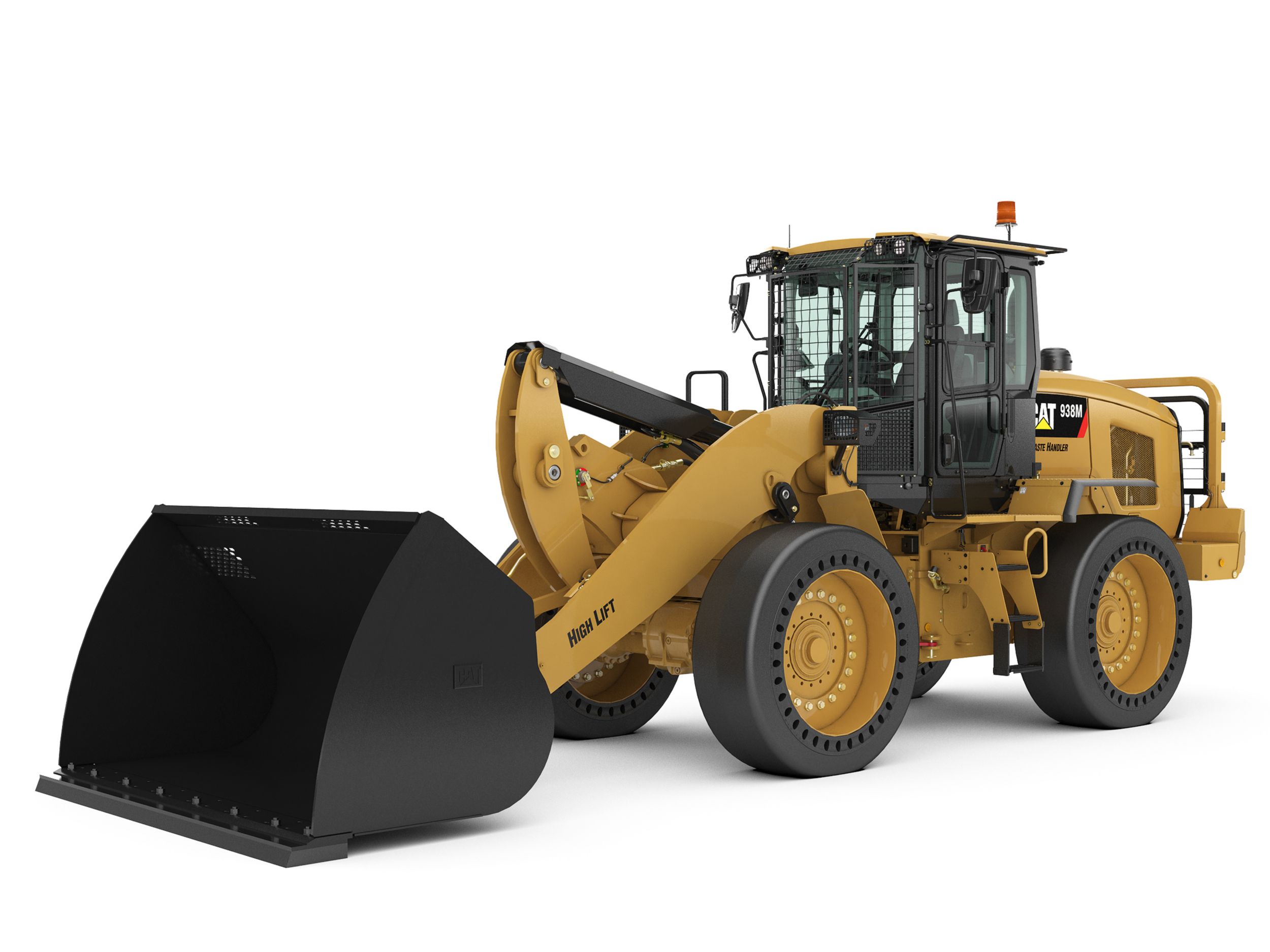

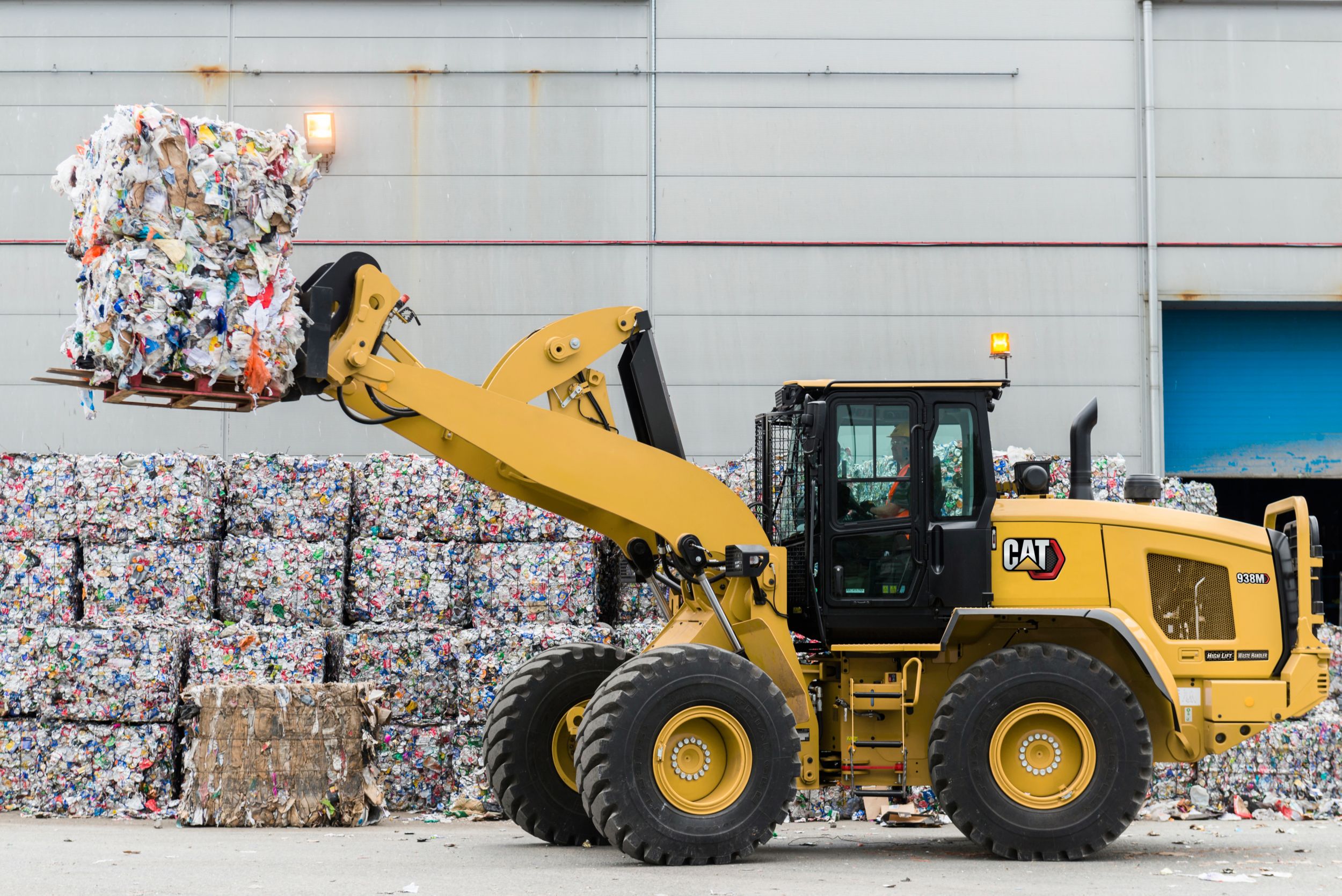

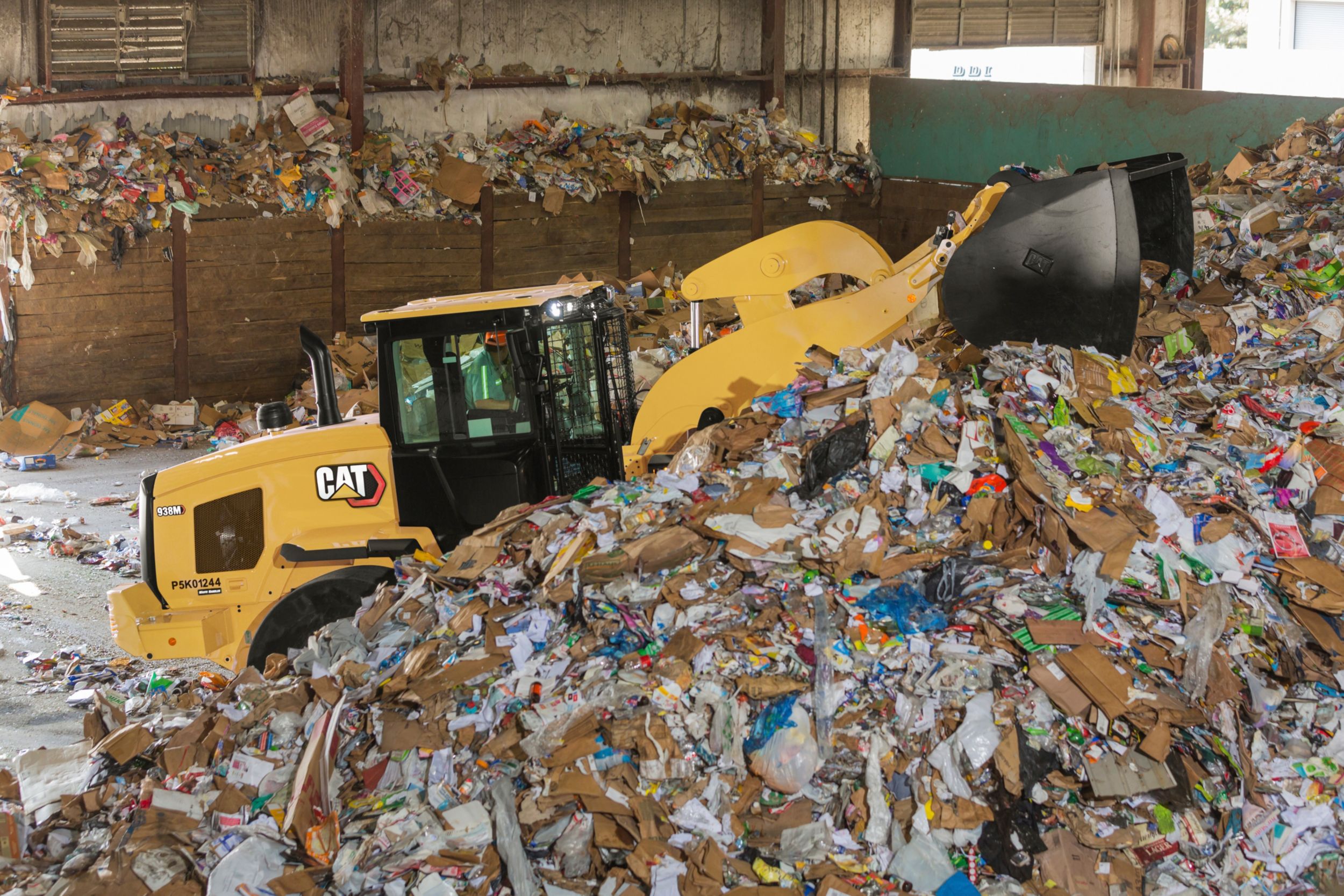

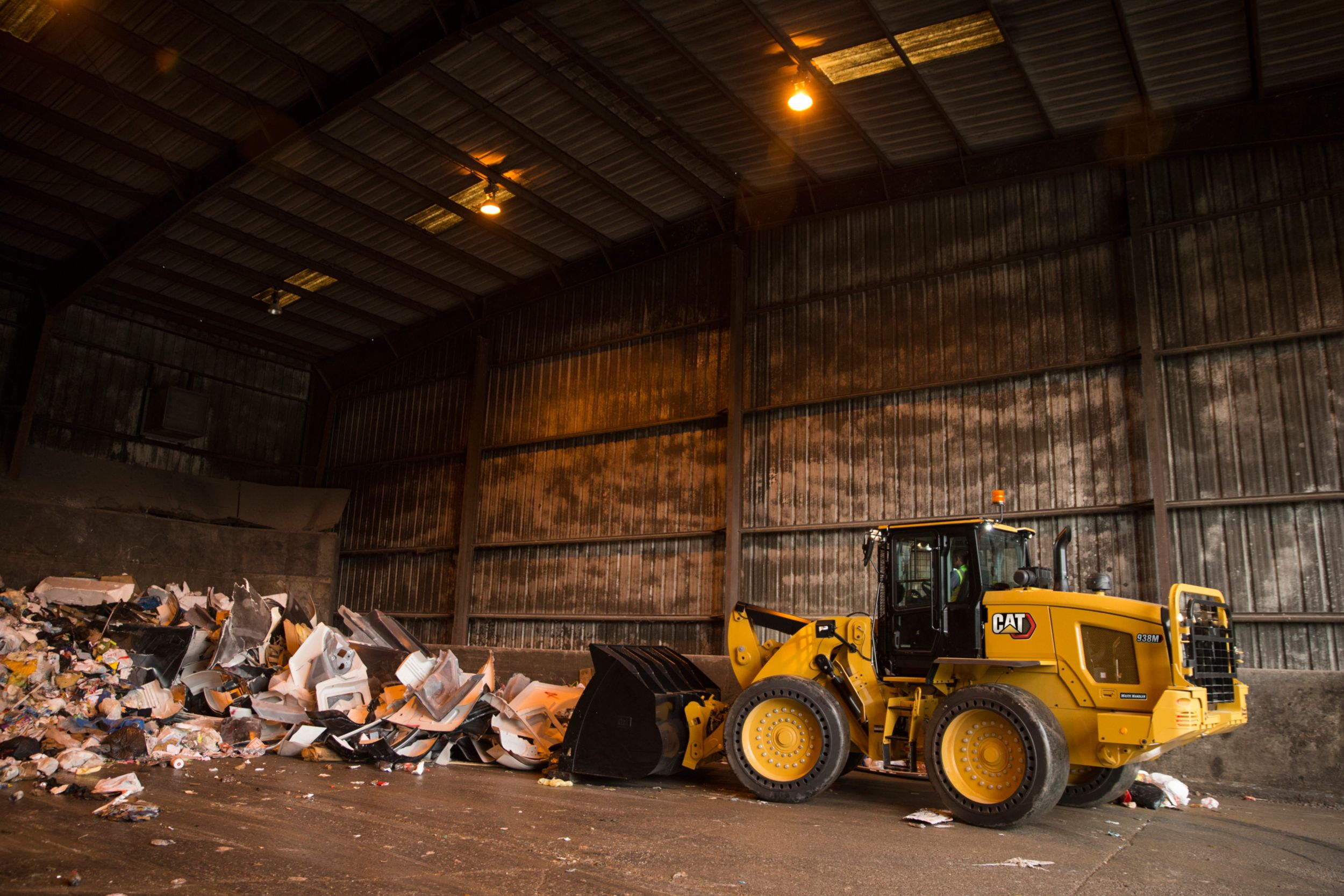

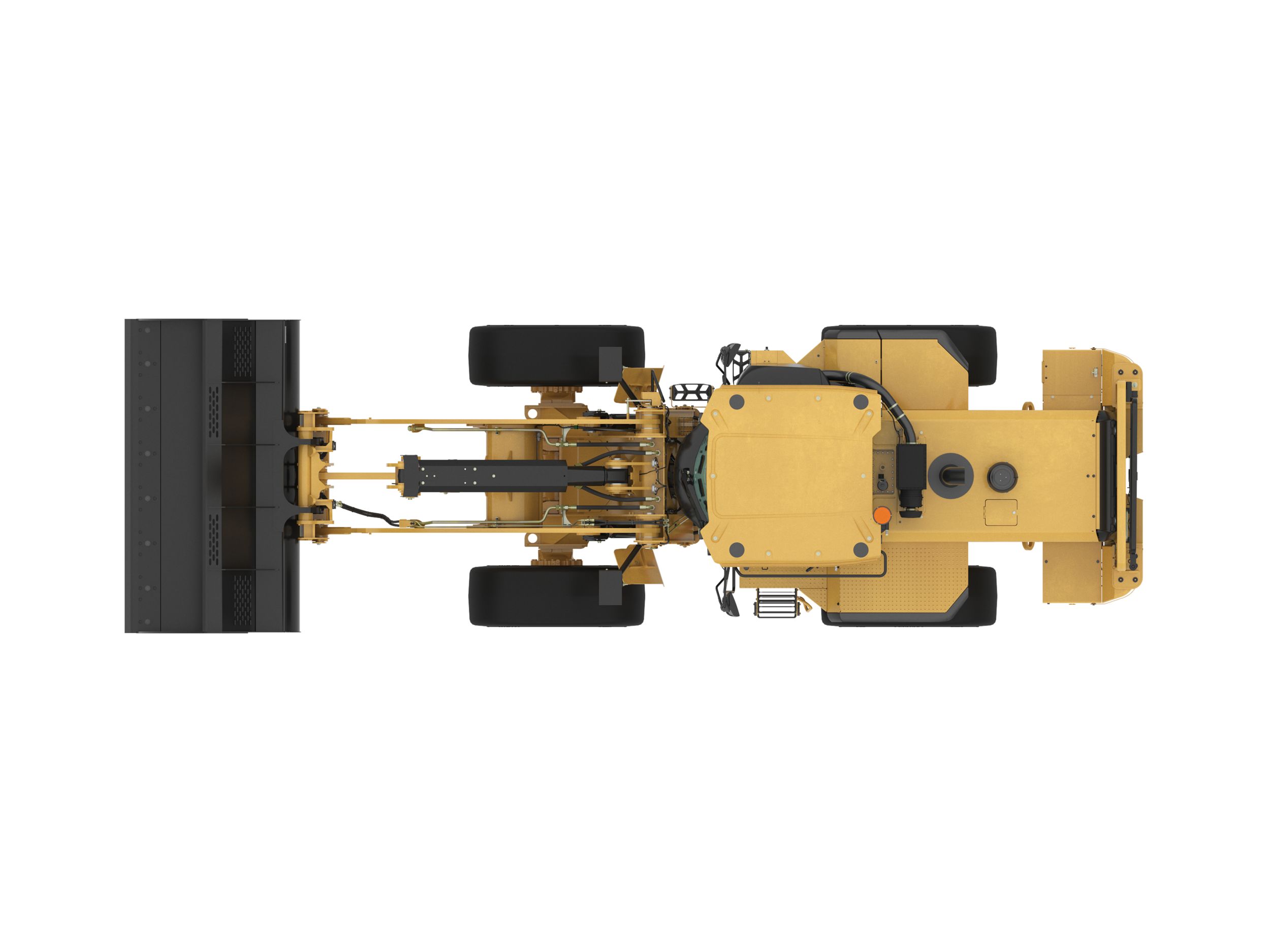

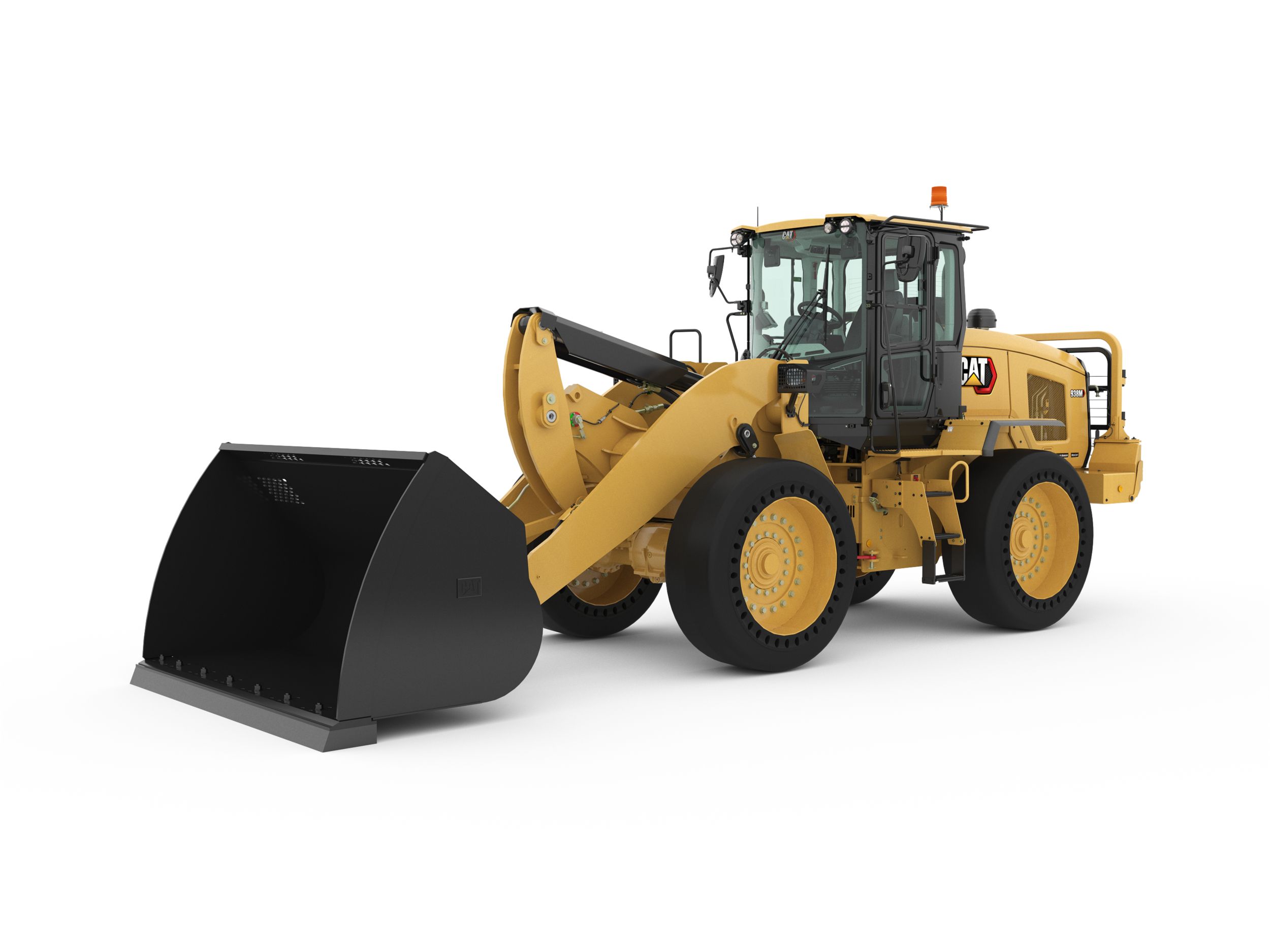

Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
Cat® 938M Waste Handler
US
Metric

Overview

The Cat® 938M Waste Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. A complete range of guarding and debris management solutions are available to meet the needs of the most demanding environments. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience this industry benchmark.

Engine

Maximum Gross Power
188.00 hp
140.00 kW
Engine Model
Cat® C7.1 ACERT™
Maximum Rated Gross Power - ISO 14396
188.00 HP
140.00 kW
Maximum Rated Gross Power - ISO 14396 (DIN)
188.00 HP
140.00 kW
Maximum Rated Gross Power – Maximum Engine Speed (Performance [HP+] Power Mode: Range 1-4)
1800.00 rpm
1800.00 rpm
Maximum Rated Gross Power – ISO 14396 (Performance [HP+] Power Mode: Range 1-4)
188.00 hp
140.00 kW
Maximum Rated Gross Power – ISO 14396 (DIN) (Performance [HP+] Power Mode: Range 1-4)
190.00 hp
140.00 kW
Rated Net Power at 1,800 rpm – SAE J1349 at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4)
182.00 hp
136.00 kW
Rated Net Power at 1,800 rpm – ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4)
184.00 hp
137.00 kW
Rated Net Power at 1,800 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4)
186.00 hp
137.00 kW
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)
664.00 ft·lbf
900.00 N·m
Maximum Net Torque – SAE J1349 (Performance [HP+] Power Mode: Range 1-4)
621.00 lbf-ft
843.00 N·m
Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Performance [HP+] Power Mode: Range 1-4)
628.00 lbf-ft
852.00 N·m
Maximum Rated Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)
1600.00 r/min
1600.00 r/min
Maximum Rated Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)
173.00 HP
129.00 kW
Maximum Rated Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)
175.00 HP
129.00 kW
Rated Net Power - 1,600 rpm - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
168.00 HP
125.00 kW
Rated Net Power - 1,600 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
169.00 HP
126.00 kW
Rated Net Power - 1,600 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
171.00 HP
126.00 kW
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)
642.00 ft·lbf
870.00 N·m
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*)
627.00 ft·lbf
850.00 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*)
628.00 ft·lbf
852.00 N·m
Displacement
427.00 in3
7.01 L
Bore
4.00 in
105.00 mm
Stroke
5.00 in
135.00 mm
Emissions
Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Note
*Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Note
Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note
Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test).

Weights

Operating Weight
38555.00 lb
17493.00 kg

Buckets

Bucket Capacities
3.0-5.0 m3 (3.9-6.5 yd3)

Steering

Steering Cylinder: Double Acting – Bore Diameter
3.10 in
80.00 mm
Steering Cylinder: Double Acting – Rod Diameter
2.00 in
50.00 mm
Steering Cylinder: Double Acting – Stroke
15.70 in
399.00 mm
Maximum Flow – Steering Pump
34.00 gal/min
130.00 L/min
Maximum Working Pressure – Steering Pump
3500.00 psi
24130.00 kPa
Maximum Steering Torque – 0° (Straight Machine)
42506.00 lbf-ft
57630.00 N·m
Maximum Steering Torque - 40° (Full Turn)
31398.00 ft·lbf
42570.00 N·m
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited
3.10 s
3.10 s
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed
2.30 s
2.30 s
Note
Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Note
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Loader Hydraulic System

Maximum Flow – Implement Pump
50.00 gal/min
190.00 L/min
Maximum Flow - Implement Pump - 3rd Function*
50.00 gal/min
190.00 l/min
Maximum Working Pressure – Implement Pump
4061.00 psi
28000.00 kPa
Relief Pressure – Tilt Cylinder
4351.00 psi
30000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure
4061.00 psi
28000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure
4351.00 psi
30000.00 kPa
Lift Cylinder: Double Acting – Bore Diameter
4.70 in
120.00 mm
Lift Cylinder: Double Acting – Rod Diameter
2.60 in
65.00 mm
Lift Cylinder: Double Acting – Stroke
31.10 in
789.00 mm
Tilt Cylinder: Double Acting – Bore Diameter
5.90 in
150.00 mm
Tilt Cylinder: Double Acting – Rod Diameter
3.50 in
90.00 mm
Tilt Cylinder: Double Acting – Stroke
21.90 in
555.00 mm
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift)
5.5/6.2 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height)
1.5/1.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level)
2.7/2.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time
9.7/10.6 seconds
Note (1)
Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Note
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Note
*3rd function flow is fully adjustable from 20% to 100% of maximum flow through the touch screen display when equipped.

Service Refill Capacities

Fuel Tank
51.50 gal
195.00 L
Diesel Exhaust Fluid (DEF) Tank
5.00 gal
19.00 L
Cooling System
8.50 gal
32.00 L
Engine Crankcase
5.30 gal
20.00 L
Transmission (Gear Box)
2.90 gal
11.00 L
Front Axles
9.20 gal (US)
35.00 l
Rear Axles
9.20 gal (US)
35.00 l
Hydraulic System (Including Tank)
44.90 gal
170.00 L
Hydraulic Tank
23.80 gal
90.00 L

Transmission

Forward and Reverse - Range 1*
1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2
8.00 mile/h
13.00 km/h
Forward and Reverse - Range 3
17.00 mile/h
27.00 km/h
Forward and Reverse - Range 4
25.00 mile/h
40.00 km/h
Note
*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the touch screen display when equipped. Factory default is 7 km/h (4.4 mph).

Cab

ROPS
ISO 3471: 2008
FOPS
ISO 3449: 2005 LEVEL II
Declared Sound Levels – Operator Sound Pressure Level (ISO 6396:2008)*
68.00 dB(A)
68.00 dB(A)
Declared Sound Levels – Exterior Sound Power Level (ISO 6395:2008)*
101.00 dB(A)
101.00 dB(A)
Note
*Measurements were conducted at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed.
Note
The Blue Angel environmental label is an optional attachment for Europe only.

Operating Specifications

Full Turn Tip Load
21720.00 lb
9843.00 kg

Power Train

Front Axle
Fixed
Front Axle: Traction Aid*
Locking differential (standard)
Rear Axle
Oscillating
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65
± 10.5 degrees
Rear Axle - Oscillation Angle by Tire Size - 23.5 R25
± 7 degrees
Rear Axle - Traction Aid - Optional
Limited slip differential
Brakes: Service
Outboard wet disc
Brakes: Park
Spring applied hydraulically released
Note
Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Note
Offset rims available to meet European roading requirements.
Note
*Differential front locking axle can be engaged on the go at full torque to 20 km/h (12.4 mph) on the 938M.

Engine

Engine Model
Cat® C7.1
Maximum Rated Gross Power - ISO 14396 (DIN) (Performance [HP+] Power Mode: Range 1-4)
188.00 HP
140.00 kW
Maximum Rated Gross Power - ISO 14396 (Performance [HP+] Power Mode: Range 1-4)
188.00 HP
140.00 kW
Maximum Rated Gross Power - Maximum Engine Speed (Performance [HP+] Power Mode: Range 1-4)
1800.00 r/min
1800.00 r/min
Rated Net Power - 1,800 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4)
184.00 HP
137.00 kW
Rated Net Power - 1,800 rpm - SAE J1349 at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4)
182.00 HP
136.00 kW

Buckets

Bucket Capacities
3.0-5.0 m3 (3.9-6.5 yd3)

Weights

Operating Weight
41794.00 lb
18958.00 kg

Engine

Maximum Gross Power
188.00 hp
140.00 kW
Bore
4.00 in
105.00 mm
Stroke
5.00 in
135.00 mm
Displacement
427.00 in³
7.01 l

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 LEVEL II
Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)*
101.00 dB(A)
101.00 dB(A)
Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)*
68.00 dB(A)
68.00 dB(A)
Note (1)
* Measurements were conducted at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed.
– The Blue Angel environmental label is an optional attachment for Europe only.
Note (2)
The Blue Angel environmental label is an optional attachment for Europe only.

Engine

Emissions
The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V and Korea Tier 4 Final emission standards.
Maximum Gross Torque - ISO 14396 (Performance [HP+] Power Mode: Range 1-4)
648.00 ft·lbf
879.00 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance [HP+] Power Mode: Range 1-4)
628.00 ft·lbf
852.00 N·m
Maximum Net Torque - SAE J1349 (Performance [HP+] Power Mode: Range 1-4)
649.00 ft·lbf
880.00 N·m
Note (1)
*Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Note (2)
Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (3)
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note (4)
Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test).
Rated Net Power - 1,800 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Performance [HP+] Power Mode: Range 1-4)
186.00 HP
137.00 kW

Loader Hydraulic System

Lift Cylinder, Double Acting - Bore Diameter
4.70 in
120.00 mm
Lift Cylinder, Double Acting - Rod Diameter
2.60 in
65.00 mm
Lift Cylinder, Double Acting - Stroke
31.10 in
789.00 mm
Maximum Flow - Implement Pump
50.00 gal/min
190.00 l/min
Maximum Working Pressure - Implement Pump
4061.00 psi
28000.00 kPa
Note (2)
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Note (3)
* 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the touch screen display when equipped.
Relief Pressure - Tilt Cylinder
4351.00 psi
30000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure
4061.00 psi
28000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd Function Relief Pressure
4351.00 psi
30000.00 kPa
Tilt Cylinder, Double Acting - Bore Diameter
5.90 in
150.00 mm
Tilt Cylinder, Double Acting - Rod Diameter
3.50 in
90.00 mm
Tilt Cylinder, Double Acting - Stroke
21.90 in
555.00 mm

Operating Specifications

Full Turn Tip Load
21720.00 lb
9843.00 kg

Power Train

Brakes - Parking
Spring applied hydraulically released
Brakes - Service
Inboard wet disc
Front Axle
Fixed
Front Axle - Traction Aid*
Locking differential (standard)
Note (1)
Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Note (2)
Offset rims available to meet European roading requirements.
Note (3)
Differential front locking axle can be engaged on the go at full torque up to 20 km/h (12.4 mph) on the 938M.
Rear Axle
Oscillating

Service Refill Capacities

Cooling System
8.50 gal (US)
32.00 l
Diesel Exhaust Fluid (DEF) Tank
5.00 gal (US)
19.00 l
Engine Crankcase
5.30 gal (US)
20.00 l
Fuel Tank
51.50 gal (US)
195.00 l
Hydraulic System - Including Tank
44.90 gal (US)
170.00 l
Hydraulic Tank
23.80 gal (US)
90.00 l
Transmission - Gear Box
2.90 gal (US)
11.00 l

Steering

Maximum Flow - Steering Pump
34.00 gal/min
130.00 l/min
Maximum Steering Torque - 0° (Straight Machine)
42506.00 ft·lbf
57630.00 N·m
Maximum Working Pressure - Steering Pump
3500.00 psi
24130.00 kPa
Note (1)
Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Note (2)
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Steering Cylinder, Double Acting - Bore Diameter
3.10 in
80.00 mm
Steering Cylinder, Double Acting - Rod Diameter
2.00 in
50.00 mm
Steering Cylinder, Double Acting - Stroke
15.70 in
399.00 mm

Transmission

Note
*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the touch screen display when equipped. Factory default is 7 km/h (4.4 mph).

Engine

Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)
1800.00 r/min
1800.00 r/min
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)
1600.00 r/min
1600.00 r/min
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)
173.00 hp
129.00 kW
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)
188.00 hp
140.00 kW
Maximum Net Torque - ISO 9249:2007 (Performance Power Mode: Range 1-4)
650.00 ft·lbf
882.00 N·m
Maximum Net Torque - ISO 9249:2007 (Standard Power Mode: Range 1-3*)
628.00 ft·lbf
852.00 N·m
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)
186.00 hp
137.00 kW
Engine Power - ISO 14396:2002
188.00 hp
140.00 kW
Engine Power - ISO 14396 - Metric
190.00 hp
140.00 kW
Maximum Gross Power - ISO 14396 (metric) (Performance Power Mode: Range 1-4)
190.00 hp
140.00 kW
Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)
184.00 hp
137.00 kW
Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)
183.00 hp
137.00 kW
Net Power (Standard Power Mode: Range 1-3*)
1600.00 r/min
1600.00 r/min
Net Power (Performance Power Mode: Range 1-4)
1800.00 r/min
1800.00 r/min
Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3*)
176.00 hp
129.00 kW
Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
170.00 hp
127.00 kW
Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
170.00 hp
127.00 kW
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
172.00 hp
127.00 kW

Operating Specifications

Note (1)
**Dimensions listed are for a machine configured with optional counterweights, waste guarding, 80 kg (176 lb) operator, and Michelin 20.5 R25 XMINE D2 tires.
Full Turn Tip Load (1)
9795 kg (21,594 lb)**
Note (2)
^Dimensions listed are for a machine configured with standard counterweights, waste guarding, rear waste gate, 80 kg (176 lb) operator, and new solid tires.
Full Turn Tip Load (2)
10 741 kg (23,679 lb)^

Weights

Operating Weight (1)
17 258 kg (38,046 lb)**
Operating Weight (2)
18 958 kg (41,794 lb)^
Note (2)
^Dimensions listed are for a machine configured with standard counterweights, waste guarding, rear waste gate, 80 kg (176 lb) operator, and new solid tires.
Note (1)
**Dimensions listed are for a machine configured with optional counterweights, waste guarding, 80 kg (176 lb) operator, and Michelin 20.5 R25 XMINE D2 tires.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the flourinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.

Loader Hydraulic System

Maximum Flow - Implement Pump - 4th Function Maximum Flow*
42.00 gal/min
160.00 l/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*
50.00 gal/min
190.00 l/min
Lift Cylinder: Standard Lift Linkage - Stroke
31.10 in
789.00 mm
Tilt Cylinder: Standard Lift Linkage - Rod Diameter
3.50 in
90.00 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter
2.60 in
65.00 mm
Tilt Cylinder: Standard Lift Linkage - Bore Diameter
5.90 in
150.00 mm
Lift Cylinder: Standard Lift Linkage - Bore Diameter
4.70 in
120.00 mm
Tilt Cylinder: Standard Lift Linkage - Stroke
21.90 in
555.00 mm

Power Train

Front Axle - Traction Aid
Locking differential

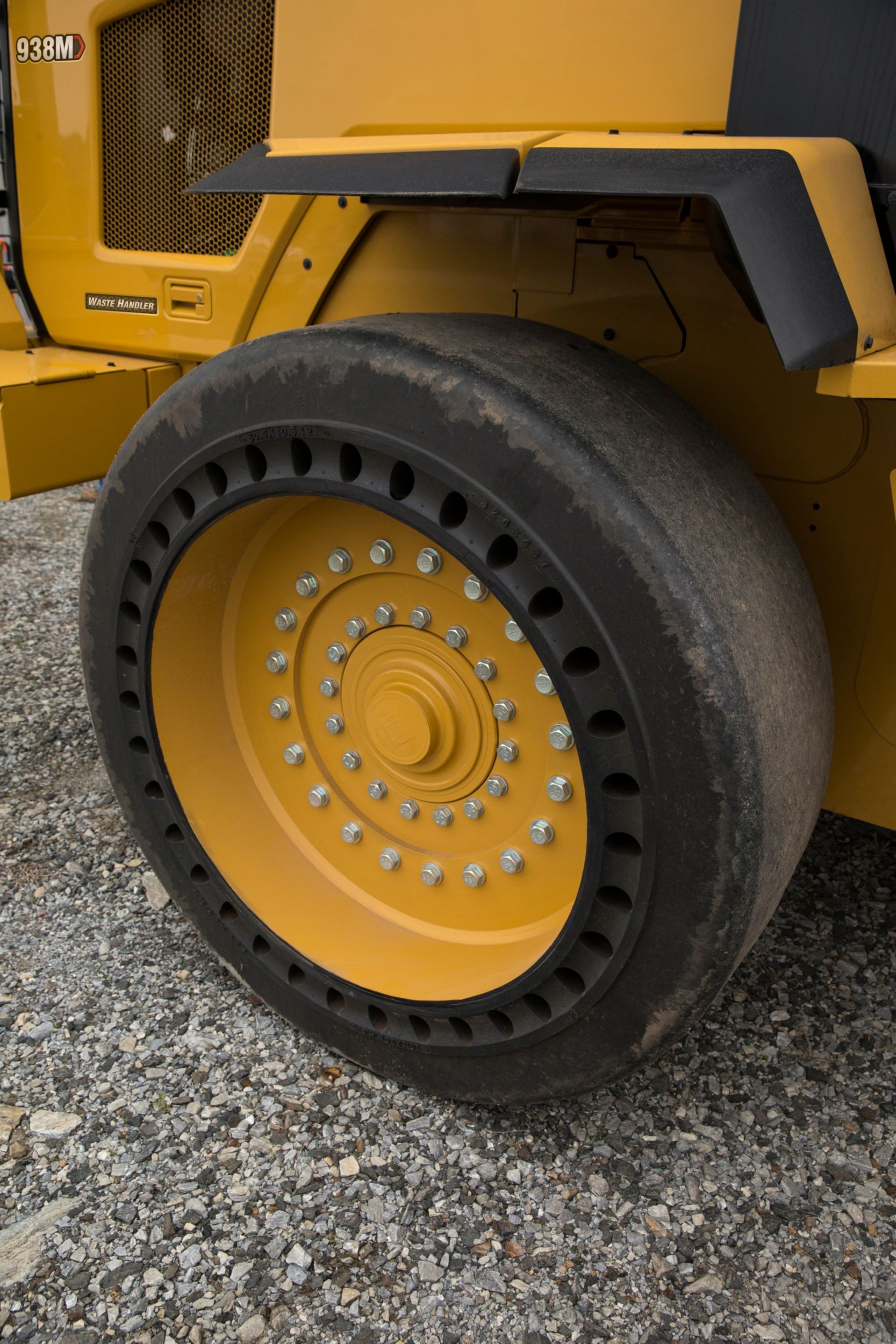

Rear Axle - Oscillation Angle by Tire Size - Solid Tires, 750/65, 620/65, Skidder
± 7 degrees

Service Refill Capacities

Axles - Rear
9.20 gal (US)
35.00 l
Axles - Front
9.20 gal (US)
35.00 l

Sustainability

Recyclability
94%
Features

Application Specific Configuration

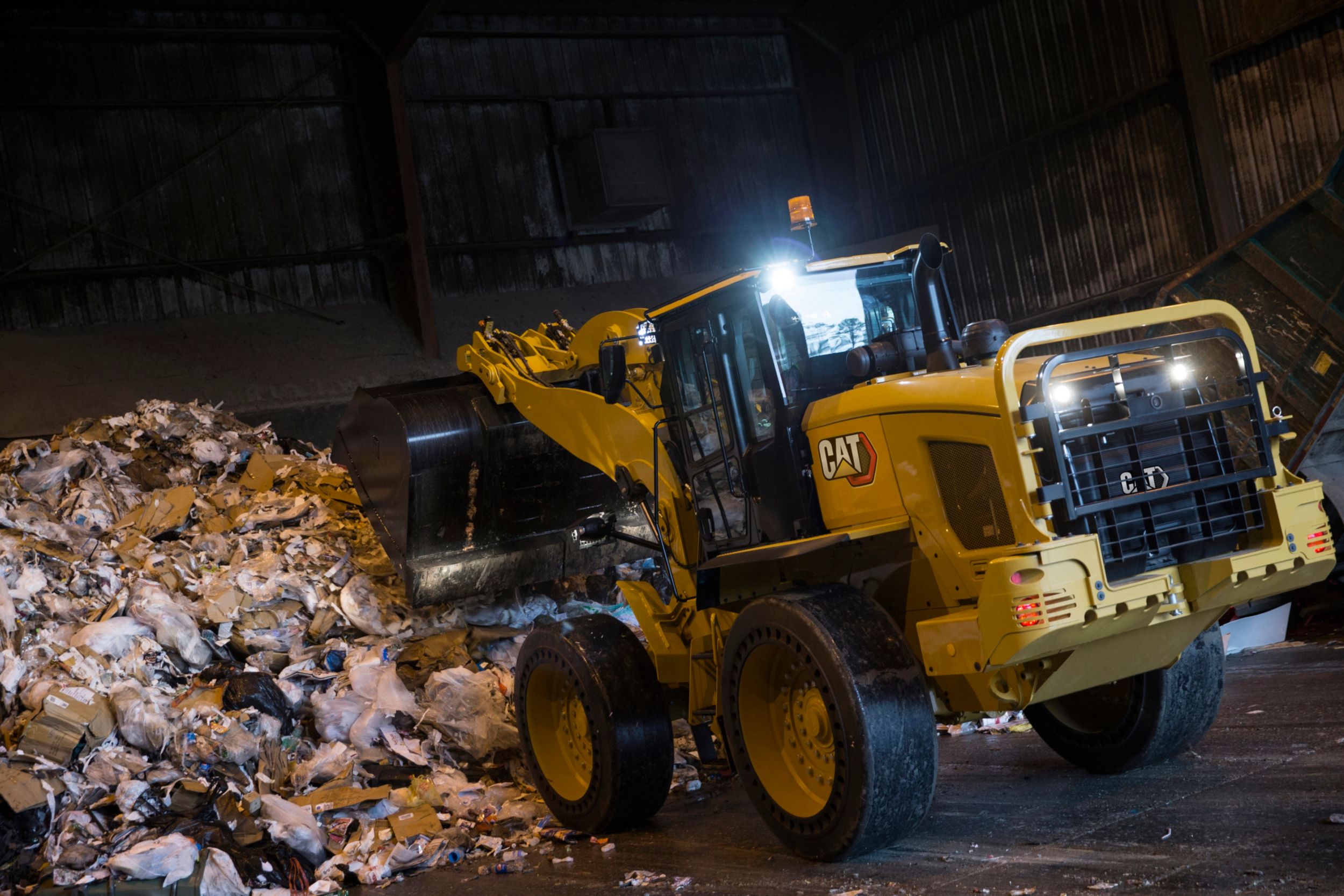

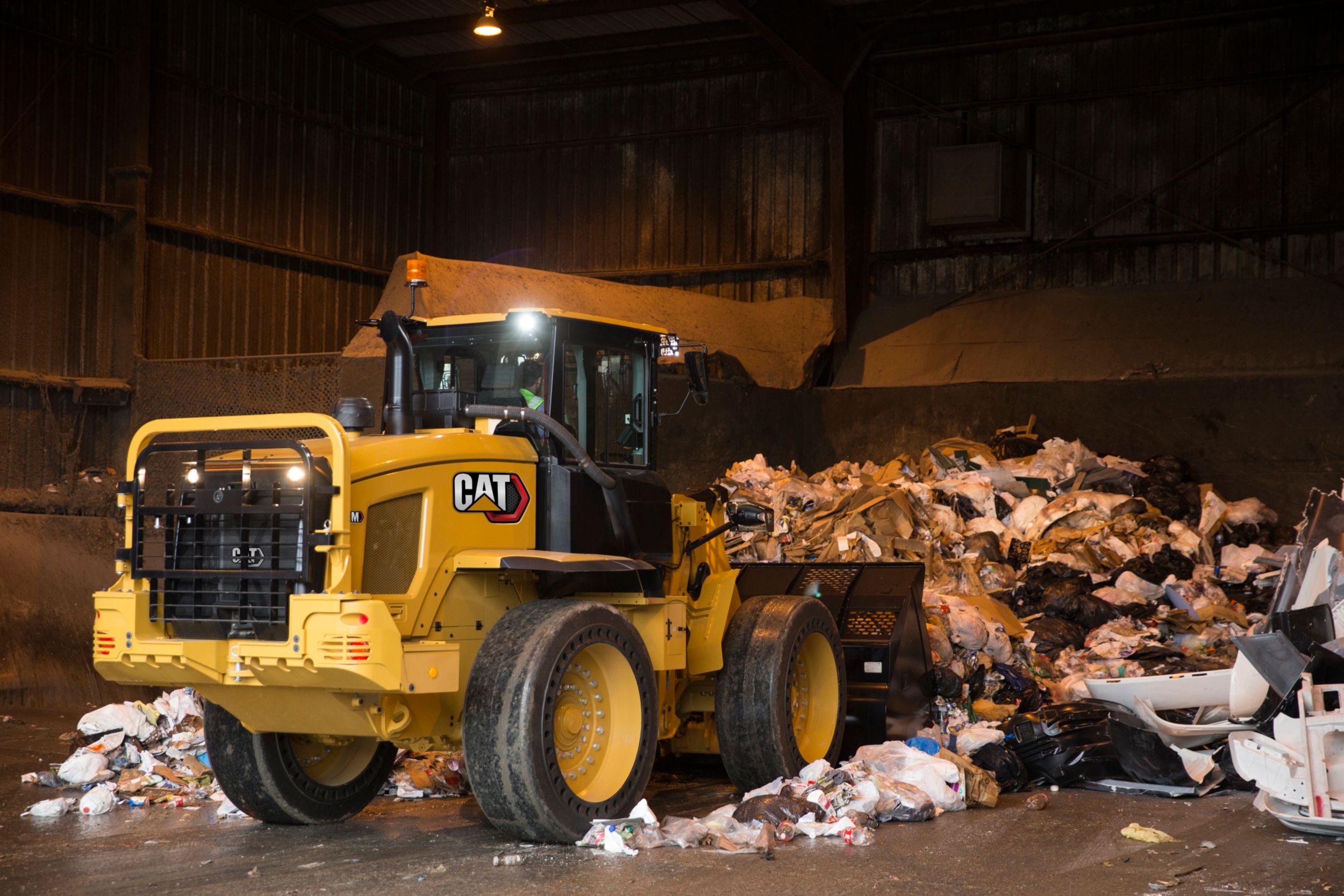

GUARD YOUR INVESTMENT
Choose from a complete range of optional guarding to protect your machine from the harsh environment of a waste handling application. The machine guarding is purpose built to protect the machine's major components and systems to keep you on the job and maximize production rates.

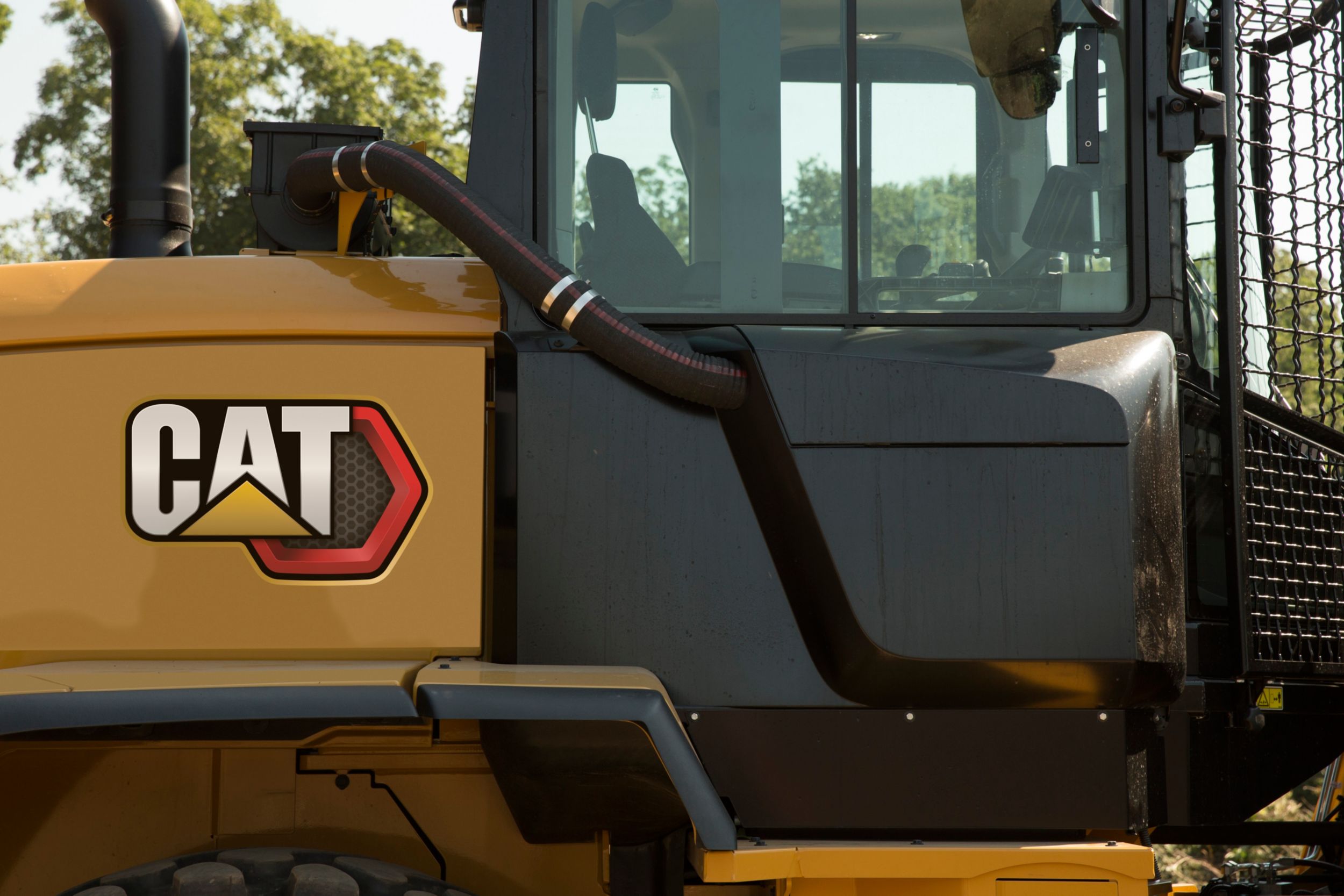

BREATHE CLEAN
Maximize your engine life and extend filter cleaning intervals with a turbine pre-cleaner. Keep cool with a reversing fan to purge the single plane, widely spaced core cooling package and brush-less sealed alternator. Breath clean with a powered RESPA system for the operator environment designed to eliminate 90% of the particulate in the air and filter the remaining 10%.

MAXIMIZE TIRE LIFE
Fine tune your wheel torque to match the underfoot conditions and maximize performance while extending tire life. Cat Waste Handlers feature wheel torque adjustments through an exclusive Rimpull Control feature designed to keep your operating costs low.

Efficiently Powerful

The Cat® C7.1 engine provides cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar's exclusive Intelligent Power Management system monitors operator input and power availability to keep the machine working at peak efficiency and provide the operator with greater customization to suit their application.

A choice of Power Modes allows you to choose between maximum fuel efficiency or boosted power along with hydraulic speed.

STANDARD POWER MODE

  • Saves fuel and reduces cab sound levels
  • Biggest gains are seen during load and carry, snow removal and roading applications

PERFORMANCE POWER MODE
  • Enabled at the push of a button (HP+), boosts engine power by up to 10% and engine speed by over 12%
  • Increases hydraulic cycle times and productivity

Lock up and go with fully locking front differential axle that can be engaged on the move at full torque. Maximize your traction with optional Limited Slip Differential on the rear axle to keep you climbing.

Enjoy All Day Comfort

A spacious, quiet and comfortable operator environment helps keep you relaxed and productive throughout the day. Experience superior all around visibility with single piece front windshield, redesigned linkage and clean hydraulic lines routing. Seat-mounted controls featuring low effort joystick for lift and tilt functions along with integrated Forward/Neutral/Reverse switch, differential lock trigger and optional third and fourth auxiliary functions.

  • Automatic climate control with heated rear glass and external mirrors
  • Information at a glance with large primary LCD display
  • Heated and cooled seat option
  • Optional Ride Control
  • Exclusive electro-hydraulic cylinder snubbing
  • An extra eye on the job site with optional integrated rear object detection and optional* rearview camera

*Standard in Europe.

Customize Your Experience

The M Series Waste Handler will remember you and your personal settings with unique operator codes to make this machine truly yours and keep it secure.

Work as one with your machine by customizing your controls.

  • Select your Power Train Mode
  • Reduce tire wear using Rimpull
  • Fine tune ground speed with Creeper Control
  • Adjustable Electo-Hydraulic Controls
  • Set Directional Shift Response based on job application

Service

Get up and running quickly with ground level, daily service access and optional engine compartment lighting. Three large service doors can be opened and closed in any order to give full access to filters and service points. Extended service intervals on hydraulic and power train filters reduce service time and maximize uptime. Additional service features include:

  • Product Link™ PRO standard with optional subscription to VisionLink®.
  • Maintenance reminders through secondary display at scheduled intervals.
  • Fit for Life Diesel Particulate Filter that is designed to exceed the engine overhaul life.
  • Quick fuel filter service with Caterpillar's exclusive electric fuel priming pump.
  • Jump start studs as standard equipment.
  • Extended cleanouts with single plane cooling system and wide spaced 6 fans per inch coolers as standard.
  • Integrated Autolube (optional) with adjustable greasing frequency.

Customer Support

With renowned Cat dealer support, rely on your Cat dealer to help you every step of the way with new or used machine sales, rental or rebuild options to meet your business needs.

Maximize your machine uptime with unsurpassed worldwide parts availability, trained technicians and customer support agreements.

Let us earn your business. Experience an M Series Small Wheel Loader and join the Caterpillar family.

Sustainability

  • The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
  • Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
  • Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
  • Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
  • Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
  • Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
  • Variable Displacement Pumps match power to load as application requirements change.
Sales Features

Application Specific Configuration

Maximize performance and productivity while minimizing operating costs.

Customize Your Experience

Make it yours.

Efficiently Powerful

Experience hybrid-like fuel efficiency with more power when you need it.

Work Made Easy

Getting the job done.

Enjoy All Day Comfort

Best seat on the job site.

Configured for Success

Ready to work for you.

Serviceability

Schedule your downtime to maximize your up time.

Customer Support

Unmatched service makes the difference.
Standard Equipment
  • POWER TRAIN
    • Axle Duo-Cone™ seal guards
    • Auto idle shut down feature
    • Cat C7.1 engine
      – Power modes (Standard and Performance)
      – Power by range (High Power in Range 4)
      – Turbocharged and aftercooled
      – Diesel particulate filter (Fit for Life)
    • Coded start (requires secondary display)
    • Differential lock in front axle
    • Enclosed wet disc full hydraulic brakes
    • Hydraulically driven demand cooling fan
    • Hydrostatic transmission with electronic control
      – Operator modes (Default, TC, Hystat, and Ice)
      – Directional Shift Aggressiveness (fast, medium, slow)
      – Rimpull control, adjust wheel torque
      – Creeper control, adjust ground speed
    • Parking brake, electric
    • Single plane cooling package wide six fins per inch density
    • Oil sampling ports
    • Throttle lock and max speed limiter
  • HYDRAULICS
    • Automatic lift lower and tilt kickouts, adjustable in-cab
    • Bucket and fork modes, adjustable in-cab
    • Cylinder damping at kickout and mechanical end stops
    • Fine mode control (fast, medium, slow)
    • Hydraulic response setting (fast, medium, slow)
    • Load sensing hydraulics and steering
    • Seat-mounted hydraulic joystick controls
  • ELECTRICAL
    • Alternator, 115 amp, heavy duty
    • Batteries, 1,000 CCA (2) 24V system, disconnect switch
    • Back-up alarm
    • Emergency shutdown switch
    • Halogen work and roading lights, LED rear tail lights
    • Product Link PRO with three year subscription
    • Remote jump start post
    • Resettable main and critical function breakers
  • OPERATOR ENVIRONMENT
    • 75 mm (3 in) High-Vis retractable seat belt, with audible alarm and indicator
    • Automatic temperature control
    • Cab, pressurized
    • Camera, rearview
    • External heated mirrors with lower parabolic
    • Ground level cab door release
    • Hydraulic control lockout
    • Mirror, single
    • Lunch box storage
    • Radio ready speakers
    • Rear window defrost, electric
    • Column mounted multi function control – lights, wipers, turn signal
    • Tilt and telescopic steering wheel
    • Tinted front glass
    • Wet arm wiper/washer, 2-speed and intermittent, front, lights, wipers, turn signal
    • Suspension seat, fabric
  • OTHER STANDARD EQUIPMENT
    • Large-access enclosure doors with adjustable close/open force
    • Cat optimized Z-bar linkage with parallel lift
    • Recovery hitch, with pin
    • Remote mounted lubrication points
    • Lockable compartments and enclosures
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Autolube, integrated in secondary display
    • Auxiliary flow, third and fourth function
    • Differential, limited slip, rear
    • Beacon light, strobe
    • Cab, deluxe (standard in Europe)
      – Camera, rearview integrated into advanced display
      – Electrically adjustable external heated mirrors (2)
      – Secondary display to enable features and adjust parameters
      – LED interior lighting
      – Sunscreen, front and rear
      – Touchscreen secondary display
      – Ride control adjustable speed activation
      – Preventative maintenance reminders
      – Integrated help function (26 languages)
    • Camera, roof mounted, front view with separate display
    • Cold start package
      – Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)
    • Counterweight, additional options
    • Coupler, (Fusion and ISO 23727)
    • Debris packages (low, medium, high)
    • Fenders (extended cover and full coverage)
    • Guarding packages
    • Linkage, high lift
    • Lights, auxiliary, halogen or LED with engine and DEF compartment lights
    • Payload Technology
      – Cat Production Measurement (CPM)
      – CPM Printer
    • Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
    • Radio packages
    • Rear Object Detection
    • Ride Control System, adjustable through secondary display
    • Seats
      – Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
      – Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
    • Steering
      – Dual mode and secondary
    • Tire Pressure Monitoring (TPM)
