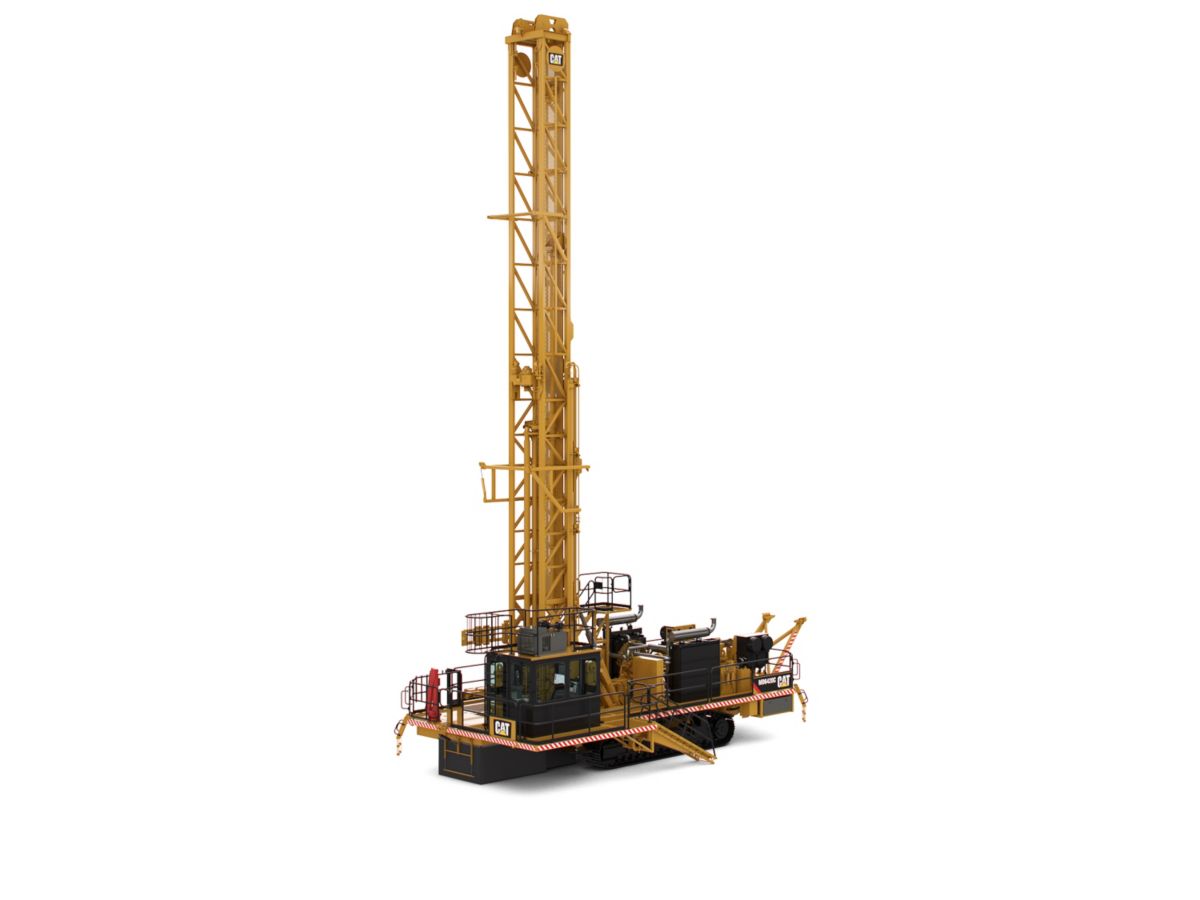

Specifications
Rotary Drive System
High Speed/Low Torque Rotary Head, dual motors
0-17 219 N·m (0-12,700 lbf)
Drill Table and Work Deck
Leveling Jacks
Lift Capacity - Each
150670.00 lbf
68344.00 kgf
Components
Four leveling jacks to provide stability drilling with 7° bench angle
Operating Temperature
Minimum ambient rating (standard)
Maximum ambient rating (standard)
Operator’s Cab
Components
All electric controls for drilling, tramming, leveling plus auxiliary functions
Components
Roof mounted air conditioning/heating/pressurizing unit; hydraulic driven
Undercarriage
Brakes
Spring set, hydraulic release
Front
Three-point oscillating type
Maximum Drive Horse Power per Track
403.00 mm H2O
300.50 kg/mm
Number of Rollers - Each Side
Track Adjustment Means
Automatic track tensioning system
Track Drive Disconnect
1.20 mph
1.93 km/h
Standard (manual)
Tram Speed - Maximum
1.20 mile/h
1.93 km/h
51%
Compressor (Standard)
Type
Butterfly inlet, spiral valve control
Discharge air flow (sea level)
3600.00 ft3/min
101.90 m3/min
Maximum operating pressure
Pull-Down/Hoisting Capacity
Pull-Down Capacity
Up to 489 kN (Up to 110,000 lbf)
Hoist Capacity
Up to 382 kN (Up to 86,000 lbf)
Drilling Feed Rate
0-33.5 m/min (0-110 ft/min)
Pull-down/Hoisting Capacity
Retract rate
0-33.5 m/min (0-110 ft/min)
Head travel (16 m/52.5 ft mast)
Head travel (20 m/65.6 ft mast)
Undercarriage
Rock Guards/Chain Guards
Standard full-length guards
Track adjustment means
Automatic track tensioning system
Mainframe, Decks and Walkways
Jacks, Mast Pivot and Deck
Welded integrally to mainframe
Accessories, Tools and Handling Equipment
Rotary Tooling
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling with Shock Sub
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, shock sub with adapter, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling with Shock Sub
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, shock sub with adapter, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling with Shock Sub
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling with Shock Sub
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling with Shock Sub
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling with Shock Sub
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Rotary Tooling with Shock Sub
Rotary package for 339 mm (13 3⁄8 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit sub
Engine
Fuel tank (two tanks are standard)
Note
* The C3512 HD engine meets Tier 2/Stage II equivalent emission standards
Specifications
Bit Load
Up to 53 845 kg (Up to 118,719 lb)
Controls
Manuals
All manuals stored in control system, service, operators and schematics
Components
Engine shut down sequence
Components (1)
Engine shut down sequence
Components (2)
Drill performance and monitoring/diagnostics system
Components (3)
Electro-pneumatic compressor control system
Components
High/low tram speed select (high only when mast is down) interlock
Components (4)
Filter indicators (air, hydraulic, and compressor), component status indicators, oil, fuel and water level indicators
Components (5)
High/low tram speed select (high only when mast is down) interlock
Components (7)
Electronic controls provide fast and reliable control of all drill functions
Components (8)
ECM proportional fan speed control system
Components (9)
Pump drive gearbox temperature sensor
Components (10)
Rotary head RPM gauge – digital
Components (11)
Tram interlock, machine outside stability limits
Components (12)
Tram interlock, pipe in hole
Components (13)
Tram interlock, mast up and locked or down and parked
Components (15)
Cab environment control (AC, filter, heat, fan speeds)
Components (18)
Drill function interlock, carousel in load position
Components (19)
Drill function interlock, carousel not parked
Components (20)
Drill function interlock, mast up and locked
Components (21)
Drill function interlock, rod catcher not closed
Components (23)
Head clear interlock, rotary drive clear of carousel
Components (24)
Winch not parked – tram interlock
Base Machine
Components (1)
Thermal protection of exhaust system and turbo lines
Components (3)
Guard between engine and hydraulic drive
Components (4)
Fuel tanks separated with check valves
Components (5)
Hydraulic tank with isolation valves and interlocks
Components (6)
Slip resistant decks and walkways
Components (7)
3289 L (869 gal) fuel, [2 tanks mounted under power train]
Components (8)
Bolt-on hand rails with kick plates
Components (9)
Cat maintenance free batteries
Components (10)
Stainless battery box, sliding drawer type
Components (11)
Heavy duty tow hooks (front end)
Components (13)
Pipe loading guide roller
Components (15)
Left rear swing gated handrail to allow for loading/unloading drill deck
Drill Table and Work Deck
Components (1)
Pipe loading guide roller
Components (3)
Left rear swing gated handrail (dual gate design)
Components (4)
Rear deck bit storage box with hinged aluminum cover
Components (5)
Hydraulic viewing hatch with hatch viewing spot light
Basic Specs
Hole Depth Range - 16 m/52.5 ft Mast: Single Pass
Hole Depth Range - 16 m/52.5 ft Mast: Multi Pass
Up to 84.73 m (Up to 278 ft)
Hole Depth Range - 20 m/65.6 ft Mast: Single Pass
Hole Depth Range - 20 m/65.6 ft Mast: Multi Pass
Up to 56.4 m (Up to 185 ft)
Emissions
U.S. EPA Tier 2/EU Stage II equivalent
Rated Horse Power
1283.00 mm H2O
957.00 kg/mm
Compressor
101.9 m3/min @ 6.9 bar, 1,800 rpm (3,600 ft3/min @ 100 psi, 1,800 rpm)
Mast 16 or 20 m (52.5 or 65.6 ft)
Components (1)
Up to 406 mm (16 in) hole diameter
Components (2)
Up to 489 kN (110,000 lbf) rated capacity single cylinder pulldown/hoist system
Components (3)
Rotary head gear box, motors choice in attachment packages
Components (4)
Dust hood with hinged quick change dust seal
Components (5)
30 degree angle drilling in 5° increments and mast locks with indicator in cab [25 degree limit for 406 mm (16 in) holes]
Components (6)
Auto cable tensioning system (attached on pull down side)
Components (7)
Sliding deck wrench, hydraulic fork
Components (8)
HOBO (Hydraulic Operated Break-Out Wrench)
Components (9)
Mast lanyard mounting plates
Components (11)
Remote drill pipe thread lube system, operated from the cab
Components (13)
Winch 5443 kg (12,000 lb) lift capacity
Mast Carousel
Pipe Rack (Inside the Mast) - Carousel with Stationary Pods and Breaker Plates (1)
16 m/52.5 ft mast, 5 × 13.7 m (45 ft) pipe carousel: – Pipe diameter 219 mm (8 5⁄8 in) – Total hole depth 84.73 m (278 ft)
Pipe Rack (Inside the Mast) - Carousel with Stationary Pods and Breaker Plates (2)
16 m/52.5 ft mast, 5 × 13.7 m (45 ft) pipe carousel: – Pipe diameter 235 mm (9 1⁄4 in) – Total hole depth 84.73 m (278 ft)
Pipe Rack (Inside the Mast) - Carousel with Stationary Pods and Breaker Plates (3)
16 m/52.5 ft mast, 4 × 13.7 m (45 ft) pipe carousel: – Pipe diameter 273 mm (10 3⁄4 in) – Total hole depth 71.02 m (233 ft)
Pipe Rack (Inside the Mast) - Carousel with Stationary Pods and Breaker Plates (4)
20 m/65.6 ft mast, 5 × 9.14 m (30 ft) pipe carousel: – Pipe diameter 219 mm (8 5⁄8 in) – Total hole depth 65.5 m (215 ft)
Pipe Rack (Inside the Mast) - Carousel with Stationary Pods and Breaker Plates (5)
20 m/65.6 ft mast, 5 × 9.14 m (30 ft) pipe carousel: – Pipe diameter 235 mm (9 1⁄4 in) – Total hole depth 65.5 m (215 ft)
Pipe Rack (Inside the Mast) - Carousel with Stationary Pods and Breaker Plates (6)
20 m/65.6 ft mast, 4 × 9.14 m (30 ft) pipe carousel: – Pipe diameter 273 mm (10 3⁄4 in) – Total hole depth 56.4 m (185 ft)
Pipe Rack (Inside the Mast) - Carousel with Stationary Pods and Breaker Plates (7)
20 m/65.6 ft mast, 2 × 9.14 m (30 ft) pipe carousel: – Pipe diameter 339 mm (13 3⁄8 in) – Total hole depth 38.1 m (125.2 ft)
Rotary Drive System
High Speed/Low Torque Rotary Head, Dual Motors (2)
20 880 N·m (0-15,400 lbf)
Cooling
Components (2)
Two coolers (split coolers) Maximum ambient cooling capacity of 52° C (125° F)
Components (3)
Variable speed cooler fans, ECM controlled
Operator’s Cab
Components
Cab ladder, roof platform and railing
Components
Roof window with protective cage
Operator's Cab
Components (11)
Rubber shock mounted and insulated two-man extra-large FOPS cab
Components (13)
Split operator's console with stainless steel panels and back-lit gauges
Components (15)
Two (2) swing out hinged doors with heavy duty door latching system
Components (16)
Windshield wipers and washer tank kit
Components (17)
Overhead interior dome lights
Components (19)
Cat operator's seat with inertia reel seat belts, mechanical suspension or option with seat belt, heat, ventilation and air suspension
Technology Group
Basic
Includes Base Machine Control Group features
Standard
Includes Basic Control Group plus Auto Level/Retract and Auto Mast Angle
Ultra
Includes Standard plus Auto Drill (Rotary, Single Pass)
Cat Terrain for Drilling - Production
Includes Cat Terrain Mining System Interface
Cat Terrain for Drilling - Guidance
Requires Cat Terrain for Drilling – Production
Cat Terrain for Drilling - Strata
Requires Cat Terrain for Drilling – Production
Components (2)
Interface for third party mining systems
Hydraulics
Mainframe, Decks and Walkways
Standard
Includes Basic Mainframe and Deck features plus fixed ladder to main deck cab area, on right side of frame
Ultra
Includes Basic Mainframe and Deck features plus cascading, self-leveling stairs to main deck cab area, on right side of frame with switched walkway lighting at ground and deck levels: – Includes two (2) lights – Includes ECM control tram interlock if ladd
Base Machine
Components
Left rear swing gated handrail to allow for loading/unloading drill deck
Components (16)
Rear deck bit storage box
Components (17)
Walkways around the drill, 360 degrees
Components (18)
Swing up cable steps, egress at each corner of drill
Components (19)
Spring loaded self-closing gates
Components (20)
Vertical mast rest at front of drill
Components (21)
Fixed dust curtains – four side
Components (22)
Mounting frame for pressure washer with port in fuel tank and water tank for DPO of washer
Dust Control
Components (1)
Hydraulic curtain lifters front and back
Components (2)
Water injection, 2921 L (1771 + 1150 L) [772 gal (468 + 304 gal)] below deck tanks
Components (3)
Optional ECM control of water injection pump interlock, water flow meter/current control and tank level
Components (4)
2.271 L (600 gal) water tank mounted on deck
Optional Dust Control Choices
Choices (2)
Fixed curtains (left and right sides): – Auto raise hydraulic lifted curtains for rear and front – Includes ECM control tram interlock if dust skirts are not lifted up
Choices (3)
Water injection, 2921 L (1771 + 1150 L) [772 gal (468 + 304 gal)] below deck tanks [1150 L (304 gal) not functional in Cold Weather Level 4]: – Includes ECM control of water injection pump interlock, water flow meter/current control and tank level
Choices (4)
Water injection, 5193 L (1,372 gal) (not available with Cold Weather) 2922 L (772 gal) below deck tanks plus 2271 L (600 gal) deck mounted tank (3 tanks): – Includes ECM control of water injection pump interlock, water flow meter/current control and tank
Choices (5)
Dust collector, 101.9 m3/min (3,600 ft3/min) [tandem 50.9 m3/min (1,800 ft3/min)] with precleaner: – Water injection, 2921 L (772 gal) [1771 + 1150 L (468 + 304 gal)] below deck tanks – Includes ECM control of water injection pump interlock, water flow me
Choices (6)
Water injection fast fill
Winch System
Pipe Handling
Components (2)
Fixed cable pipe catcher or optional hydraulic safety arm/pipe catcher with drill function interlock, when pipe catcher is not closed
Components (3)
Basic or optional hydraulically operated bit basket
Components (4)
Lifting bail for hoisting drill pipe/bit sub
Safety
Components (1)
Alloy drill deck covers, for servicing when mast in mast rest, with storage provision
Components (2)
Air hose safety sleeves (whip socks)
Components (3)
Full battery disconnect or starter isolation only with lock outs
Components (4)
Remote jump start terminals
Components (5)
Seven (7) engine shut down buttons, by each drill egress/access point, in cab, in engine area, on drill deck
Components (6)
Tram alarm, with tram engagement
Components (7)
Strobe beacon on cab and left side of drill
Components (8)
Hinged protective cage for full length front drill window
Components (9)
LED night perimeter flood lighting – four sides LED spot lighting power group area; drill deck; mast carousel; access ladder and walkways for night drilling: – Luminesces to meet Cat light standards
Components (10)
A printed copy of the Operation and Maintenance Manual(s) is provided with each machine, installed at the factory, and available in the legal language(s) of the country where the machine is to be placed in service: – The language specified on the factory
Components (11)
A separate, weather-resistant literature compartment in the operator's station is provided for the Operation and Maintenance Manual and other items related to safe operation and maintenance of the machine
Components (12)
Burn protection from exhaust pipes and turbo lines
Service Features
Features (1)
Loop filters between hydraulic pumps and motors
Features (2)
Two (2) hydraulic return filters, one (1) hydraulic case drain strainer, two (2) hydraulic charge filters, compressor oil filters, automatic 45 point lubrication system, centralized
Features (3)
Hydraulic pressure test points
Features (4)
Fast fill refueling system
Features (5)
Self contained, Jib Crane mounted on the drill deck with pedestal controls
Service Packages
Standard
Includes Basic Service features plus: full service center (fill and evacuation), fuel, compressor, coolant, engine oil, hydraulic, and gear box with fill only for rock bit oil and central lubrication: – Jib crane, with pedestal controls
Ultra
Includes Standard Service features plus: mast access ladder, mast grating, posts only (for lanyard attachment to use with cable for traveling hook and harness): – Jib crane, with pedestal controls
Miscellaneous
Components (3)
Blowdown hose with nozzle and reel
Components (5)
Tram remote control (pendant/cable) for operation of tram controls from ground
Components (8)
Interface for third party mining systems
Components (9)
Remote jump start terminals
Climate Choices
Standard Climate Range
Ambient temperature range: -1° C (30° F) to 52° C (125° F): – Cab cooling to 19° C (66° F) – Window shades – Safety laminated tinted glass
Cold Climate Level 2
Ambient temperature range: -18° C (-1° F) to 52° C (125° F): – Wind up to 96 km/h (60 mph) – Cab heating to 27° C (81° F) – Safety laminated tinted glass – Cab glass defroster – Ether starting aid – Cab floor heater
Dealer Attachments Available
Attachment (2)
Lanyard attachment – cable with travelling hook on mast and harness for personnel
Attachment (5)
Power connections and brackets for third party module system
Basic Specs
Bit Load
118719.00 lb
53845.00 null
Mast 16 or 20 m (52.5 or 65.6 ft)
Components (16)
Mast access ladder and floor grating
Base Machine
Components (23)
Four (4) Cat maintenance free batteries
Components (24)
Hydraulic viewing hatch with hatch viewing spot light
Winch System
Weights
Working Weight
339297.00 lb
153903.00 null
Operating Temperature
Maximum Ambient Rating - Standard
Minimum Ambient Rating - Standard
Rotary Drive System
High Speed/Low Torque Rotary Head, Dual Motors (1)
0-17 219 N·m (0-12,700 lbf)
Operator's Cab
Components (2)
All electric controls for drilling, tramming, leveling plus auxiliary functions
Components (8)
Roof mounted air conditioning/heating/pressurizing unit; hydraulic driven
Undercarriage
Type
Cat 374F undercarriage with full length rock guards and tram distance meter, 900 mm (35 in) triple grousers and auto tensioning.
Leveling Jacks
Components
Four leveling jacks to provide stability drilling with 7° bench angle
Compressor - Standard
Discharge Air Flow - Sea Level
3600.00 ft³/min
101.90 m³/min
Maximum Operating Pressure
Type
Butterfly inlet, spiral valve control
Accessories, Tools and Handling Equipment
Rotary Tooling (1)
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit
Rotary Tooling (2)
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit
Rotary Tooling (3)
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bi
Rotary Tooling (4)
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit
Rotary Tooling (5)
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bit
Rotary Tooling (6)
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, top sub, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack inserts and bi
Rotary Tooling with Shock Sub (1)
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, shock sub with adapter, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack
Rotary Tooling with Shock Sub (2)
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, shock sub with adapter, deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pipe rack
Rotary Tooling with Shock Sub (3)
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 16 m/52.5 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, p
Rotary Tooling with Shock Sub (4)
Rotary package for 219 mm (8 5⁄8 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pi
Rotary Tooling with Shock Sub (5)
Rotary package for 235 mm (9 1⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, pi
Rotary Tooling with Shock Sub (6)
Rotary package for 273 mm (10 3⁄4 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, p
Rotary Tooling with Shock Sub (7)
Rotary package for 339 mm (13 3⁄8 in) diameter pipes (drill pipe not included) on 20 m/65.6 ft mast, carousel plates, HOBO inserts, shock sub with adapter [total], deck wrench, hoist plug, horse shoe wrench, universal bit basket, deck seals, chock bars, p
Base Machine
Standard
Includes Basic Mainframe and Deck features plus fixed ladder to main deck cab area, on right side of frame
Ultra
Includes Basic Mainframe and Deck features plus cascading, self-leveling stairs to main deck cab area, on right side of frame with switched walkway lighting at ground and deck levels: – Includes two (2) lights – Includes ECM control tram interlock if ladd
Controls
Components (26)
Virtual rotary head travel stops
Engine
Fuel Tank - Two Tanks are Standard
869.00 gal (US)
3289.00 l
Note
* The C3512 HD engine meets Tier 2/Stage II equivalent emission standards
Rated Horse Power
1283.00 mm H2O
957.00 kg/mm
Operator's Cab
Components (10)
Roof window with protective cage
Components (9)
Cab ladder, roof platform and railing
Pull-Down/Hoisting Capacity
Head Travel (16 m/52.5 ft Mast)
Head Travel (20 m/65.6 ft Mast)
Retract Rate
0-33.5 m/min (0-110 ft/min)
WARNING
