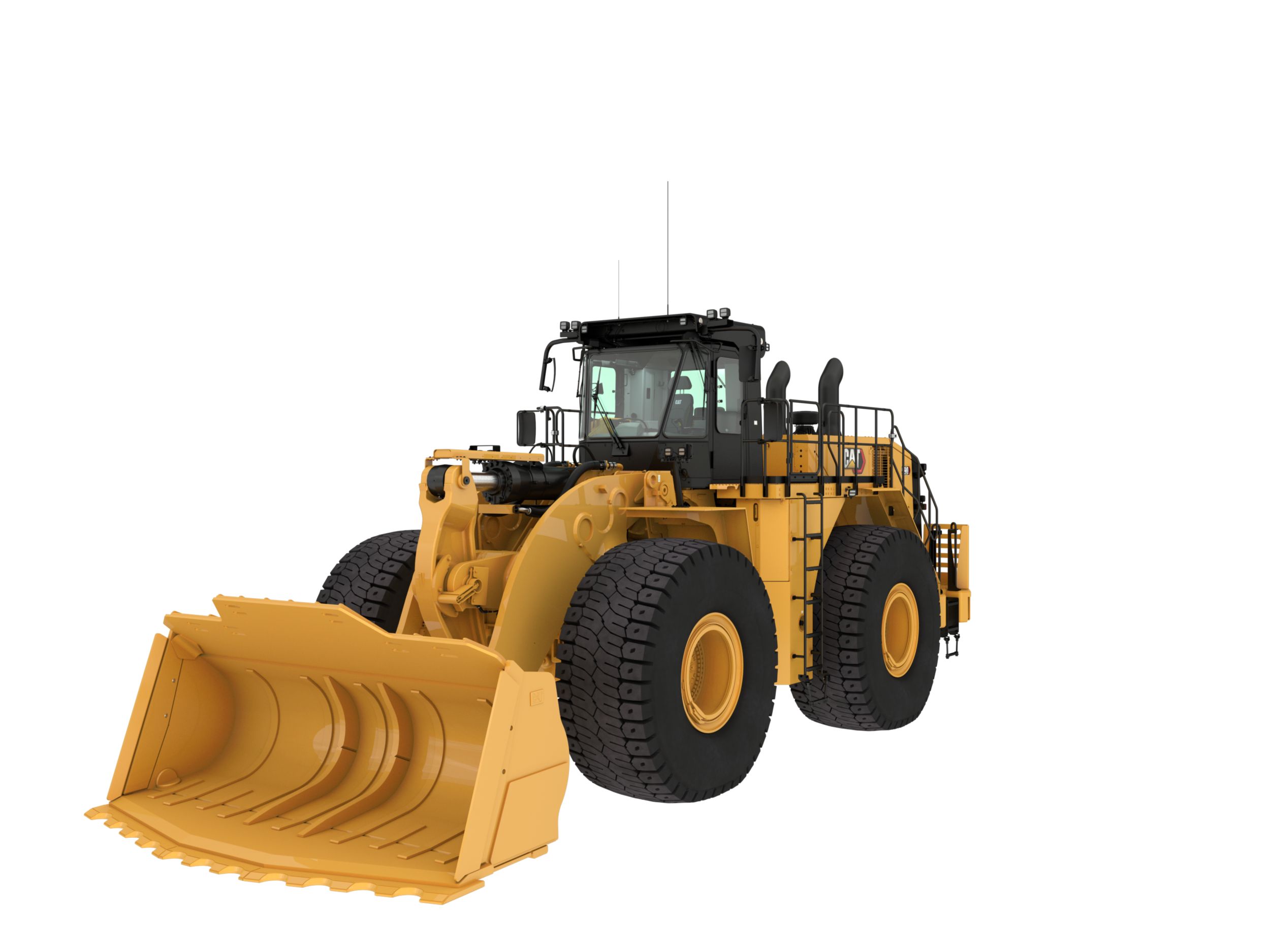

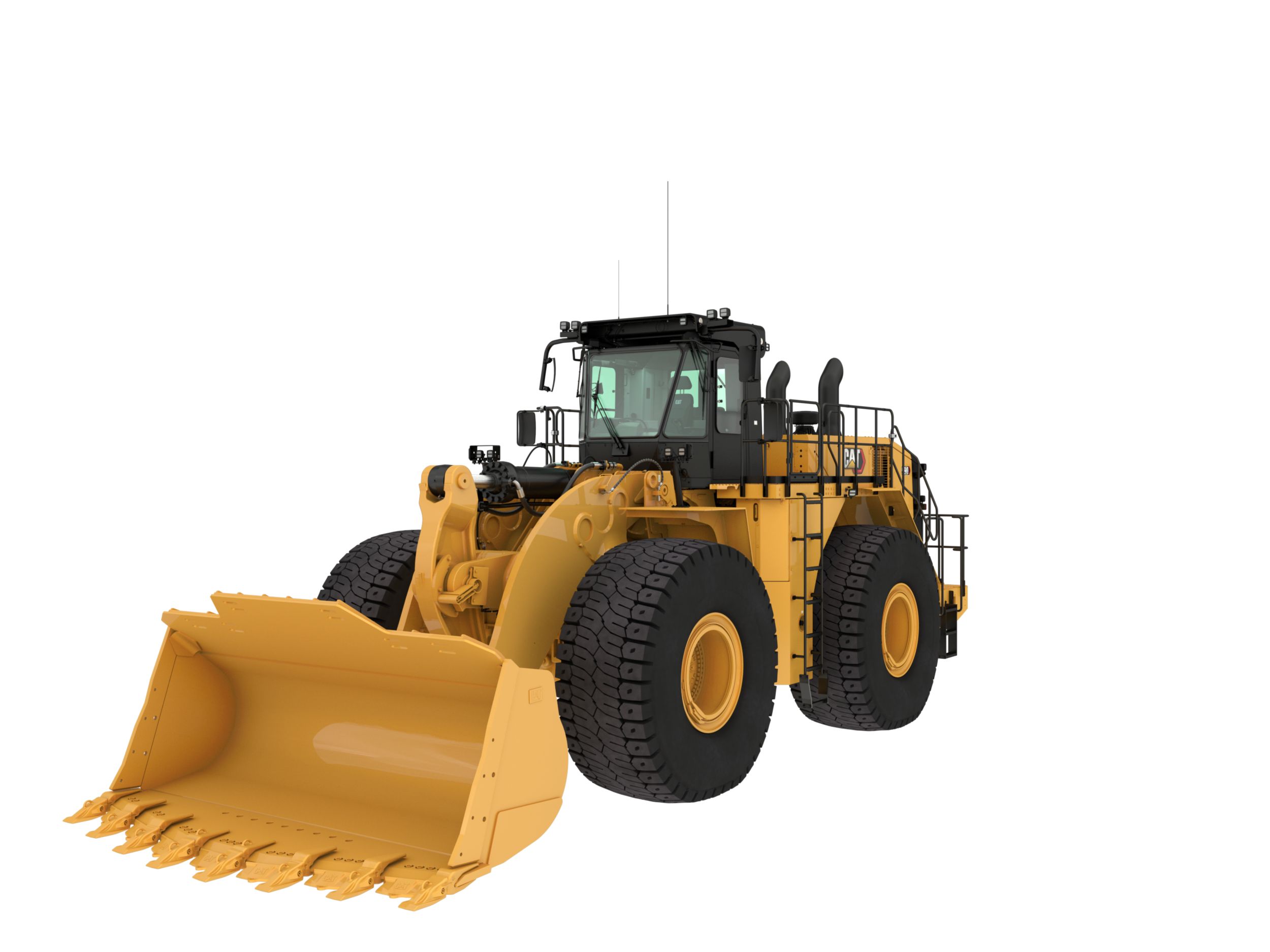

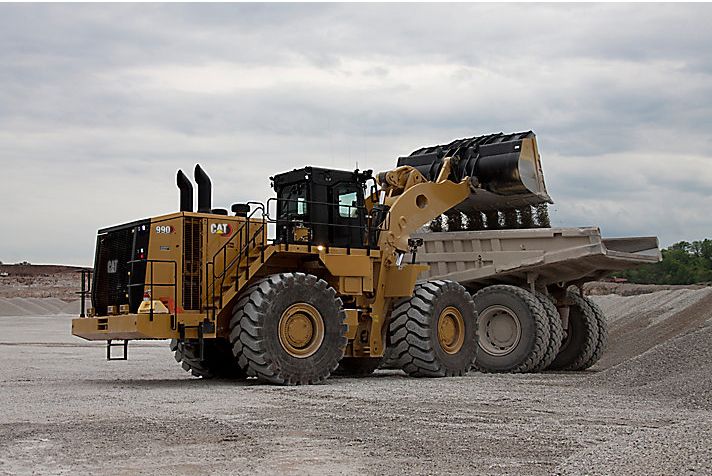

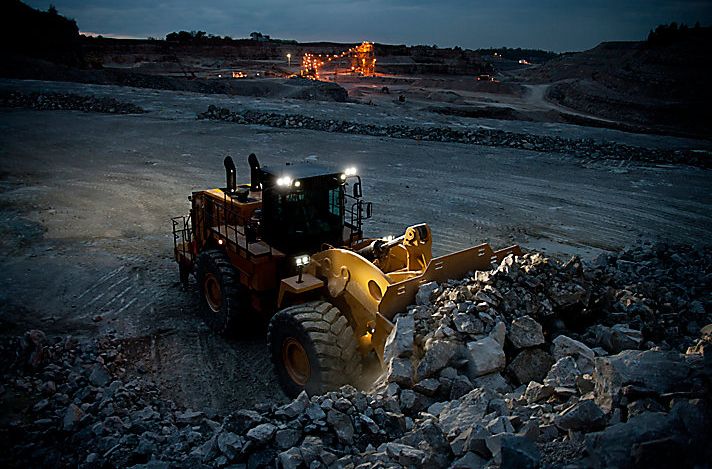

990 Wheel Loader
US
Metric
Overview
Cat Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. The Cat 990 Wheel Loader has been a proven performer in mines, quarries and industrial applications around the world. The 990 brings all new levels of performance, safety, operator comfort and efficiency.
Operating Specifications
Rated Payload - Loose Material (Standard)
20.00 ton (US)
22.00 t
Rated Payload - Loose Material (High Lift)
22.00 ton (US)
20.00 t
Rated Payload - Standard (Quarry Face)
17.50 ton (US)
15.90 t
Rated Payload - High Lift (Quarry Face)
17.50 ton (US)
15.90 t
Bucket Capacity Range
8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³)
Cat Truck Match - Standard
773-775
Cat Truck Match - High Lift
775-777
Engine
Net Power
699.00 HP
521.00 kW
Operating Specifications
Operating Weight
178517.00 lb
80974.00 kg
Buckets
Bucket Capacities
8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³)
Engine
Engine Model
C27 Cat®
Bore
5.40 in
137.20 mm
Stroke
6.00 in
152.40 mm
Displacement
1649.50 in³
27.03 l
Torque Rise
18.00 %
18.00 %
Rated Speed
1,800/min
Transmission
Transmission Type
Cat planetary power shift
Forward - 1
4.50 mile/h
7.30 km/h
Forward - 2
8.30 mile/h
13.30 km/h
Forward - 3
14.20 mile/h
22.90 km/h
Reverse - 1
4.90 mile/h
7.90 km/h
Reverse - 2
9.10 mile/h
14.70 km/h
Reverse - 3
15.50 mile/h
24.90 km/h
Direct Drive - Forward 1
Lock-up disabled
Direct Drive - Forward 2
8.50 mile/h
13.70 km/h
Direct Drive - Forward 3
15.20 mile/h
24.50 km/h
Direct Drive - Reverse 1
5.40 mile/h
8.70 km/h
Direct Drive - Reverse 2
9.60 mile/h
15.40 km/h
Direct Drive - Reverse 3
16.40 mile/h
26.40 km/h
Axles
Front
Fixed
Rear
Trunnion
Oscillation Angle
8.5°
Hydraulic Cycle Times
Raise
8.20 s
8.20 s
Dump
2.90 s
2.90 s
Service Refill Capacities
Fuel Tank
294.30 gal (US)
1114.00 l
Cooling System
54.90 gal (US)
208.00 l
Transmission
29.10 gal (US)
110.00 l
Hydraulic System - Lift/Tilt
Maximum Flow at 1,800 rpm (2)
22.20 gal/min
84.00 l/min
Sound Performance - Suppression
Operator Sound Level (ISO 6396:2008)
65.50 dB(A)
65.50 dB(A)
Engine
Net Power - SAE J1349
699.00 HP
521.00 kW
Hydraulic System - Lift/Tilt
Maximum Flow at 1,800 rpm (1)
240.00 gal/min
910.00 l/min
Service Refill Capacities
Differential - Final Drives - Rear
68.90 gal (US)
261.00 l
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit
Positive flow control
Lift/Tilt System
Variable displacement piston
Hydraulic Cycle Times
Total Hydraulic Cycle Time - Empty Bucket
13.80 s
13.80 s
Service Refill Capacities
Differential - Final Drives - Front
71.60 gal (US)
271.00 l
Hydraulic Tank - Steering and Braking
34.90 gal (US)
132.00 l
Engine Crankcase
20.00 gal (US)
75.70 l
Engine
Rated Speed - Net Power - SAE J1349 - High Ambient
648.00 HP
483.00 kW
Hydraulic System - Lift/Tilt
Cylinders, Double Acting - Lift, Bore and Stroke
235 mm × 1287 mm (9.3 in × 50.7 in)
Hydraulic Cycle Times
Lower
3.70 s
3.70 s
Hydraulic System - Steering
Steering System - Circuit
Pilot, load sensing
Sound Performance - Suppression
Machine Sound Level (ISO 6395:2008)
113.00 dB(A)
113.00 dB(A)
Hydraulic System - Steering
Steering
ISO 5010: 2007
Engine
Rated Speed - Net Power - SAE J1349 - Standard Ambient
699.00 HP
521.00 kW
Rated Speed - Gross - ISO 14396
752.00 HP
561.00 kW
Gross - ISO 14396
752.00 HP
561.00 kW
Peak Torque - 1,200 rpm
2624.00 lb/ft
3557.00 N·m
Hydraulic System - Steering
Maximum Flow at 1,400 rpm
96.20 gal/min
364.00 l/min
Hydraulic System - Lift/Tilt
Pilot System
Open loop and pressure reducing
Service Refill Capacities
Note
All nonroad U.S. EPA Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214. Cat DEO‑ULS™ or oils that meet the Cat ECF-3, API CJ‑4, and ACEA E9 specification are required. For further fluid specifications and guidelines, visit: http://parts.cat.com/cda/files/3244668/7/SEBU6250-19.pdf.
Sound Performance - Standard
Operator Sound Level (ISO 6396:2008)
65.50 dB(A)
65.50 dB(A)
Service Refill Capacities
Hydraulic Tank - Implement and Hydraulic Fan
68.90 gal (US)
261.00 l
Engine
Rated Speed - Gross - SAE J1995
766.00 HP
571.00 kW
Hydraulic System - Steering
Total Steering Angle
70°
Transmission
Note
Travel speeds based on Michelin 45/65R39 LD D2**L5 tires.
Hydraulic Cycle Times
Lower Float Down
3.60 s
3.60 s
Hydraulic System - Lift/Tilt
Relief Valve Setting - Lift/Tilt
4786.00 psi
33000.00 kPa
Relief Valve Setting - Main
507.00 psi
3500.00 kPa
Operator's Cab
ROPS/FOPS
ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Hydraulic System - Steering
Steering System - Pump
Piston, variable displacement
Engine
Emissions
U.S. EPA TIer 4 Final and EU Stage V emission standards or U.S. EPA Tier 2 and EU Stage II equivalent
Service Refill Capacities
Hydraulic System Factory Fill
210.00 gal (US)
795.00 l
Hydraulic System - Steering
Relief Valve Setting - Steering
5004.00 psi
34500.00 kPa
Hydraulic Cycle Times
Rack Back
4.30 s
4.30 s
Sound Performance - Standard
Machine Sound Level (ISO 6395:2008)
115.00 dB(A)
115.00 dB(A)
Hydraulic System - Lift/Tilt
Cylinders, Double Acting - Tilt, Bore and Stroke
292.1 mm × 820 mm (11.5 in × 32.3 in)
Brakes
Brakes
ISO 3450: 2011
Operating Specifications
Rated Payload - Standard
17.50 ton (US)
15.90 t
Rated Payload - High Lift
17.50 ton (US)
15.90 t
Engine
Engine Power - ISO 14396
752.00 HP
561.00 kW
Gross Power - SAE J1995
766.00 HP
571.00 kW
Net Power - SAE J1349 - Standard Ambient
699.00 HP
521.00 kW
Net Power - SAE J1349 - High Ambient
648.00 HP
483.00 kW
Air Conditioning System
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.7 kg of refrigerant which has a CO2 equivalent of 3.861 metric tonnes (4.256 tons).
Features
PROVEN RELIABILITY
PERFORMANCE AND PRODUCTIVITY
POWERFUL EFFICIENCY
PRODUCTIVITY WITH TECHNOLOGY
SAVE ON SERVICE AND MAINTENANCE
SAFETY FIRST
OPERATOR COMFORT AND CONTROL

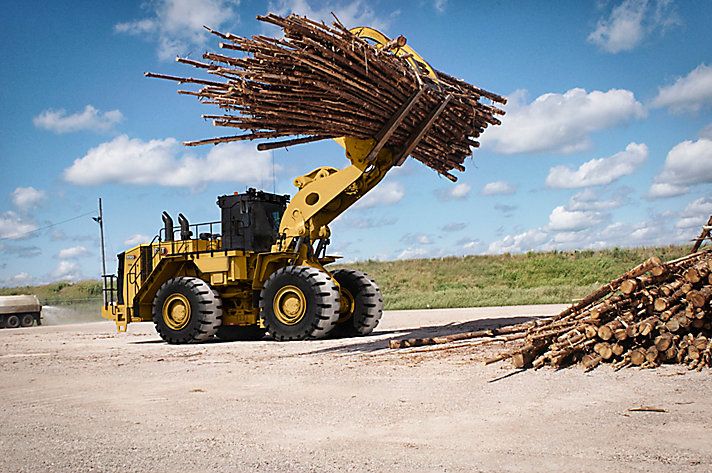

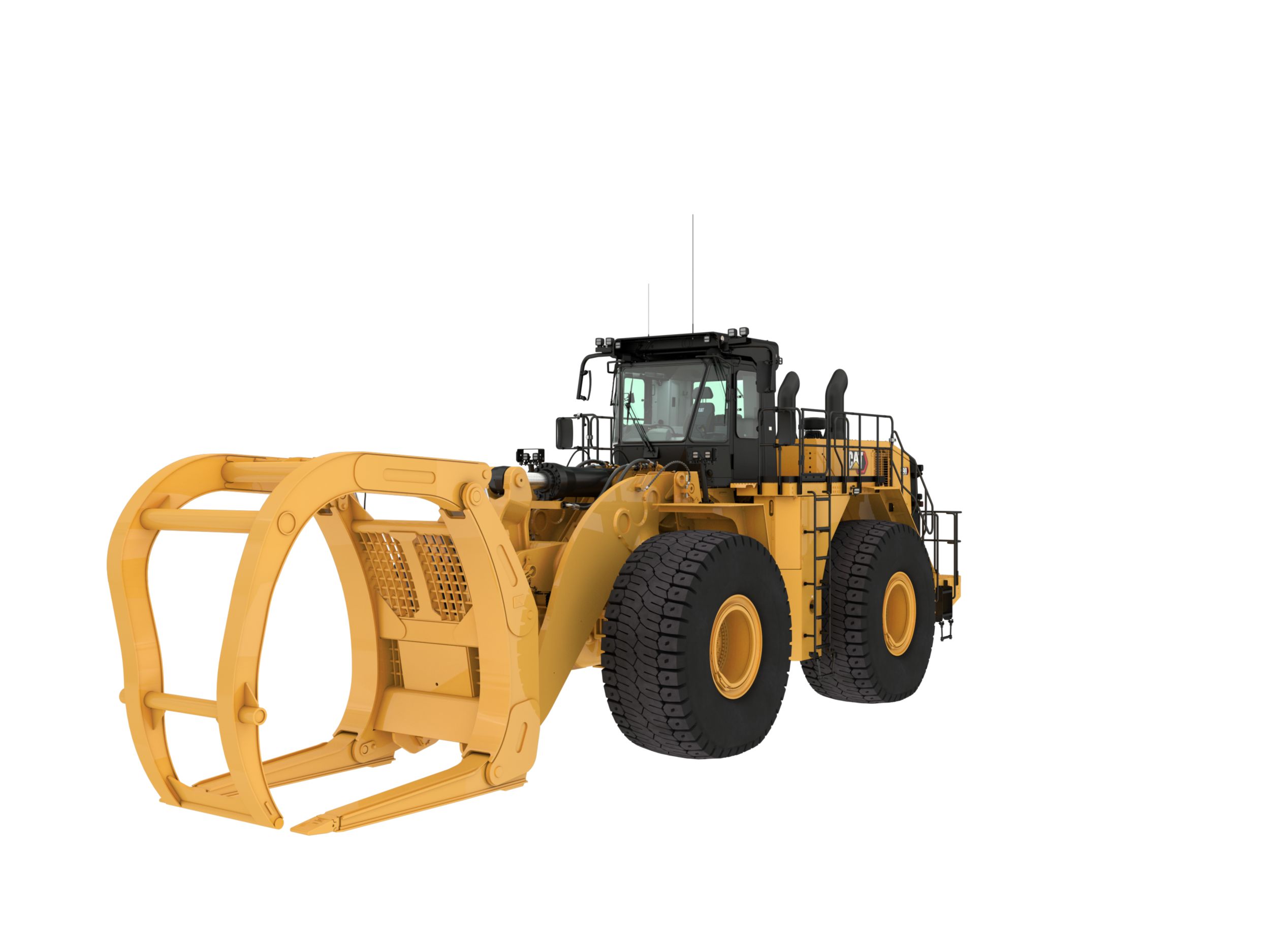

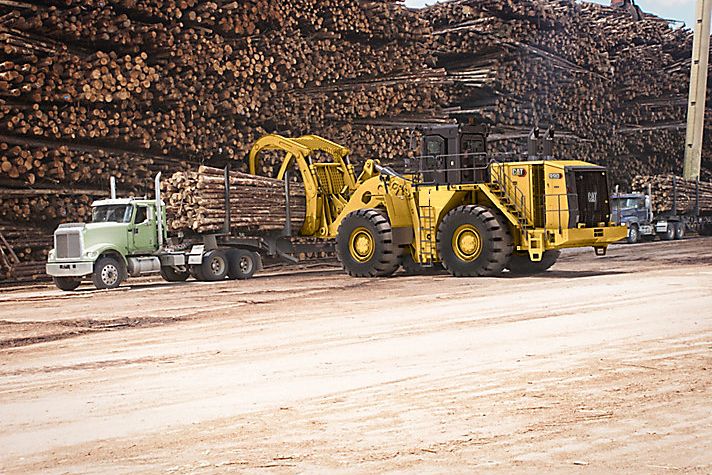

PURPOSE BUILT SPECIALTY MODELS - MILLYARD

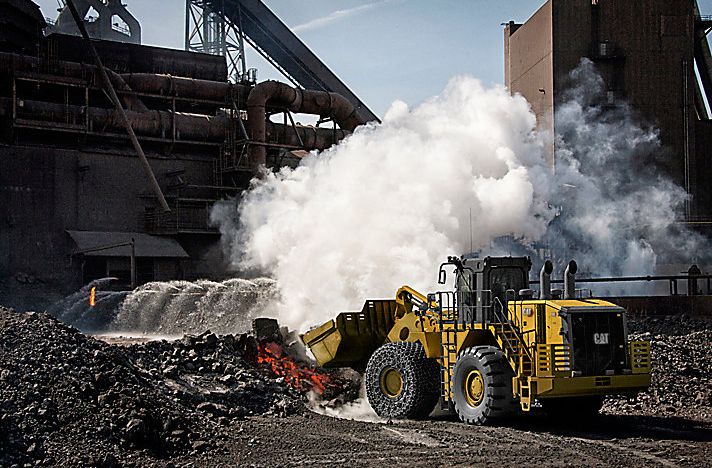

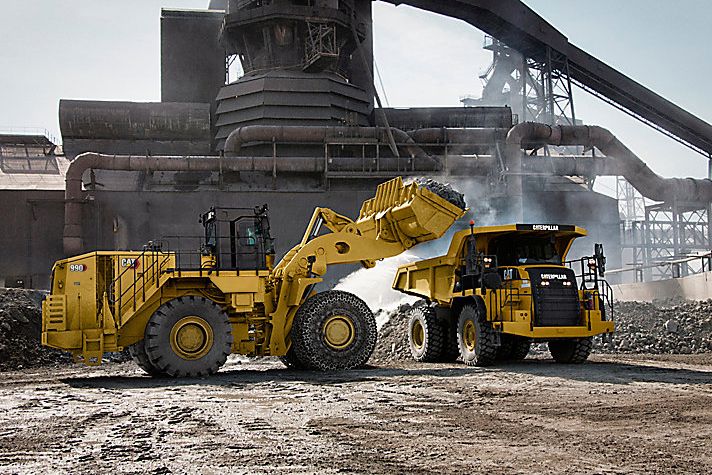

PURPOSE BUILT SPECIALTY MODELS - STEEL MILL
LONG TERM VALUE AND DURABILITY
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Air conditioner and heater with automatic temperature control
- Cab, sound-suppressed pressurized, protective structure (ROPS/FOPS)
- 12V power port for mobile phone or laptop connection
- Cat Vision, rear vision camera system
- Cigar lighter and ashtray
- Coat hook
- Electro-hydraulic tilt and lift controls (seat mounted)
- Flip-up armrest
- Heater and defroster
- Horn, electric
- Implement hydraulic lockout
- Instrumentation, gauges:
– Engine coolant temperature
– Fuel level
– Ground speed
– Gear
– Hydraulic oil temperature
– Speedometer/tachometer
– Torque converter temperature - Instrumentation, warning indicators:
– Action alert system, three category
– Automatic transmission model enable status
– Brake malfunction
– Bucket float status
– Delayed engine shutdown status
– Engine idle shutdown status
– Engine malfunction
– Fuel economy mode enable status
– Hydraulic lockout
– Lockup clutch enable status
– Low fuel level
– Parking brake status
– Rimpull control enable status
– Seatbelt warning
– Secondary steering (if equipped)
– Throttle lock status
– Transmission gear - Keypad, control with indicator lights:
– Auto trans mode speed range
– Auto/manual transmission mode
– Fuel economy mode
– Implement kickout
– Lockup clutch
– Reduced rimpull
– Throttle lock - Light, dome (cab)
- Lunchbox and beverage holders
- Mirrors, rearview (externally mounted)
- Seat, leather/cloth, air suspension, heated/cooled
- Seat belt, retractable, 76 mm (3 in) wide
- STIC control system with steering lock
- Tinted glass
- Trainer seat with lap belt
- Vital Information Management System (VIMS) 3G with graphical information display: external data port, customizable operator profiles, cycle timer, and integral Cat Production Measurement
– Wet-arm wipers/washers (front, rear and corner) intermittent front wiper
- POWER TRAIN
- Brakes, full hydraulic, enclosed, oil-disc
- Axle-shaft oil-disc service brake
- Electro hydraulic parking brake
- Case drain screens
- Cat clean emission module (Tier 4 only)
- Demand fan
- Engine Cat C27
- Fuel priming pump (electric)
- Ground level engine shutoff, bumper
- Mufflers (under hood) (Tier 2 equivalent only)
- Precleaner, engine air intake
- Radiator, Aluminum Modular (AMR)
- Separated cooling system
- Starting aid, (ether) manual override
- Throttle Lock
- Torque Converter, Impeller Clutch with lock-up clutch feature and rimpull control system
- Transmission, 534 mm (21 in) planetary power shift (electronic) (3F/3R)
- ELECTRICAL
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance free (2 – 1,400 CCA)
- Converter, 10/15 amp, 24V to 12V
- Deutsch component connectors
- Electrical system, 24V
- Electronic transmission control
- Lighting system, halogen (front and rear) lighting, access stairway, engine compartment
- Starter, electric
- Starter lockout in bumper
- Starting receptacle for emergency start
- Transmission lockout in bumper
- OTHER
- Automatic bucket tilt/lift kickouts electronically adjustable from cab
- Axle temperature sensor
- Battery disconnect and jump start receptacle, bumper
- Coupling, Caterpillar O-ring face seals
- Economy mode with on demand throttle
- Emergency platform egress
- Engine, crankcase, 500 hour interval with CH4
- Engine idle management features:
– Auto idle kickdown
– Delayed engine shutdown
– Engine idle shutdown - Fenders, steel (front)
- Guards, crankcase and power train
- Grouped/labeled lube points
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Oil sampling valves
- Positive flow control hydraulic system
- Product Link
- Sight Gauges: hydraulic tanks, steering/fan and implement/brake, and transmission
- Stairway, left and right rear access
- Steering, load sensing
- Toe kicks
- Vandalism protection caplocks
- Venturi stack
- Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- POWER TRAIN
- –50° C (–58° F) antifreeze
- Engine oil change system, high speed, Wiggins
- Engine block heater 120V or 240V
- High ambient cooling – software
- OPERATOR ENVIRONMENT
- Cab precleaner, powered
- AM/FM/CD/MP3 radio
- Satellite Sirius radio with Bluetooth
- LED warning strobe
- CB radio ready
- Window sun shade
- MISCELLANEOUS ATTACHMENTS
- Front and rear roading fenders
- Fast fill fuel system (Shaw-Aero)
- Axle oscillation stop
- Heavy duty cab mounts
