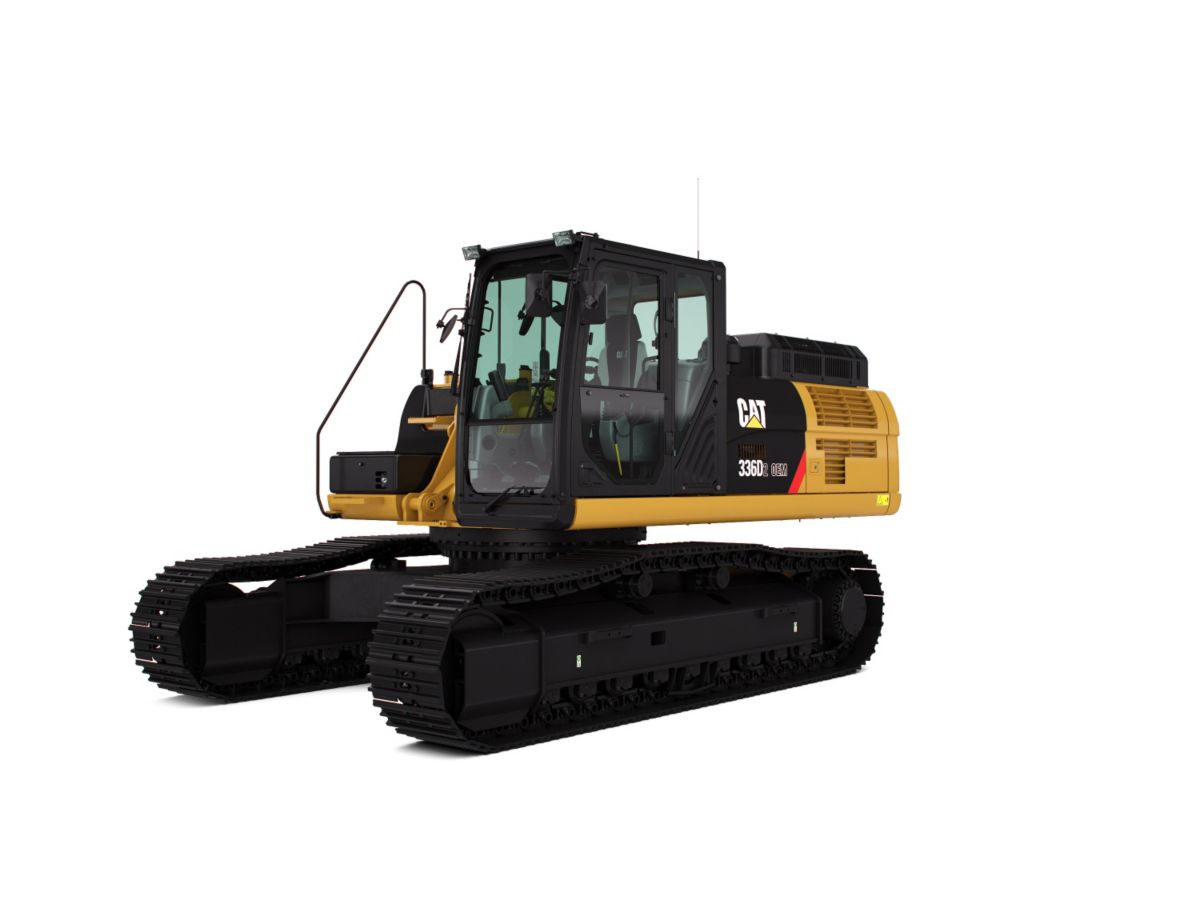

336D2 Hydraulic Excavator
US
Metric
Overview
The 336D2 OEM incorporates innovations to improve your job site efficiency through low owning and operating costs, excellent performance, and high versatility.
Engine
Engine Model
Cat® C9
Net Flywheel Power
270.00 HP
201.00 kW
Bore
4.41 in
112.00 mm
Stroke
5.87 in
149.00 mm
Displacement
537.00 in3
8.80 L
Engine Power - ISO 14396
280.00 HP
209.00 kW
Net Power (SAE J1349/ISO 9249)
270.00 hp
201.00 kW
Weights
Maximum Frontless Machine Weight
63692.00 lb
28890.00 kg
Operating Weight*
81761.00 lb
37086.00 kg
*Note
Dependent on application, Review
Drive
Maximum Travel Speed
3.00 mile/h
4.85 km/h
Maximum Drawbar Pull
67555.00 lb
300.50 kN
Hydraulic System
Swing System - Maximum Flow
70.00 gal/min
265.00 l/min
Maximum Pressure - Travel
5076.00 psi
35000.00 kPa
Maximum Pressure - Swing
4061.00 psi
28000.00 kPa
Pilot System - Maximum Flow
10.60 gal/min
40.00 l/min
Pilot System - Maximum Pressure
580.20 psi
4000.00 kPa
Main System - Maximum Flow - Each
70.00 gal/min
265.00 l/min
Maximum Pressure - Equipment
5076.00 psi
35000.00 kPa
Service Refill Capacities
Fuel Tank Capacity
163.79 gal
620.00 L
Cooling System
10.57 gal
40.00 L
Engine Oil
10.57 gal (US)
40.00 l
Final Drive (each)
2.11 gal
8.00 L
Hydraulic System (including tank)
108.31 gal
410.00 L
Hydraulic Tank
46.20 gal
175.00 L
Swing Drive
5.02 gal (US)
19.00 l
Swing Mechanism
Swing Speed
8.98 r/min
8.98 r/min
Swing Torque
80142.00 lb/ft
108.60 kN·m
Engine
Engine Model
Cat® C9
Bore
4.41 in
112.00 mm
Stroke
5.87 in
149.00 mm
Displacement
537.00 in³
8.80 l
Net Power - SAE J1349/ISO 9249
270.00 HP
201.00 kW
Weights
Note
Dependent on application, Review
Operating Weight*
81761.00 lb
37086.00 kg
Hydraulic System
Maximum Pressure - Equipment
5076.00 psi
35000.00 kPa
Service Refill Capacities
Fuel Tank Capacity
163.79 gal (US)
620.00 l
Cooling System
10.57 gal (US)
40.00 l
Final Drive - Each
2.11 gal (US)
8.00 l
Hydraulic System - Including Tank
108.31 gal (US)
410.00 l
Hydraulic Tank
46.20 gal (US)
175.00 l
Features
Operator Station
Operator Station
Operator Station
Operator Station
Operator Station
Operator Station
Operator Station
Engine
Engine
Engine
Engine
Hydraulics
Hydraulics
Hydraulics
Hydraulics
Hydraulics
Structures and Optional Undercarriage
Structures and Optional Undercarriage
Structures and Optional Undercarriage
Structures and Optional Undercarriage
Structures and Optional Undercarriage
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Complete Customer Support
Complete Customer Support
Complete Customer Support
Complete Customer Support
Complete Customer Support
Sales Features
Operator Station
Ergonomically designed to keep you comfortable and productive all day long.
Engine
Powerful, reliable, and fuel efficient to deliver more to your bottom line.
Hydraulics
Uncanny power and control for multiple applications.
Structures and Optional Undercarriage
Strong and durable like you expect from Cat excavators.
Service and Maintenance
Simplified design to save you time and money.
Complete Customer Support
A wide range of personalized solutions from your local Cat dealer.
Standard Equipment
- ENGINE
- HYDRAULIC SYSTEM
- CAB
- UNDERCARRIAGE
- ELECTRICAL
- LIGHTS
- SAFETY AND SECURITY
- COUNTERWEIGHT
- TECHNOLOGY
