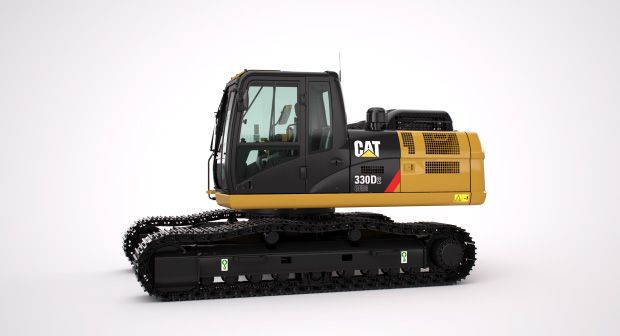

330D2 L Hydraulic Excavator
US
Metric
Overview
The 330D2 L OEM comes with a number of new developments and features to help you make the best use of your machine. Isochronous engine speed control, a new fuel filtration system, a built-in economy mode to save up to a 15% fuel consumption and energy. A variable speed fan with viscous clutch makes this machine productive, efficient and safe.
Engine
Engine Model
Cat® C7.1
Net Flywheel Power
209.00 hp
156.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm
Displacement
428.00 in3
7.10 L
Engine Power (ISO 14396)
213.00 hp
159.00 kW
Hi-Idle Speed
1700.00 rpm
1700.00 rpm
Low-Idle Speed
950.00 rpm
950.00 rpm
Maximum Altitude (with derate)
16404.00 ft
5000.00 m
Maximum Altitude (without derate)
9842.00 ft
3000.00 m
Maximum Torque (torque peak) @ 1,400 rpm
663.80 lbf-ft
900.00 N·m
Net Power (SAE J1349/ISO 9249)
209.00 hp
156.00 kW
Rated Speed (engine)
1800.00 rpm
1800.00 rpm
Type
Direct Injection
Weights
Frontless Weight
51700.00 lb
23450.00 kg
Maximum Operating Weight*
66970.00 lb
30375.00 kg
*Note
*Dependent on application, Review
Drive
Maximum Drawbar Pull
55752.60 lbf
248.00 kN
Maximum Travel Speed
3.40 mph
5.30 km/h
Hydraulic System
Pilot System – Maximum Flow
6.10 gal/min
23.10 L/min
Pilot System – Maximum Pressure
568.60 psi
3920.00 kPa
Main System - Maximum Flow at Operation (1,700 rpm) - Each
240 × 2 (480 total) L/min [63.4 × 2 (126.8 total) gal/min]
Main System – Maximum Flow at Travel H/L (1,800 rpm)
254 × 2 (508 total) L/min [67.1 × 2 (134.2 total) gal/min]
Main System - Maximum Flow at Travel L/L (1,750 rpm)
247 × 2 (494 total) L/min [65.2 × 2 (130.4 total) gal/min]
Maximum Pressure – Equipment
5076.40 psi
35.00 MPa
Maximum Pressure – Swing
3982.70 psi
27.50 MPa
Maximum Pressure – Travel
5076.40 psi
35.00 MPa
Swing System – Maximum Flow
63.40 gal/min
240.00 L/min
Service Refill Capacities
Fuel Tank Capacity
137.40 gal
520.00 L
Cooling System
8.20 gal
31.00 L
Engine Oil
5.80 gal
22.00 L
Swing Drive
2.60 gal
10.00 L
Final Drive (each)
1.60 gal
6.00 L
Hydraulic System (including tank)
81.90 gal
310.00 L
Hydraulic Tank
67.90 gal
257.00 L
Swing Mechanism
Swing Speed
9.60 rpm
9.60 rpm
Swing Torque
60627.60 lbf-ft
82.20 kN·m
Engine
Note
The C7.1 engine meets EPA Tier 3, EU Stage III emission regulations.
Sound Performance
ISO 6396 – Operator Noise (Closed)
71.00 dB(A)
71.00 dB(A)
ISO 6395 – Spectator Noise
104.00 dB(A)
104.00 dB(A)
Standards
Brakes
SAE J1026/APR90
Cab/FOGS
SAE J1356 FEB88; ISO 10262
Cab/ROPS
ISO 12117-2:2008
Engine
Engine Model
Cat® C7.1
Net Flywheel Power
209.00 HP
156.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.31 in
135.00 mm
Displacement
428.00 in³
7.10 l
Engine Power - ISO 14396
213.00 HP
159.00 kW
High Idle Speed
1700.00 r/min
1700.00 r/min
Low Idle Speed
950.00 r/min
950.00 r/min
Maximum Altitude - With Derate
16404.00 ft
5000.00 m
Maximum Altitude - Without Derate
9842.00 ft
3000.00 m
Maximum Torque - Torque Peak - At 1,400 rpm
663.80 lb/ft
900.00 N·m
Net Power - SAE J1349/ISO 9249
209.00 HP
156.00 kW
Rated Speed - Engine
1800.00 r/min
1800.00 r/min
Type
Direct Injection
Weights
Frontless Weight
51700.00 lb
23450.00 kg
Maximum Operating Weight*
66970.00 lb
30375.00 kg
Note
*Dependent on application, Review
Service Refill Capacities
Fuel Tank Capacity
137.40 gal (US)
520.00 l
Cooling System
8.20 gal (US)
31.00 l
Engine Oil
5.80 gal (US)
22.00 l
Swing Drive
2.60 gal (US)
10.00 l
Final Drive - Each
1.60 gal (US)
6.00 l
Hydraulic System - Including Tank
81.90 gal (US)
310.00 l
Hydraulic Tank
67.90 gal (US)
257.00 l
Swing Mechanism
Swing Speed
9.60 r/min
9.60 r/min
Swing Torque
60627.60 lb/ft
82.20 kN·m
Drive
Maximum Drawbar Pull
55752.60 lbf
248.00 kN
Maximum Travel Speed
3.40 mile/h
5.30 km/h
Hydraulic System
Main System - Maximum Flow at Travel H/L (1,800 rpm)
254 × 2 (508 total) L/min [67.1 × 2 (134.2 total) gal/min]
Maximum Pressure - Equipment
5076.40 psi
35.00 MPa
Maximum Pressure - Swing
3982.70 psi
27.50 MPa
Maximum Pressure - Travel
5076.40 psi
35.00 MPa
Pilot System - Maximum Flow
6.10 gal/min
23.10 l/min
Pilot System - Maximum Pressure
568.60 psi
3920.00 kPa
Swing System - Maximum Flow
63.40 gal/min
240.00 l/min
Standards
Brakes
SAE J1026/APR90
Cab/FOGS
SAE J1356 FEB88; ISO 10262
Engine
Note
The C7.1 engine meets EPA Tier 3, EU Stage III emission regulations.
Sound Performance
ISO 6395 - Spectator Noise
104.00 dB(A)
104.00 dB(A)
ISO 6396 - Operator Noise (Closed)
71.00 dB(A)
71.00 dB(A)
Standards
Cab - ROPS
ISO 12117-2:2008
Features
Key Features
Key Features
Key Features
Key Features
Key Features
Key Features
Engine
Engine
Engine
Engine
Operator Station
Operator Station
Operator Station
Operator Station
Operator Station
Operator Station
Hydraulics
Hydraulics
Hydraulics
Hydraulics
Hydraulics
Optioinal Undercarriage and Structures
Optioinal Undercarriage and Structures
Optioinal Undercarriage and Structures
Optioinal Undercarriage and Structures
Optioinal Undercarriage and Structures
Optioinal Undercarriage and Structures
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Service and Maintenance
Integrated Technologies
Integrated Technologies
Integrated Technologies
Integrated Technologies
Integrated Technologies
Complete Customer Support
Complete Customer Support
Complete Customer Support
Complete Customer Support
Complete Customer Support
Complete Customer Support
Sales Features
Key Features
A world class design combining excellent performance with low fuel consumption and superior reliability.
Engine
Built for power, reliability and economy.

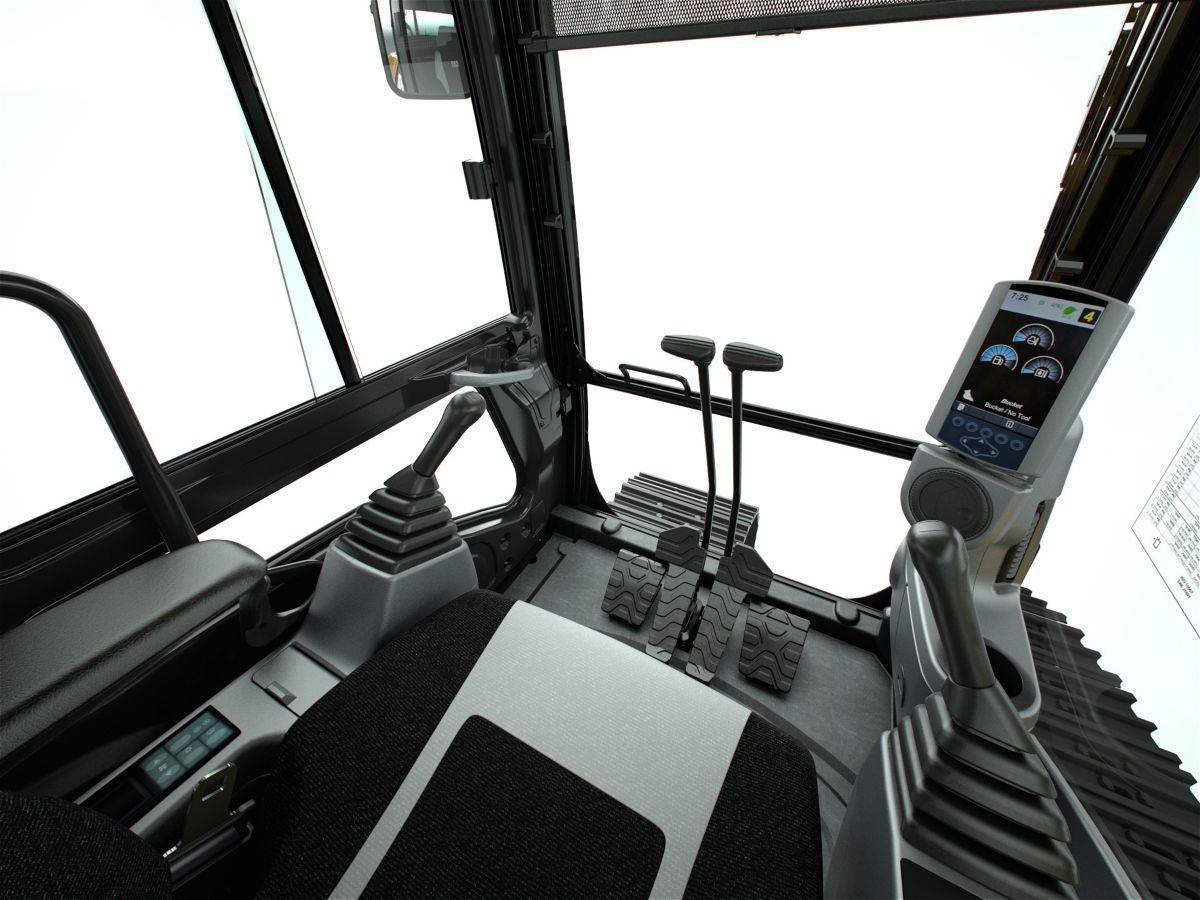

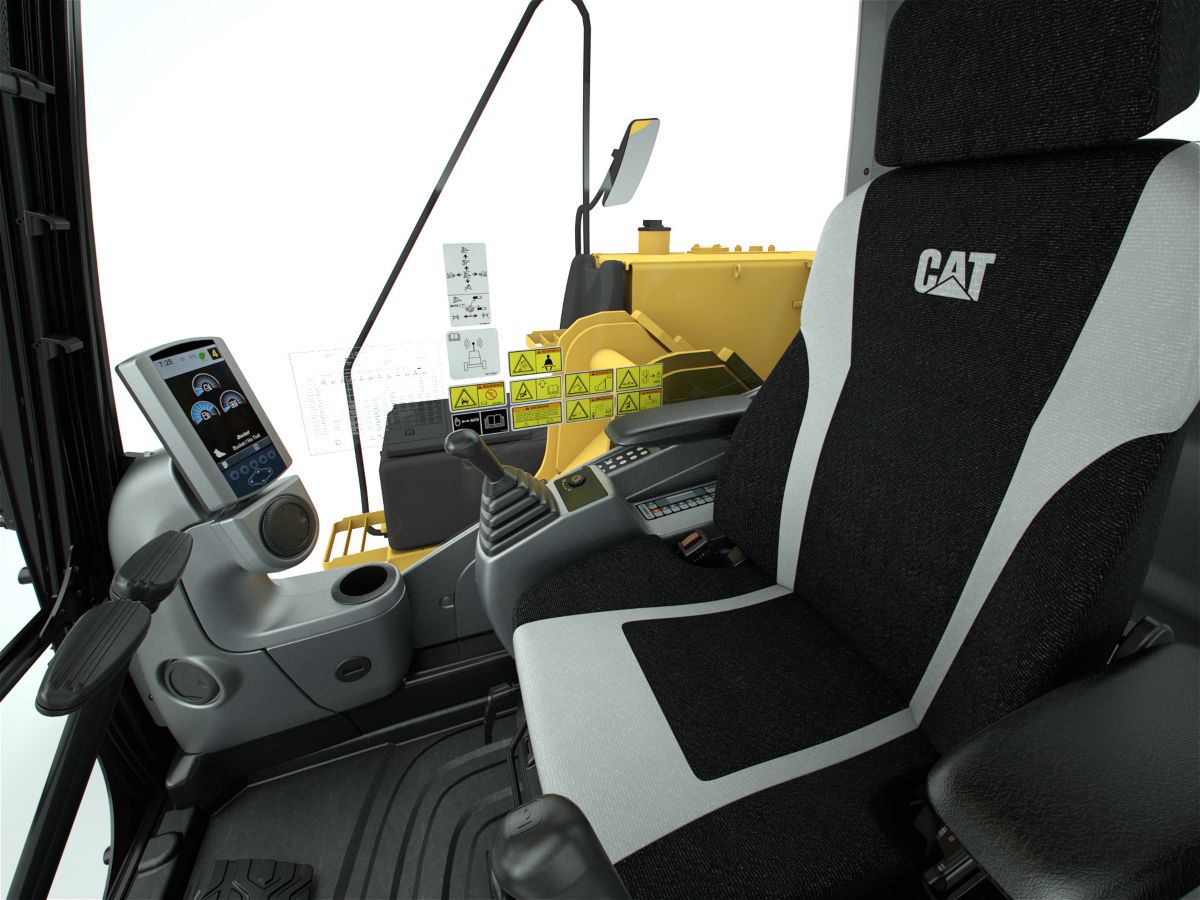

Operator Station
Ergonomically designed to keep you comfortable and productive all day long.

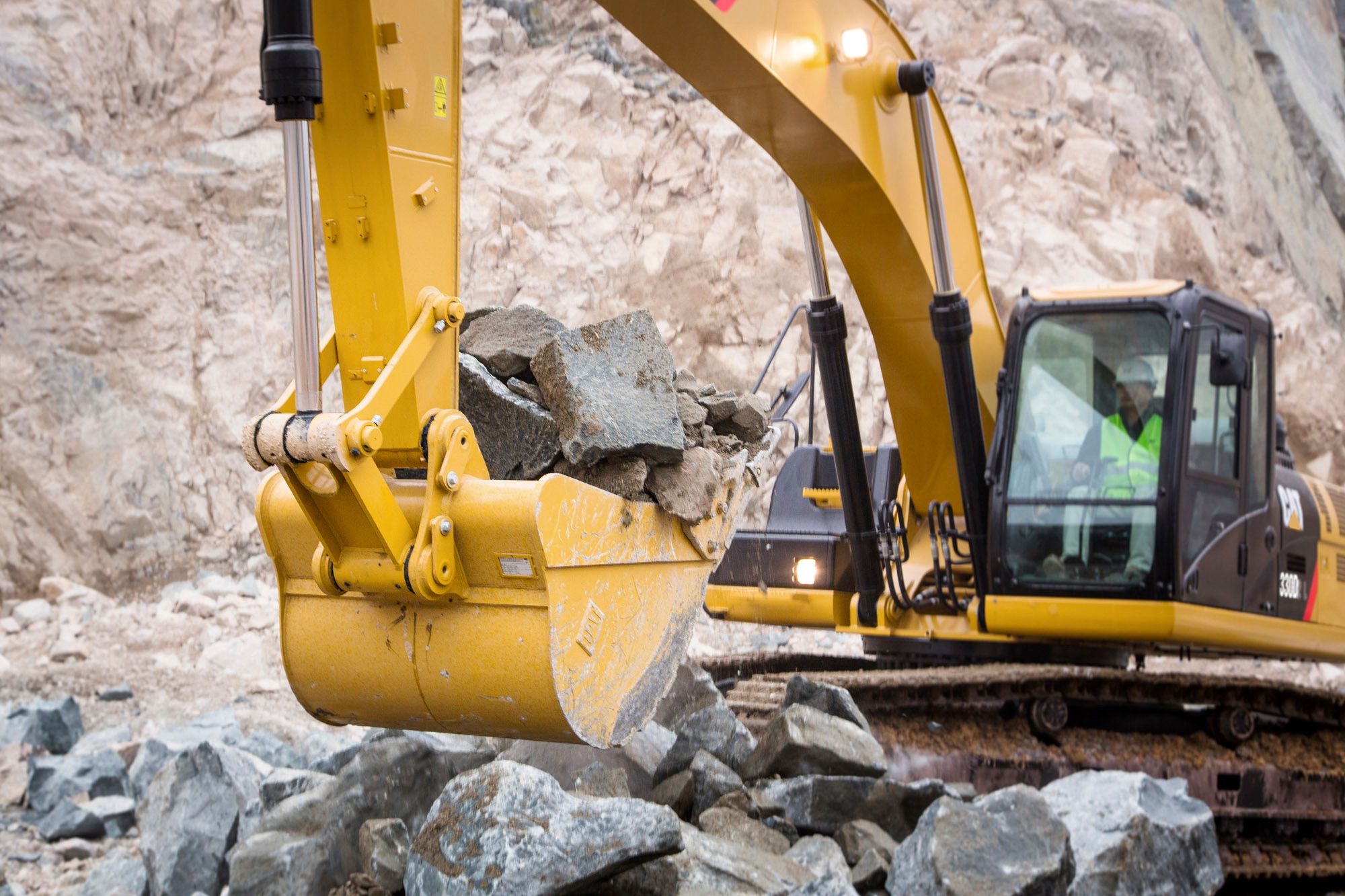

Hydraulics
Cat hydraulics deliver power and precise control to keep material moving.

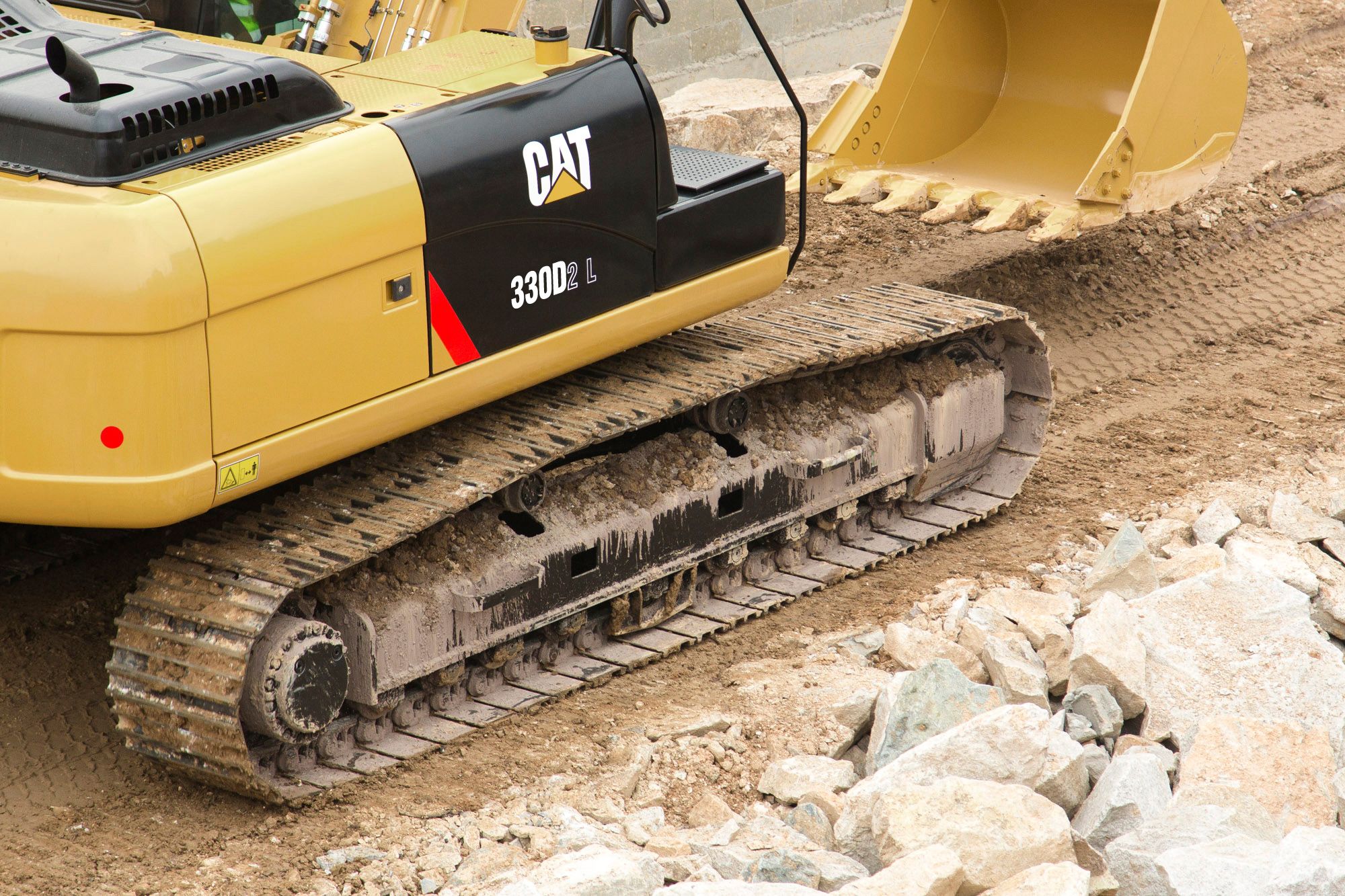

Optioinal Undercarriage and Structures
Strong and durable, all you expect from Cat excavators.
Service and Maintenance
Simplified service and maintenance features save you time and money.
Integrated Technologies
Monitor, manage, and enhance job site operations.
Complete Customer Support
Cat dealer services help you operate longer with lower costs.
Standard Equipment
- ENGINE
- HYDRAULIC SYSTEM
- CAB
- UNDERCARRIAGE
- ELECTRICAL
- LIGHTS
- SAFETY AND SECURITY
- COUNTERWEIGHT
- TECHNOLOGY
Optional Equipment
- HYDRAULIC SYSTEM
- CAB
- UNDERCARRIAGE AND GUARDS
- LIGHTS
