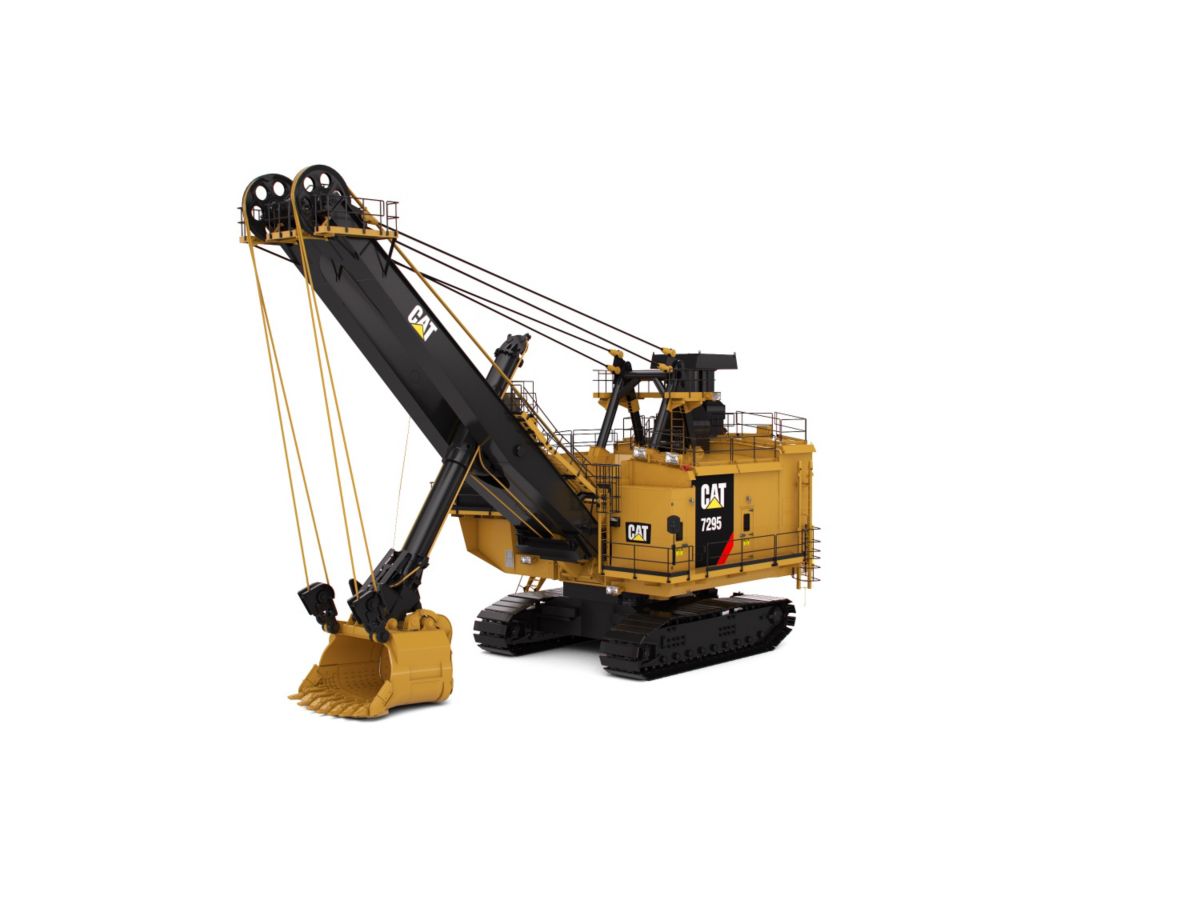

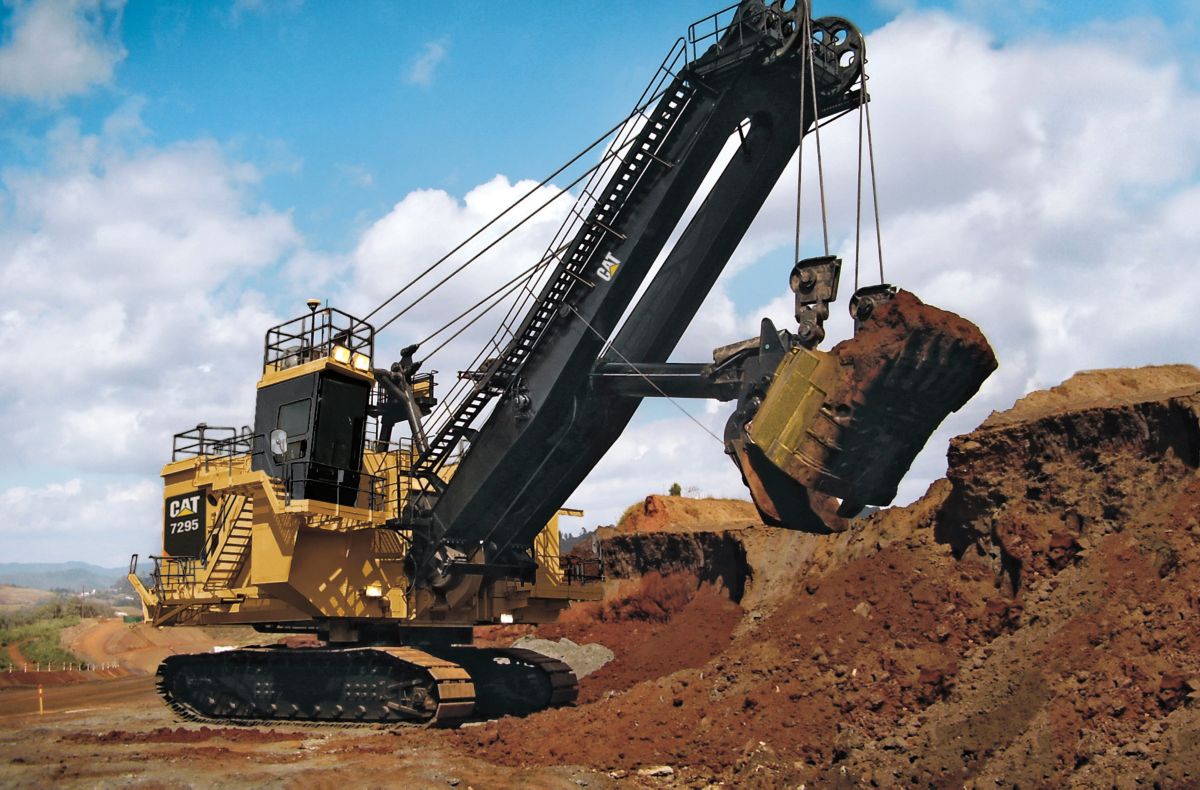

7295 Electric Rope Shovel
US
Metric

Overview

One of our mid-range shovels, the Cat 7295 provides proven Cat AC IGBT electronics and a robust front end design. The 7295 provides a 50-ton (45-tonne) payload, plus three- and four-pass loading capability with the Cat 785 ,789 and 793 mining trucks for an optimal loading and hauling operation.

Dimensions

Dipper Payload
50.00 t
45.00 t
Dipper Capacity
19.1-38.2 m3 (25-50 yd3)
Note
Dependent on application and material density.

Weights

Working Weight - With Dipper and Standard Links
1748837.00 lb
793259.00 kg
Ballast - Furnished By Customer
352000.00 lb
159665.00 kg
Note
These weights will vary slightly depending upon dipper and optional equipment selection.
Note
All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.

Front End

Components
One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Standard Rope Data - Hoist - No.
2
Standard Rope Data - Hoist - Diameter
2.38 in
60.00 mm
Standard Rope Data - Crowd - No.
1
Standard Rope Data - Crowd - Diameter
2.25 in
57.00 cm
Standard Rope Data - Retract - No.
1
Standard Rope Data - Retract - Diameter
2.25 in
57.00 mm
Standard Rope Data - Boom Suspension - No.
4
Standard Rope Data - Boom Suspension - Diameter
2.75 in
70.00 mm
Standard Rope Data - Dipper Trip - No.
1
Standard Rope Data - Dipper Trip - Diameter
0.63 in
16.00 mm
Note
High impact ropes available as an option
Crowd
Rope Crowd: the crowd machinery is located at the front center of the revolving frame; consisting of a motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.

Electrical

Drive
IGBT Acutrol drive system.
Power Requirements - Voltage
3 phase, 50/60 Hz, 7,200V
Power Requirements - 50 Hz
6,000V, 6,600V, 7,200V
Power Requirements - 60 Hz
4,160V, 7,200V
Power Requirements - Average Power Demand
538-753 kW (721-1,010 hp)
Power Requirements - Peak power
2886.00 HP
2152.00 kW
Note
Other voltages available to suit customer requirements.

Main Structures

Upper Works Overall Width - Including Standard Walkways
41.33 in
12.60 cm
Crawler Dimensions - Overall Width 182.9 cm (72 in) Treads, Standard
28.22 in
8.60 cm
Ground Bearing Pressure - Total Effective Bearing Area
315.60 ft²
29.30 m²
Ground Bearing Pressure - 182.9 cm (72 in) Treads
39.00 in
269.00 cm
Ground Bearing Pressure
Ground bearing pressure is dependent upon many factors.
Planetary Propel
Dual-motor independent drive.
Swing
Parallel shaft gear cases, driven by a vertically mounted motor, are located on either side of the revolving frame.
Hoist
A motor coupled to two gear reductions drives a 137 cm (54 in) hoist drum.

Optimal Working Ranges*

Dumping Height - With Clearance to Open Dipper Door
27.56 ft
8.40 m
Cutting Height - Maximum
45.00 ft
13.70 m
Cutting Radius - Maximum
67.59 ft
20.60 m
Radius of Level Floor
48.88 ft
14.90 m
Revolving Frame Tail Swing Radius
25.59 in
7.80 m
Note (1)
Optimal working ranges based on loading a Cat® 785D truck.
Note (2)
*All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.

Lube System

Type
Automatic, single-line system for open gear lubricant and grease.
Components (1)
6 pumps (4 for open gear lubricant and 2 for grease) located in an insulated, heated, double-walled lube room.
Components (2)
External fast fill from lower level.

Dimensions

Note
Dependent on application and material density.

Weights

Note (1)
These weights will vary slightly depending upon dipper and optional equipment selection.
Note (2)
All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.
