H110 GC S Hammer
US
Metric
Overview

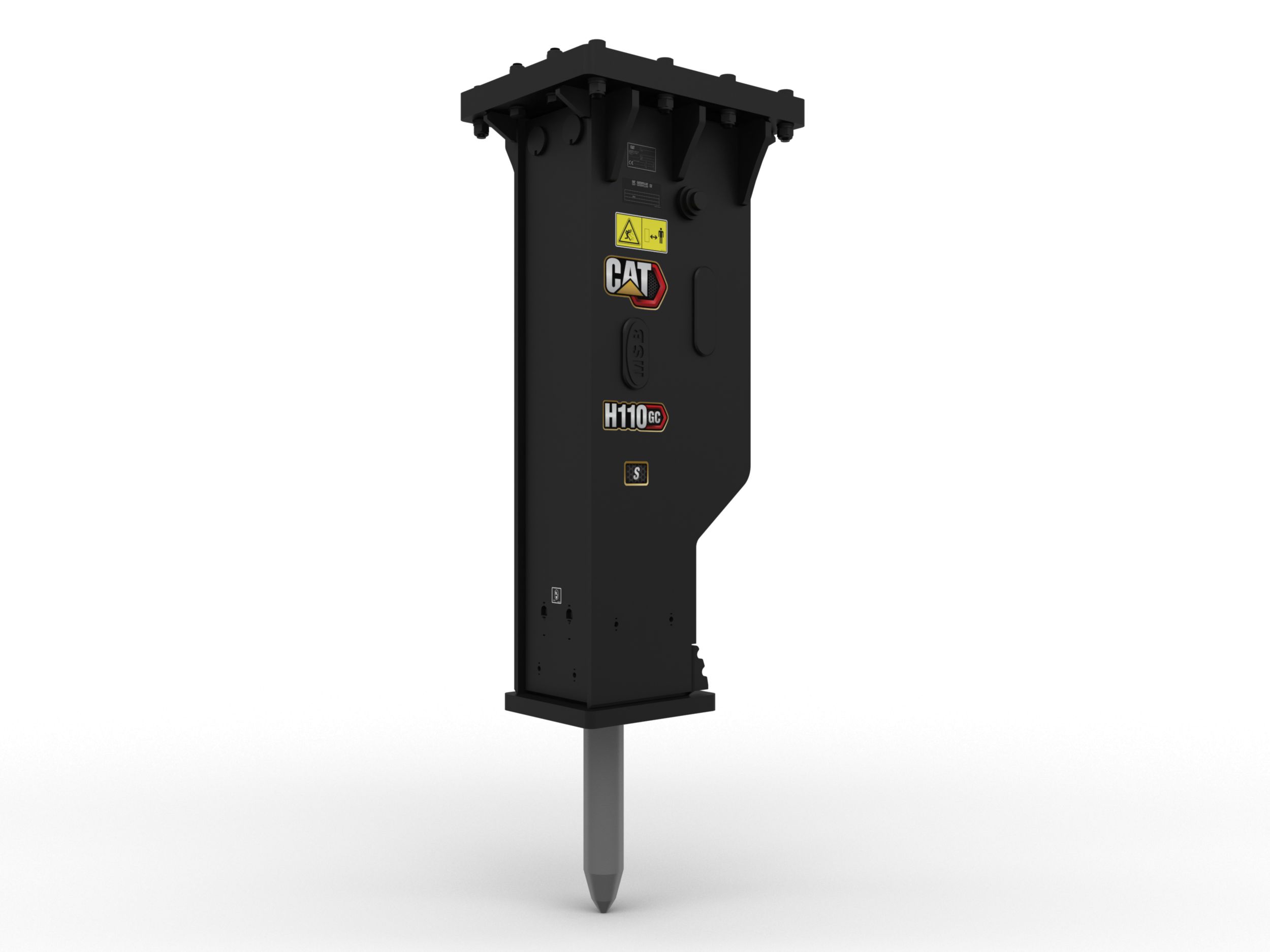

Cat® H110 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H110 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H110 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
Impact Energy Class
1475.00 ft·lbf
2000.00 J
Blows per Minute
450 to 650
Minimum Operating Weight
2599.00 lb
1179.00 kg
Maximum Operating Weight
2776.00 lb
1262.00 kg
Minimum Rated Flow
21.00 gal/min
80.00 l/min
Maximum Rated Flow
26.00 gal/min
100.00 l/min
Minimum Operating Pressure
2030.00 psi
14000.00 kPa
Maximum Operating Pressure
2320.00 psi
16000.00 kPa
Tool Shaft Diameter
3.90 in
98.00 mm
Minimum Carrier Weight
24251.00 lb
11.00 t
Maximum Carrier Weight
35724.00 lb
16.00 t
Rated Flow - Minimum
21.00 gal/min
80.00 l/min
Rated Flow - Maximum
26.00 gal/min
100.00 l/min
Features
High Performance
- Automatic shutoff offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
- Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
- The standard silencing feature allows you to use a GC S hammer on job sites in noise sensitive areas like neighborhoods or near hospitals where noise is regulated.
Reliability and Durability
- The internal buffering system helps reduce machine vibration and increase noise suppression.
- Simple hammer design for easy maintenance and faster rebuilds to help lower owning and operating costs.
- Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
Easy to Maintain
- Standard onboard autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.
- The slip-fit lower bushing allows for easy replacement in the field, helping reduce service time.
- Verify the gas charge of the hammer without removing it from your machine.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
Boost Efficiency and Productivity with Integrated Technologies
- Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.
- Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
