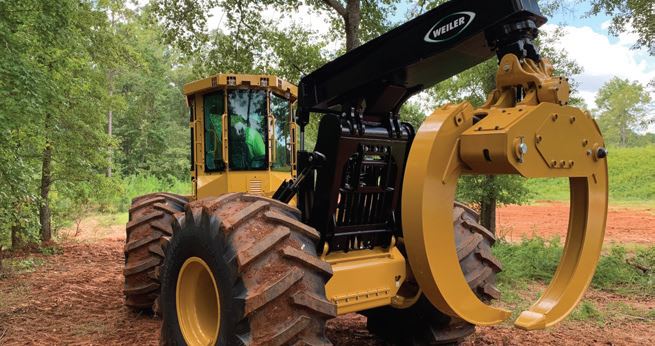

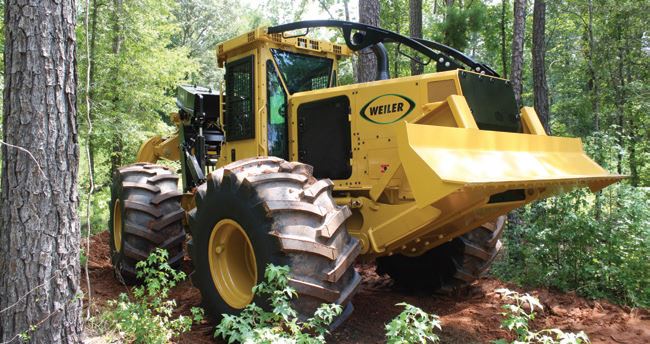

Weiler S250 Wheel Skidder
US
Metric
Overview
Specifications
Engine Model
Cat C7.1 Tier 4 Final
Gross Power
203 hp / 151 kW
Engine Speed
2200 rpm
Fuel Capacity
83.2 gal / 315 L
DEF Capacity
5.0 gal / 19 L
Wheelbase
143.8" / 3652 mm
Weight
45,357 lb / 20,573 kg
Transport Width
10' 7" / 3.21 m
Transport Height
11' 1" / 3.39 m
Transport Length
27' 4" / 8.32 m
Ground Clearance
21.7" / 550 mm
HD Box Grapple Capacity
14.4 ft² / 1.34 m²
HD Box Grapple Opening
126.2" / 3205 mm
Biomass Grapple Capacity
15.7 ft² / 1.46 m²
Biomass Grapple Opening
136.3" / 3462 mm
Standard Equipment
POWERTRAIN
- Cat C7.1 engine certified to EPA Tier 4 Final
- Primary and secondary fuel filters, including water separator
- Electric fuel priming pump
- Electric fuel transfer pump
- Centrifugal engine air pre-cleaner
- 2-Stage engine air cleaner
- Cross-flow cooling system with swing out cores
- Swing out air conditioner condenser and fuel cooler
- Hydraulically driven, on demand reversing cooling fan
- Powershift transmission with lock-up torque converter
- Cat HD axles, approved for odd size dual tires up to 30.5L-32 with 24.5L-32
- and wide tires up to 73-44 with chains
- Independent front and rear differential locks
- Lubed for life universal joints and HD drive shafts
- Enclosed disc service brakes
- Spring applied, hydraulically released parking brake
OPERATOR ENVIRONMENT
- Enclosed OPS/FOPS/ROPS certified cab
- High capacity HVAC system
- Air suspension seat with harness seat belt
- AM/FM/Bluetooth Radio
- 24V to 12V converter and a 12V power port
- 2 Beverage holders
- Computerized Monitoring System
HYDRAULICS
- Load-sense hydraulics
- Variable displacement pumps
- High performance, multi-functioning main control valve
- In-tank return filter
ELECTRICAL
- 115 ampere alternator
- 24-volt electrical system with 2 12-volt batteries
- Main disconnect switch with Diesel Exhaust Fluid (DEF) purge indicator light
- Jump start posts
- Product Link Ready
OTHER STANDARD EQUIPMENT
- Heavy-duty frames
- Dual tapered roller bearing upper and lower center hitch
- Heavy-duty limb risers
- Wide blade
- Ecology drains (engine oil, engine coolant, hyd tank, axles, transmission)
- Tilt Cab
- Segregated engine/CEM and cooling compartments
- Single side engine service
- S·O·S sampling ports
Optional Equipment
OPTIONAL EQUIPMENT
- Dual function arch/boom and grapple head
- Cable arch and extreme duty fenders
- Industrial arrangement
- HD Box Section or Biomass Plate Grapple Tongs
- Winch Ready, Retrieval Winch or Logging Winch
- Grapple Fenders
- Standard or Deluxe Cab
- Wheel or Joystick Steering
- Standard, Deluxe or Premium Working Lights
- Window Screens
- Pressurized Water Tank
- 30.5L-32 NOAW Tires - 126.6" (3216 mm)
- 30.5L-32 Tires - 133.3" (3386 mm), Approved for Chains
- 30.5L-32 2X Ring Tires - 126.6" (3216 mm)
- 35.5L-32 NOAW Tires - 139.1" (3533 mm)
- 35.5L-32 Tires - 145.8" (3703 mm), Approved for Chains
- Ether Starting Aid
- Electric Hydraulic Oil Fill Pump
- Front and Rear Window Wipers
- Secondary Steering
