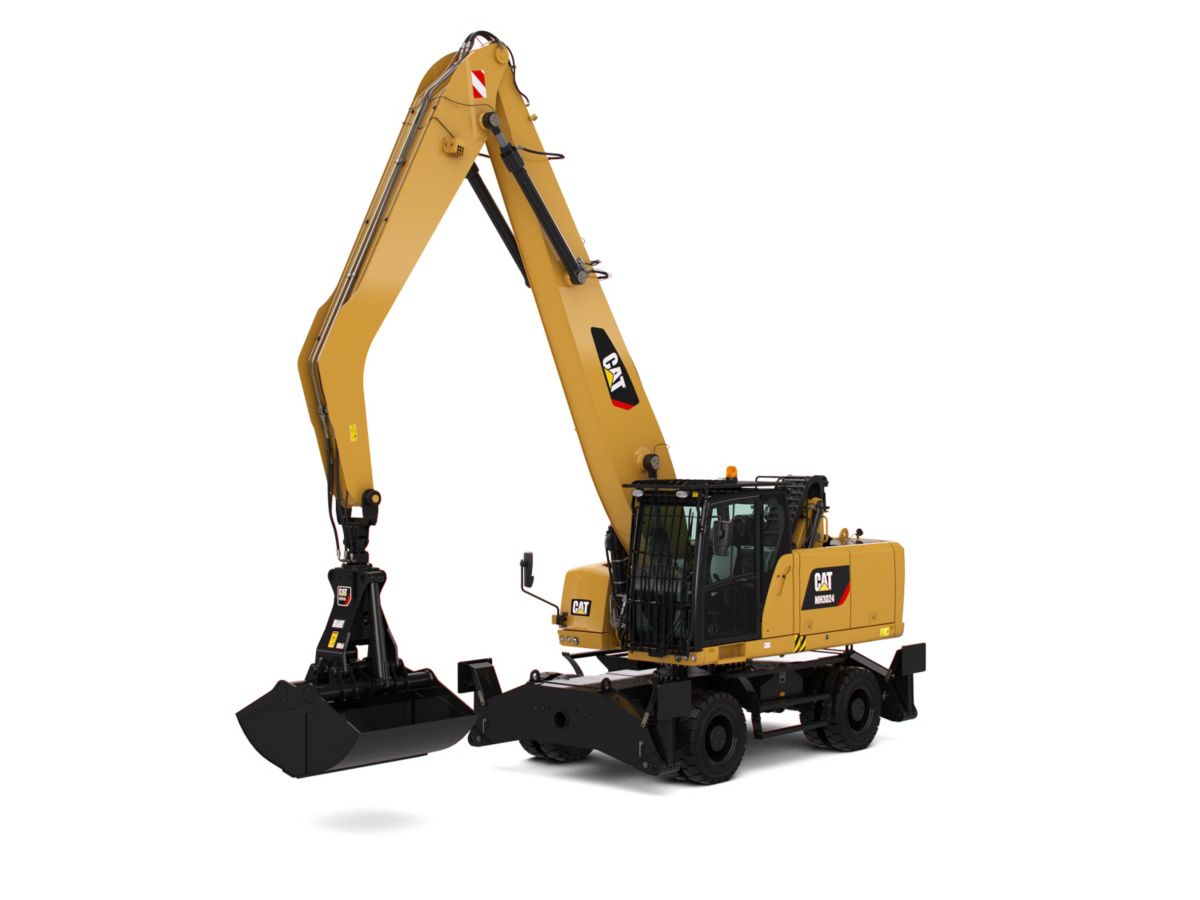

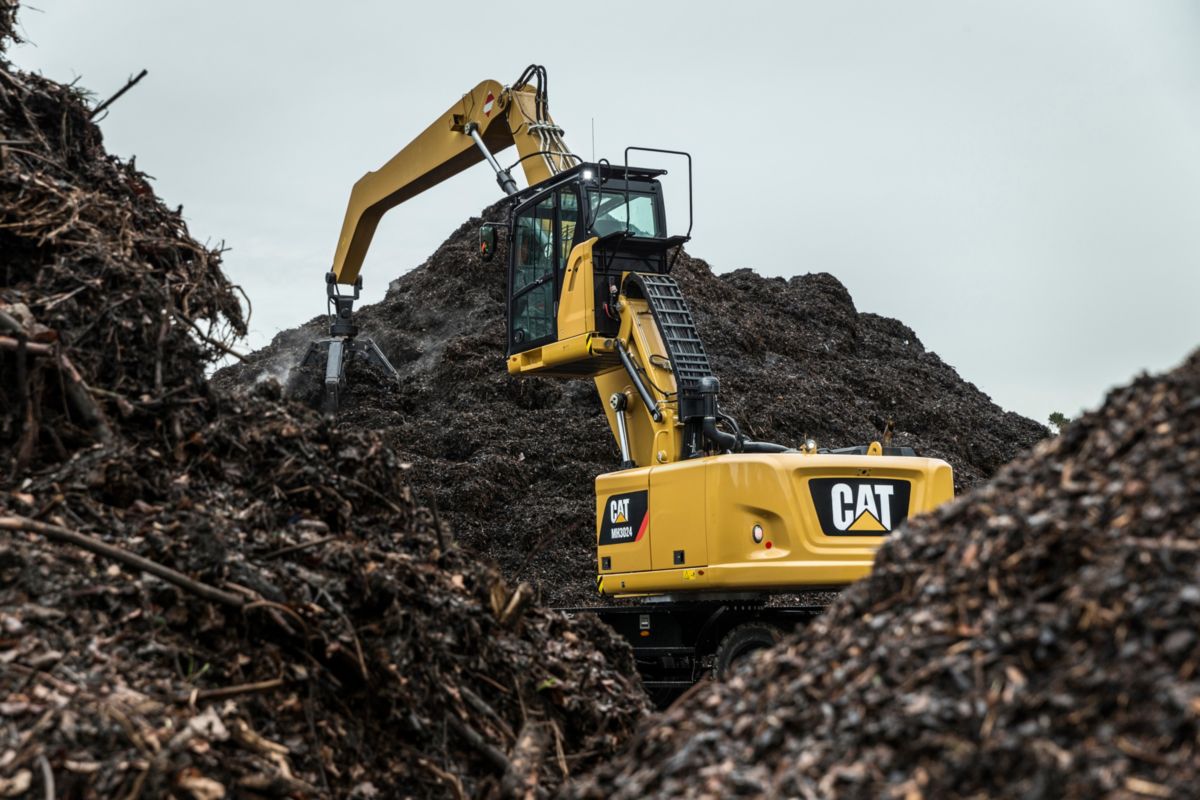

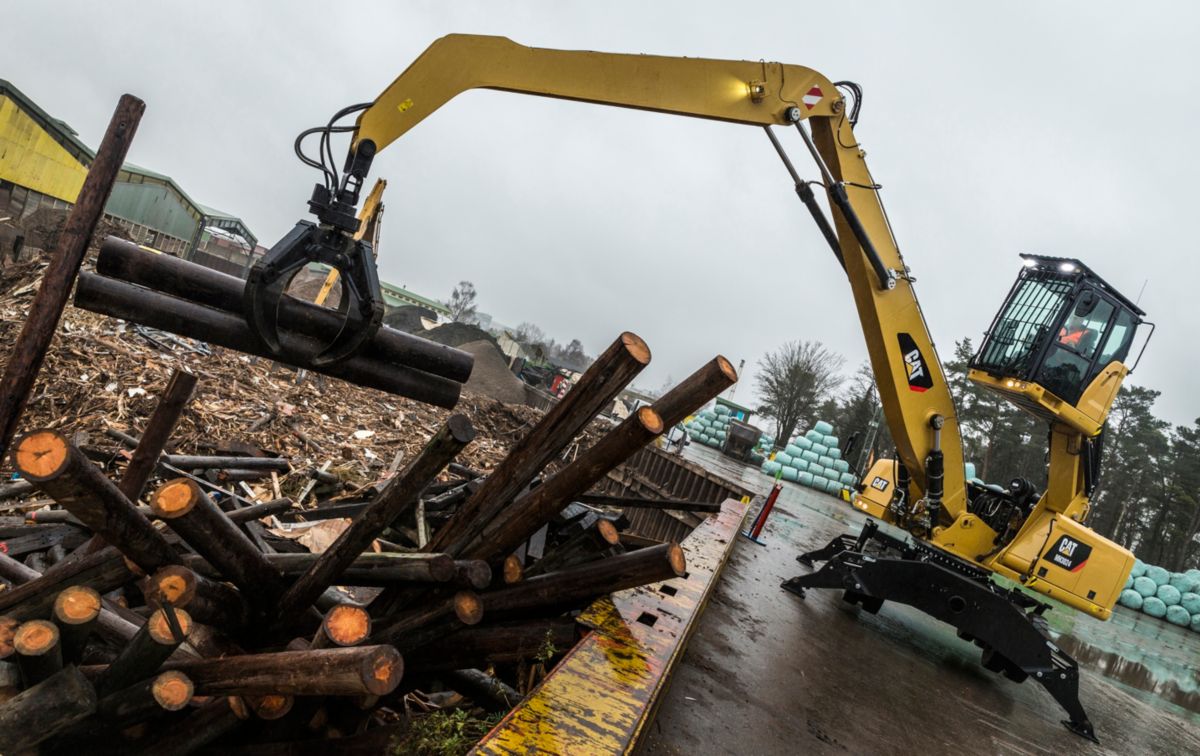

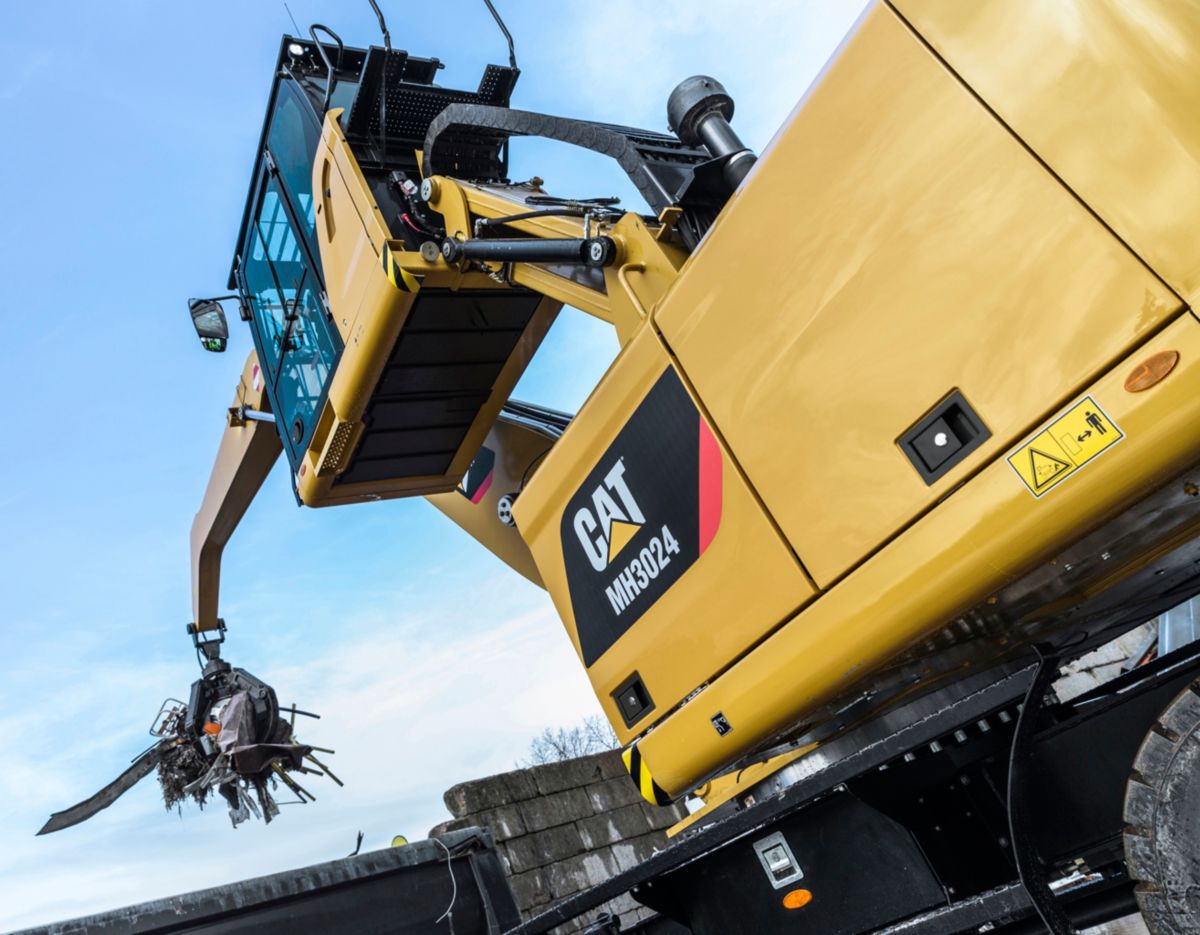

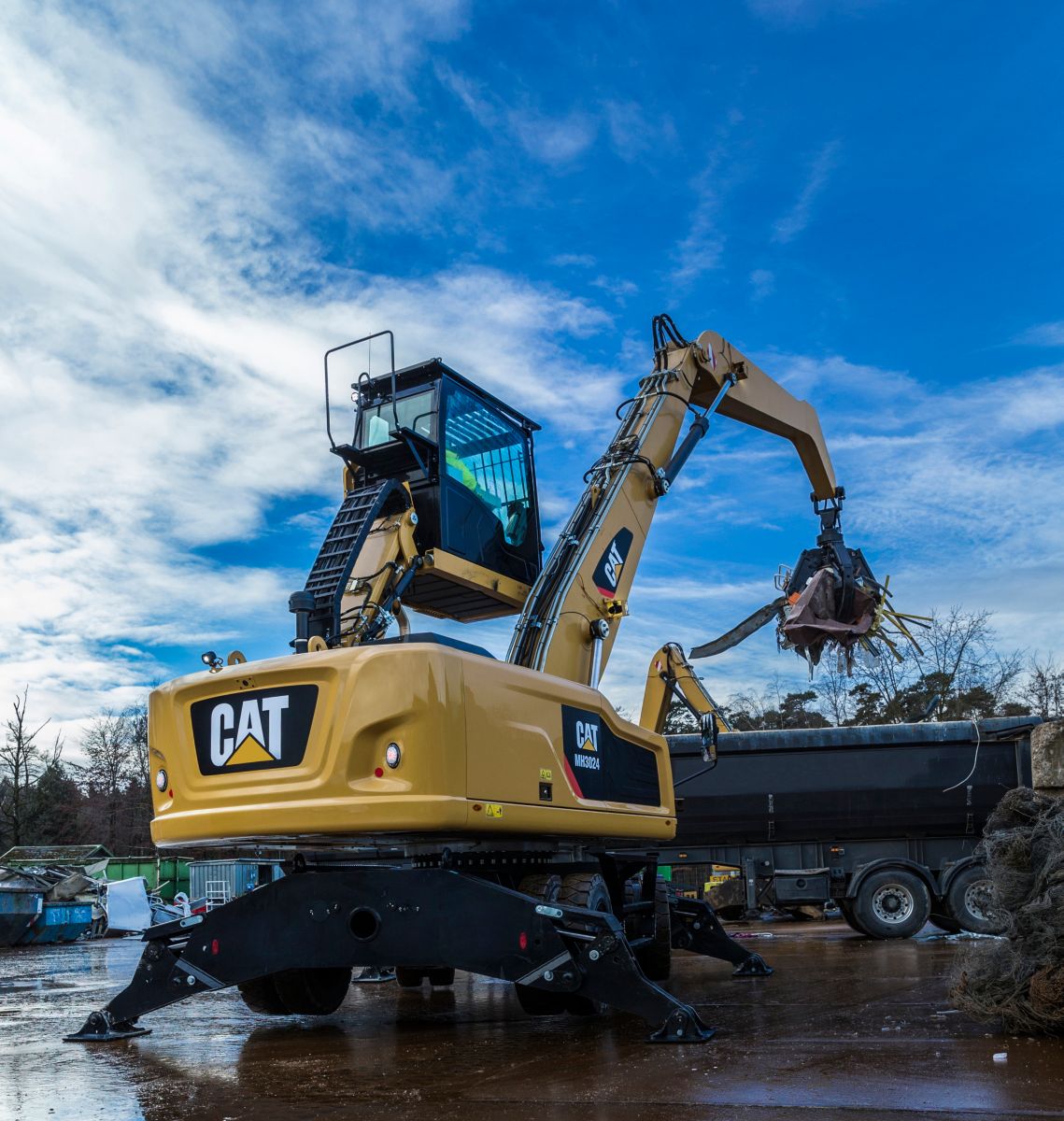

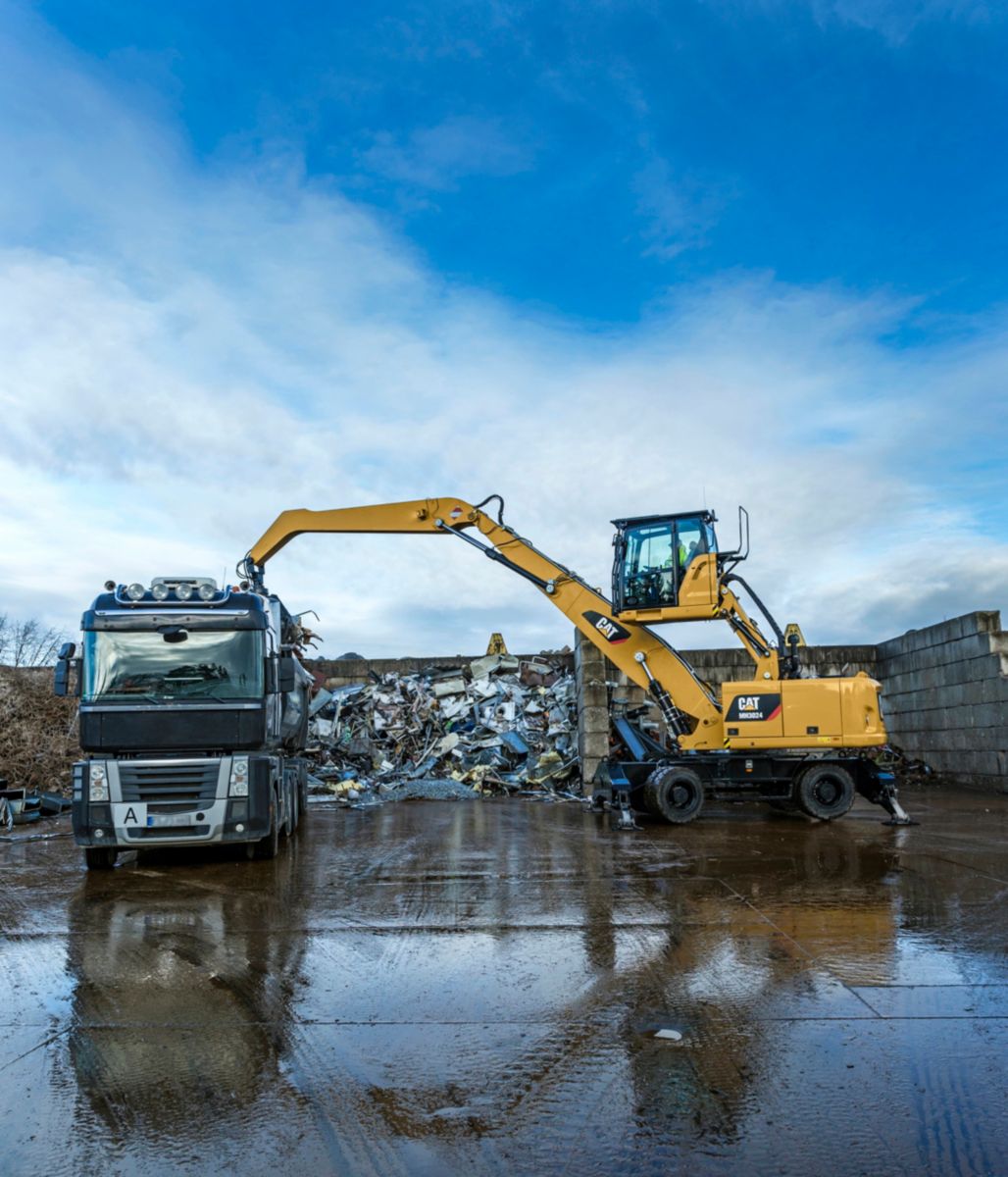

MH3024 Wheel Material Handler
US
Metric
Overview
We know that when it comes to material handling equipment, your success depends on productivity and low operating costs. The MH3024 is a purpose-built material handler, designed for industrial and recycling applications that call for safe, quality and reliable products.
Engine
Engine Model
Cat C7.1 ACERT
Emissions
Tier 4 Final/Stage IV
Maximum Gross (ISO 14396)
129.4 kW (174 hp [176 hp/PS*])
Weights
Operating Weight
22 330-27 000 kg (49,229-59,525 lb)
With MH Boom (6800 mm/22'4") – MH Undercarriage and Straight Stick
57651.00 lb
26150.00 kg
With MH Boom (6800 mm/22'4") – MH Undercarriage and Drop Nose Stick
56813.00 lb
25770.00 kg
Swing Mechanism
Maximum Swing Torque
43516.00 lbf-ft
59.00 kN·m
Swing Speed
9.00 rpm
9.00 rpm
Service Refill Capabilities
Fuel Tank
111.00 gal
420.00 L
Cooling System
12.30 gal
46.90 L
Diesel Exhaust Fluid Tank
9.10 gal
34.50 L
Hydraulic Tank Capacity
52.80 gal (US)
200.00 l
Hydraulic System Capacity
93.00 gal (US)
352.00 l
Undercarriage
Axle Clearance (MH undercarriage)
12.80 in
325.00 mm
Oscillation Axle Angle
±5 degrees
Engine
Maximum Net (ISO 9249/SAE J1349)
126 kW (169 hp [171 hp/PS*])
Note
*Metric values.
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in3
7.01 L
Maximum Torque @ 1,400 rpm
612.00 lbf-ft
830.00 N·m
Cylinders
6 in-line
Transmission
Maximum Travel Speed - 2nd Gear
16.00 mile/h
25.00 km/h
Creeper Speed (2nd gear)
7.50 mph
12.00 km/h
Maximum Travel Speed
16.00 mph
25.00 km/h
Maximum Gradeability (25 000 kg/55,115 lb)
60%
Weights
With MH Boom (6800 mm/22'4") – Standard Undercarriage and Straight Stick
55601.00 lb
25220.00 kg
Sticks – Straight (4800 mm/15'9")
2789.00 lb
1265.00 kg
Sticks – Drop Nose (4900 mm/16'1")
1896.00 lb
860.00 kg
Sticks - Drop Nose (4900 mm)
1896.00 lb
860.00 kg
MH Push Blade
1488.00 lb
675.00 kg
Note
*Operating weight is with solid tires, optional counterweight, MH undercarriage, fuel tank, operator and work tool, 1400 kg (3,086 lb). Weight varies depending on configuration.
Counterweights – Standard
9039.00 lb
4100.00 kg
Counterweights – Optional
11464.00 lb
5200.00 kg
Hydraulic System - Maximum Pressure
Implement Circuit - Normal
5076.00 psi
35000.00 kPa
Implement Circuit - Heavy Lift
5366.00 psi
37000.00 kPa
Hydraulic System: Maximum Pressure
Travel Circuit
5076.00 psi
35000.00 kPa
Hydraulic System - Maximum Pressure
Auxiliary Circuit - High Pressure
5076.00 psi
35000.00 kPa
Auxiliary Circuit - Medium Pressure
3046.00 psi
21000.00 kPa
Swing Mechanism
4496.00 psi
31000.00 kPa
Hydraulic System - Maximum Flow
Implement/Travel Circuit
95.00 gal/min
359.00 l/min
Hydraulic System: Maximum Flow
Auxiliary Circuit – High Pressure
66.00 gal/min
250.00 L/min
Auxiliary Circuit – Medium Pressure
13.00 gal/min
49.00 L/min
Hydraulic System - Maximum Flow
Swing Mechanism
31.10 gal/min
118.00 l/min
Maximum Dimensions - Approximate
Maximum Shipping Height*
11.08 ft
3635.00 mm
Maximum Dimensions (approximate)
Maximum Shipping Width
9.83 ft
2990.00 mm
Maximum Dimensions - Approximate
Note
*5900 mm (19'4") stick needs to be detached for transportation.
Working Ranges - Without Work Tool: MH Boom (6800 mm/22'4"); Stick Length (4800 mm/15'9")
Maximum Height
40.75 ft
12425.00 mm
Maximum Reach
37.50 ft
11435.00 mm
Maximum Depth
6.00 ft
1820.00 mm
Working Ranges - Without Work Tool: MH Boom (6800 mm/22'4"); Stick Length (4900 mm/16'1")
Maximum Height
41.00 ft
12505.00 mm
Maximum Reach
37.83 ft
11530.00 mm
Maximum Depth
6.25 ft
1920.00 mm
Working Ranges - Without Work Tool: MH Boom (6800 mm/22'4"); Stick Length (5900 mm/19'4")
Maximum Height
43.67 ft
13300.00 mm
Maximum Reach
40.92 ft
12485.00 mm
Maximum Depth
9.58 ft
2925.00 mm
Engine
Engine Model
Cat C7.1 ACERT
Emissions
Tier 4 Final/Stage IV
Maximum Gross - ISO 14396
129.4 kW (174 hp [176 hp/PS*])
Weights
Operating Weight
22 330-27 000 kg (49,229-59,525 lb)
With MH Boom (6800 mm/22'4") - MH Undercarriage and Drop Nose Stick
56813.00 lb
25770.00 kg
With MH Boom (6800 mm/22'4") - MH Undercarriage and Straight Stick
57651.00 lb
26150.00 kg
Swing Mechanism
Swing Speed
9.00 r/min
9.00 r/min
Maximum Swing Torque
43516.00 ft·lbf
59.00 null
Service Refill Capabilities
Cooling System
12.30 gal (US)
46.90 l
Diesel Exhaust Fluid Tank
9.10 gal (US)
34.50 l
Fuel Tank
111.00 gal (US)
420.00 l
Undercarriage
Axle Clearance - MH Undercarriage
12.80 in
325.00 mm
Oscillation Axle Angle
±5 degrees
Transmission
Maximum Travel Speed
16.00 mile/h
25.00 km/h
Engine
Displacement
427.80 in³
7.01 l
Bore
4.10 in
105.00 mm
Cylinders
6 in-line
Maximum Net Power - SAE J1349/ISO 9249
126 kW (169 hp [171 hp/PS*])
Maximum Torque - 1,400 rpm
612.00 ft·lbf
830.00 N·m
Note
*Metric values.
Stroke
5.30 in
135.00 mm
Hydraulic System - Maximum Flow
Auxiliary Circuit - High Pressure
66.00 gal/min
250.00 l/min
Auxiliary Circuit - Medium Pressure
13.00 gal/min
49.00 l/min
Hydraulic System - Maximum Pressure
Travel Circuit
5076.00 psi
35000.00 kPa
Maximum Dimensions - Approximate
Maximum Shipping Width
9.83 ft
2990.00 mm
Transmission
Creeper Speed - 2nd Gear
7.50 mile/h
12.00 km/h
Maximum Gradeability (25 000 kg/55,115 lb)
60%
Weights
Counterweights - Optional
11464.00 lb
5200.00 kg
Counterweights - Standard
9039.00 lb
4100.00 kg
Note
*Operating weight is with solid tires, optional counterweight, MH undercarriage, fuel tank, operator and work tool, 1400 kg (3,086 lb). Weight varies depending on configuration.
Sticks - Drop Nose (5900 mm)
2381.00 lb
1080.00 kg
Sticks - Straight (4800 mm)
2789.00 lb
1265.00 kg
With MH Boom (6800 mm/22'4") - Standard Undercarriage and Straight Stick
55601.00 lb
25220.00 kg
Features
Performance
- Powerful and efficient – Cat® C7.1 ACERT™ engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
- Dedicated swing pump – allows faster and smoother combined movements.
- Refined hydraulic system – provides increased precision and speed, while preserving fuel consumption.
Efficiency
- Fuel consumption – reduced up to 10%*, with no impact on your productivity to lower operating costs.
- Built-in fuel savers – eliminate waste thanks to Auto Engine Speed Control, Engine Idle Shutdown and enhanced Eco Mode.
- High cooling efficiency – axial fan keeps operating temperatures and costs low.
Safety
- Blue Angel certified – with low vibrations and sound levels.
- Options for specific applications – Thicker high impact and impact resistant windshields fulfill respectively the EN356 P8B and P5A standards. A cab pre-filtration package reduces dust entry and air contamination.
- Great visibility – Large glass areas, LED lights for all working lights and cameras, with both displays split on the same screen.
Ease of Operation
- Enjoy integrated technologies – They act transparently. Features like the Auto Brake and Axle Lock or Automatic Travel lock remove some of the tasks you had to do.
- Smart technologies – They help boost your productivity while making operation easier: try the optional SmartBoom™ or Joystick steering.
- Our cabs are unique –It's a cab just for you where everything can be adjusted, from the seat to the work tools controls assignment on joysticks and pedal.
Maintenance
- Ground level access – for routine maintenance items like fuel and engine oil filters or fluid taps.
- Reduced maintenance –Automatic features like electric lift pump and lubrication system along with long greasing intervals.
Versatility
- Various configurations – from excavators' flexible offering to MH dedicated solutions. MH Boom, straight or drop nose stick and various undercarriages, including front push blade to meet your needs.
- Various Waste Handling (WH) Packages options – The “fine mesh” package protects the cooling hood from dust and includes an engine air pre-cleaner. The adjustable reversing fan and vibrating grill of the WH package add more protection.

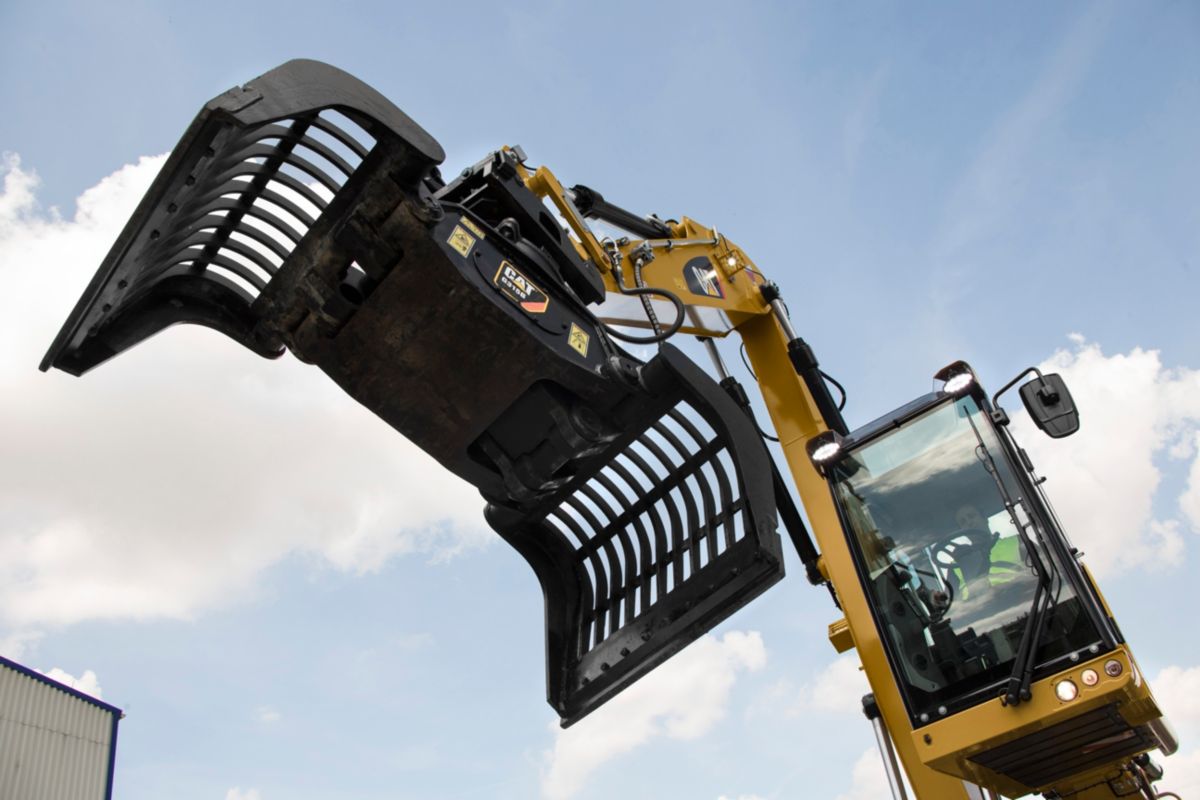

- Various attachments – to tackle all kinds of jobs, from various grapple types to the 15 kW Cat Generator.
Cat Connect Technology
- Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes.
