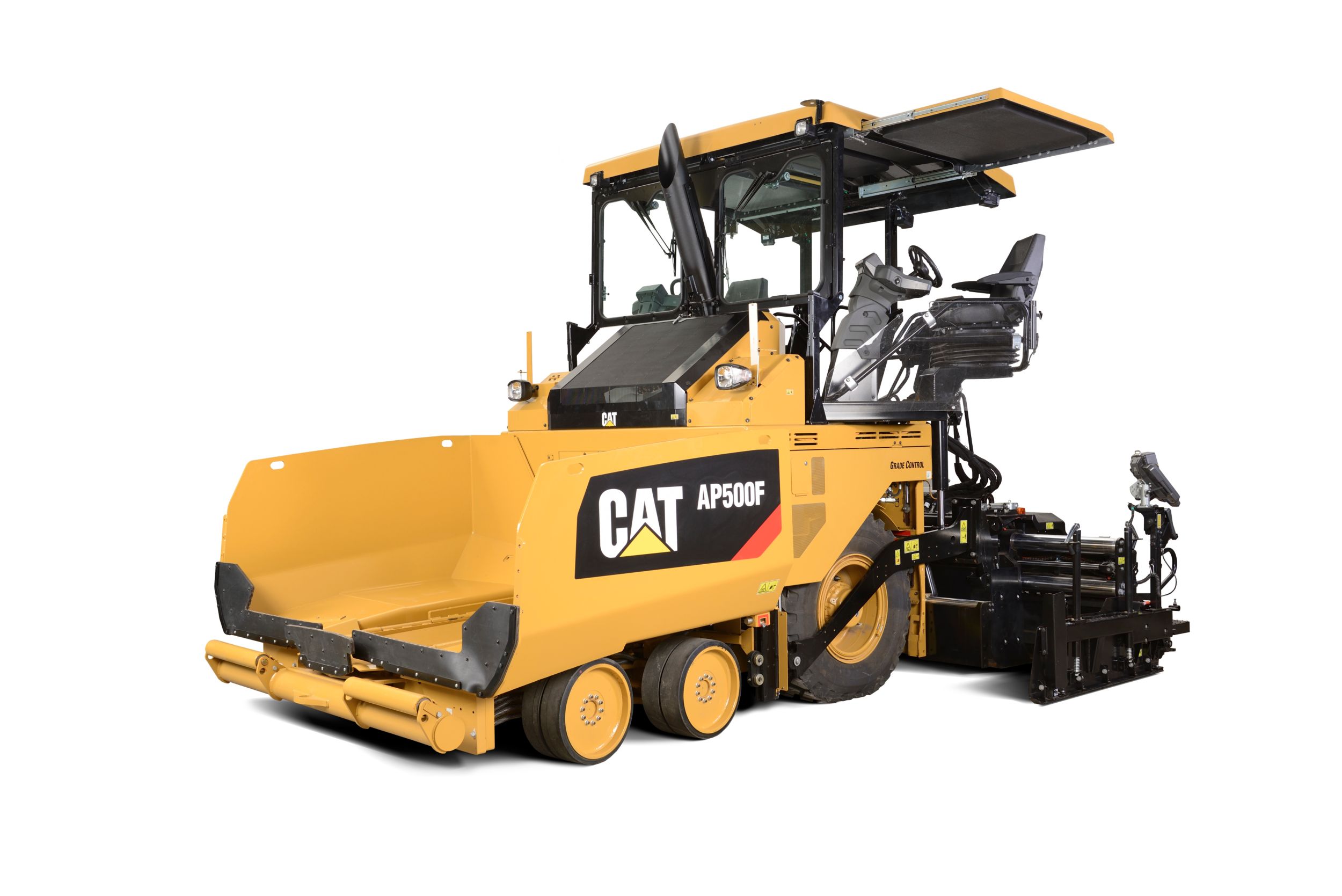

AP500F Wheel Paver
US
Metric
Overview
The AP500F is a mid-sized wheel paver that offers versatility for highways, rural roads, streets and other mid-sized projects.
Engine
Engine Model
Cat C4.4 with ACERT
Gross Power
142.00 hp
106.00 kW
Weights
Operating Weight - Paver only
29020.00 lb
13161.00 kg
Shipping Weight - Paver only
28599.00 lb
12970.00 kg
Operating Weight - SE50 V Screed only
7239.00 lb
3284.00 kg
Operating Weight - SE50 VT Screed only
7695.00
3490.00
Operating Specifications
Standard Paving Range - SE50 V, SE50 VT
2.55 - 5.0 m (8' 4" - 16' 4")
Maximum Paving Width - SE50 V
21.30 ft
6.50 m
Maximum Paving Width - SE50 VT
21.30 ft
6.50 m
Maximum Paving Speed - With Tamper Bar Screed
82.00 ft/min
25.00 m/min
Maximum Paving Speed - With Vibratory Screed
250.00 ft/min
76.00 m/min
Maximum Travel Speed
10.00 mph
16.00 km/h
Inside Turn Radius
1.15 ft
0.35 m
Hopper Capacity
219.00 ft3
6.20 m3
Maximum Throughput Capacity
1288.00 tonnes/hr
1168.00 tonnes/hr
Service Refill Capacities
Fuel Tank Capacity
47.00 gal
179.00 L
DEF Tank
5.00 gal
19.10 L
Weights
Operating Weight - Paver Only
29020.00 lb
13161.00 kg
Operating Specifications
Maximum Travel Speed
10.00 mile/h
16.00 km/h
Standard Paving Range - SE50 V, SE50 VT
2.55 - 5.0 m (8' 4" - 16' 4")
Engine
Gross Power
142.00 HP
106.00 kW
Engine Model
Cat C4.4 with ACERT
Service Refill Capacities
Fuel Tank Capacity
47.00 gal (US)
179.00 l
Operating Specifications
Hopper Capacity
219.00 ft³
6.20 m³
Maximum Paving Width - SE50 V
21.30 ft
6.50 m
Maximum Paving Width - SE50 VT
21.30 ft
6.50 m
Service Refill Capacities
DEF Tank
5.00 gal (US)
19.10 l
Weights
Operating Weight - SE50 V Screed only
7239.00 lb
3284.00 kg
Operating Weight - SE50 VT Screed only
7695.00 lb
3490.00 kg
Shipping Weight - Paver Only
28599.00 lb
12970.00 kg
Features
Fuel Efficient and Quiet
Quick Starter
More Control
Water Resistant Displays
More Efficient Delivery
Wheel Undercarriage
SE-Series Screeds
Cat Grade Control
Sales Features
Fuel Efficient and Quiet
Efficient power management and advanced Eco-mode optimize fuel efficiency and lower sound levels.
Quick Starter
Exclusive 70 kW integrated generator delivers fast heating screed plates, quiet or quick heating options, and simple monitoring. The system is designed to save time and fuel while providing reliability for the life of the paver. Advanced diagnostics keep the screed heating, even in the event of a sensor failure.

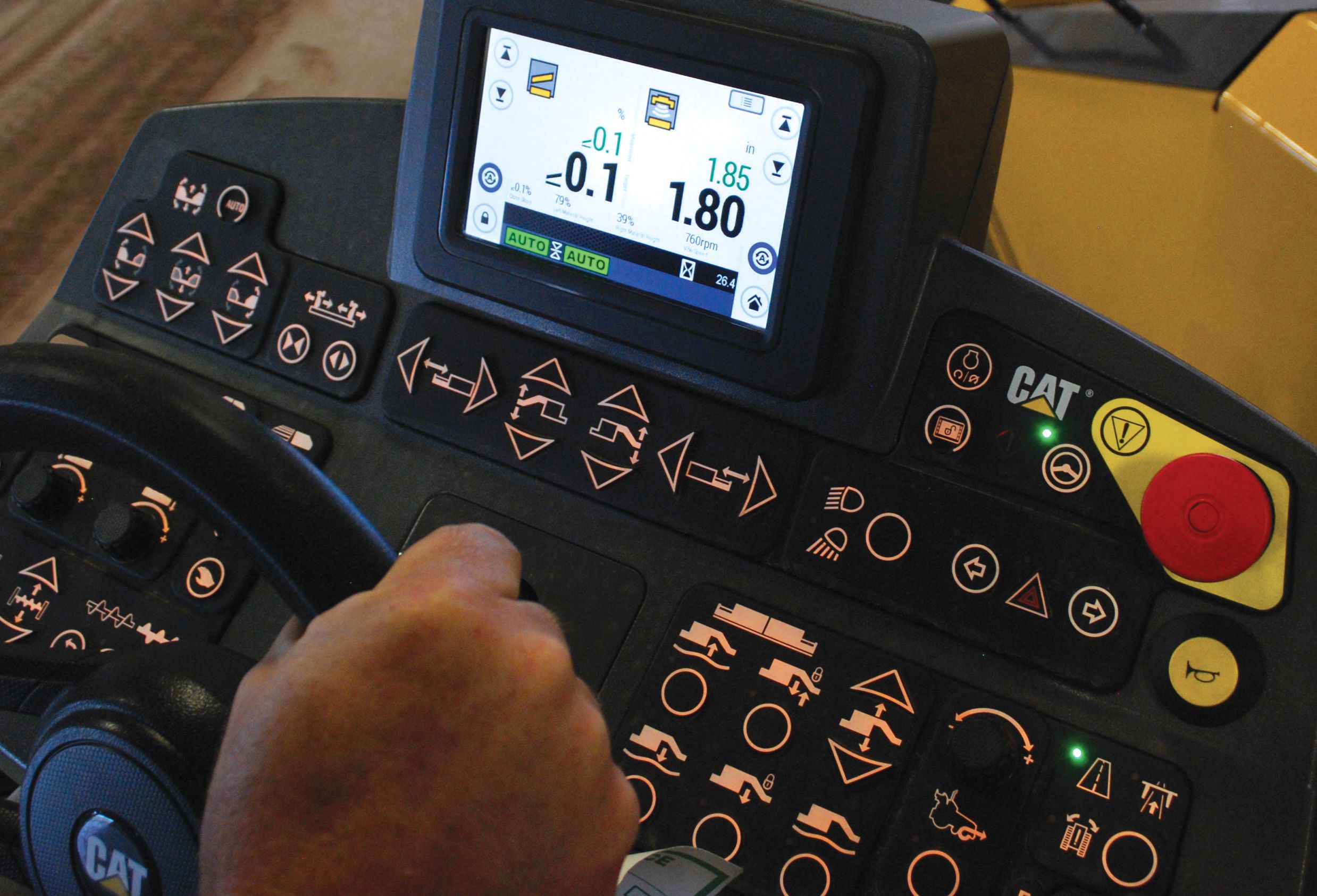

More Control
The dual operator stations provide complete control and good visibility to truck drivers from either side of the operating platform. Station transfer occurs with the simple press of a button. This unique design shifts all settings to the opposite console for simple operation from each side of the paver.
Water Resistant Displays
The water resistant displays provide excellent reliability and meet IP67 common water submergence ratings. The switches have been tested to one million cycles without failure. If a failure does occur, grouped components are serviceable and it's not necessary to replace the entire console.
More Efficient Delivery
High production features include large throughput capacity and over-sized feeder components that enable the system to run slower. This unique design limits wear while also reducing fuel consumption.

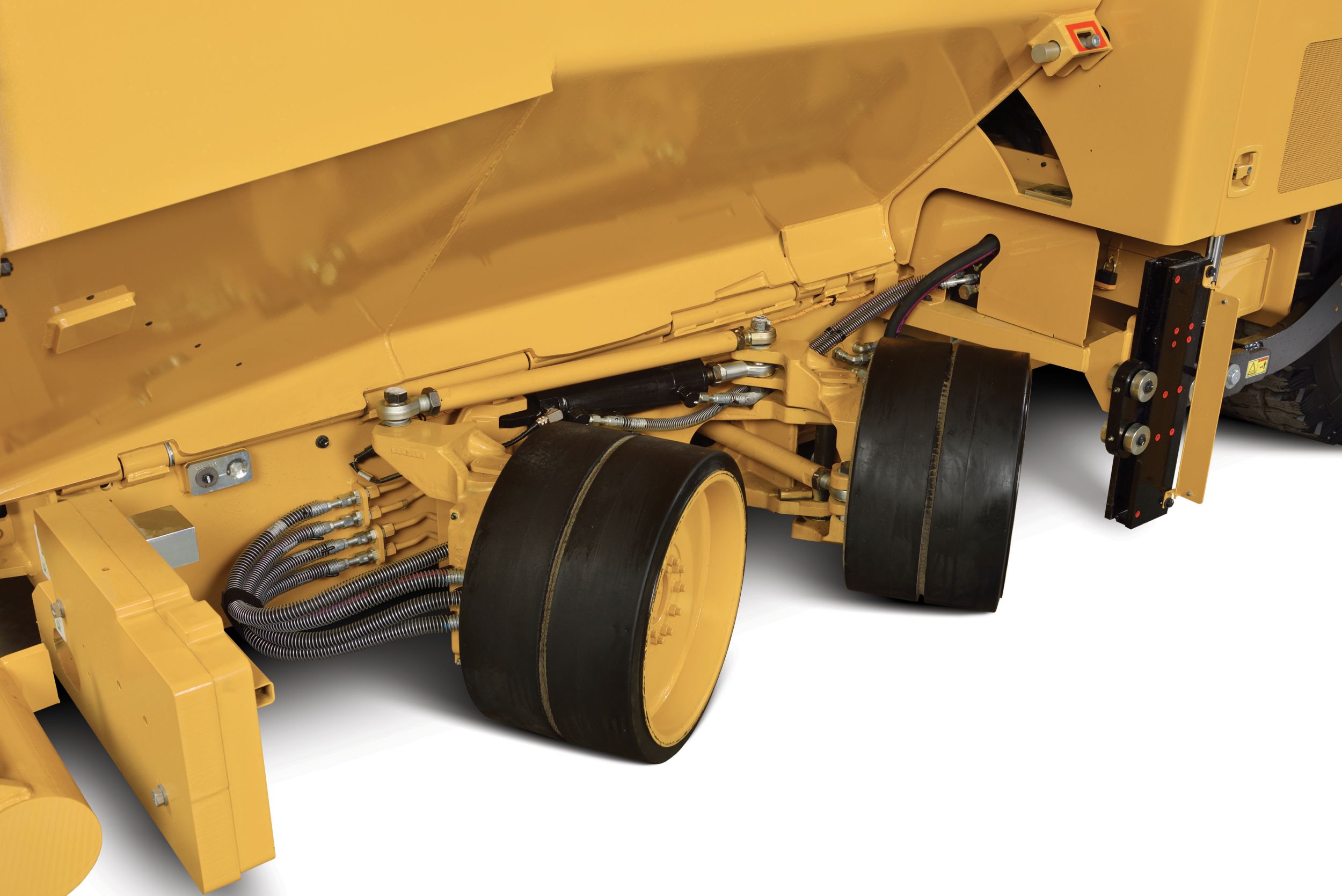

Wheel Undercarriage
Fast travel and smooth turning deliver excellent work site performance.
SE-Series Screeds
The SE-Series screeds provide new heating technology, increased durability, easy adjustment, and better efficiency. The screeds are available with tamper bars and vibration or vibration only.
Cat Grade Control
Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability.
Optional Equipment
- Options
- Air-ride Seat with Heat
- All-Wheel Drive
- Auger and Mainframe Extensions
- Auxiliary Power Panel
- Ballast
- Cat Grade Control
- Decelerator Pedals
- Ecological Washdown System
- Feed Sensor (Sonic or Mechanical)
- Front Wheel Assist
- Hardtop Canopy
- HID Lights
- Leveling Devices
- Lights (Working or Roading)
- Mainframe Extensions (Power or Manual)
- Power Folding Front Apron
- Product Link
- Oscillating Push Rollers
- Steering Guide
- Tow Point Indicators (Upper)
- Truck Hitch
- Generator
- Umbrella
- Uptime Kit
- Ventilation System
- Warning Beacon
- Wide-width Paving Packages
- Windshield w/Hardtop Canopy
- Grade References
- Non-Contacting Sonic Grade Sensor
- Contacting Grade Sensor
- Outboard Leveler, 9.15 m (30') and 12.2 m (40')
- Inboard Leveler
- Mobile Stringline
- Fore ‘N Aft Leveler
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
- Screed Choices
- SE50 V Vibratory Screed
- SE50 VT Tamper Bar Screed
