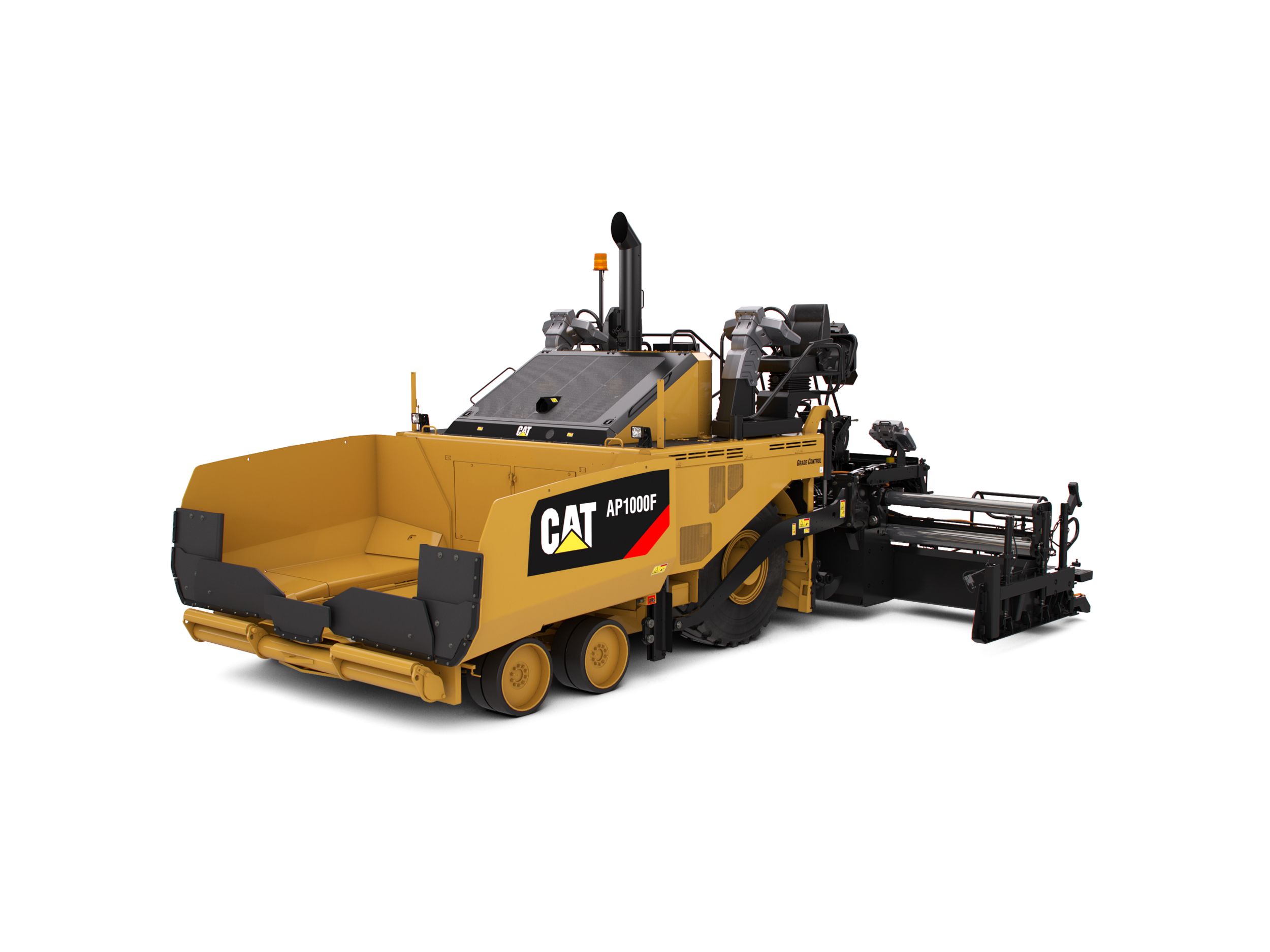

AP1000F Wheel Paver
US
Metric
Overview
The AP1000F is a high-production wheel paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, optional front wheel assist, and all-wheel drive features deliver superb mobility.
Weights
Tractor Operating Weight
34820.00 lb
15794.00 kg
Tractor Shipping Weight
34228.00 lb
15526.00 kg
Operating Weight w/SE60 V
41985.00 lb
19044.00 kg
Operating Weight - With SE60 V XW
43472.00 lb
19719.00 kg
Operating Weight - With SE60 VT XW
45419.00 lb
20602.00 kg
Operating Specifications
Standard Paving Range
3.0-6.0 m (9' 10" - 19' 6")
Maximum Paving Width - SE60 V Screed
25.00 ft
7.65 m
Maximum Paving Width - SE60 V XW, VT XW Screed
25.00 ft
7.65 m
Maximum Paving Speed - With Tamper Bar Screed
82.00 ft/min
25.00 m/min
Maximum Paving Speed - With Vibratory Screed
250.00 ft/min
76.00 m/min
Maximum Travel Speed
12.00 mph
19.90 km/h
Inside Turn Radius
1.50 ft
0.50 m
Hopper Capacity - Standard Entry
267.00 ft³
7.60 m³
Hopper Capacity - Low Entry Hopper
286.00 ft³
8.10 m³
Maximum Throughput Capacity
1766.00 tonnes/hr
1602.00 tonnes/hr
Dimensions
Operating Width - Standard Entry Hopper
132.00 in
3350.00 mm
Operating Width - Low Entry Hopper
142.00 in
3604.00 mm
Operating Height - With Canopy
157.00 in
4000.00 mm
Operating Height - Without Canopy
146.00 in
3715.00 mm
Operating Length - With SE60 V Screed
22.50 ft
6.86 m
Operating Length with SE60 V XW Screed
23.10 ft
7.05 in
Engine
Gross Power
225.00 hp
168.00 kW
Engine Model
Cat C7.1 with ACERT
Dimensions
Transport Length - With SE60 V Screed
22.10 ft
6.72 m
Transport Length - With SE60 XW-Series
22.60 ft
6.91 m
Transport Width - With Screed End Gates
10.66 ft
3.21 m
Transport Width - With End Gates Folded
9.83 ft
3.00 m
Transport Height - Canopy Retracted
10.10 ft
3.10 mm
Transport Height - Without Canopy
9.83 ft
3.00 m
Truck Entry Height - With Standard Entry Hopper
22.50 in
572.00 mm
Truck Entry Height - With Low Entry Hopper
21.00 in
529.00 m
Service Refill Capacities
Fuel Tank Capacity
92.00 gal
348.00 L
DEF Tank
5.00 gal
19.10 L
Weights
Operating Weight - With SE60 V
41985.00 lb
19044.00 kg
Operating Specifications
Standard Paving Range
3 - 6 m (9' 10" - 19' 6")
Maximum Travel Speed
12.00 mile/h
19.90 km/h
Engine
Gross Power
225.00 HP
168.00 kW
Engine Model
Cat C7.1 with ACERT
Service Refill Capacities
Fuel Tank Capacity
92.00 gal (US)
348.00 l
Dimensions
Operating Length - With SE60 V XW Screed
23.10 ft
7.05 in
Operating Specifications
Maximum Paving Width - SE60 V XW, VT XW Screed
25.00 ft
7.65 m
Service Refill Capacities
DEF Tank
5.00 gal (US)
19.10 l
Weights
Tractor Operating Weight
34820.00 lb
15794.00 kg
Tractor Shipping Weight
34228.00 lb
15526.00 kg
Features
Fuel Efficient and Quiet
Quick Starter
More Control
Water Resistant Displays
More Efficient Delivery
Wheel Undercarriage
SE60-Series Screeds
Cat Grade Control
Sales Features
Fuel Efficient and Quiet
Efficient power management and advanced Eco-mode optimize fuel efficiency and lower sound levels.Quick Starter
Exclusive 70 kW integrated generator delivers fast heating screed plates, quiet or quick heating options, and simple monitoring. The system is designed to save time and fuel while providing reliability for the life of the paver. Advanced diagnostics keep the screed heating, even in the event of a sensor failure.More Control
The dual operator stations provide complete control and good visibility to truck drivers from either side of the operating platform. Station transfer occurs with the simple press of a button and all the settings automatically transfer, making the transition from side to side very easy.Water Resistant Displays
The water resistant displays provide excellent reliability and meet IP67 common water submergence ratings. The switches have been tested to one million cycles without failure. If a failure does occur, grouped coomponents are serviceable and it's not necessary to replace the entire console.More Efficient Delivery
High production features include large throughput capacity and over-sized feeder components that enable the system to run slower, limiting wear while also reducing fuel consumption.Wheel Undercarriage
Quick reacting speed control ensures that responsive power is immediately available.SE60-Series Screeds
The SE60-Series screeds provide new heating technology, increased durability, easy adjustment, and better efficiency. The XW-Series screeds offer a maximum paving width out to 10 m (33 ft) and are available with tamper bars and vibration or vibration only.Cat Grade Control
Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability.Optional Equipment
- Options
- Air-ride Seat with Heat
- All-Wheel Drive
- Auger and Mainframe Extensions
- Auxiliary Power Panel
- Ballast
- Cat Grade Control
- Decelerator Pedals
- Ecological Washdown System
- Feed Sensor (Sonic or Mechanical)
- Front Wheel Assist
- Hardtop Canopy
- HID Lights
- Leveling Devices
- Lights (Working or Roading)
- Mainframe Extensions (Power or Manual)
- Power Folding Front Apron
- Product Link
- Oscillating Push Rollers
- Steering Guide
- Tow Point Indicators (Upper)
- Truck Hitch
- Generator
- Umbrella
- Uptime Kit
- Ventilation System
- Warning Beacon
- Wide-width Paving Packages
- Windshield w/Hardtop Canopy
- Grade References
- Non-Contacting Sonic Grade Sensor
- Contacting Grade Sensor
- Outboard Leveler, 9.15 m (30') and 12.2 m (40')
- Inboard Leveler
- Mobile Stringline
- Fore ‘N Aft Leveler
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
- Screed Choices
- SE60 V Vibratory Screed
- SE60 V XW Vibratory Screed
- SE60 VT XW Vibratory and Tamper Bar Screed
