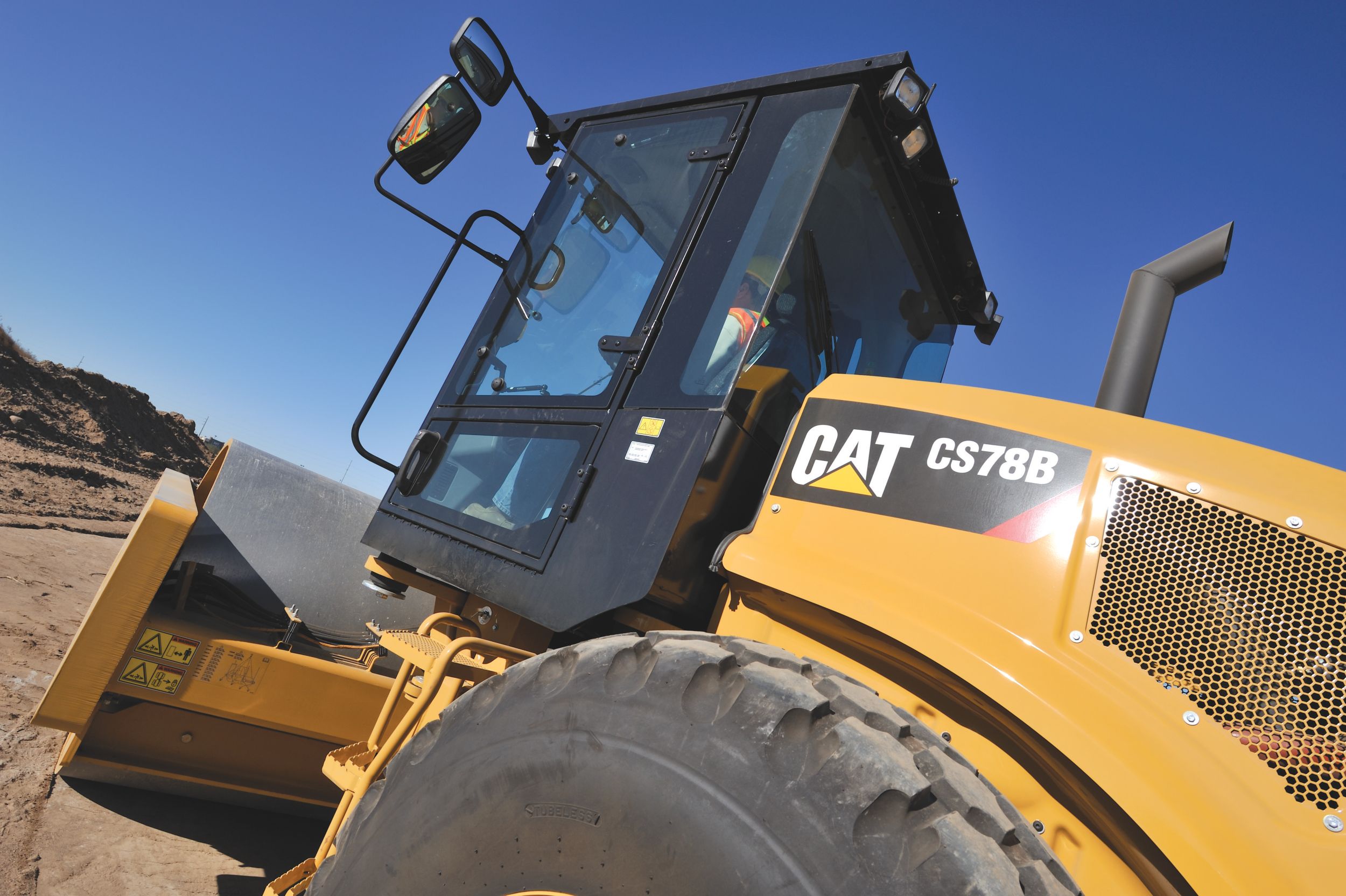

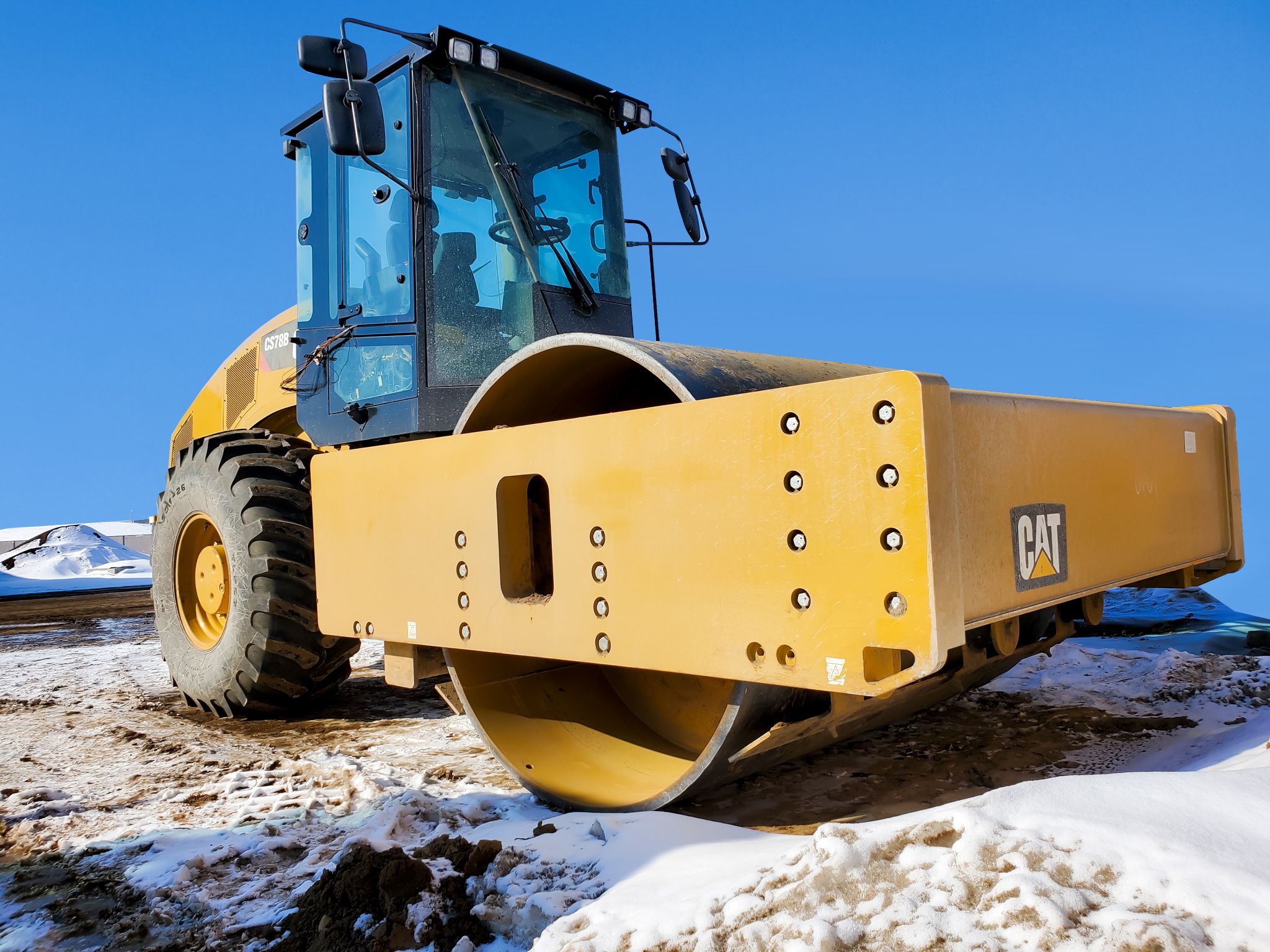

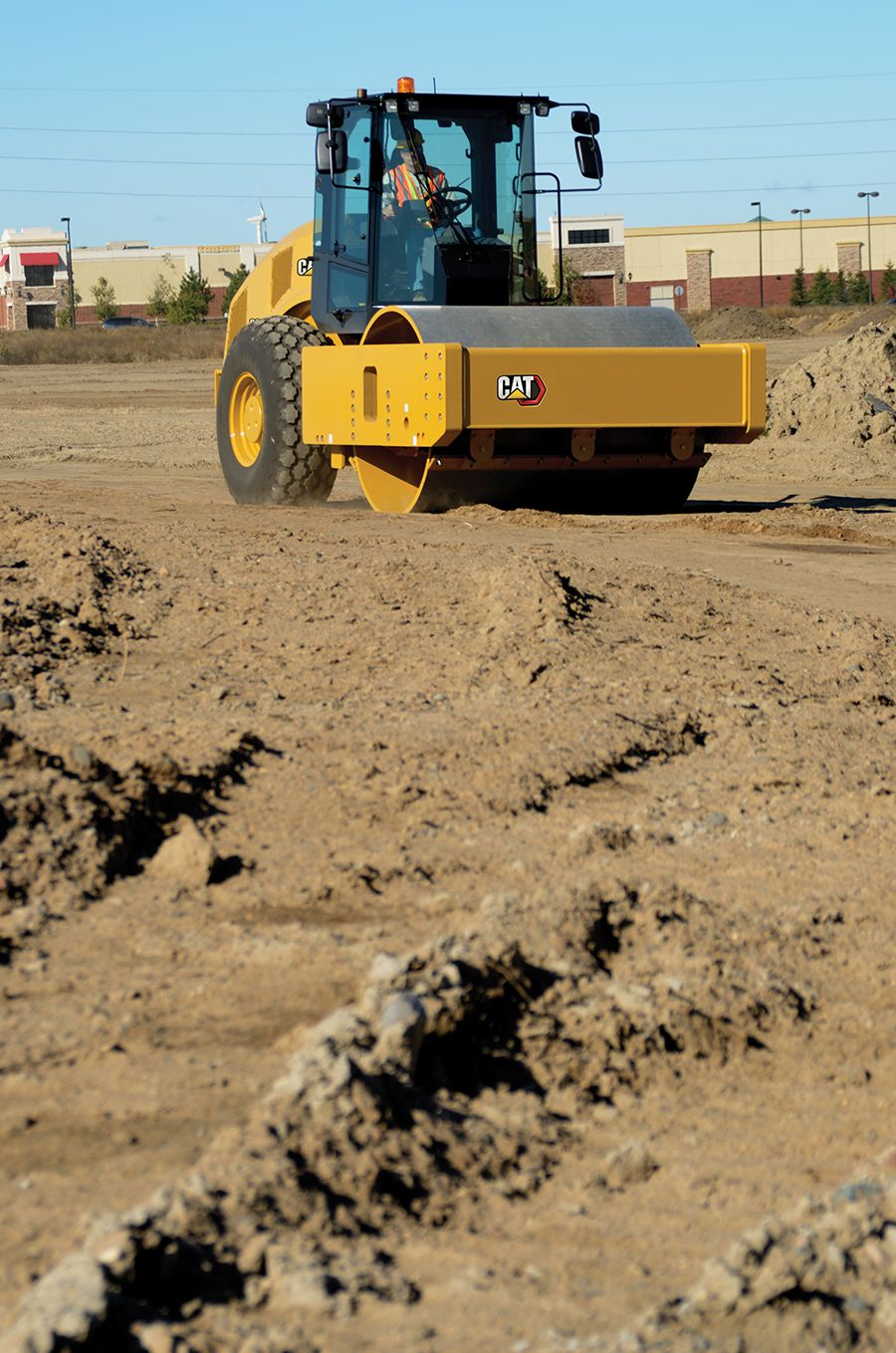

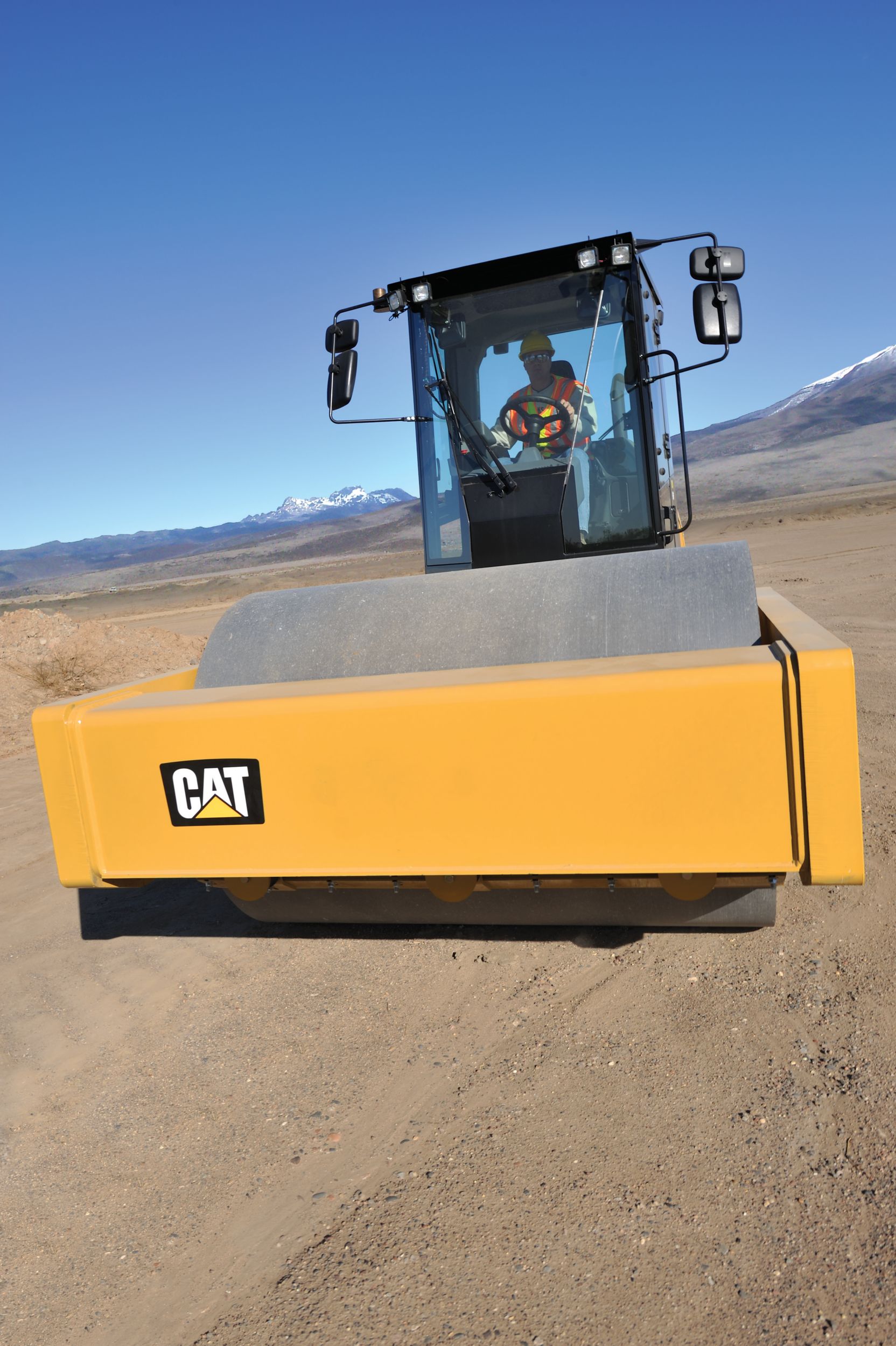

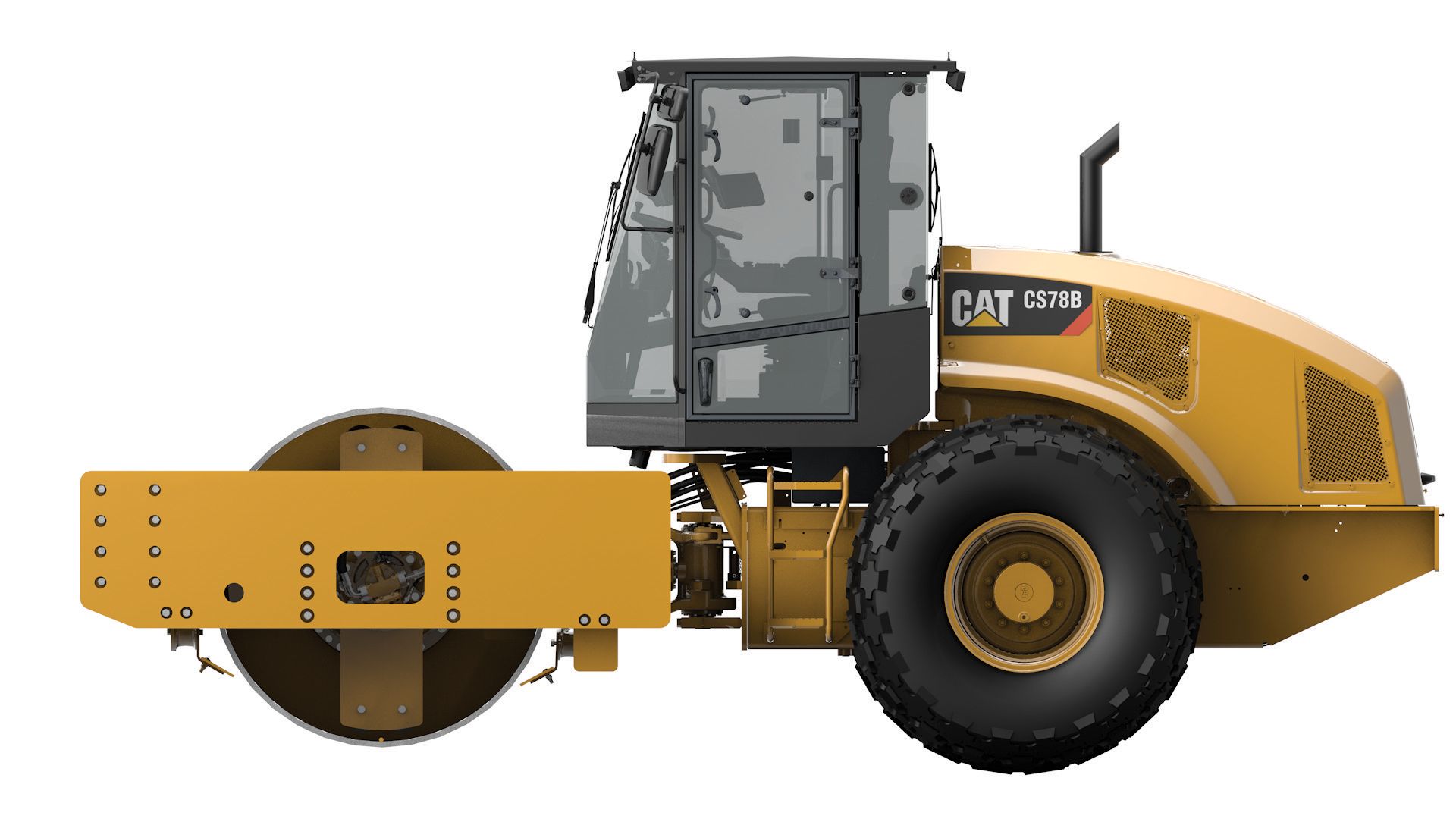

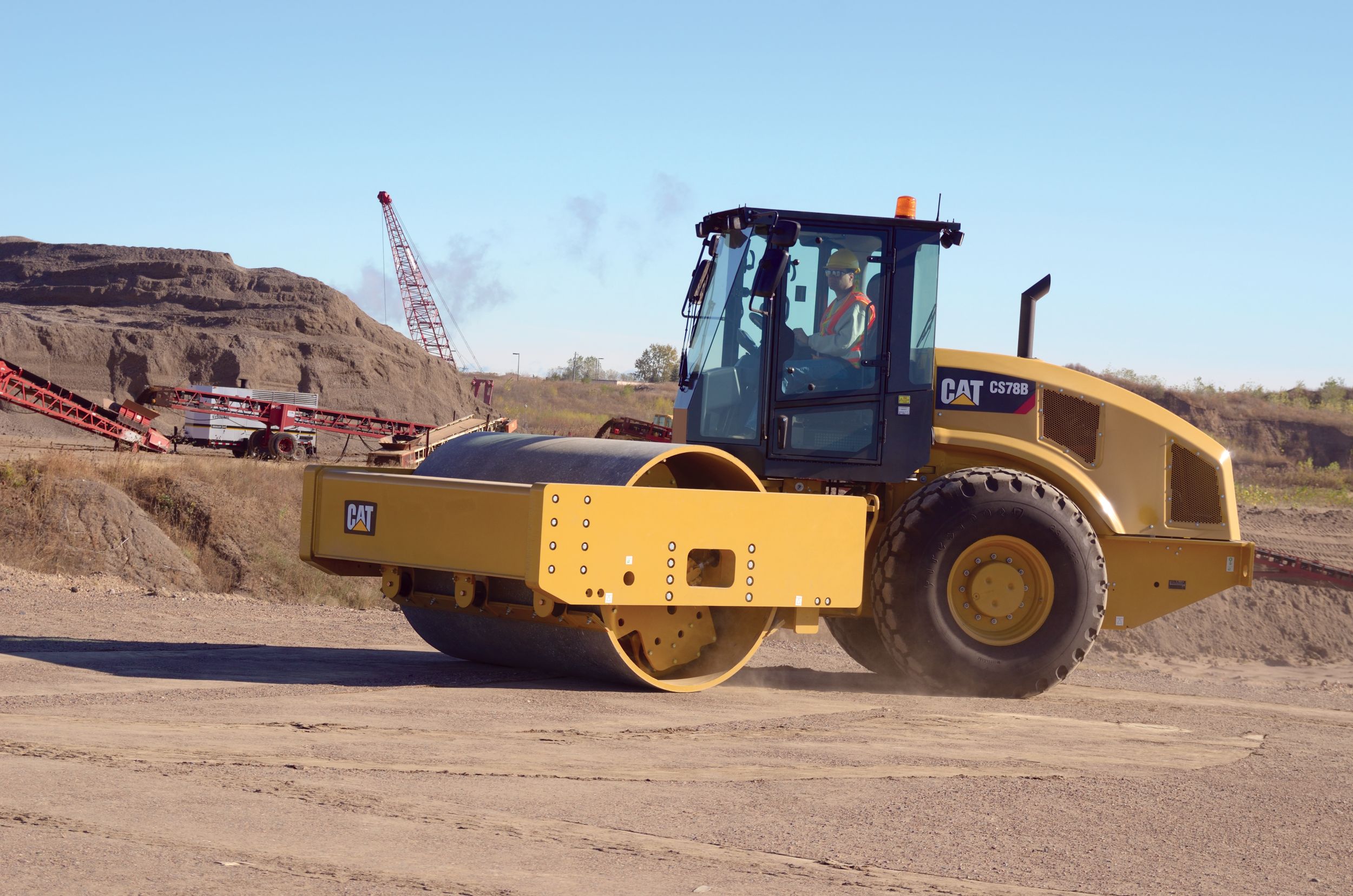

CS78B Vibratory Soil Compactor
US
Metric
Overview
The CS78B provides exceptional performance for granular soil compaction applications.
Weights
Operating Weight with Cab
41214.00 lb
18700.00 kg
Weight - Drum with Cab
29626.00 lb
13440.00 kg
Operating Specifications
Compaction Width
84.00 in
2134.00 mm
Ground Clearance
17.20 in
437.00 mm
Static Linear Load - With Cab
352.70 lb/in
63.00 kg/cm
Travel Speed - Maximum
7.00 mph
11.40 km/h
Turning Radius - Inside Drum Edge
12.08 ft
3.68 m
Engine
Gross Power
173.70 hp
129.50 kW
Engine Model
Cat C4.4 with ACERT
Dimensions
Drum Diameter
60.40 in
1534.00 mm
Drum Width
84.00 in
2134.00 mm
Height - With ROPS/FOPS or Cab
10.25 ft
3.11 m
Overall Length
20.08 ft
6.13 m
Overall Width
7.75 ft
2.36 m
Wheelbase
9.58 ft
2.90 m
Tires
Tires
23.1 x 26
Service Refill Capacities
Fuel Tank Capacity
88.00 gal
332.00 L
Vibratory System
Centrifugal Force - Maximum
74600.00 lb
332.00 kN
Centrifugal Force - Minimum
37300.00 lb
166.00 kN
Nominal Amplitude - High
0.08 in
2.10 mm
Nominal Amplitude - Low
0.04 in
0.98 mm
Variable Frequency Option Range
23.3 - 28 Hz (1400-1680 vpm)
Vibratory Frequency - Standard
28 Hz (1680 vpm)
Weights
Operating Weight - With Cab
41214.00 lb
18700.00 kg
Operating Specifications
Compaction Width
84.00 in
2134.00 mm
Ground Clearance
17.20 in
437.00 mm
Travel Speed - Maximum
7.00 mile/h
11.40 km/h
Engine
Gross Power
173.70 HP
129.50 kW
Engine Model
Cat C4.4 with ACERT
Dimensions
Drum Diameter
60.40 in
1534.00 mm
Drum Width
84.00 in
2134.00 mm
Overall Length
20.08 ft
6.13 m
Overall Width
7.75 ft
2.36 m
Wheel Base
9.58 ft
2.90 m
Vibratory System
Nominal Amplitude - High
0.08 in
2.10 mm
Nominal Amplitude - Low
0.04 in
0.98 mm
Variable Frequency Option Range
23.3 - 28 Hz (1400-1680 vpm)
Vibratory Frequency - Standard
28 Hz (1680 vpm)
Tires
Tires
23.1 x 26
Service Refill Capacities
Fuel Tank Capacity
88.00 gal (US)
332.00 l
Features
Enhanced Vibratory System
Reliable Power Train
Comfortable Operator's Environment
Cat Compaction Control Option
Easy to Service
Sales Features
Enhanced Vibratory System
An optimized drum yoke design, more amplitude and the proven Cat® pod-style vibratory system provides enhanced compaction force.Reliable Power Train
Equipped with a powerful Cat engine and the proven Cat dual-pump propel system, B-Series Vibratory Soil Compactors have the power and traction to provide exceptional performance even in challenging job conditions.Comfortable Operator’s Environment
The operator’s station on the B-Series vibratory soil compactors has been enhanced to provide greater operator comfort and convenience.Cat Compaction Control Option
Cat Compaction Control is a compaction measurement solution that improves quality and efficiency by providing information that allows the operator to determine when compaction meets specifications, which eliminates guesswork, reduces the risk of rework and allows the operator to quickly move on to the next job. Cat Compaction Control is factory integrated with the machine, providing greater protection for components. Two separate compaction measurement technologies are available: Compaction Meter Value (CMV) or Machine Drive Power (MDP).Easy to Service
Service access is simple and convenient on the B-Series vibratory soil compactors. All routine service is conducted from the right side of the machine. The durable one-piece hood tilts forward quickly and easily for exceptional access to the engine and cooling system.Optional Equipment
- Padfoot Shell Kit
- Cat Compaction Control, Compaction Meter Value (CMV)
- Cat Compaction Control, Machine Drive Power (MDP)
- GNSS Mapping for Cat Compaction Control, SBAS or RTK
- Deluxe Operator's Seat for Cab
- Product Link
- Upgraded Halogen Light Package
- Transmission Guard
- Rear-side Steel Scraper
- Front and Rear Polyurethane Scrapers
- Rotating Beacon
- Bio-oil Factory Fill
- Additional Rear View Mirrors
- Italian Road Homologation (IRH)
