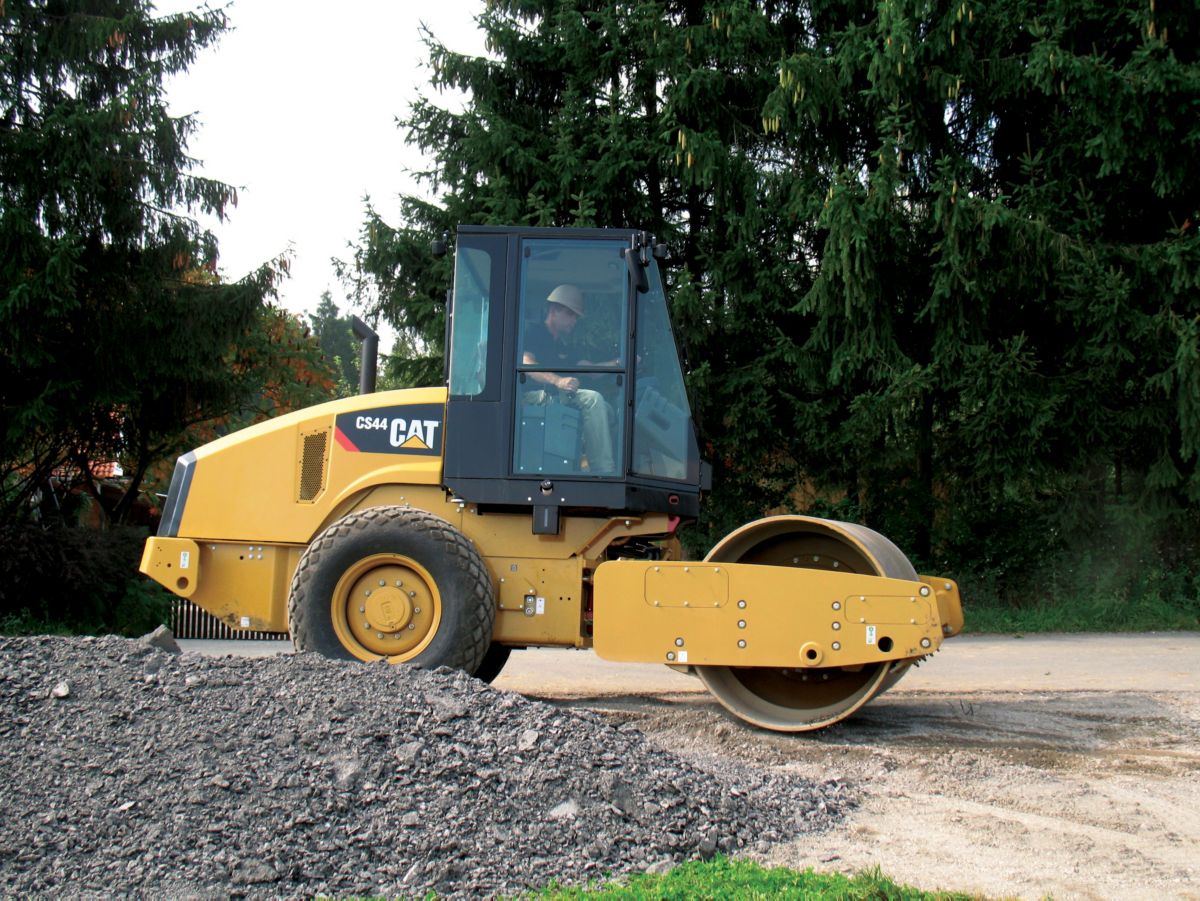

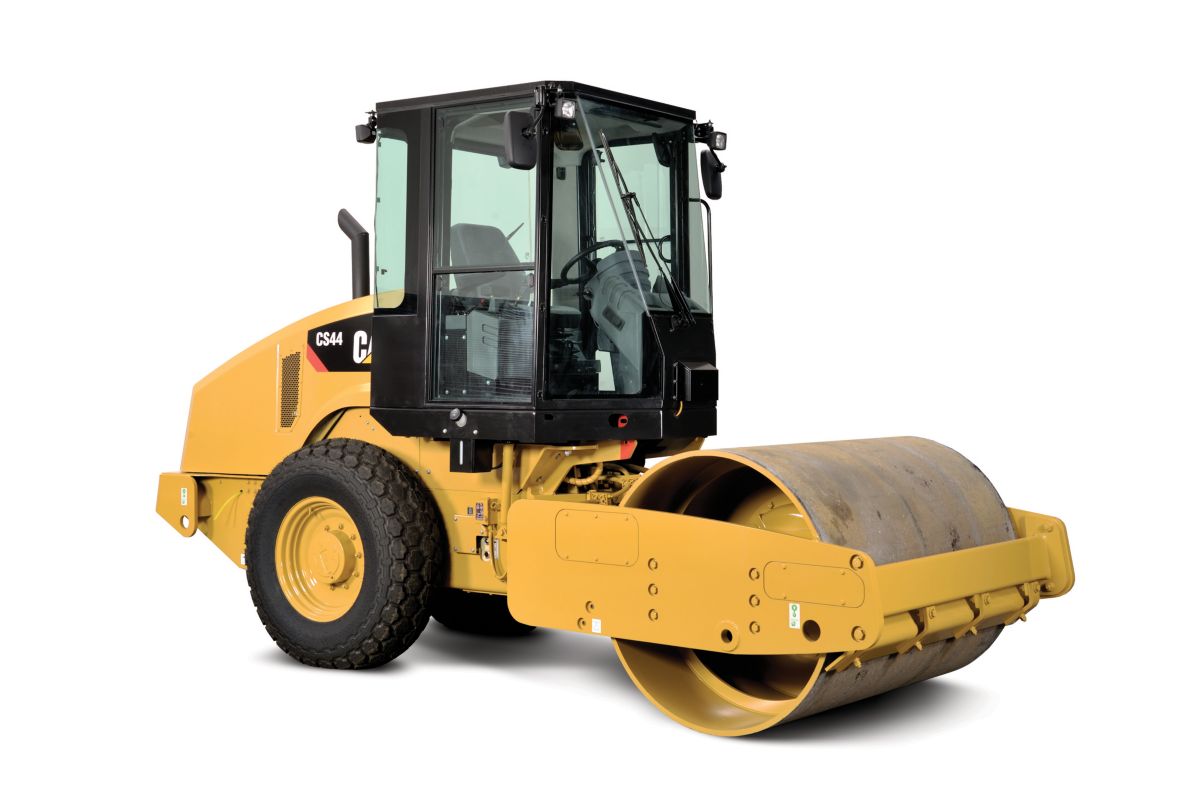

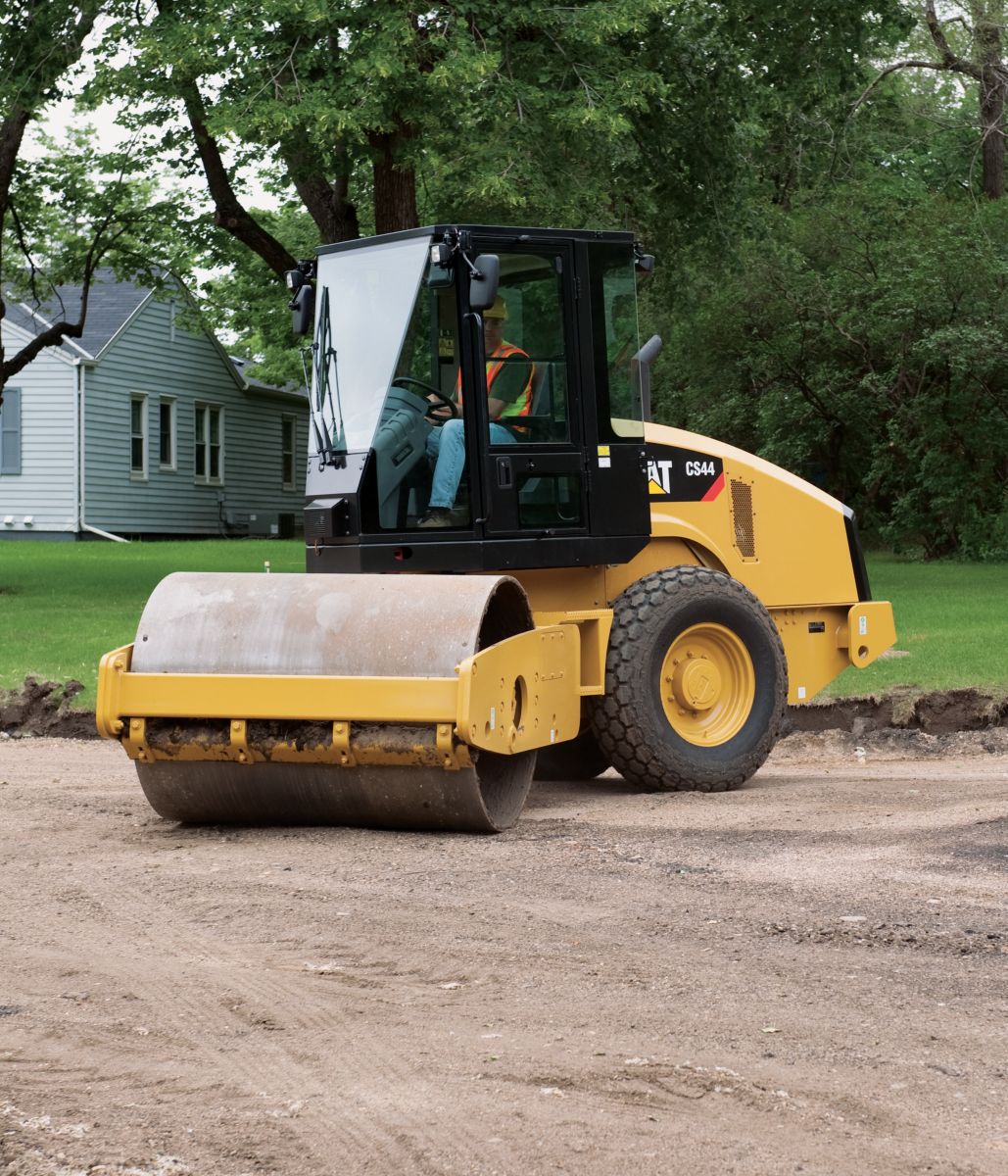

CS44 Vibratory Soil Compactor
US
Metric
Overview
Powered by the 75 kW (100 hp) Cat® C4.4 engine with ACERT™ Technology, the CS44 provides exceptional performance on flat or aggressive terrain. This machine is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
Weights
Operating Weight with Cab
15961.00 lb
7240.00 kg
Operating Weight with ROPS/FOPS
15212.00 lb
6900.00 kg
Weight - Drum with Cab
7738.00 lb
3510.00 kg
Weight at Drum with ROPS/FOPS
7515.00 lb
3410.00 kg
Operating Specifications
Compaction Width
66.00 in
1676.00 mm
Ground Clearance
16.20 in
411.00 mm
Static Linear Load - With Cab
117.20 lb/in
20.90 kg/cm
Static Linear Load - With ROPS/FOPS
114.00 lb/in
20.30 kg/cm
Travel Speed - Maximum
7.60 mph
12.30 km/h
Turning Radius - Inside Drum Edge
10.08 ft
3.08 m
Engine
Gross Power
100.00 hp
75.00 kW
Engine Model
Cat C4.4
Dimensions
Drum Diameter
48.00 in
1221.00 mm
Drum Width
66.00 in
1676.00 mm
Height - With ROPS/FOPS or Cab
9.75 ft
2.97 m
Optional Blade Height
22.60 in
574.00 mm
Overall Length
16.67 ft
5.08 m
Overall Length - With Blade Option
17.83 ft
5.44 m
Overall Width
5.92 ft
1.80 m
Overall Width - With Blade Option
6.92 ft
2.12 m
Wheelbase
8.50 ft
2.60 m
Tires
Tires
14.9 × 24 6-ply flotation
Service Refill Capacities
Fuel Tank Capacity
47.50 gal
180.00 L
Vibratory System
Centrifugal Force - Maximum
30000.00 lb
134.00 kN
Centrifugal Force - Minimum
15000.00 lb
67.00 kN
Nominal Amplitude - High
0.07 in
1.67 mm
Nominal Amplitude - Low
0.03 in
0.84 mm
Variable Frequency Option Range
23.3-31.9 Hz (1,400-1,914 vpm)
Vibratory Frequency - Standard
1914.00 vpm
31.90 Hz
Weights
Operating Weight - With Cab
15961.00 lb
7240.00 kg
Operating Weight - With ROPS/FOPS
15212.00 lb
6900.00 kg
Weight - Drum with ROPS/FOPS
7515.00 lb
3410.00 kg
Operating Specifications
Compaction Width
66.00 in
1676.00 mm
Ground Clearance
16.20 in
411.00 mm
Travel Speed - Maximum
7.60 mile/h
12.30 km/h
Engine
Gross Power
100.00 HP
75.00 kW
Engine Model
Cat C4.4
Dimensions
Drum Diameter
48.00 in
1221.00 mm
Drum Width
66.00 in
1676.00 mm
Overall Length
16.67 ft
5.08 m
Overall Width
5.92 ft
1.80 m
Wheel Base
8.50 ft
2.60 m
Vibratory System
Nominal Amplitude - High
0.07 in
1.67 mm
Nominal Amplitude - Low
0.03 in
0.84 mm
Variable Frequency Option Range
23.3-31.9 Hz (1,400-1,914 vpm)
Vibratory Frequency - Standard
1914.00 V/m
31.90 Hz
Tires
Tires
14.9 × 24 6-ply flotation
Service Refill Capacities
Fuel Tank Capacity
47.50 gal (US)
180.00 l
Features
Vibratory System
Proprietary Eccentric Weights
Cat® C4.4 Engine with ACERT™ Technology
Dual Pump Propel System
Gradeability and Machine Control
Sloped Hood Design
Open Platform with ROPS/FOPS Canopy
Operator's Station
ROPS/FOPS Cab (Optional)
Padfoot Shell Kit (Optional)
Leveling Blade (Optional)
Serviceability
Sales Features
Vibratory System
The pod-style vibratory system delivers superior compactive force while offering serviceability advantages.Proprietary Eccentric Weights
Reliable dual amplitude selection and innovative design of the proprietary eccentric weights ensures precise performance.Cat® C4.4 Engine with ACERT™ Technology
This high-tech four cylinder engine provides outstanding durability, performance, reliability and operating economy while producing less emissions. The C4.4 engine is certified to meet U.S. EPA Tier 3 and European EU Stage IIIa emissions standards.Dual Pump Propel System
The dual pump propel system offers high tractive effort and gradeability for outstanding productivity and machine control in demanding environments.Gradeability and Machine Control
The exclusive dual pump propel system provides superior performance, machine control and excellent grade climbing capability.Sloped Hood Design
The sloped fiberglass hood design provides good service access and exceptional operator visibility.Open Platform with ROPS/FOPS Canopy
The platform of the CS44 is equipped with a ROPS/FOPS canopy and is enclosed by handrails and features foot rests for sure footing and support when working on a grade.Operator’s Station
The operator's station is ergonomically designed for maximum operator productivity while offering excellent visibility and unmatched comfort.ROPS/FOPS Cab (Optional)
The ROPS/FOPS Cab is spacious and comfortable, with large windows and remarkable visibility. Robust air conditioning provides remarkable comfort. Excellent ergonomics and low sound levels keep the operator alert and in control.Padfoot Shell Kit (Optional)
An optional padfoot shell kit expands the application range of the CS44 to work in either cohesive or semi-cohesive material.Leveling Blade (Optional)
The Leveling Blade option, available on CS44 machines that are equipped with the Padfoot Shell Kit option, increases machine versatility and utilization, plus greatly enhances productivity.Serviceability
The CS44 Soil Compactor provides exceptional reliability and serviceability that you've come to expect from Caterpillar.Optional Equipment
- ROPS/FOPS Cab
- Sun Visor
- Vibrations Per Minute (VPM) gauge
- Polyurethane Drum Scrapers
- Smooth Drum Rear Steel Scraper
- Cab Internal Rear View Mirrors
- Variable Vibration Frequency
- Padfoot Shell Kit
- Operator Platform Lift Cylinder
- Roll-Down Sun Screen for ROPS/FOPS Cab
- Rotating Amber Beacon
- Leveling Blade
- Volkel Ready option
- Rotating Seat
- Bio-Oil Factory Fill
- Product Link
