Utility Grapple Buckets

1883 mm (74 in) Utility Grapple Bucket

Request A Quote New and Used Inventory

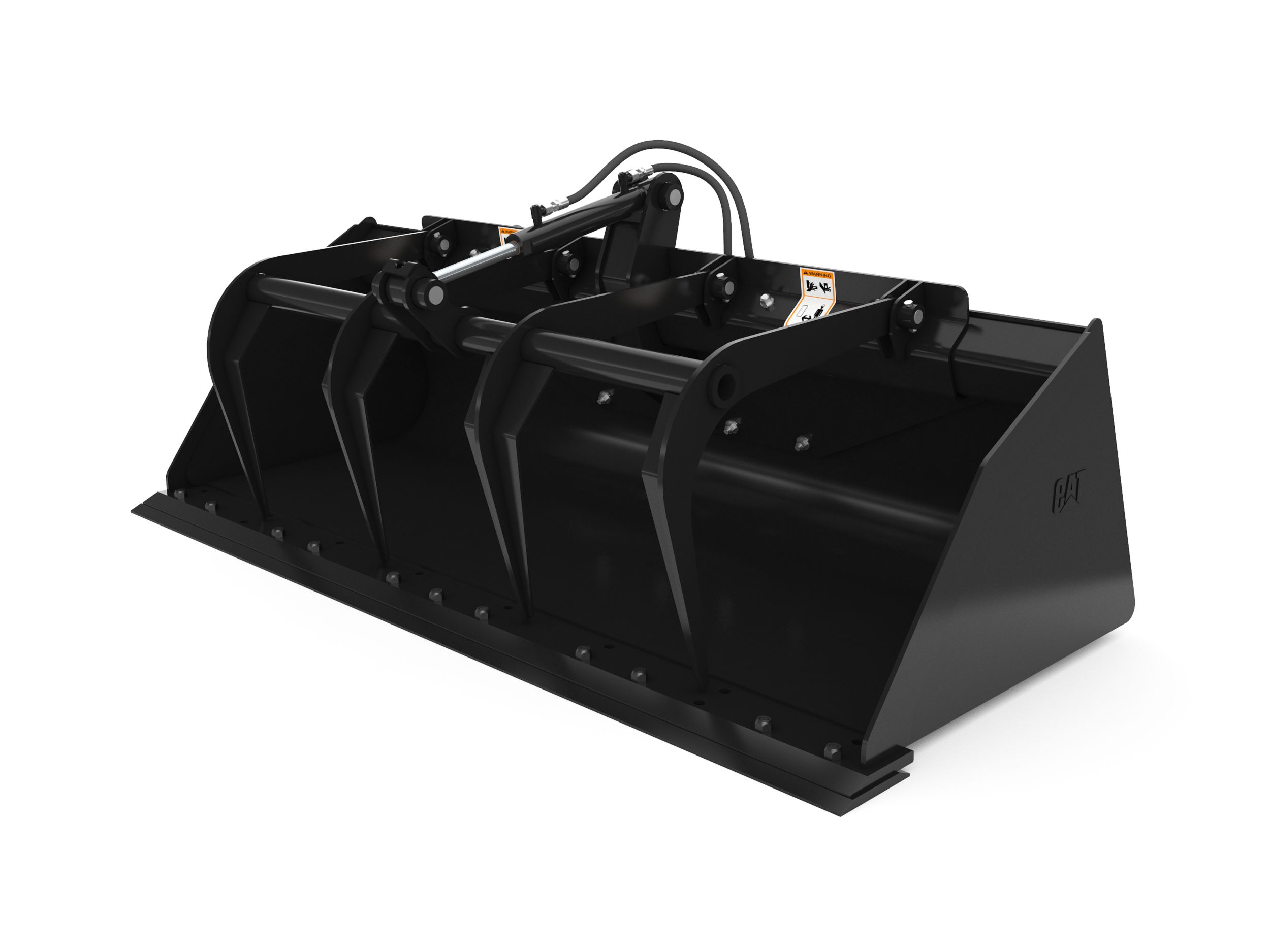

Studio Shot

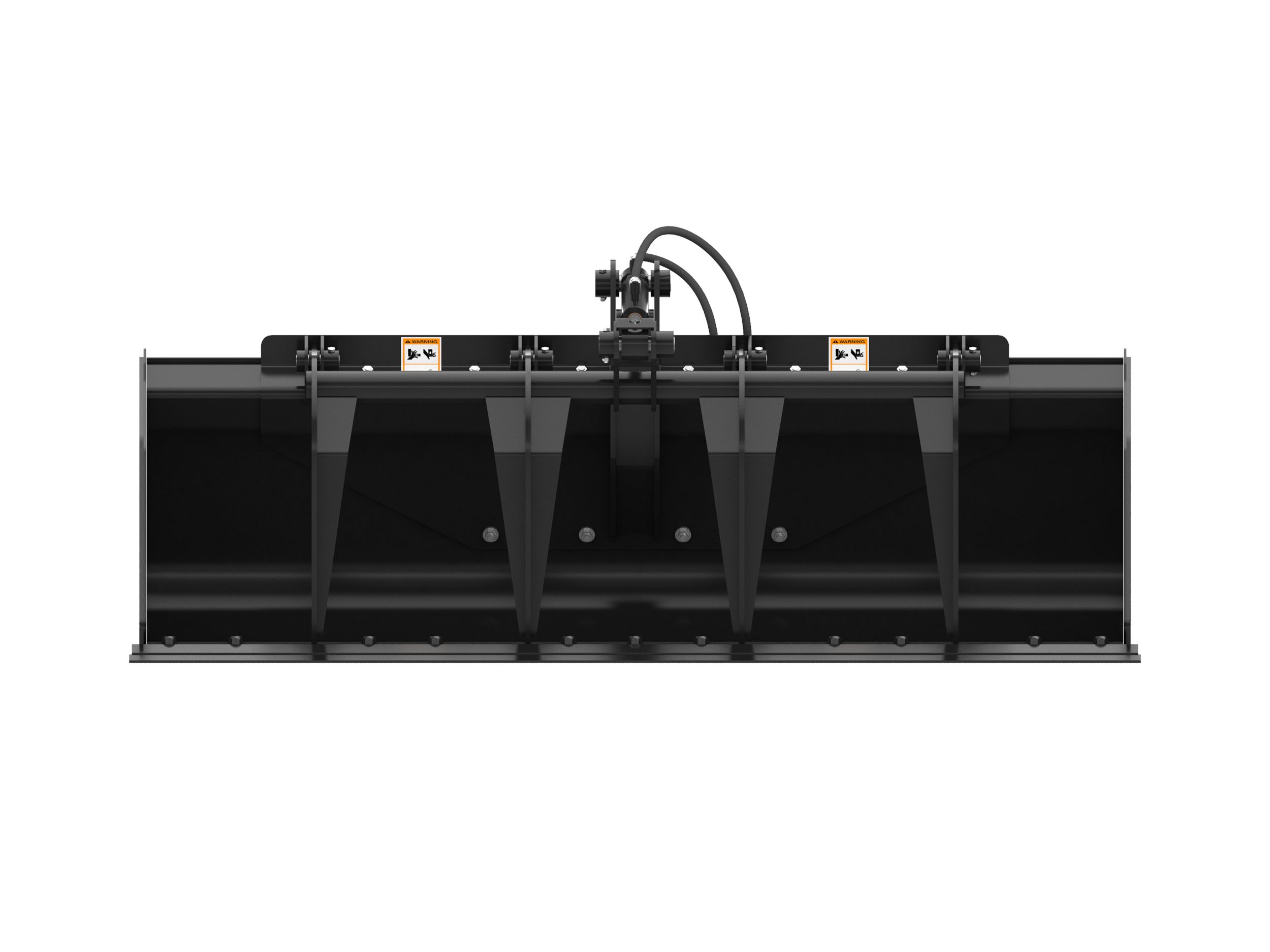

Front View

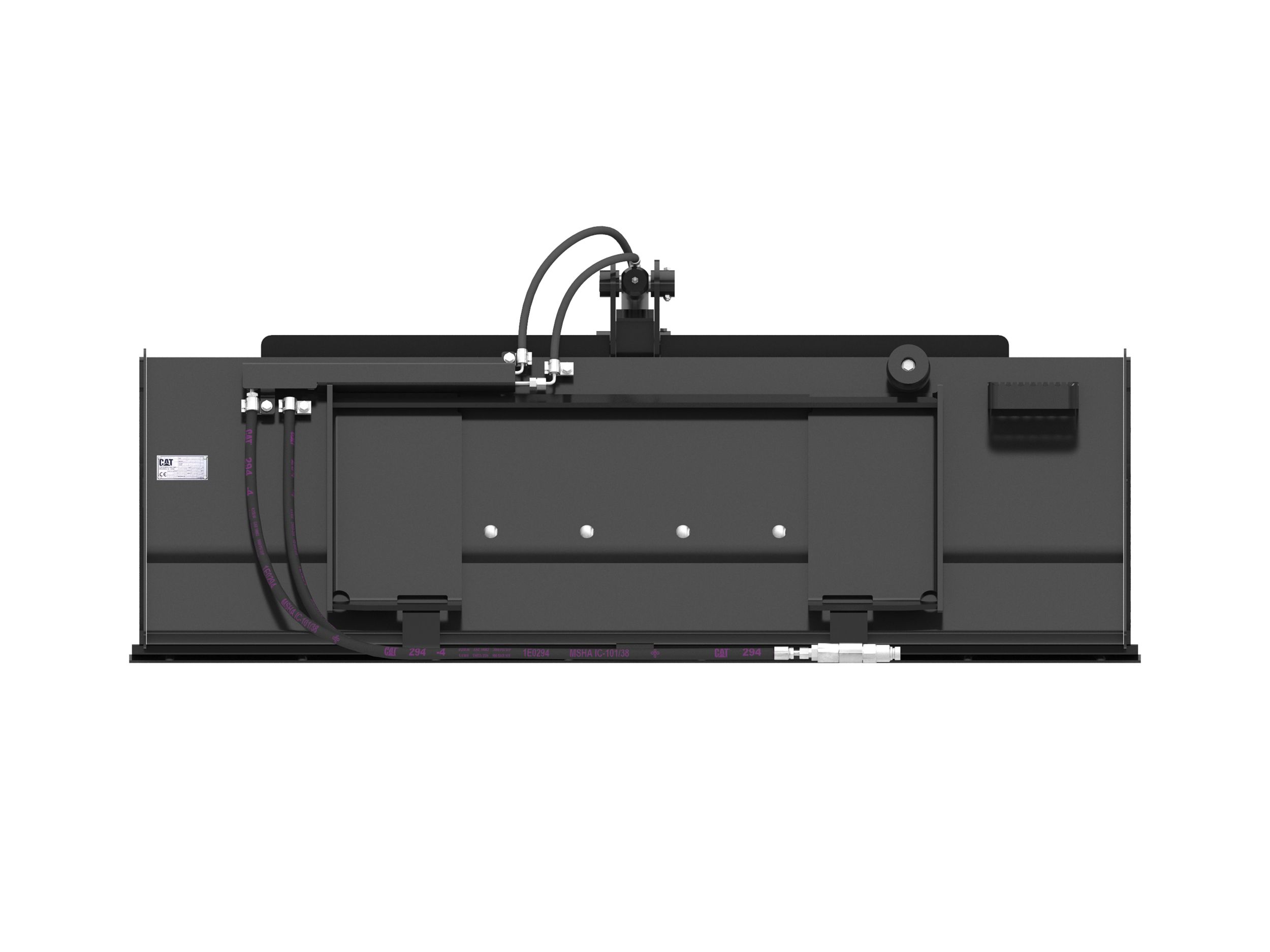

Top View

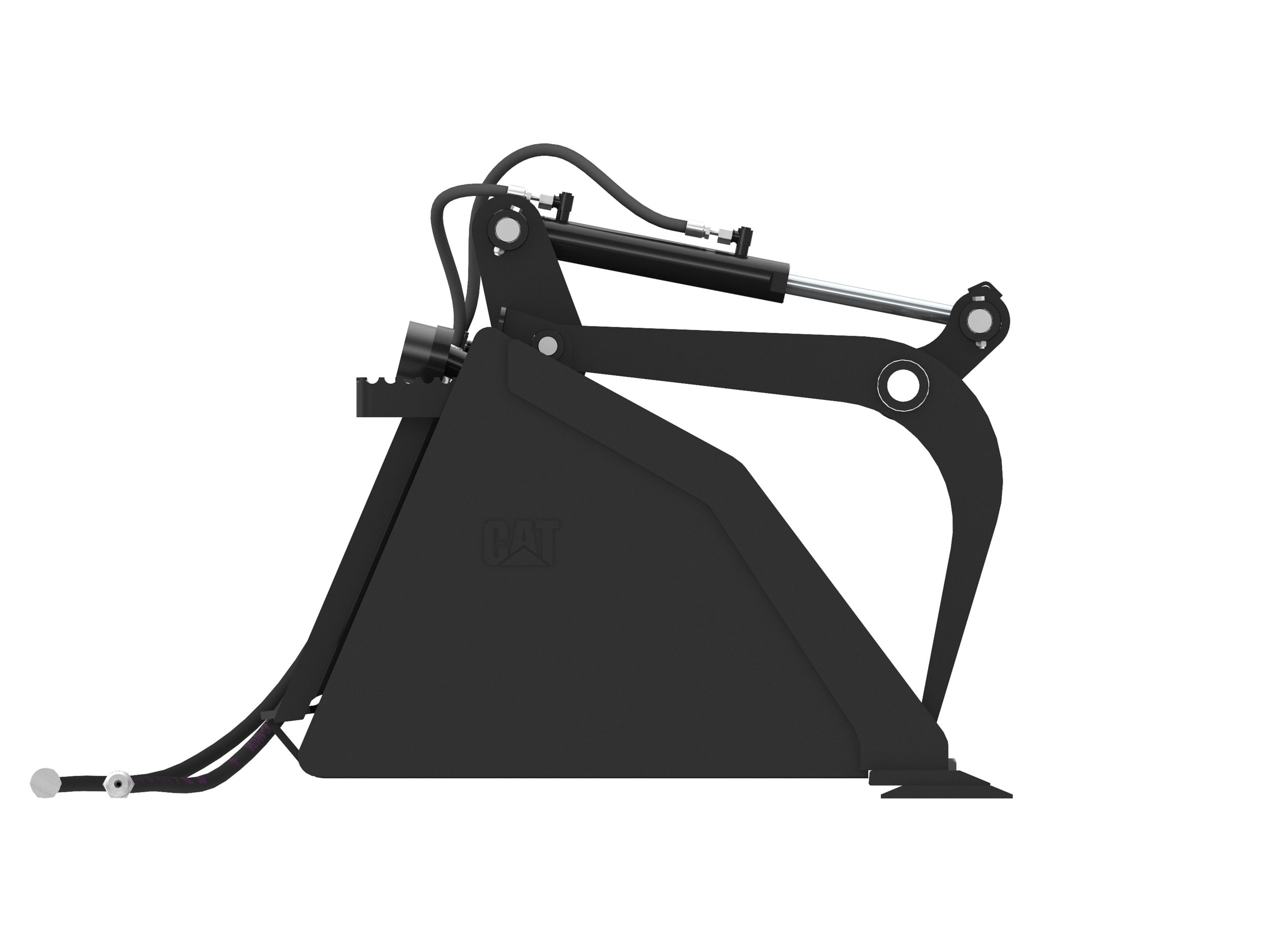

Left View

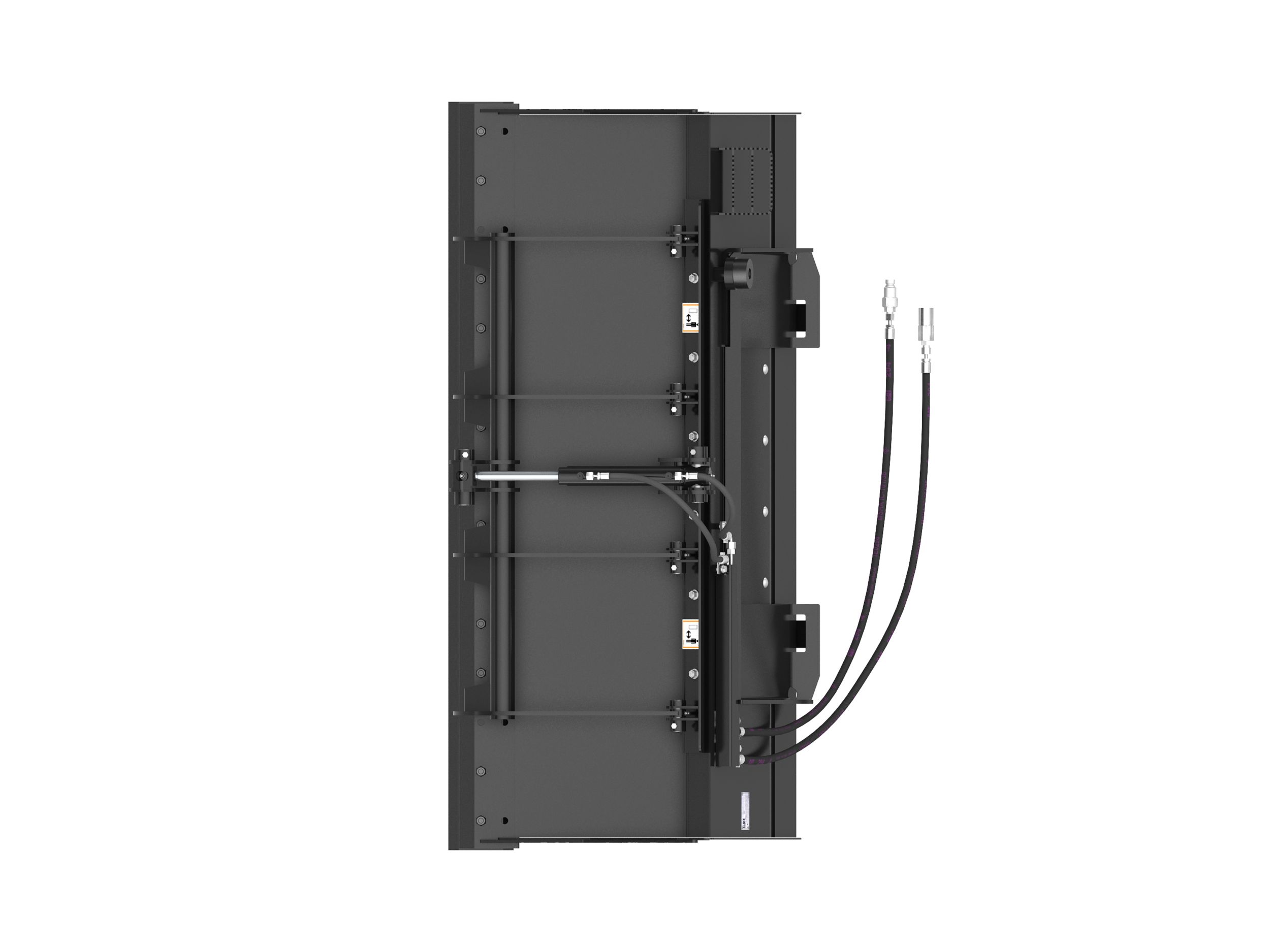

Rear View

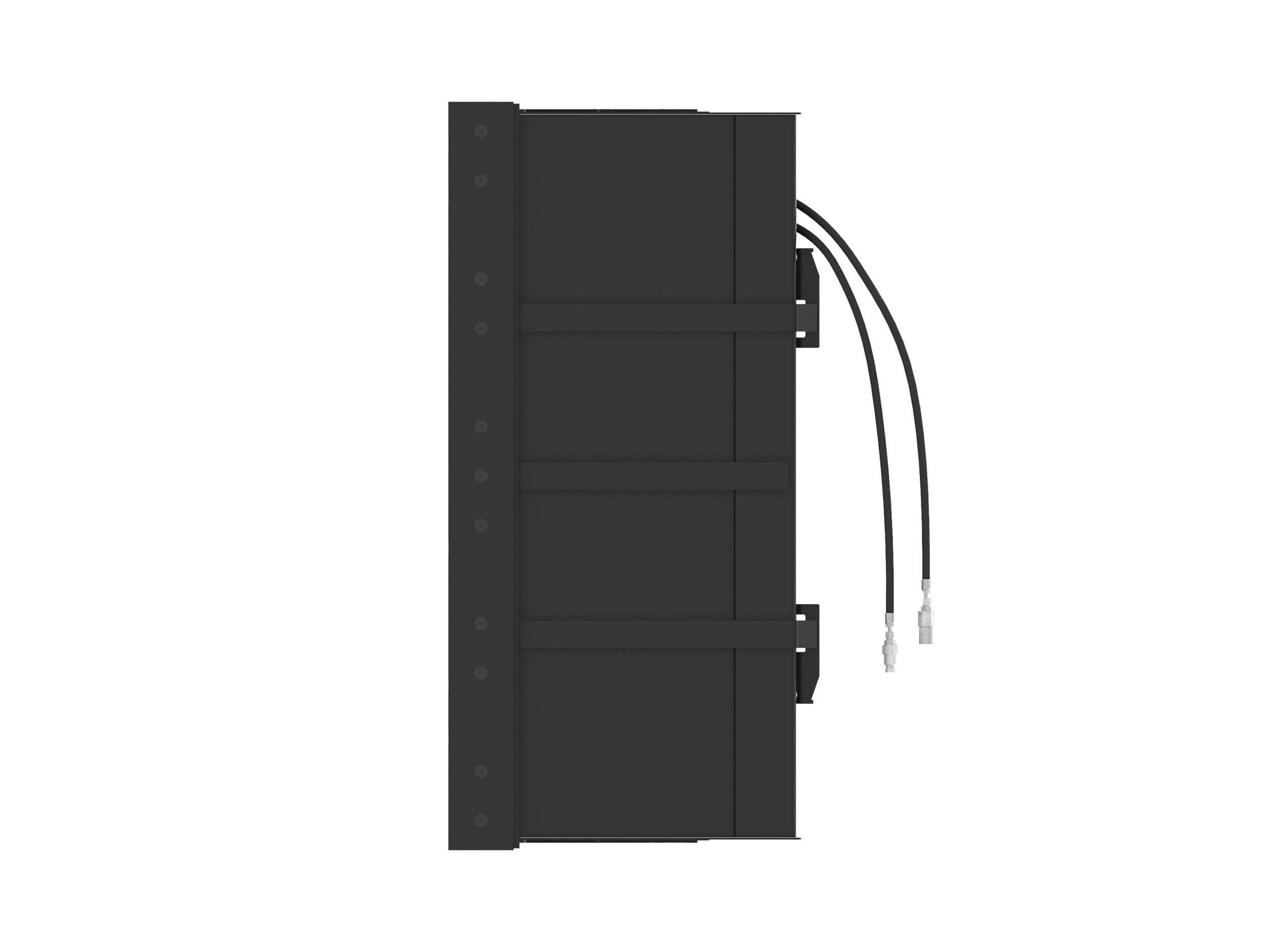

Bottom View

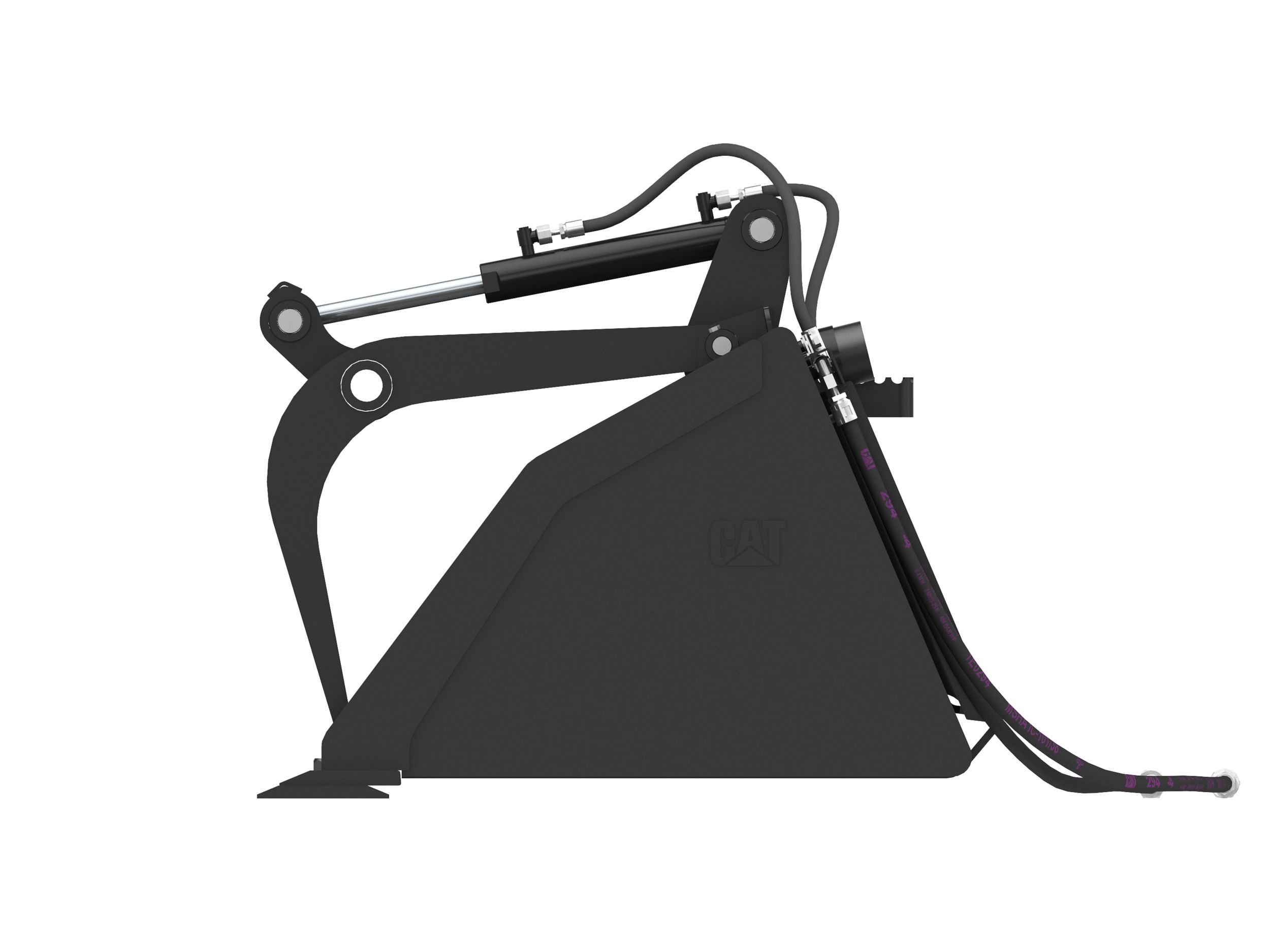

Right View
US
Metric

Overview

Cat® Utility Grapple Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project. The light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.
Width
74.10 in
1883.00 mm
Height - Grapples Closed
29.10 in
739.00 mm
Jaw Opening
35.50 in
902.00 mm
Length
36.80 in
934.00 mm
Weight
820.10 lb
372.00 kg
Base Edge Thickness
0.70 in
19.00 mm
Cutting Edge Thickness
0.60 in
16.00 mm
Operating Pressure
3335.90 psi
23000.00 kPa
Capacity
0.68 yd³
0.52 m³
Interface Type
Skid Steer Coupler
Features

Application

Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.

Light Duty Design

Light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.

Wide Jaw Opening

Wide vertical jaw opening allows for handling of large, bulky material.

Hardened Bucket Edge

Hardened bucket base edge provides excellent penetration and wear life.
