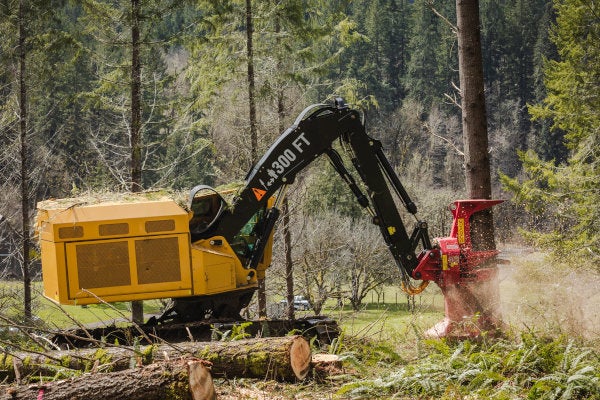

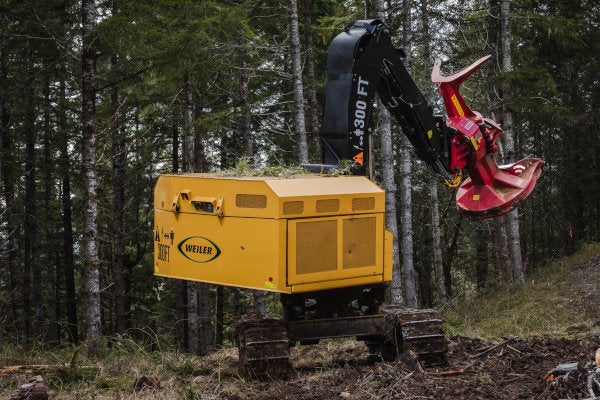

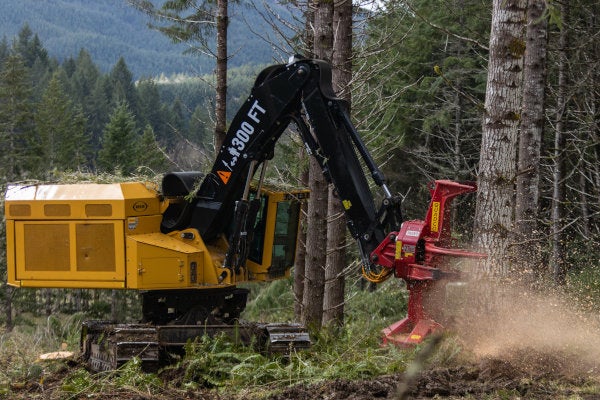

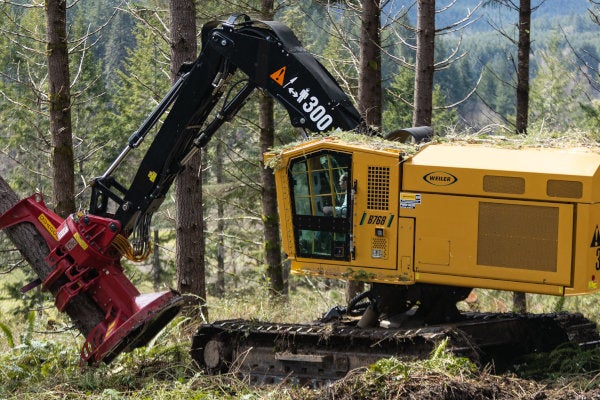

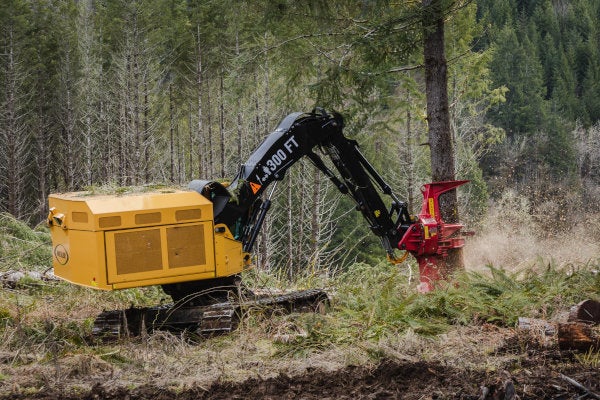

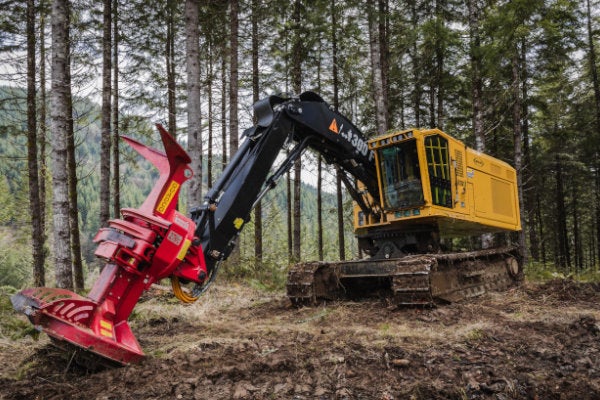

Weiler B768 Track Feller Buncher
Overview
Specifications
ULTIMATE PERFORMANCE
Powerful tractive effort, maximum lift capacity, leading swing torque, and optimal reach provides the ultimate performance needed in demanding bunching applications worldwide. Machine can be paired with heads with a capacity as large as 27”.
OPTIMIZED EFFICIENCY
The optimized hydraulic system consists of eight dedicated pumps and was designed specifically to maximize efficiency in feller buncher applications. Closed loop drive and closed loop swing offer excellent multi-functioning capability and facilitate smooth, fluid machine operation.
ROCK SOLID STABILITY
A combination of weight distribution, a low center of gravity, redesigned roller frames, and an optimized working envelope provides rock solid machine stability. The transverse mounted engine provides uniform weight in the back of the machine at all times.
VERSATILE LEVELING SYSTEM
The new, state of the art leveling system, provides the leveling capability demanded by high production steep slope applications. Large pins, engineered structures, and the largest-in-class swing bearing ensure maximum durability and low operating costs.
ELEVATED OPERATOR COMFORT
The spacious cab design provides excellent forward and right-side visibility, easy access, and options that include a heated and cooled seat. The optional 10 LED front facing lights offer optimum visibility day and night. Machine controls feature an easy to use Weiler operator interface.
EXCELLENT SERVICEABILITY
A canopy and two gull-wing style access doors open hydraulically for full under hood access and provide a stable platform for repairs. Walk-through machine access allows the operator to walk from the cab to the opposite side of the machine without stepping on the ground.
POWERTRAIN
- Cat C9.3B engine certified to Tier 4 Final
- Primary, secondary, and tertiary fuel filters, including water separator
- Side-by-side radiator, oil cooler, and air-to-air cooler
- Swing out air conditioner condenser
- Removable debris screen
- Centrifugal engine air pre-cleaner
- Under-hood 2-stage engine air cleaner
- Variable speed, hydraulic reversing fan with guard
- Heavy-duty starter and ether aid
UNDERCARRIAGE
- Heavy-duty track roller frames
- Grease-lubricated 349 HEX track
- Heavy-duty upper slides
- Heavy-duty bottom track rollers
- Heavy-duty recoil mechanisms
- Full length track shoe support
- Heavy-duty travel motor and swivel guards
- Towing eyes on base frame
- Leveling system w/ 22° of forward tilt, 7° of rear tilt, & 15° of side-to-side tilt
HYDRAULICS
- Dedicated hydraulic pump for implement functions
- Two dedicated pumps for left and right closed loop drive circuits
- Dedicated pump for closed loop swing circuit
- Dedicated attachment pump for head functions
- Independent dedicated saw, fan, and charge pumps
- High-performance hydraulic return filters
- 336 size, high torque swing drive
- Swing cushion valve and automatic swing parking brake
- Electric hydraulic oil fill pump
ELECTRICAL
- 115 ampere alternator
- 24-volt electrical system with 2 12-volt batteries
- 10 LED working lights and 2 LED service lights
- Horn and travel alarm
- Secondary engine shut off switch
- Product LinkTM ready
OPERATOR ENVIRONMENT
- Enclosed FOPS/ROPS/OPS/OR-OSHA/WCB certified cab
- Air suspension with integrated joysticks and head rest
- Left-hand tilt console
- Heated and cooled seat with retractable 4-point seat belt
- Touchscreen display monitor and programmable operator controls
- Scratch resistant polycarbonate windows
- Reverse slope 1.25" (32 mm) front windshield
- Front window emergency escape
- Skylight
- Left-side fresh air window
- Pressurized cab with filtered ventilation
- Heater / air conditioner / defroster / sun screens
- Radio ready with speakers
- Mount locations for CB radio and other accessories
- Behind seat storage tray
- Three cup holders, two USB sockets, and literature holder
OTHER STANDARD EQUIPMENT
- Heavy-duty hood enclosure
- Two gull-wing style engine compartment doors
- Heavy-duty counterweight with machine level engine enclosure access
- Heavy-duty doors, covers, and bottom guards
- Two tool boxes, one on upper side of upper frame and one in carbody
OPTIONAL EQUIPMENT
- Standard Feller Buncher Boom and Stick
- Intermittent Saw Boom and Stick
- Boom and Stick Omission
- 24” (600 mm) SG 336 HD HEX Track
- 28” (710 mm) SG or DG 336 HD HEX Track
- Vacuum Pump
- Rear Camera
- Deluxe LED Lights
- Two Additional Batteries
- Cold Weather Oil and Coolant
- Arctic Preheater
- PL243 Cellular Product Link
- PL611 Satellite Product Link
- CP222 Continuous Saw w/ Full Tilt - 22.5” (572 mm)
