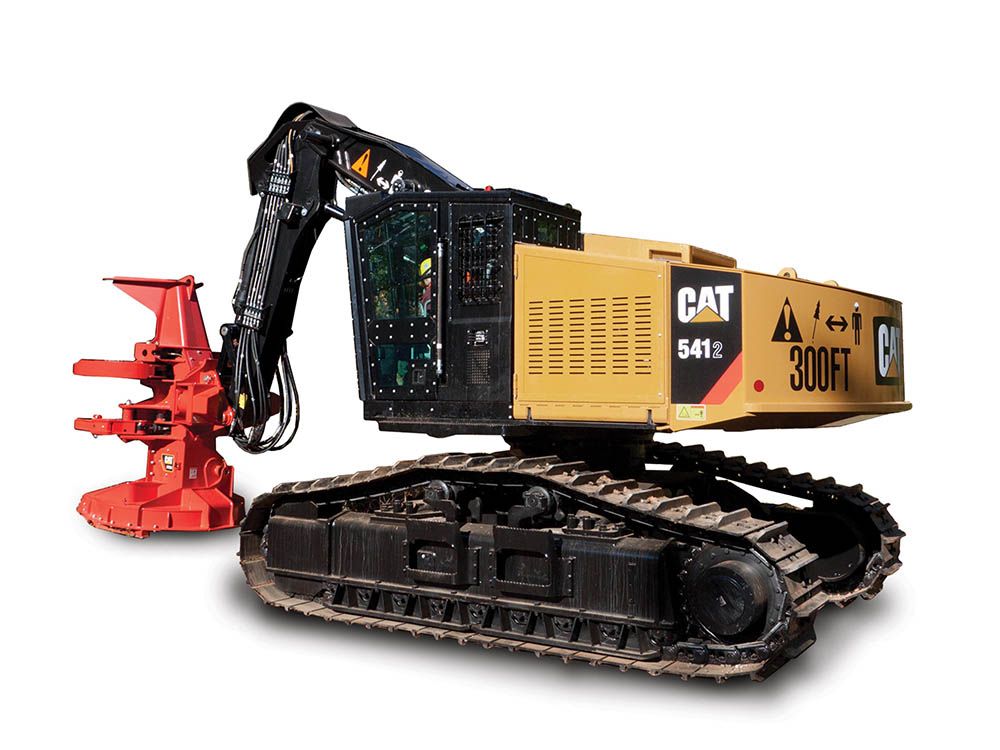

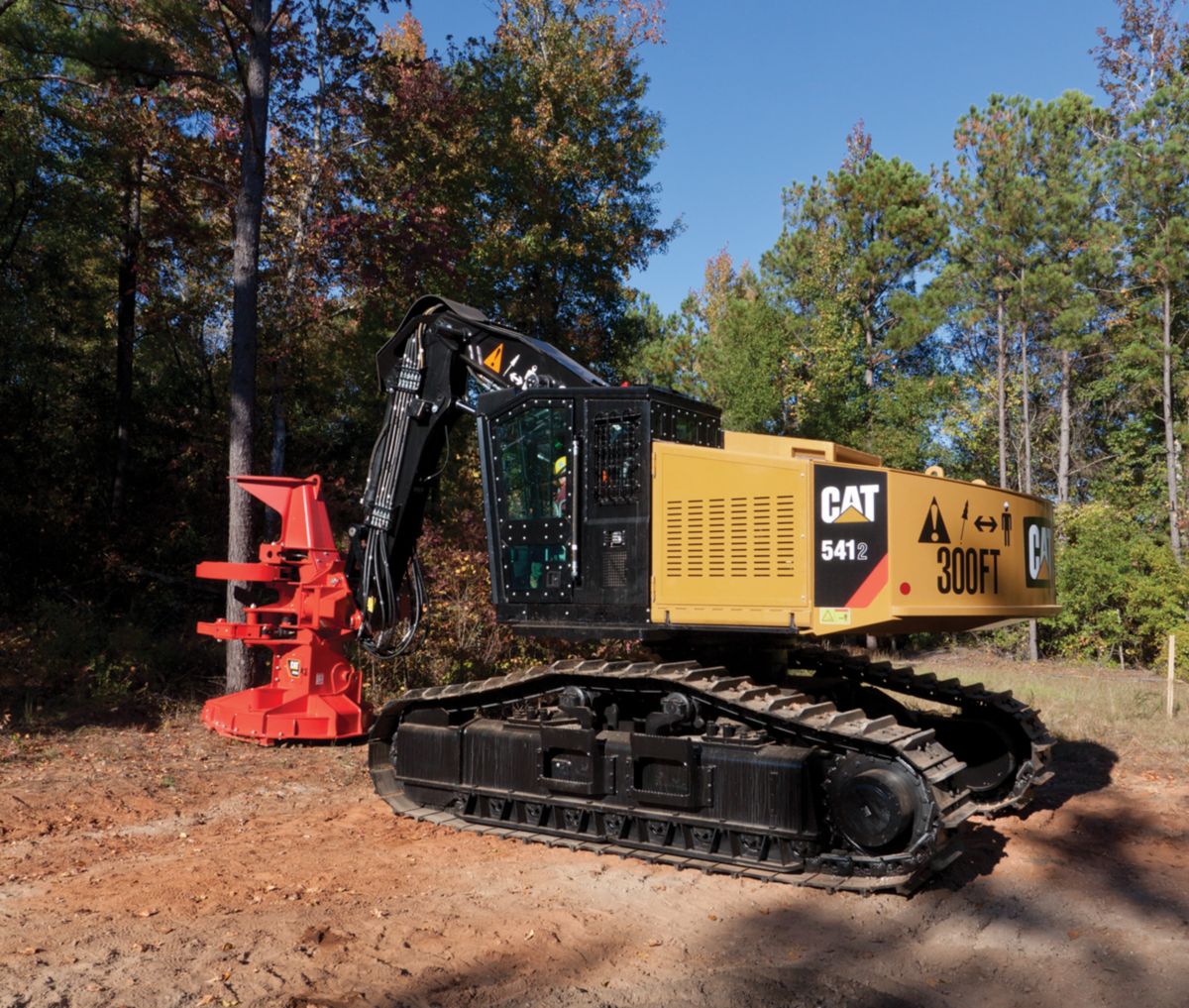

541 Series 2 Track Feller Buncher
US
Metric
Overview

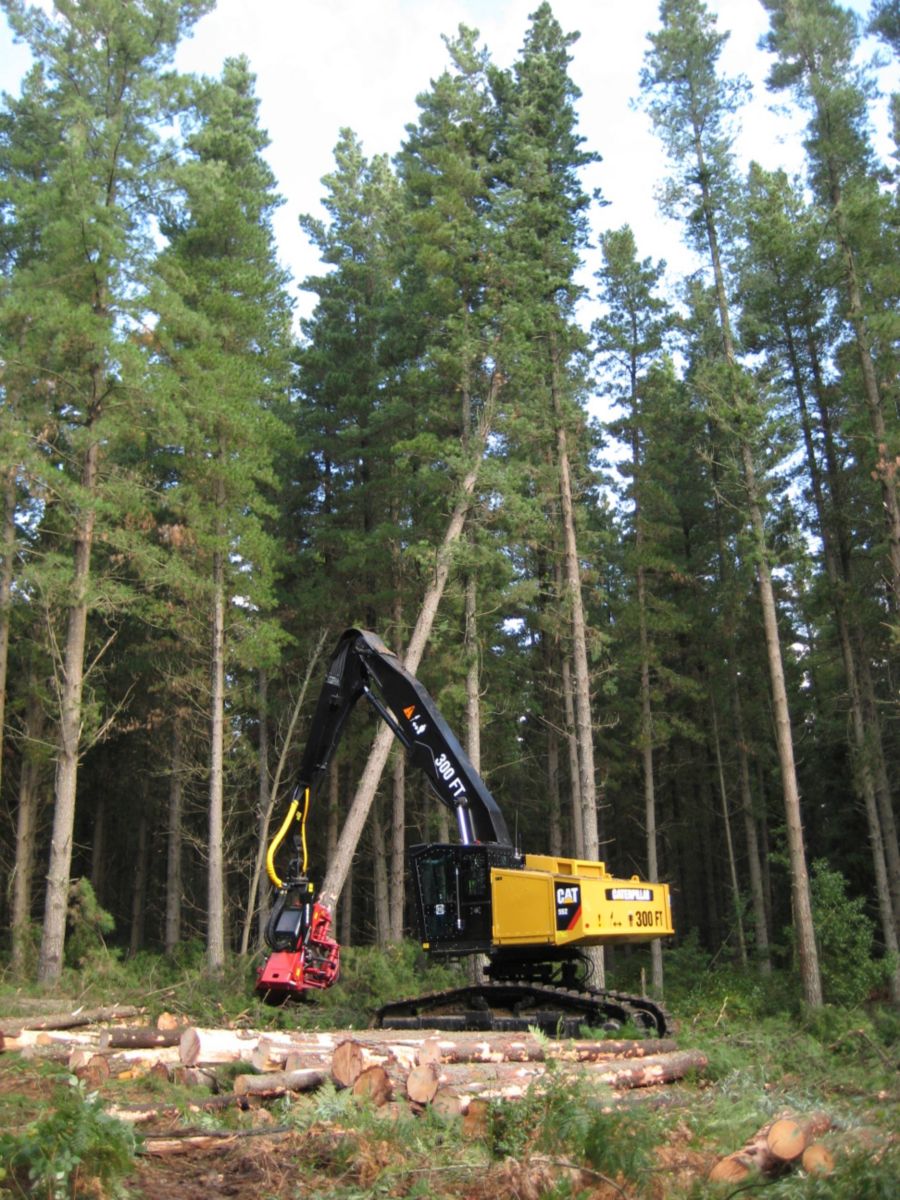

The Series 2 track feller bunchers feature smoother hydraulic performance, better fuel economy, a more comfortable operator station and better visibility. The Cat® 541 Series 2 is a full tail swing machine designed for high production clear cut and for clear or select cut in rough terrain.
Engine
Gross Power
303.00 hp
226.00 kW
Engine Model
Cat® C9 ACERT™ Tier 3
Gross Power - 1,800 rpm
303.00 HP
226.00 kW
Operating Specifications
Maximum Reach - With Attachment
28.20 ft
8.60 m
Weights
Operating Weight - Without Attachment
67960.00 lb
30826.00 kg
Operating Weight - Without Heads*
67960.00 lb
30826.00 kg
Operating Weight - Without Heads***
68640.00 lb
31135.00 kg
Hydraulic System
Pumps
Pumps
Service Refill Capacities
Cooling System
16.10 gal
61.00 L
Engine Oil
10.30 gal
39.00 L
Hydraulic Tank
85.30 gal
323.00 L
Hydraulic System
97.70 gal
370.00 L
Swing Drive
2.60 gal
10.00 L
Fuel Capacity
312.00 gal (US)
1181.00 l
Boom System
Bare Pin Lift at Maximum Reach - Without Head*
9400 kg @ 6.6 m (21,800 lb @ 21.5 ft)
Bare Pin Lift at Maximum Reach - Without Head***
6400 kg @ 8.2 m (14,200 lb @ 27 ft)
Maximum Reach - With Head*
28.20 ft
8.60 m
Power Train
Displacement
537.00 in³
8.80 l
Engine Model
Cat® C9 ACERT™
Gross Power - 1,800 rpm
303.00 HP
226.00 kW
Rated Power - 2,100 rpm
282.00 HP
210.30 kW
Standards
Cab
Standards
Undercarriage
Ground Clearance
35.00 in
889.00 mm
Size/Pitch
330/215.9 mm (330/8.5 in)
Track Gauge
2591 mm-2870 mm (102 in-113 in)
Track Length
192.60 in
4893.00 mm
Tractive Effort
75500.00 lb
34246.00 kg
Operating Weights - Without Head
Track Feller Bunchers - Long Felling Linkage
68640.00 lb
31135.00 kg
Track Feller Bunchers - Standard Linkage
67960.00 lb
30826.00 kg
Engine
Gross Power
303.00 HP
226.00 kW
Engine Model
Cat® C9 ACERT™ Tier 3
Service Refill Capacities
Cooling System
16.10 gal (US)
61.00 l
Engine Oil
10.30 gal (US)
39.00 l
Hydraulic Tank
85.30 gal (US)
323.00 l
Hydraulic System
97.70 gal (US)
370.00 l
Swing Drive
2.60 gal (US)
10.00 l
Undercarriage
Ground Clearance
35.00 in
889.00 mm
Features
Power Train
Hydraulic Packages
Operator Station
Leveling System
Undercarriage
Boom and Stick
Attachments
Sustainability
Serviceability
Customer Support
Sales Features
Power Train
Built for power, reliability, and fuel efficiencyHydraulic Packages
Powerful hydraulic system combined with a powerful boom and stick maximize productivityOperator Station
Superior comfort and visibilityLeveling System
Stability and comfort in steep slope conditionsUndercarriage
Heavy duty forestry undercarriageBoom and Stick
Maximum reach and lift capabilityAttachments
Work tool attachments to meet your needsSustainability
Maximum efficiency and productivity while conserving natural resourcesServiceability
Easy servicing and extended service intervalsCustomer Support
Count on your Cat dealerStandard Equipment
- ELECTRICAL
- 24-volt electrical system
- 2-12 volt maintenance free batteries
- 95 amp alternator
- IQAN programmable controls
- MD3 monitor screen display
- 10 - standard working lights
- 1 - standard service light
- GUARDS
- Twin hydraulically actuated hinged engine enclosure with warning alarm
- Engine fan guard
- Bottom guards
- Isolation mounted cab and engine
- Heavy duty radiator guard door
- OPERATOR ENVIRONMENT
- OPS/FOPS/ROPS/WCB/OR-OSHA certified cab
- Dual joystick control
- Reverse slope windshield
- Air ride seat
- Skylight - alternate escape hatch
- Top rear alternate escape hatch
- 3 inch retractable seat belt
- Heater/air conditioner with climate control
- DIN mount radio ready with speakers
- Operator sound suppression to standards
- Travel alarm
- Cup holders (2)
- 2-12 volt and 1-24 volt power outlets
- Front window, 31.75 mm (1.25 in) thick margard
- Positive filtered ventilation, pressurized cab with bi-level air conditioner, heater and defroster with manual control
- Left side fresh air window
- Forced air fan
- Washable floor mat
- Neutral lever (lockout) for all controls
- POWER TRAIN
- C9 ACERT engine meets US EPA emission standards
- Variable travel speed
- Under hood centrifugal precleaner and primary air filter
- Heavy-duty cooling package
- Electric fuel priming pump
- UNDERCARRIAGE
- Heavy duty track motor guard
- Heavy duty recoil mechanism
- Track roller guards with side access holes
- Hydraulic track adjusters
- Double flange bottom rollers
- 330 bolted, non-leveling carbody, variable gauge with GFT 80 final drives
- OTHER STANDARD EQUIPMENT
- Heavy duty hood enclosure
- Vandalism protection
- Spare hose storage area
- Flexxaire™ fan
- Fuel water separator
- 1,181 L (312 gal) fuel tank
- HYDRAULICS
- Dedicated fixed displacement pilot pump
- Dedicated variable displacement pumps for track and implement functions
- Variable displacement saw pump for feller buncher hydraulics only
- 325 swing drive and swing motor
- Electric hydraulic oil fill pump
- High flow hydraulic arrangement for felling heads with two cylinder arm design 180 L/min (48 gpm)
- Low flow hydraulic arrangement for felling heads with single cylinder and link design 120 L/min (32 gpm)
- 318 L (84 gal) hydraulic tank
- ANTIFREEZE
- 50% concentration extended life coolant
Optional Equipment
- TRACK SYSTEMS
- 610 mm (24 in) SG pads, clipped corners, with mud/snow reliefs
- 711 mm (28 in) SG pads, clipped corners, with mud/snow reliefs
- 711 mm (28 in) DG pads, with mud/snow reliefs
- Star carrier rollers
- Standard single flange carrier rollers
- OTHER EQUIPMENT
- Starting aid, cold weather
- Starting aid, arctic - includes engine and hydraulic heaters
- HID Light Group - replaces 6 standard lights
- FIELD INSTALLED ATTACHMENTS
- CD player with AM/FM stereo - remote capable
- Skylight, peaked, removable
- Loose linkage arrangements
