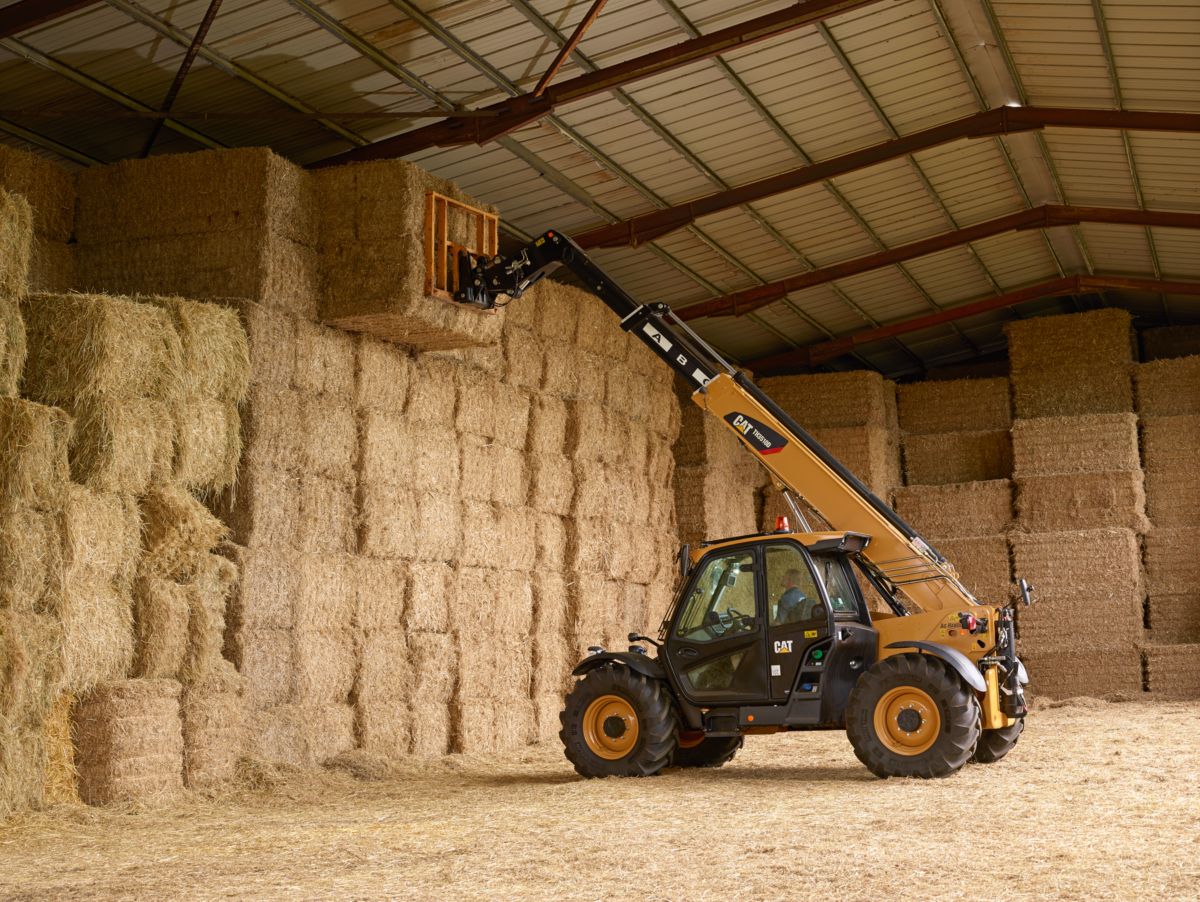

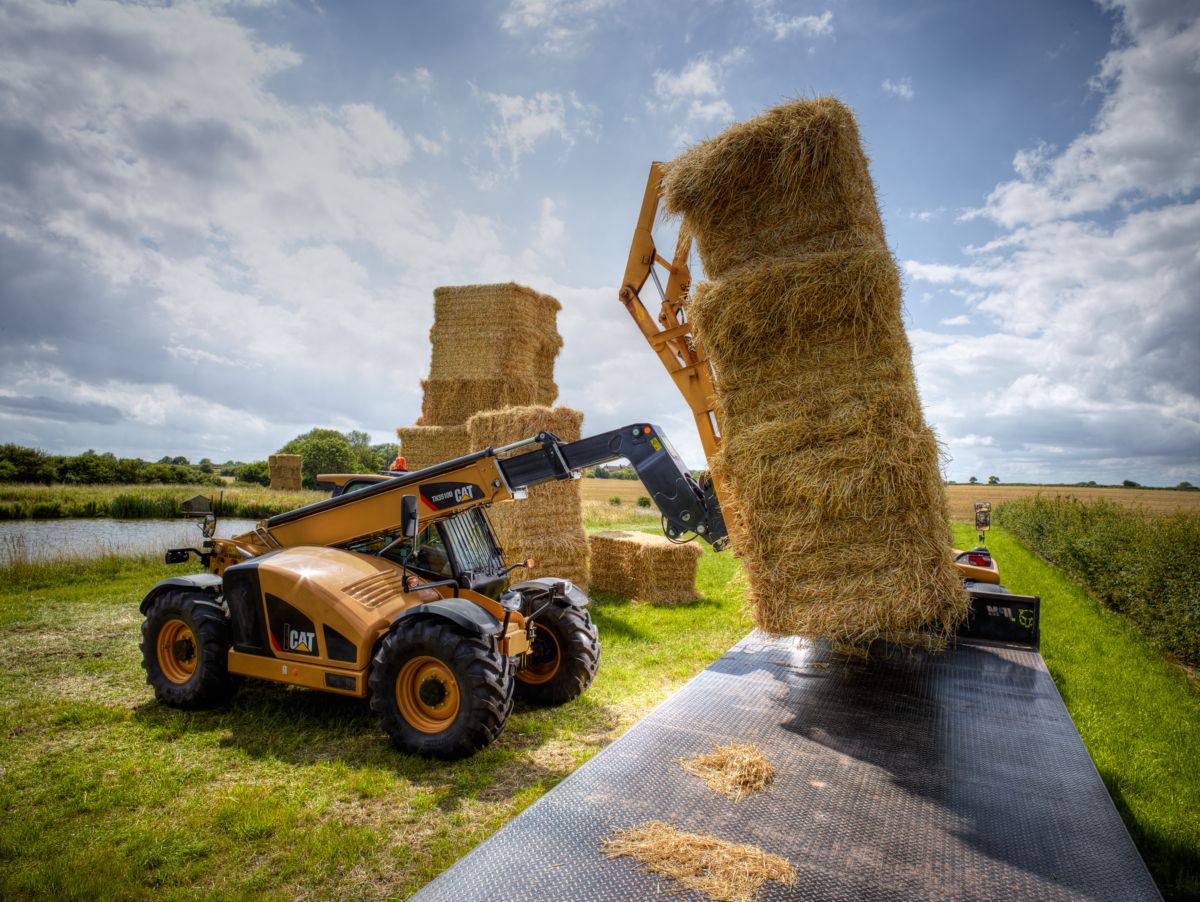

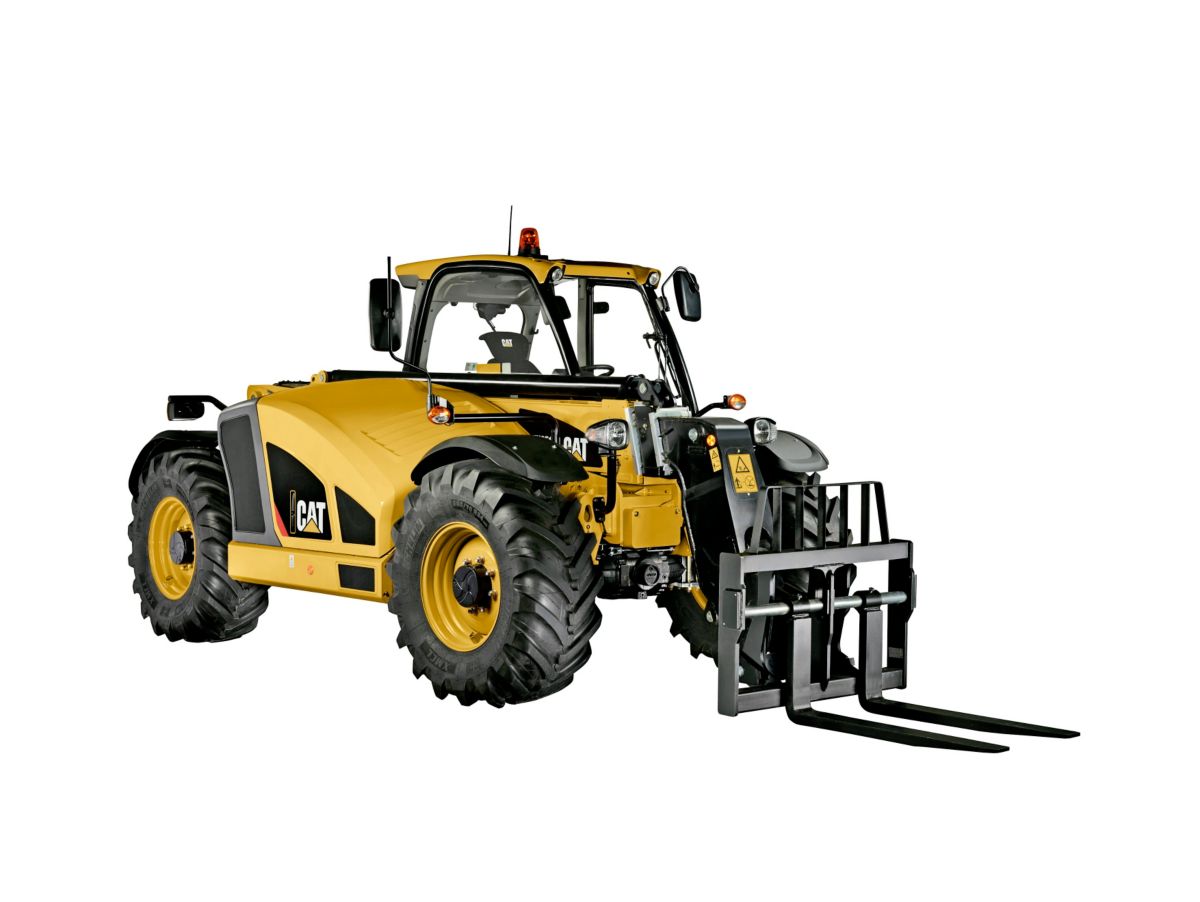

TH3510D Ag Handler Telehandler
US
Metric
Overview
The TH3510D is precision engineered to handle any task, offering stability, maneuverability, speed and power in any application.
Engine
Engine Model
Cat C3.4B
Weights
Operating Weight - With Carriage and Forks*
20170.00 lb
9149.00 kg
Operating Specifications
Rated Load Capacity
7700.00 lb
3493.00 kg
Maximum Lift Height
32.10 ft
9.80 mm
Maximum Forward Reach
21.60 ft
6.60 mm
Capacity at Maximum Forward Reach
1275.00 lb
578.00 kg
Capacity at Maximum Lift Height
1400.00 lb
635.00 kg
Outside Turning Radius - Over Tires
12.60 ft
3.85 m
Tires
Standard
Mitas 15.5/80-24 16 ply
Option (1)
Michelin 15.5 R25 XHA
Hydraulic System
System Type
Load Sensing, Closed Center
Service Refill Capacities
Fuel Tank
40.00 gal (US)
151.00 l
Diesel Exhaust Fluid
5.00 gal (US)
19.00 l
Boom Performance
Boom Up
8.00 s
8.00 s
Boom Down
6.50 s
6.50 s
Tele In
10.50 s
10.50 s
Tele Out
11.00 s
11.00 s
Braking System
Parking Brake
Mechanical lever on front axle
Service Brakes
Boosted on front and rear brakes
Axles
Front Axle
High bias, planetary reduction hubs with limited slip differential
Service Refill Capacities
Hydraulic Tank
31.70 gal (US)
120.00 l
Hydraulic System
Pump Type
Variable Flow, Axial Piston
Boom Performance
Crowd Backward
3.50 s
3.50 s
Axles
Rear Axle
Open differential with planetary reduction hubs
Boom Performance
Combined - Down and In
12.80 s
12.80 s
Combined - Up and Out
24.00 s
24.00 s
Crowd Forward - Dump
3.00 s
3.00 s
Dimensions (Approximate)
Cab Width
3.00 ft
900.00 mm
Departure Angle
60°
Ground Clearance
1.40 ft
430.00 mm
Machine Length
17.30 ft
5260.00 mm
Maximum Fork Crowd Angle
24°
Maximum Fork Dump Angle
128°
Note
*Add 200 mm (7.9 in) for beacon. Add 40 mm (1.6 in) for top guard.
Overall Height - Standard Tires*
8.10 ft
2475.00 mm
Overall Length to Front of Carriage
17.40 ft
5300.00 mm
Overall Width - Standard Tires
7.80 ft
2382.00 mm
Overhang
3.30 ft
1000.00 mm
Track
6.50 ft
1988.00 mm
Wheel Base
10.30 ft
3165.00 mm
Electrical
Alternator Output
12V/150A
Battery
1 × 12V 1,000 CCA Battery
Engine - Option 1
Bore
4.10 in
105.00 mm
Displacement
269.00 in³
4.40 l
Emissions
*Meets Tier 4 Final emission standards.
Gross Power
93 kW (124 hp/bhp)
Maximum Torque
391.00 ft·lbf
530.00 N·m
Model*
Cat C4.4 ACERT
Stroke
5.00 in
127.00 mm
Engine - Option 2
Bore
4.10 in
105.00 mm
Displacement
269.00 in³
4.40 l
Emissions
*Meets Tier 4 Final emission standards.
Gross Power
106 kW (142 hp/bhp)
Maximum Torque
413.00 ft·lbf
560.00 N·m
Model*
Cat C4.4 ACERT
Stroke
5.00 in
127.00 mm
Engine - Standard
Bore
3.90 in
99.00 mm
Displacement
207.00 in³
3.40 l
Emissions
*Meets Tier 4 Final emission standards.
Gross Power
83 kW (111 hp/bhp)
Maximum Torque
339.00 ft·lbf
460.00 N·m
Model*
Cat C3.4B
Stroke
4.30 in
110.00 mm
Hydraulic System
Auxiliary Hydraulic Flow - Boom Head - Continuous
25.00 gal/min
95.00 l/min
Auxiliary Hydraulic Flow - Boom Head - Intermittent
25.00 gal/min
95.00 l/min
Auxiliary Hydraulic Flow - Machine Rear
21.00 gal/min
80.00 l/min
Auxiliary Hydraulic Pressure
3553.00 psi
245.00 bar
Maximum Pump Capacity
36.90 gal/min
140.00 l/min
System Pressure
3770.00 psi
260.00 bar
Operating Specifications
Outside Turning Radius - Over Forks
15.90 ft
4.85 m
Performance
Boom Breakout Force
9217.00 lbf
41.00 kN
Bucket Breakout Force
13938.00 lbf
62.00 kN
Drawbar Pull - 106 kW/142.1 hp Engine
21806.00 lbf
97.00 kN
Drawbar Pull - 83 kW/111.3 hp Engine
20682.00 lbf
92.00 kN
Drawbar Pull - 92.6 kW/124.1 hp Engine
19783.00 lbf
88.00 kN
Noise Levels - External
106.00 dB(A)
106.00 dB(A)
Noise Levels - In Cab
74.00 dB(A)
74.00 dB(A)
Quick Coupler Rotation
152°
Towable Mass - Hydraulically Braked
26455.00 lb
12000.00 kg
Tires
Option (2)
Michelin 460/70 R24 XMCL
Option (3)
Michelin 500/70 R24 XMCL
Option (4)
Michelin 440/80 24 Power CL
Option (5)
Michelin 400/80 24 Power CL
Option (6)
Michelin 460/70 R24 Bibload
Option (7)
Firestone Duraforce
Option (8)
13 × 24 Solid Tires
Transmission*
Forward - 1
3.50 mile/h
5.70 km/h
Forward - 2
5.30 mile/h
8.60 km/h
Forward - 3
7.00 mile/h
11.20 km/h
Forward - 4
10.30 mile/h
16.60 km/h
Forward - 5
15.70 mile/h
25.30 km/h
Forward - 6
24.90 mile/h
40.00 km/h
Note
*Maximum speed subject to machine configuration.
Reverse - 1
3.50 mile/h
5.70 km/h
Reverse - 2
7.00 mile/h
11.20 km/h
Reverse - 3
15.70 mile/h
25.30 km/h
Type
Cat PG124 6 speed power shift
Weights
Note
*Represents machine configuration of 106 kW (142 hp/bhp) engine on standard 15.5/80-24 16 ply tires.
Lift Capacity
Capacity at Maximum Height
1400.00 lb
635.00 kg
Engine Power
Gross Power - 2,200 rpm - Option 2
142.00 HP
106.00 kW
Gross Power - 2,200 rpm - Standard
111.00 HP
83.00 kW
Lift and Reach
Maximum Lift Height
32.10 ft
9.80 m
Performance
Drawbar Pull - 93 kW/124.1 hp Engine
19783.00 lbf
88.00 kN
Air Conditioning System
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg of refrigerant which has a CO2 equivalent 1.575 metric tonne.
Lift Capacity
Rated Load Capacity
7700.00 lb
3493.00 kg
Capacity at Maximum Reach
1275.00 lb
578.00 kg
Engine Power
Gross Power - 2,200 rpm - Option 1
124.00 HP
93.00 kW
Lift and Reach
Maximum Forward Reach
21.60 ft
6.60 m
Features
Engine Options
Choose the right engine for you – three fuel efficient Cat® engines are available to suit a wide range of applications.
Transmission Options
The Cat TH3510D features a six speed power shift transmission to give exceptional performance when towing trailers on the road.
Frame, Boom and Linkage
Designed for durability. Easy to access greasing points mean a long, trouble free life for the machine. A Z-bar linkage delivers powerful breakout forces and fast cycle times.
Powerful Hydraulics
A variable displacement piston pump matched to a high performance flow sharing valve makes multi functioning easy. The load sensing system means excellent fuel economy, as the pump only works when required.
Cab
The cab is designed with the operator in mind with a multi function joystick and a comfortable working environment. The unique “Operator Preferences” feature allows the machine to be tuned to suit individual operators. Options include a heated air suspension seat, large display screen with pre-loaded load charts, rearview camera, reversing sensors and air conditioning.
Standard Equipment
- Cab ROPS and FOPS
- Longitudinal Stability Indicator
- Sunscreen
- Mechanical Suspension Seat with Seat Belt
- Roof Wiper
- Heater/De-mister
- Engine Speed Set
- Multi Function Joystick Controller with FNR
- Front and Rear Windscreen Wipers
- Mechanical Parking Brake
- Electrical
- 1 × 12V 1,000 CCA Battery
- Work Lights, 4 × Cab Mounted (2 front, 2 rear) 2 × Boom Mounted
- Reverse Alarm
- Other Equipment
- Boom Brushes
- Single Auxiliary Service to Boom Head
- Tires
- Mitas 15.5/80-24 16 ply
- Quick Couplers
- Manual Cat “IT” Interface
- Competitive couplers are available, please consult your Cat dealer for details.
Optional Equipment
- Cab ROPS and FOPS
- Reversing Camera
- Reversing Sensors
- Electronic Multi function display screen
- Air Suspension Seat with Seat Belt
- Heated Air Suspension Seat with Seat Belt
- Screen Guard
- Roof Guard
- Air Conditioning
- Column Mounted FNR Lever
- SAHR Parking Brake
- Electrical
- 2 × 12V 815 CCA Batteries
- Block Heater 240 Volt
- Product Link Ready, Version 641
- Seven (7) Pin Trailer Service
- Rotating Beacon
- Other Equipment
- Ride Control with Boom Float
- 2nd Auxiliary Service to Boom Head
- Auxiliary Service to Rear
- Rear Hitch Mirror, Flat
- Rear Hitch Mirror, Convex
- Tool Box
- Boom Safety Brace
- Tires
- Michelin 460/70 R24 XMCL
- Michelin 500/70 R24 XMCL
- Michelin 400/80 24 Power CL
- Michelin 440/80 24 Power CL
- Michelin 460/70 R24 Bibload
- Michelin 15.5 R25 XHA
- Firestone Duraforce
- 13 × 24 Solid Tires
- Tow Hitches
- Retrieval Hitch
- Hydraulic Pick Up Hitch
- EEC Manual Hitch
- EEC Automatic Hitch
- EEC Automatic Hitch with Piton
- Trailer Braking Valve
- Quick Couplers
- Hydraulic Cat “IT” Interface
- Competitive couplers are available, please consult your Cat dealer for details.
- Work Tools
- Floating Fork Carriage
- ISO Class 3 Fixed Fork Carriage
- Side Shift Carriage
- 1 m³ (1.31 yd³) General Purpose Bucket
- 1.5 m³ (1.96 yd³) Rehandling Bucket
- 1.0 m³ (1.31 yd³) Multi Purpose Bucket
- 2.0 m³ (2.62 yd³) Grain Bucket
- 2.5 m³ (3.27 yd³) Grain Bucket
- 3.0 m³ (3.92 yd³) Grain Bucket
- 1225 mm (48 in) Bale Fork
- Grapple Bucket
- Muck Fork and Grapple
- Bale Handler
- Sweeper Collector
