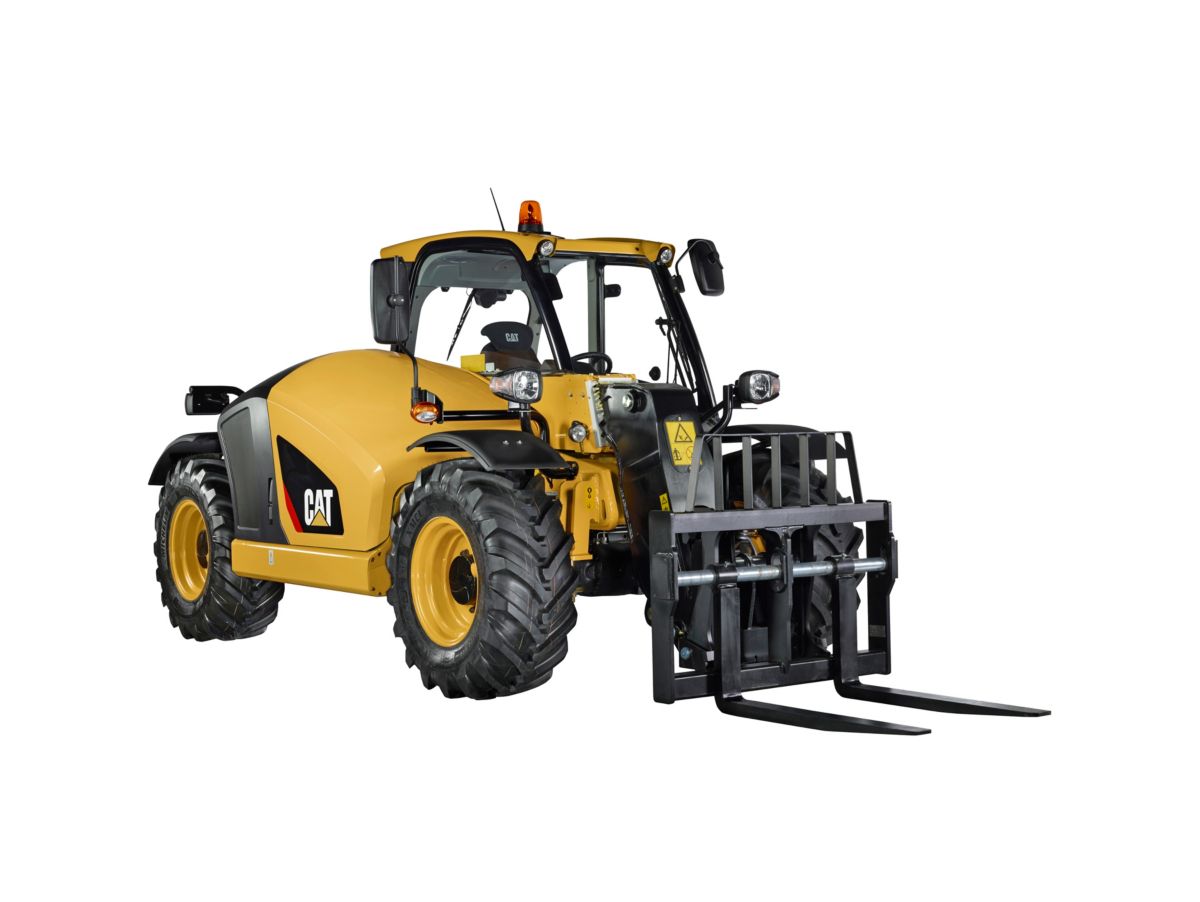

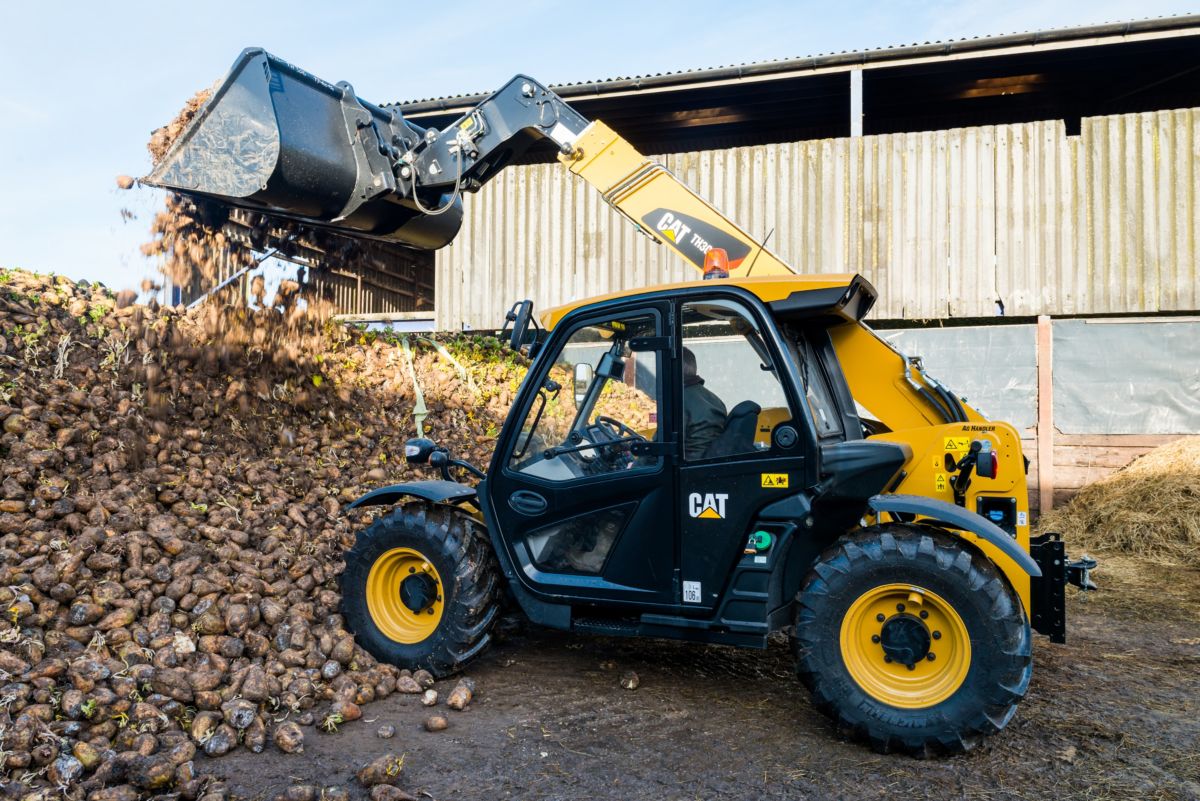

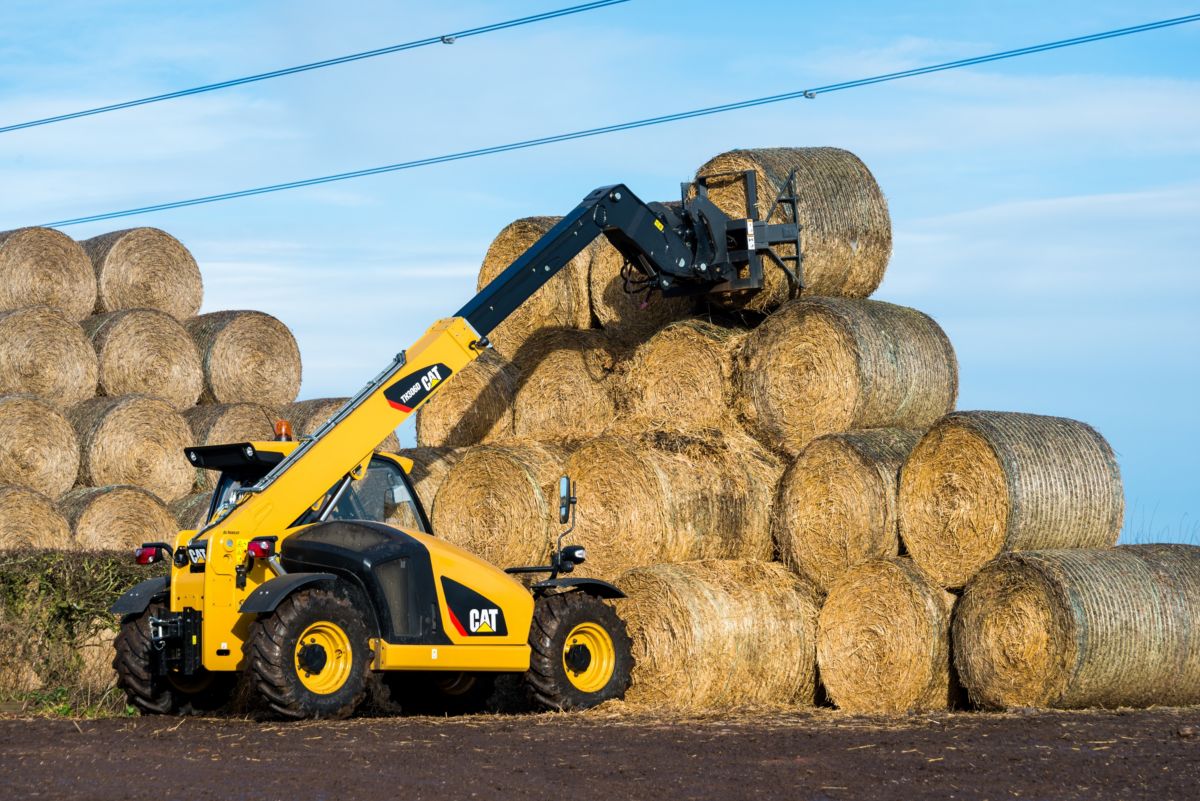

TH306D Ag Handler
US
Metric
Overview
Engine
Engine Model
TCD3.6 L4
Gross Power
74.4 kW (99.7 hp/bhp)
Weights
Operating Weight with Carriage and Forks*
13598.00 lb
6168.00 kg
Operating Specifications
Rated Load Capacity
6173.00 lb
2800.00 kg
Maximum Lift Height
19.00 ft
5800.00 mm
Maximum Forward Reach
10.10 ft
3100.00 mm
Capacity at Maximum Lift Height
4409.00 lb
2000.00 kg
Capacity at Maximum Forward Reach
2205.00 lb
1000.00 kg
Outside Turning Radius over Tires
12.10 ft
3700.00 mm
Outside Turning Radius over Forks
14.40 ft
4400.00 mm
Tires
Standard
Mitas 405/70 T20 MPT01
Options
Michelin 400/70 R20 XMCL
Service Refill Capacities
Fuel Tank
27.50 gal
104.00 L
Hydraulic Tank
31.70 gal
120.00 L
Boom Performance
Boom Up
6.50 sec
6.50 sec
Boom Down
5.50 sec
5.50 sec
Tele In
5.00 sec
5.00 sec
Tele Out
5.00 sec
5.00 sec
Brakes
Service Brakes
Boost assisted on front axle
Parking Brake
SAHR on front axle
Hydraulic System
System Type
Open Center
Pump Type
Gear
Maximum Pump Capacity
25.00 gal/min
95.00 L/min
System Pressure
3989.00 psi
275.00 bar
Auxiliary Hydraulic Pressure
3553.00 psi
245.00 bar
Transmission
Type
Hydrostatic with 2 speed on the move range change
Forward – 1
0 to 20 km/h (0 to 12.4 mph)
Axles
Front Axle
Planetary reduction hubs with limited slip differential
Rear Axle
Open differential with planetary reduction hubs
Engine
Gross Power
101.2 CH/CV/PS
Maximum Torque
302.00 lbf-ft
410.00 N·m
Bore
3.86 in
98.00 mm
Stroke
4.72 in
120.00 mm
Displacement
219.70 in3
3.60 L
Emissions
Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Weights
Note
*Represents machine configuration of 74.5 kW (99.7 hp/bhp) engine on standard 405/70 T20 MPT01 tires.
Service Refill Capacities
Diesel Exhaust Fluid
2.60 gal
10.00 L
Transmission
Forward – 2
0 to 32 km/h (0 to 19.9 mph)
Reverse – 1
0 to 20 km/h (0 to 12.4 mph)
Reverse – 2
0 to 32 km/h (0 to 19.9 mph)
Electrical
Battery
1 × 12V 1,000 CCA Battery
Alternator Output
12V/150A
Hydraulic System
Auxiliary Hydraulic Flow: Boom Head – Intermittent
24.00 gal/min
90.00 L/min
Auxiliary Hydraulic Flow: Boom Head – Continuous
24.00 gal/min
90.00 L/min
Auxiliary Hydraulic Flow: Machine Rear
24.00 gal/min
90.00 L/min
Boom Performance
Crowd Forward (Dump)
3.00 sec
3.00 sec
Crowd Backward
3.50 sec
3.50 sec
Combined – Up and Out
15.00 sec
15.00 sec
Combined – Down and In
9.00 sec
9.00 sec
Performance
Drawbar Pull
12814.00 lbf
57.00 kN
Boom Breakout Force
11690.00 lbf
52.00 kN
Bucket Breakout Force
6969.00 lbf
31.00 kN
Quick Coupler Rotation
150°
Noise Levels – In Cab
74.00 dB(A)
74.00 dB(A)
Noise Levels – External
106.00 dB(A)
106.00 dB(A)
Towable Mass – Hydraulically Braked
17637.00 lb
8000.00 kg
Dimensions (Approximate)
Overall Length to Front of Carriage
14.40 ft
4400.00 mm
Overall Width (standard tires)
6.90 ft
2100.00 mm
Overall Height (standard tires)*
7.40 ft
2250.00 mm
Wheelbase
9.10 ft
2770.00 mm
Ground Clearance
1.30 ft
390.00 mm
Track
5.50 ft
1672.00 mm
Overhang
3.00 ft
920.00 mm
Cab Width
3.00 ft
900.00 mm
Height of Machine Rear
5.00 ft
1510.00 mm
Machine Length
13.10 ft
4000.00 mm
Departure Angle
66°
Maximum Fork Crowd Angle
24°
Maximum Fork Dump Angle
150°
Note
*Add 200 mm (7.9 in) for beacon. Add 40 mm (1.6 in) for top guard.
Sales Features
Power Train
Designed for the livestock farmer, the Cat® TH306D features a powerful 101 PS engine coupled to a two speed hydrostatic transmission, allowing engine speed and forward speed to be independently controlled, ideal for operating animal feed discharge buckets and straw spreaders.Frame, Boom and Linkage
Designed for durability. Easy to access greasing points mean a long, trouble free life for the machine. A Z-bar linkage with 150 degrees of coupler rotation delivers powerful breakout forces and fast cycle times.Powerful Hydraulics
Designed to operate hydraulically powered work tools such as straw spreaders and animal feeder buckets. Rear hydraulic services can also operate work tools as well as tipping trailers.Cab
A well laid out cab with a multi function joystick gives the operator a comfortable working environment. The unique “Operator Preferences” feature allows the machine to be tuned to suit individual operators. Options include a heated air suspension seat, large display screen with pre-loaded load charts, rear view camera, reversing sensors and air conditioning.Standard Equipment
- Cab ROPS and FOPS
- Longitudinal Stability Indicator
- Mechanical Suspension Seat with Seat Belt
- Heater/De-mister
- Multi Function Joystick Controller with FNR
- Front and Rear Windscreen Wipers
- SAHR Parking Brake
- Electrical
- 1 × 12V 1,000 CCA Battery
- Reverse Alarm
- Other Equipment
- Single Auxiliary Service to Boom Head
- Boom Safety Brace
- Tires
- Mitas MPT01 405/70 T20
- Quick Couplers
- Manual Cat “IT” Interface
- Note: Competitive couplers are available, please consult your Cat dealer for details.
Optional Equipment
- Cab ROPS and FOPS
- LMIS (Longitudinal Moment Indicator)
- Reversing Camera
- Reversing Sensors
- Large Electronic Display Screen
- Sunscreen
- Air Suspension Seat with Seat Belt
- Heated Air Suspension Seat with Seat Belt
- Roof Wiper
- Screen Guard
- Roof Guard
- Air Conditioning
- Engine Speed Set
- Column Mounted FNR Lever
- Electrical
- Block Heater 240 Volt
- Block Heater 110 Volt
- Work Lights, 4 × Cab Mounted (2 front, 2 rear) 2 × Boom Mounted
- Product Link, Version 641
- Seven (7) Pin Trailer Service
- Rotating Beacon
- Other Equipment
- Boom Brushes
- Ride Control with Boom Float
- 2nd Auxiliary Service to Boom Head
- Auxiliary Service to Rear
- Rear Hitch Mirror, Flat
- Rear Hitch Mirror, Convex
- Tool Box
- Tires
- Michelin 400/70 R20 XMCL
- Tow Hitches
- Retrieval Hitch
- Hydraulic Pick Up Hitch
- EEC Manual Hitch
- EEC Automatic Hitch
- EEC Automatic Hitch with Piton
- Trailer Braking Valve
- Quick Couplers
- Hydraulic Cat “IT” Interface
- Note: Competitive couplers are available, please consult your Cat dealer for details.
- Work Tools
- Floating Fork Carriage
- ISO Class 3 Fixed Fork Carriage
- Side Shift Carriage
- 1 m3 (1.3 yd3) General Purpose Bucket
- 1.5 m3 (1.95 yd3) Rehandling Bucket
- 1.0 m3 (1.3 yd3) Multi Purpose Bucket
- 2.0 m3 (2.6 yd3) Grain Bucket
- Grapple Bucket
- Muck Fork and Grapple
- Bale Handler
- Sweeper Collector
