416D Backhoe Loaders Tilting Pin Lock Coupler

Request A Quote New and Used Inventory

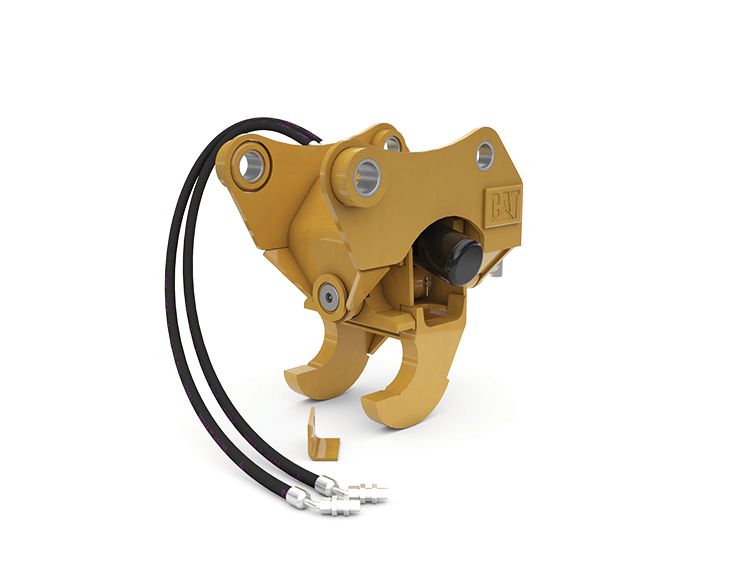

Studio Shot

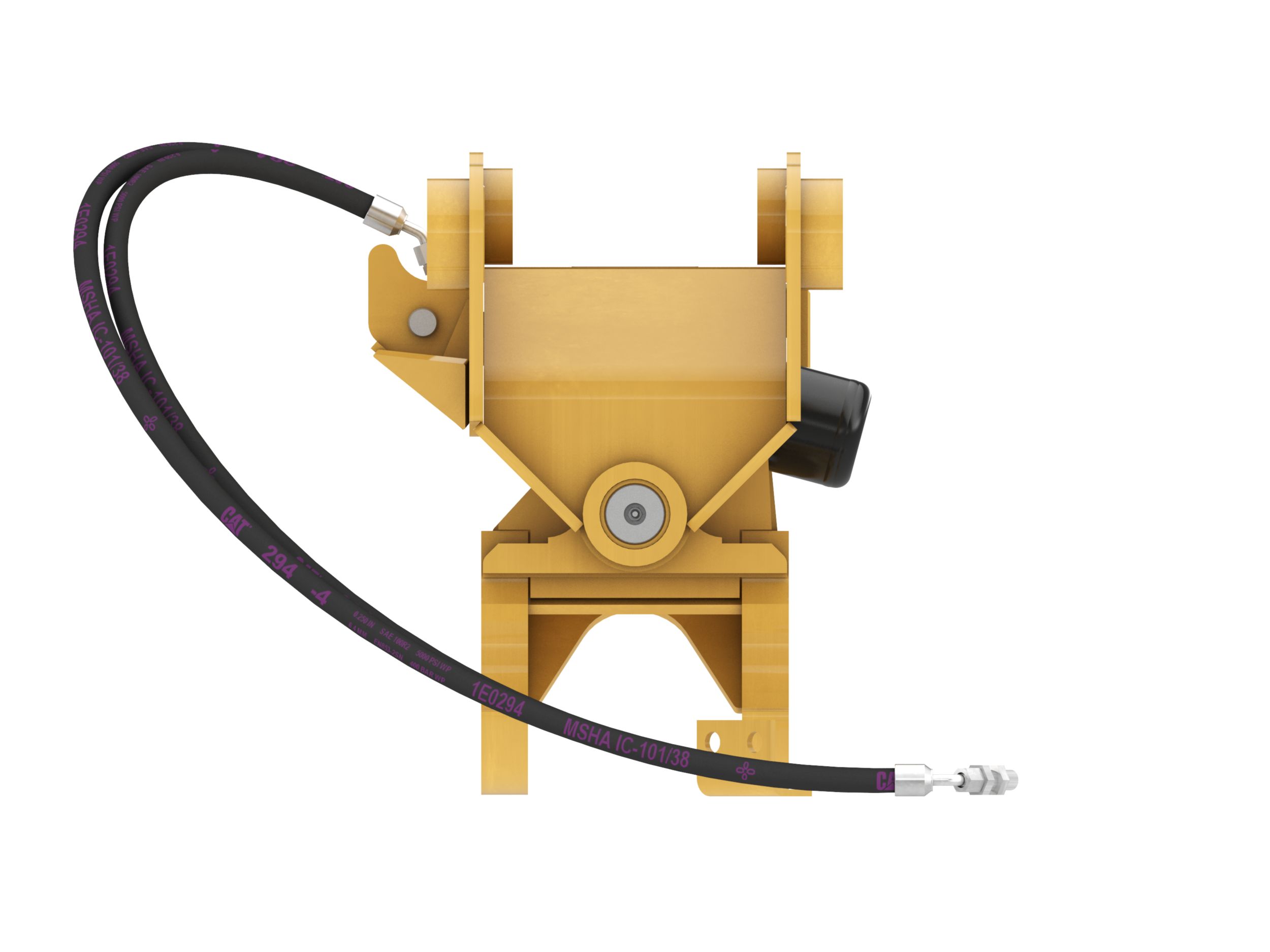

Front View

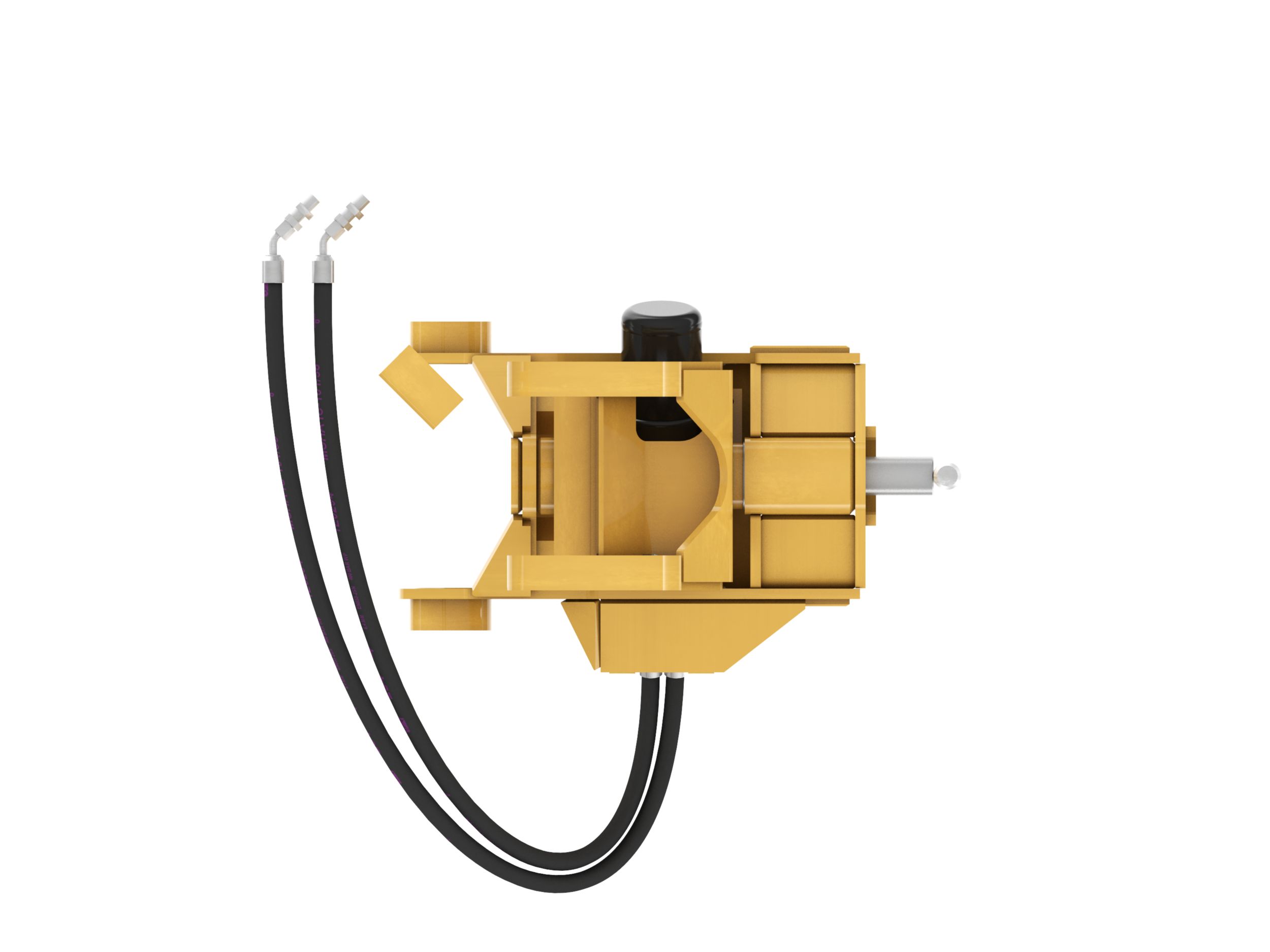

Top View

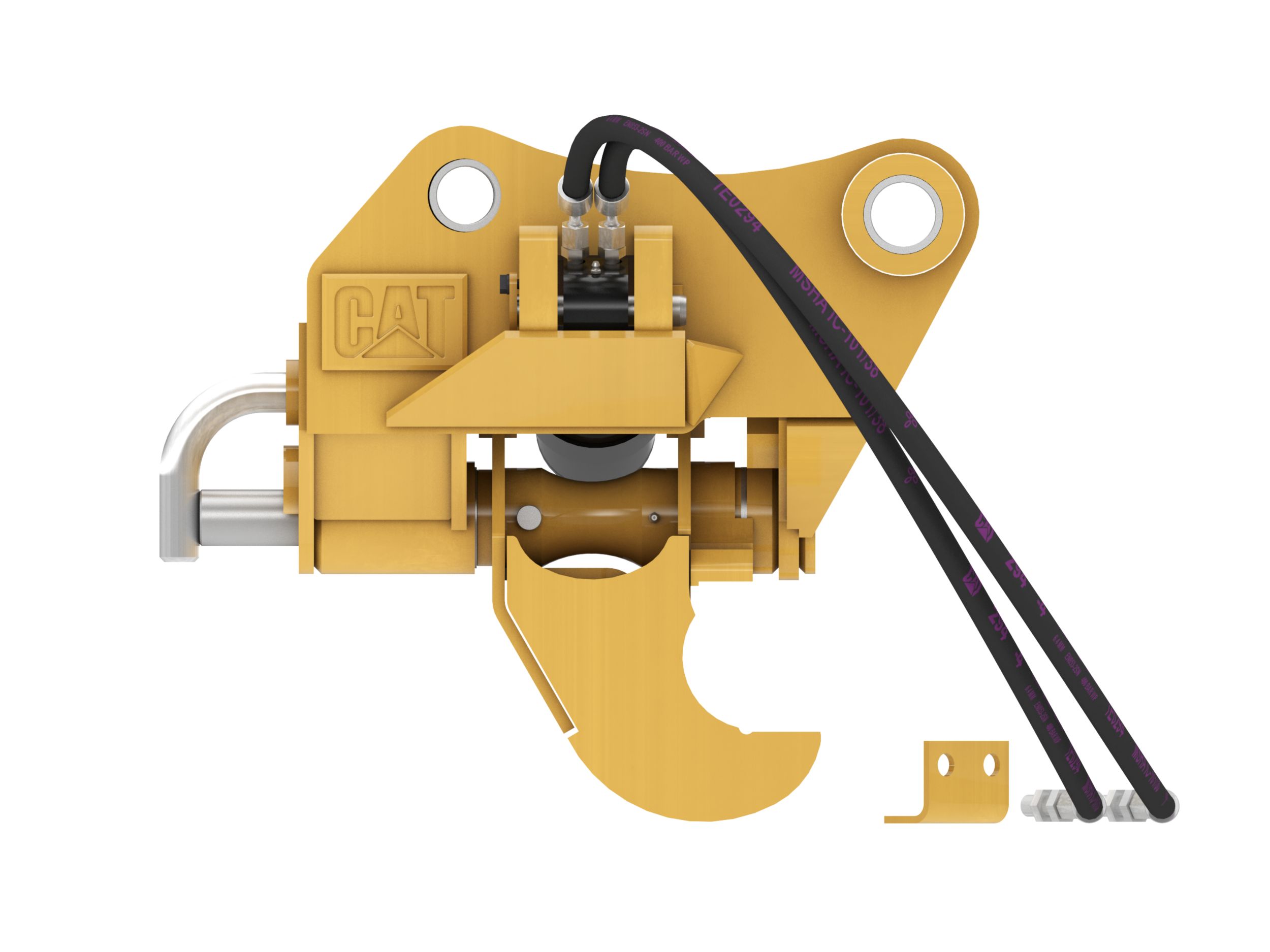

Left View

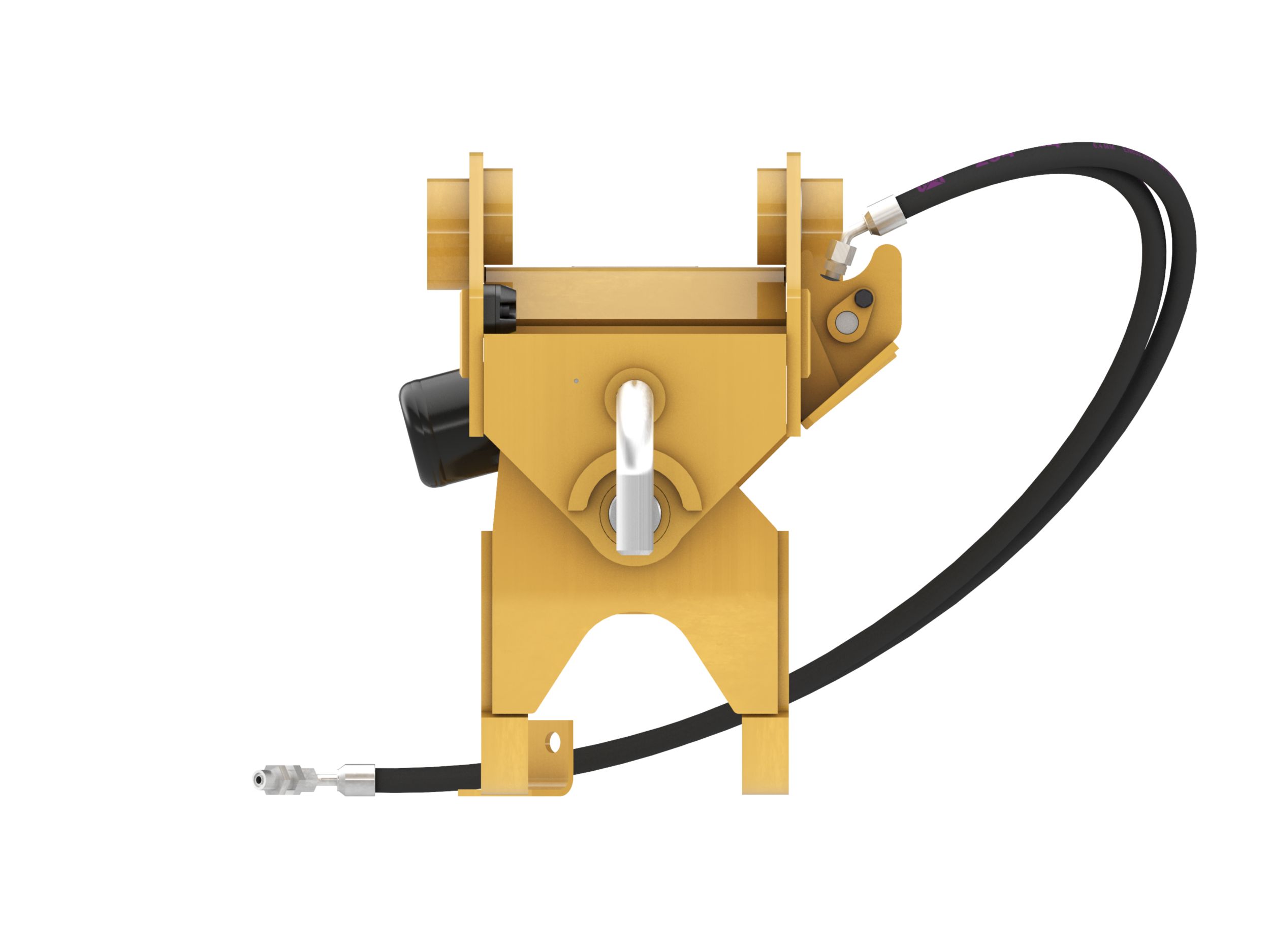

Rear View

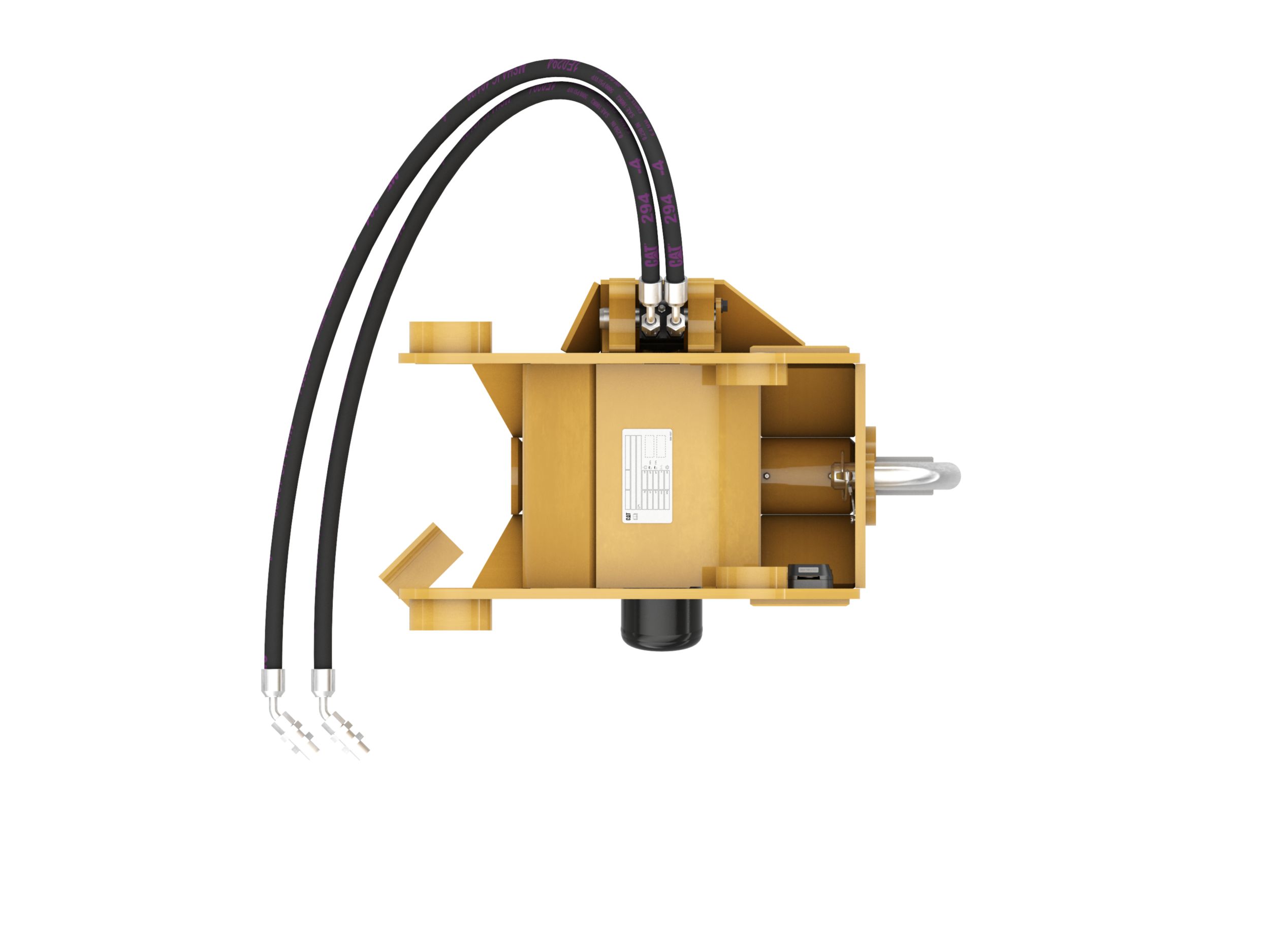

Bottom View

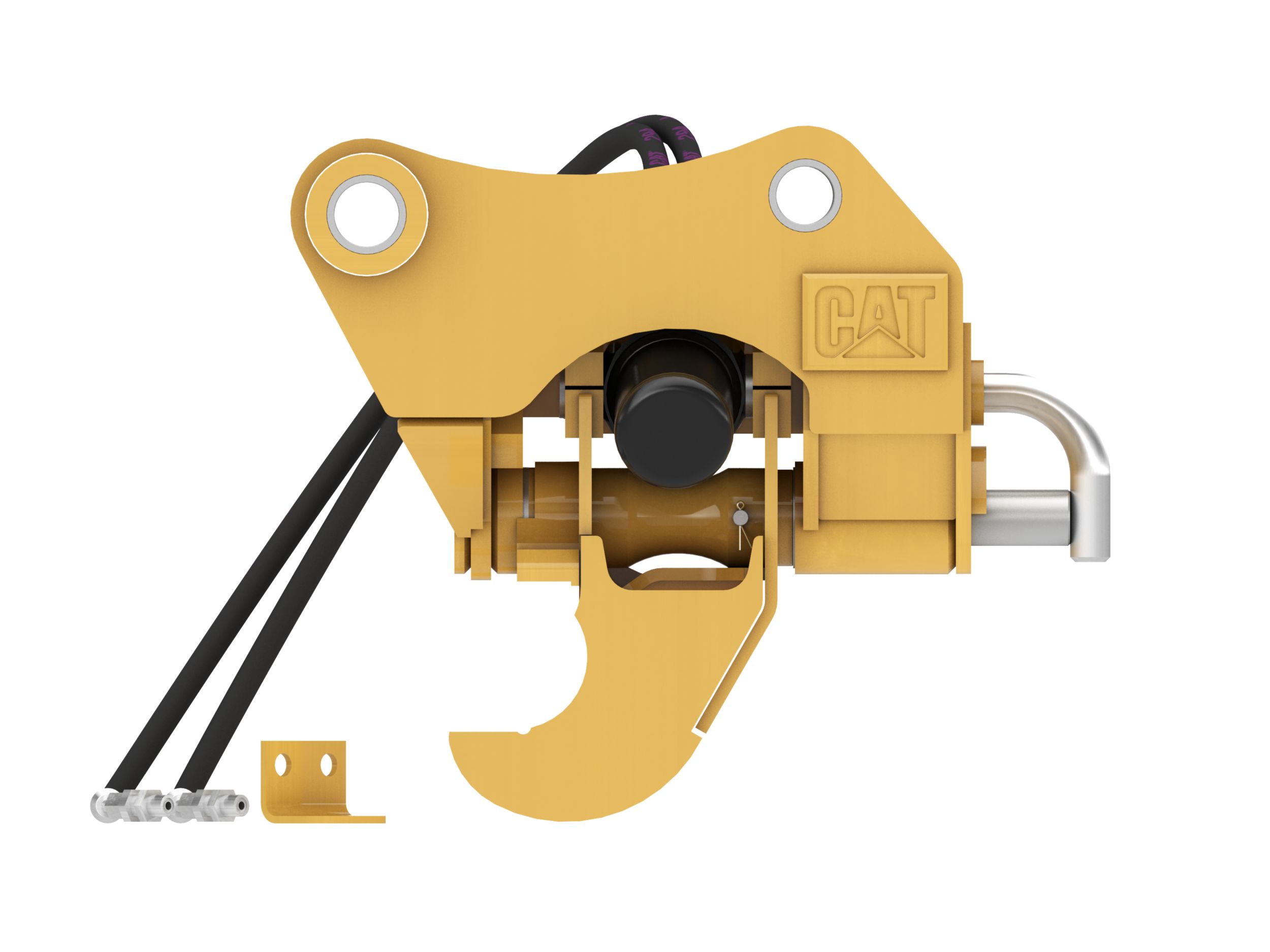

Right View
US
Metric

Overview

Cat® Pin Lock Couplers are the key to new levels of performance on any Cat Backhoe or Mini Hydraulic Excavator. New Cat machines fitted with a Pin Lock Coupler can take advantage of existing pin on style bucket inventory, utilizing buckets from similarlysized competitive machines in a mixed fleet environment, enabling one machine to fill many roles on a job site.
Weight
242.30 lb
109.90 kg
Width
16.90 in
430.51 mm
Length
25.40 in
644.45 mm
Overall Height
21.50 in
547.25 mm
Pin Diameter
45/50 mm (1.8/2 in)
Machine Class
416D Backhoe Loaders
Interface Type
Pin On
Required Hydraulics
Dedicated Factory Installed
Tilt Angle Range +/-
90 degrees
Features

Plated Engagement Pin

Zinc plated engagement pin prevents corrosion, allowing for trouble free operation in harsh environments.

Locking Pin with Lanyard

Standard locking pin with lanyard prevents loss and provides a placement holder when not in use.

Doubler on Inside Hooks

Engagement points on coupler hooks are doubled plated for extending the life of the coupler. The increased contact area also provides additional stability for connected attachments. (450/310 versions only)

Competitive Compatible

Fully compatible with Wain-Roy and Gannon-style buckets.
