Pallet Fork Carriages

1160 mm (46 in) Pallet Fork Carriage

Request A Quote New and Used Inventory

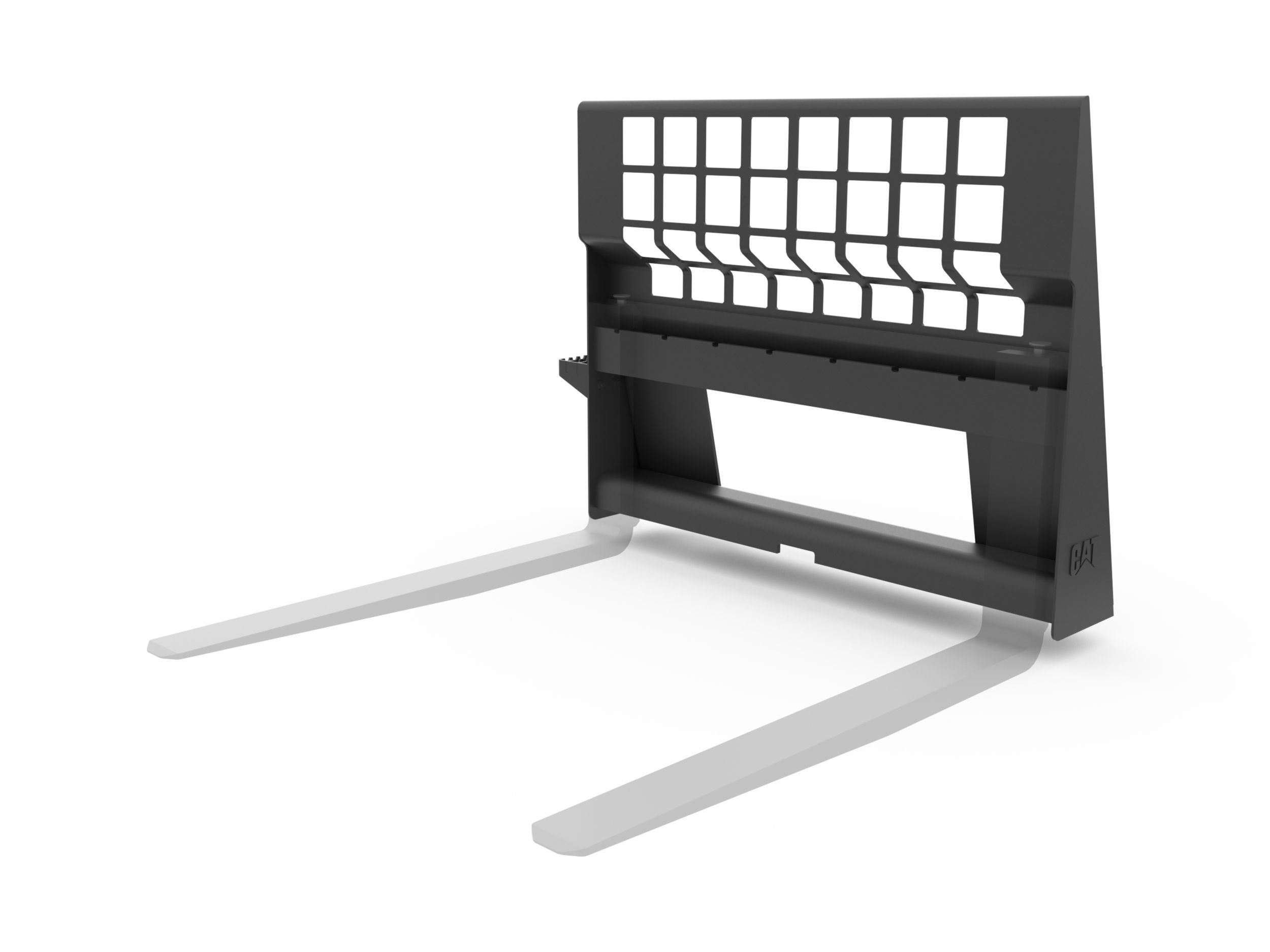

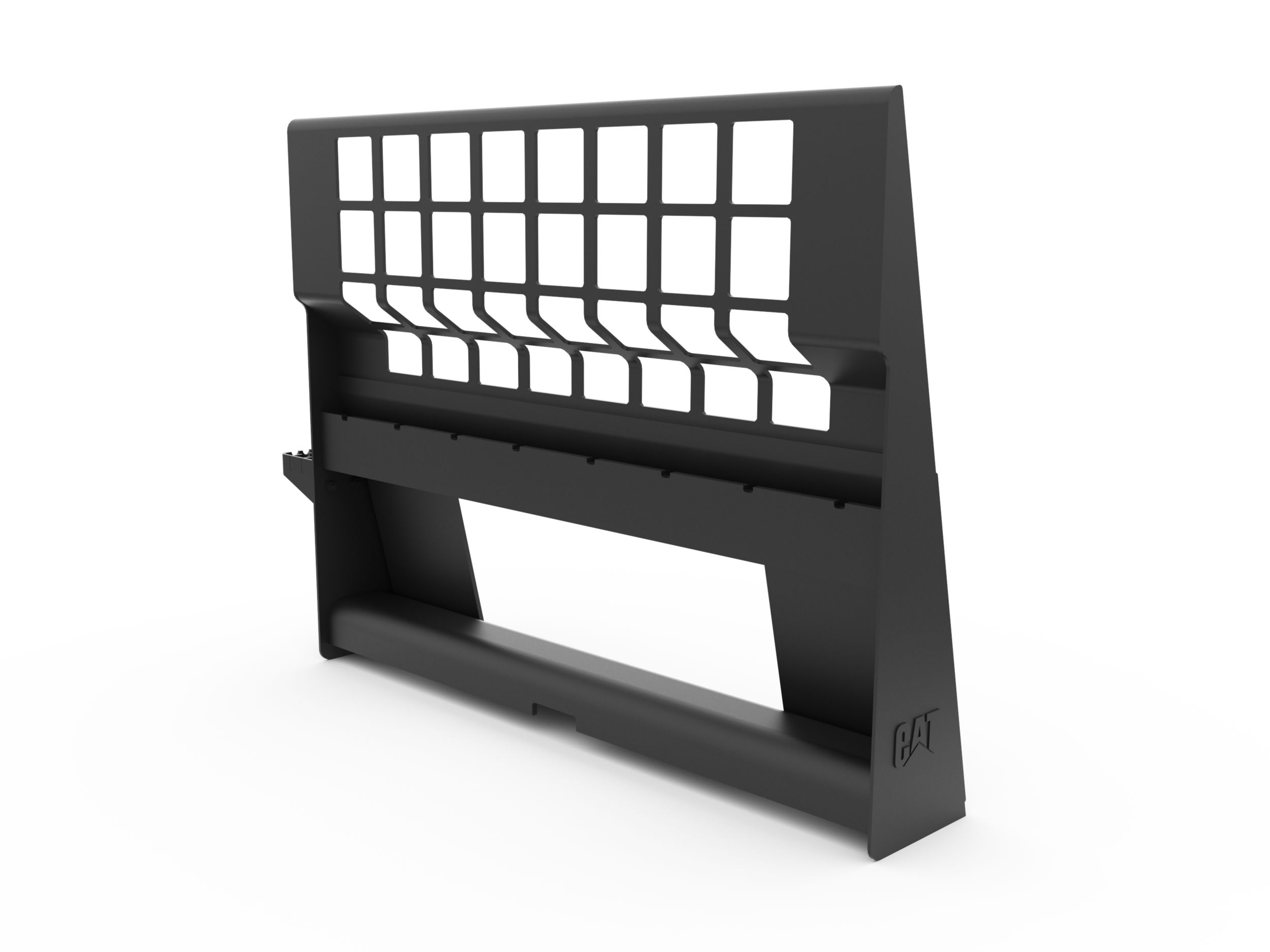

Studio Shot

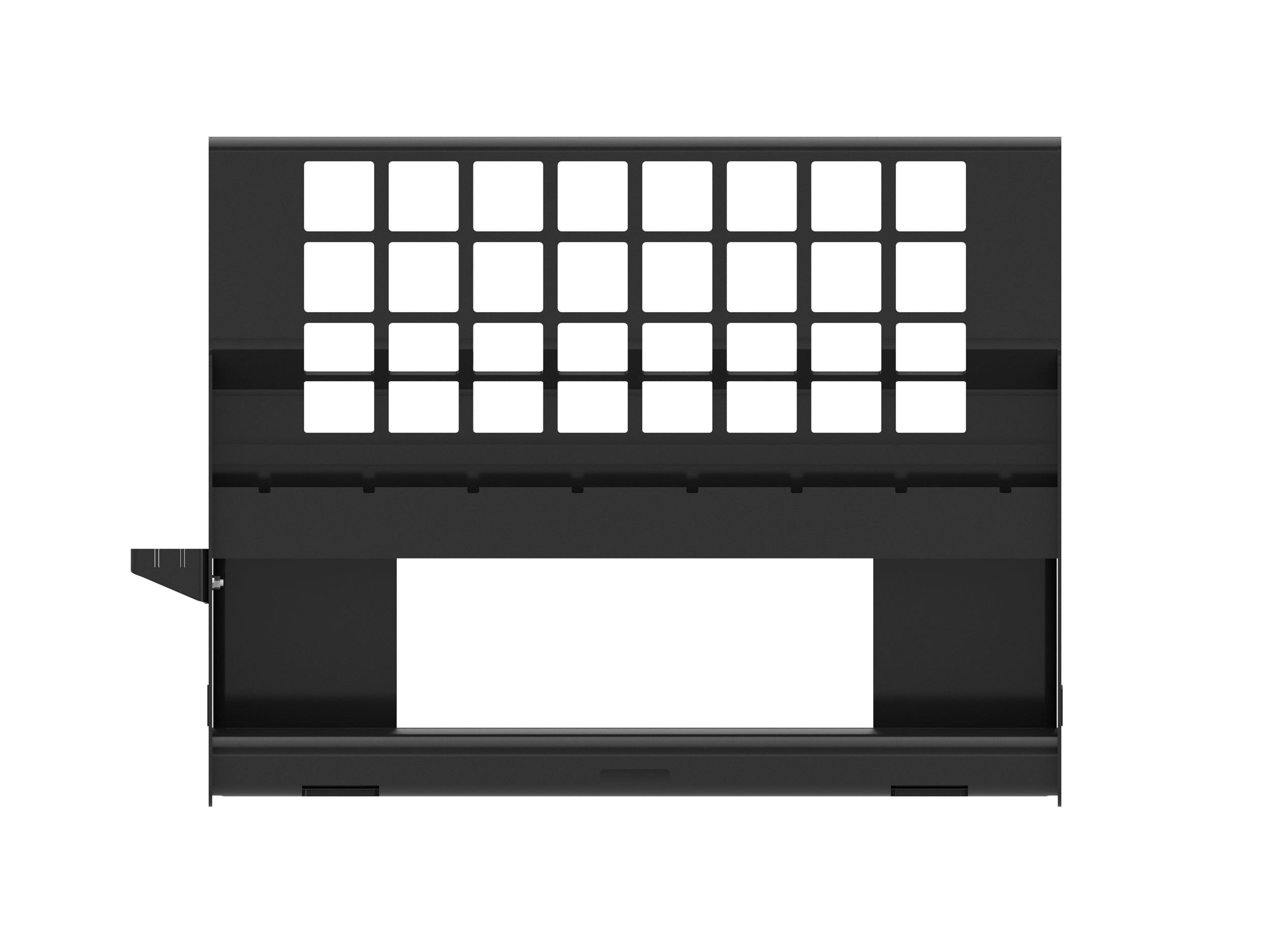

Front View

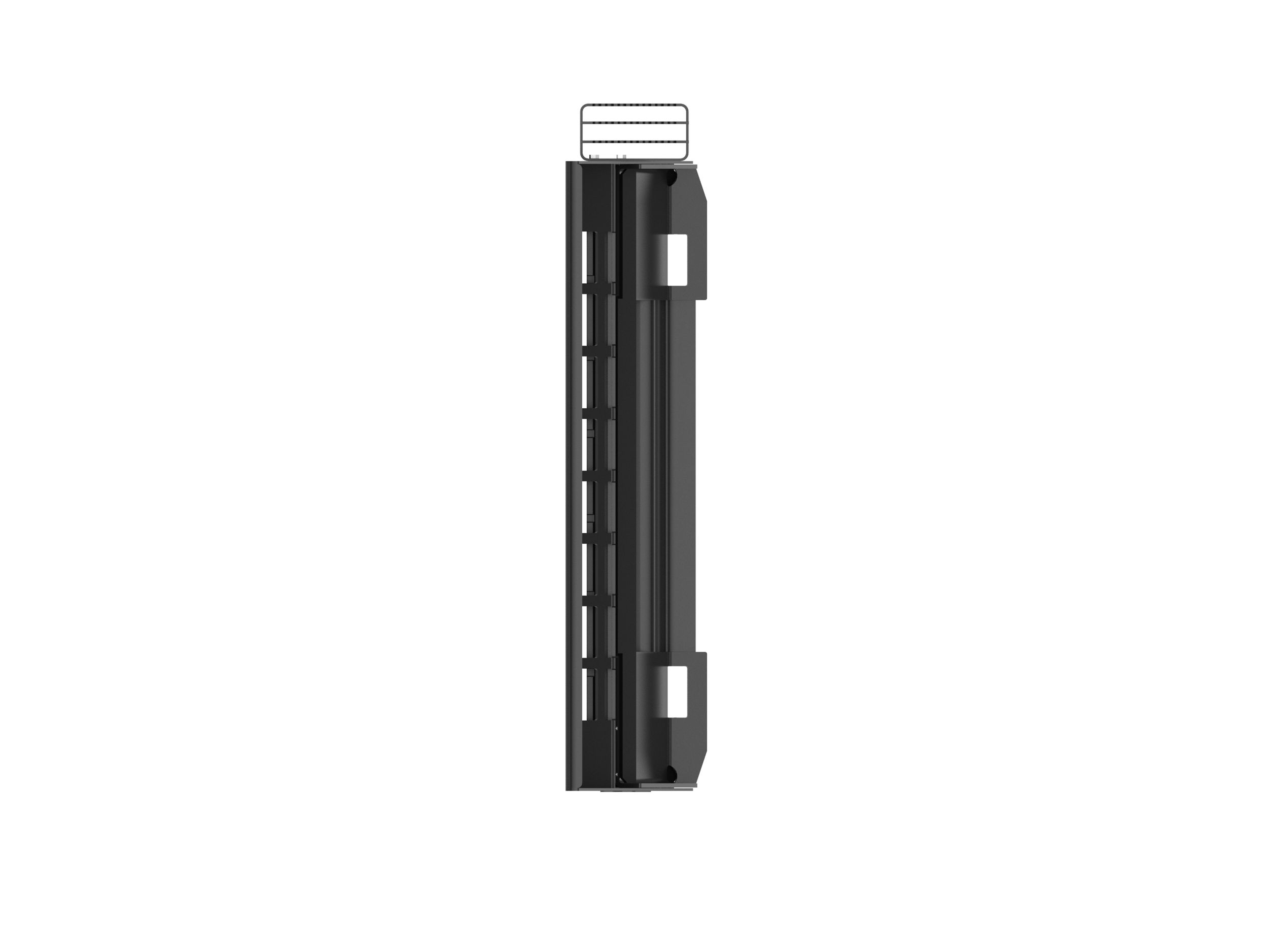

Top View

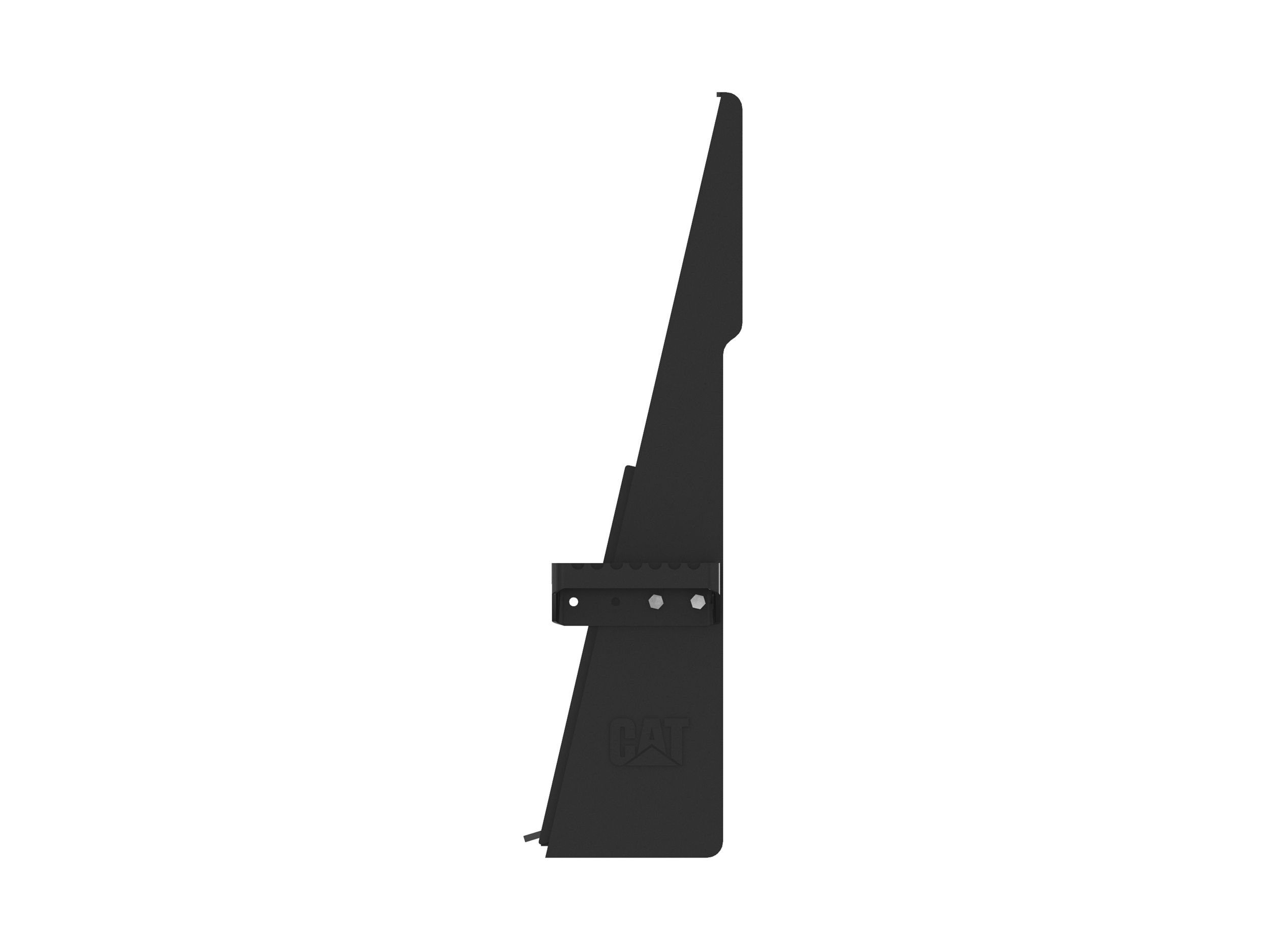

Left View

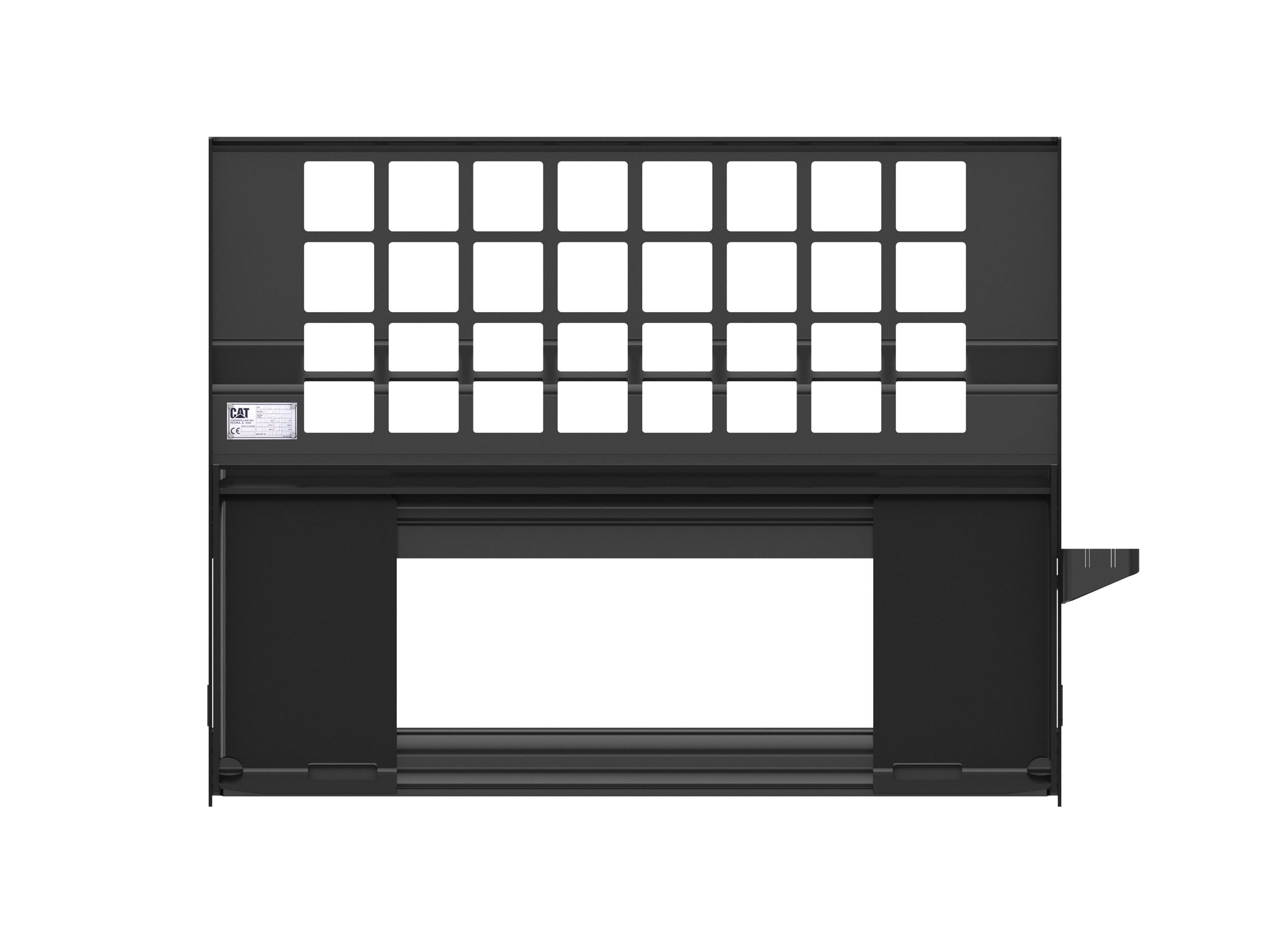

Rear View

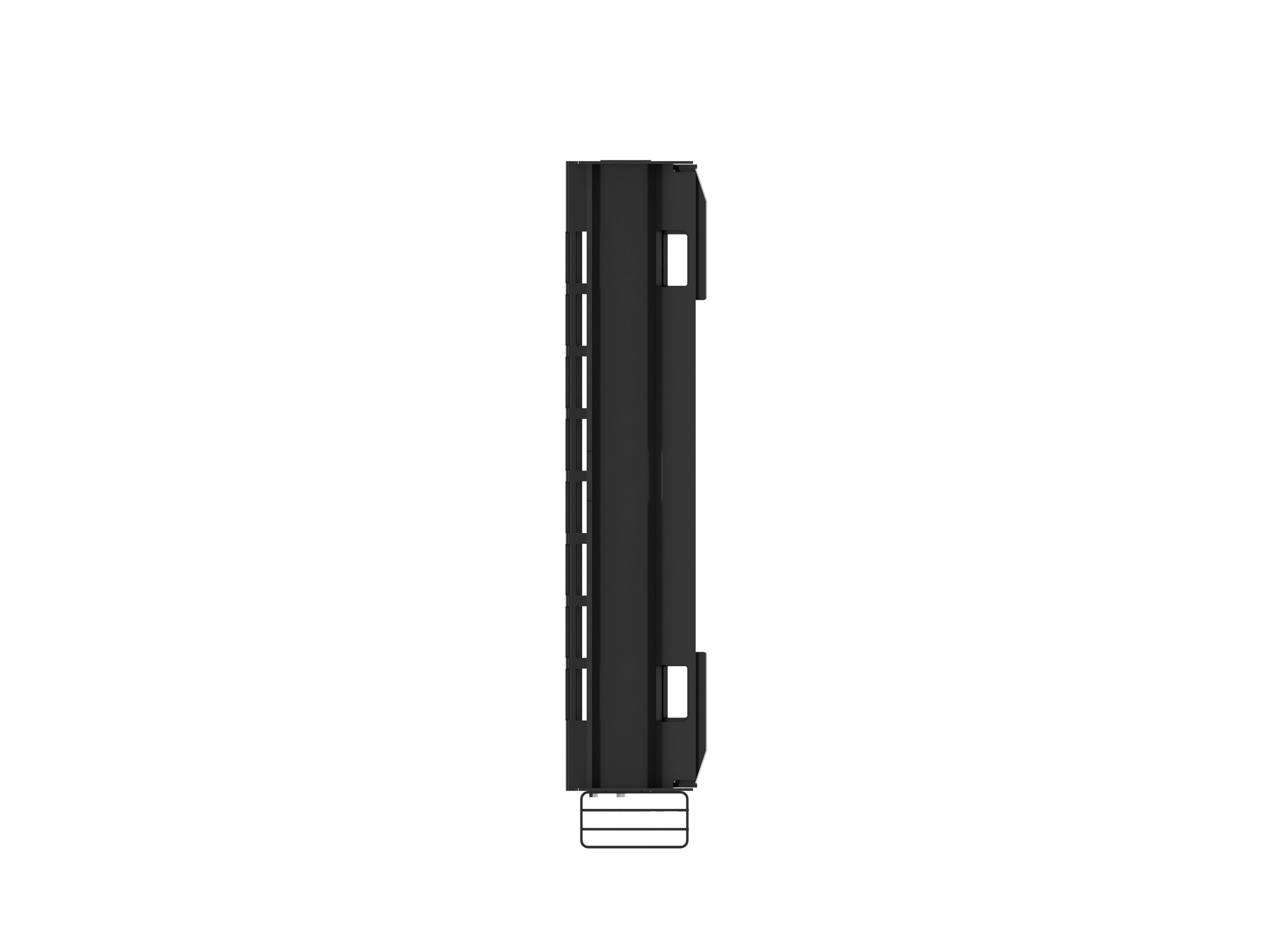

Bottom View

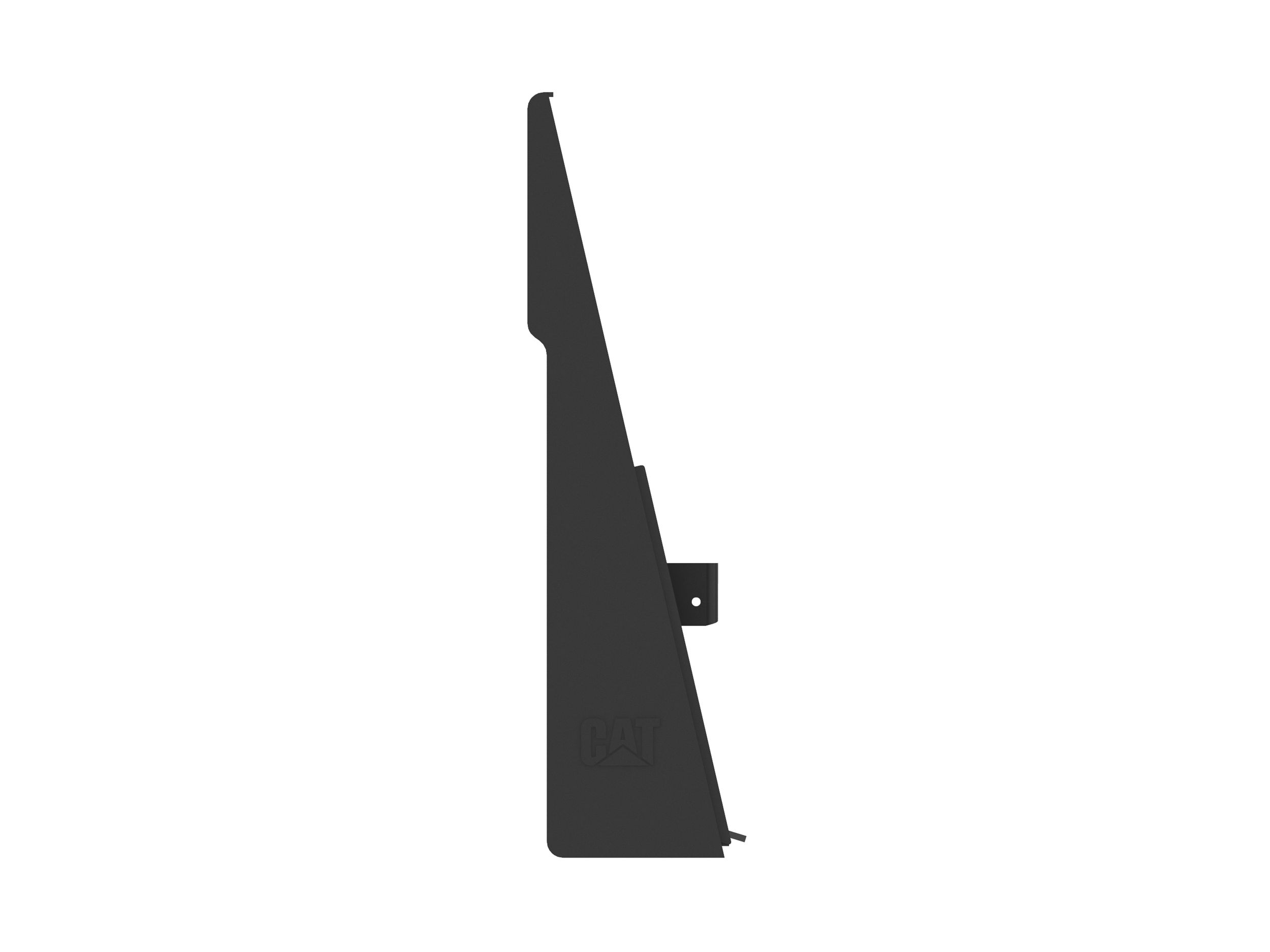

Right View
US
Metric

Overview

Cat® Pallet Fork Carriages for are designed to meet a wide variety of material handling needs. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
Height
35.90 in
912.00 mm
Width
46.00 in
1160.00 mm
Weight
207.20 lb
94.00 kg
Length
10.30 in
261.00 mm
Interface Type
Skid Steer Coupler
Overall Width
49.90 in
1268.00 mm
Tine Spacing
156-1008 mm (6-40 in) centerline to centerline
Features

Application

Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.

Heavy Duty Backrest

Heavy-duty load backrest structure is functional, durable and easy to see through. It provides operator protection from shifting loads, while maintaining excellent visibility to the fork tips.

Notched Rail-type Carriage

Notched rail-type carriage design allows fork tines to be easily re-spaced or changed and locked into place.

One carriage for all carrying capacities

The fork carriage is designed to meet the load carrying capacity of the largest machine enabling one size to fit all models.
