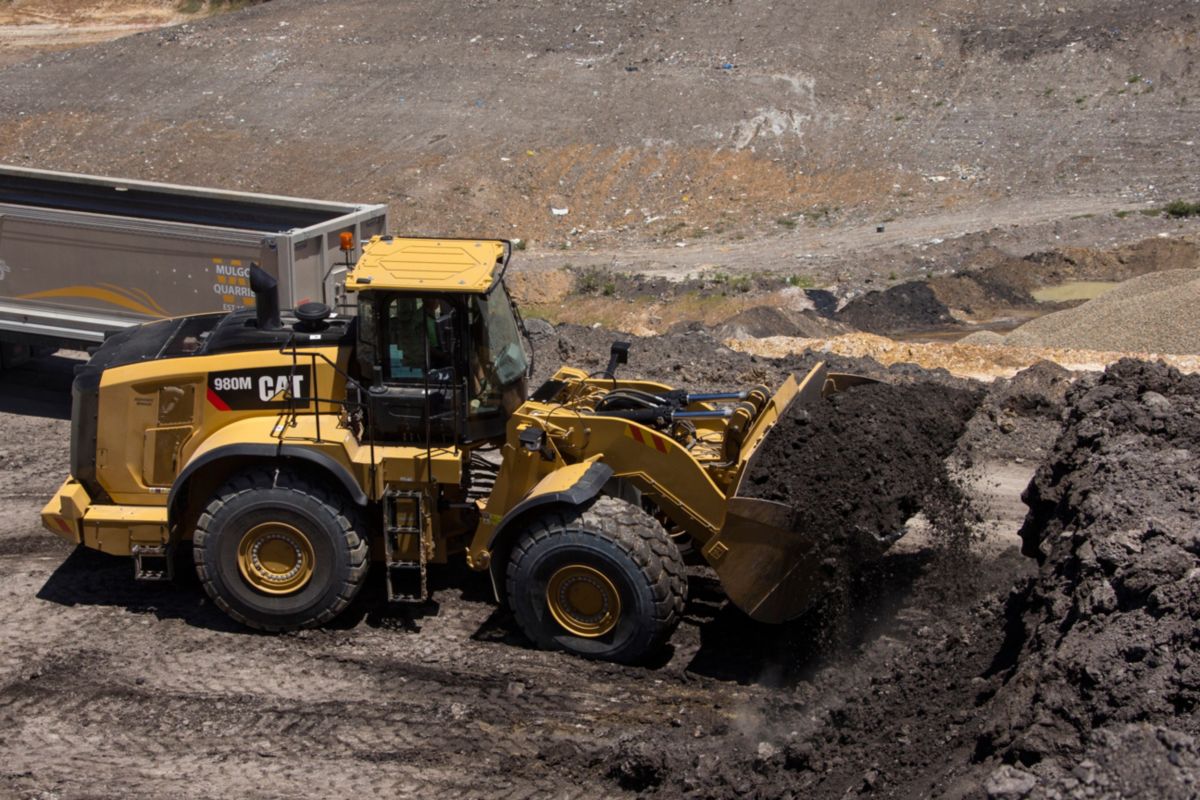

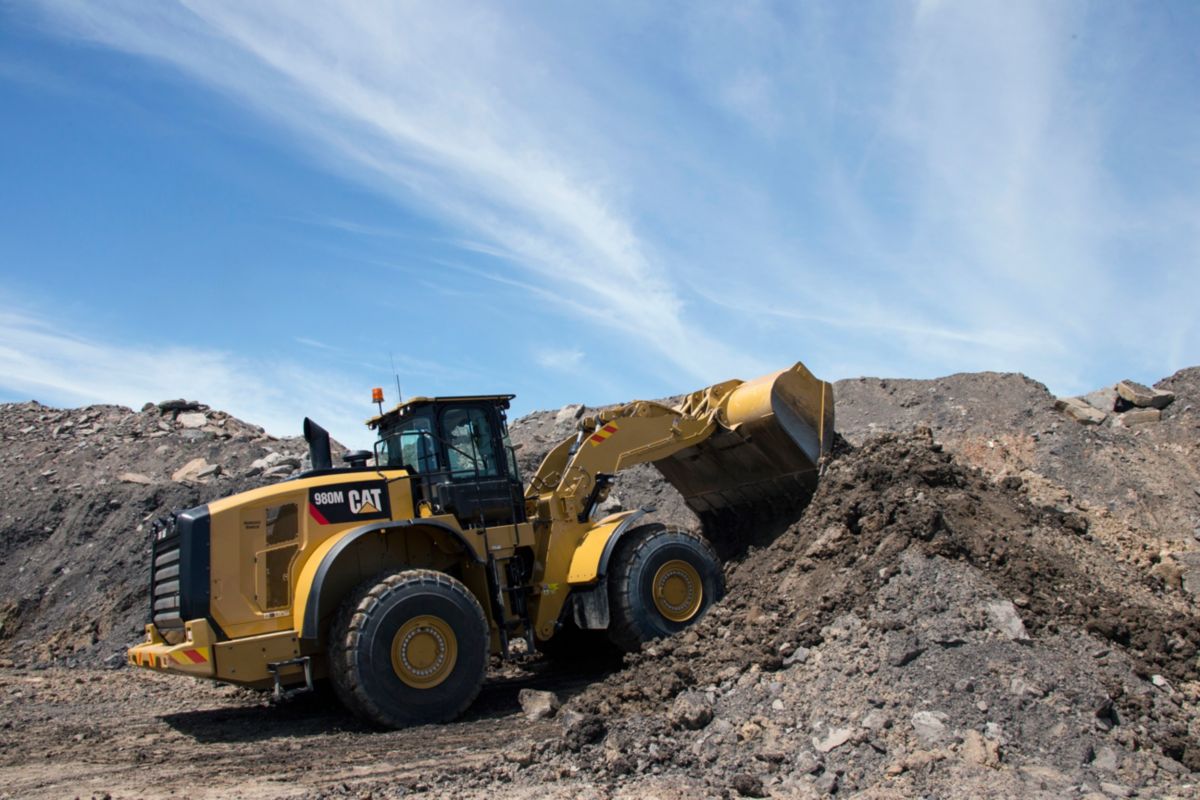

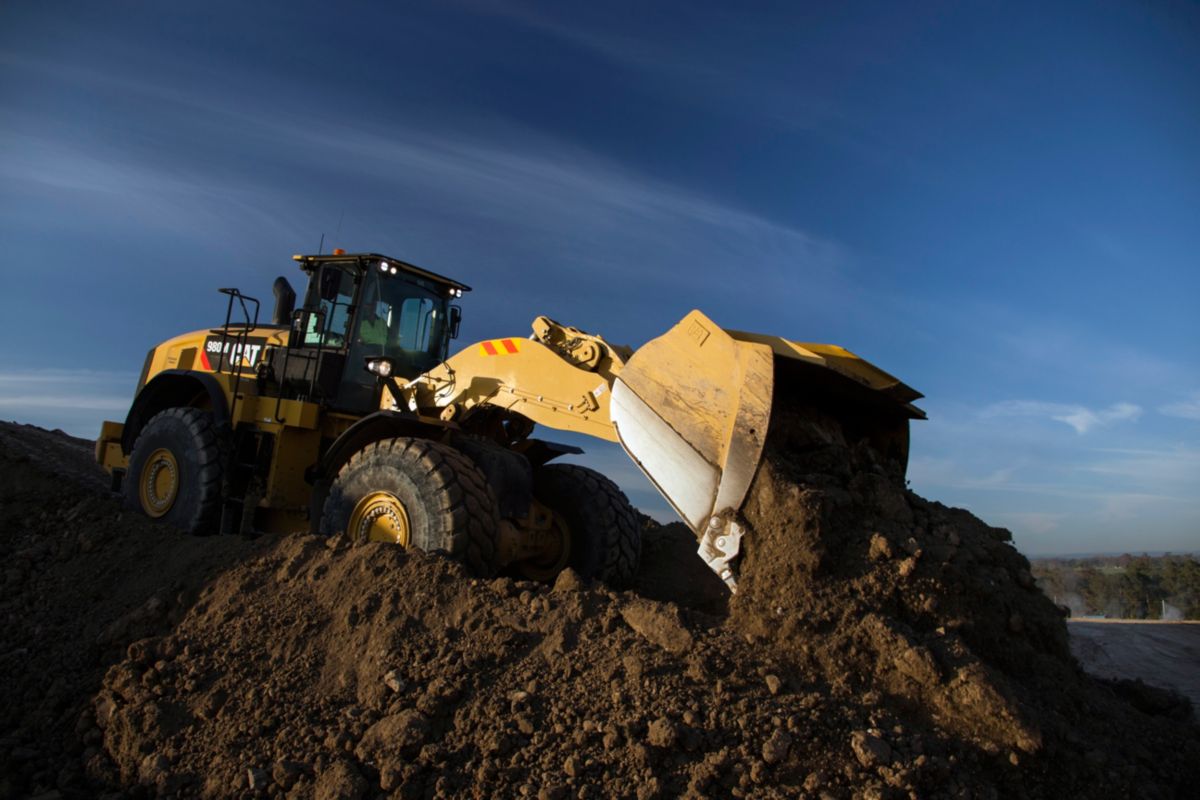

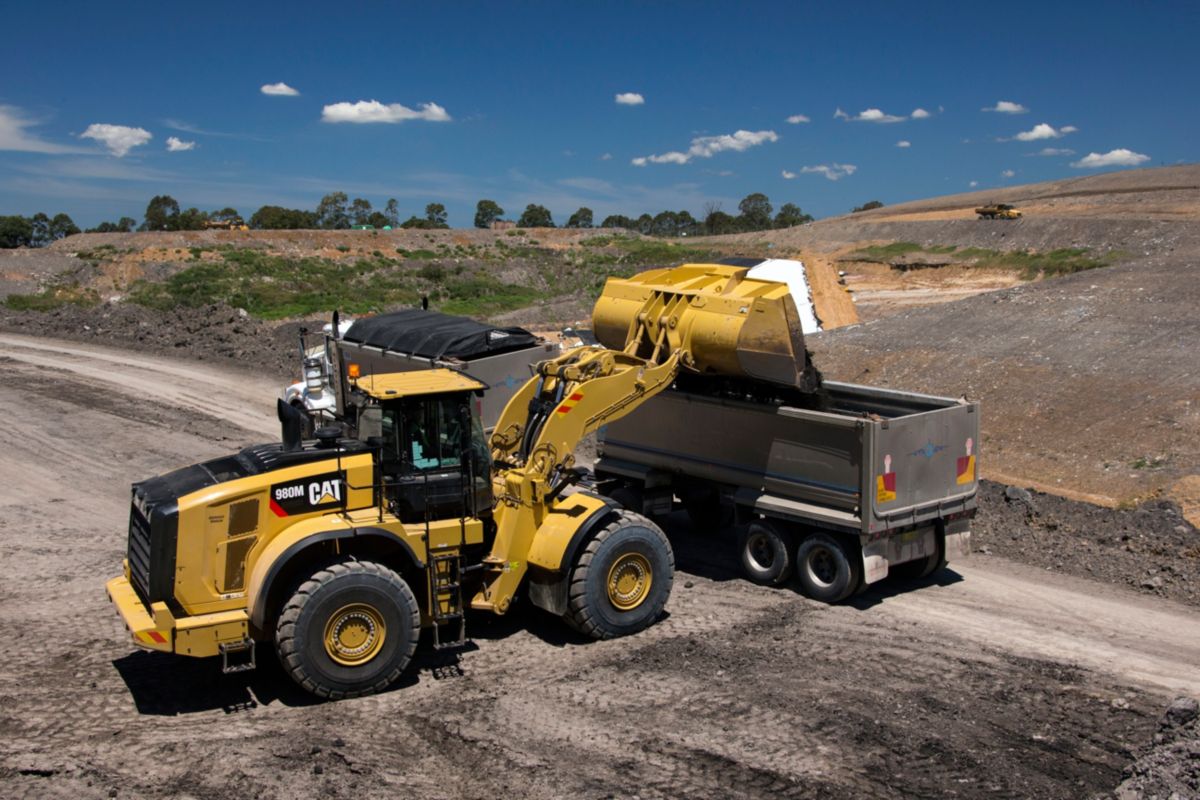

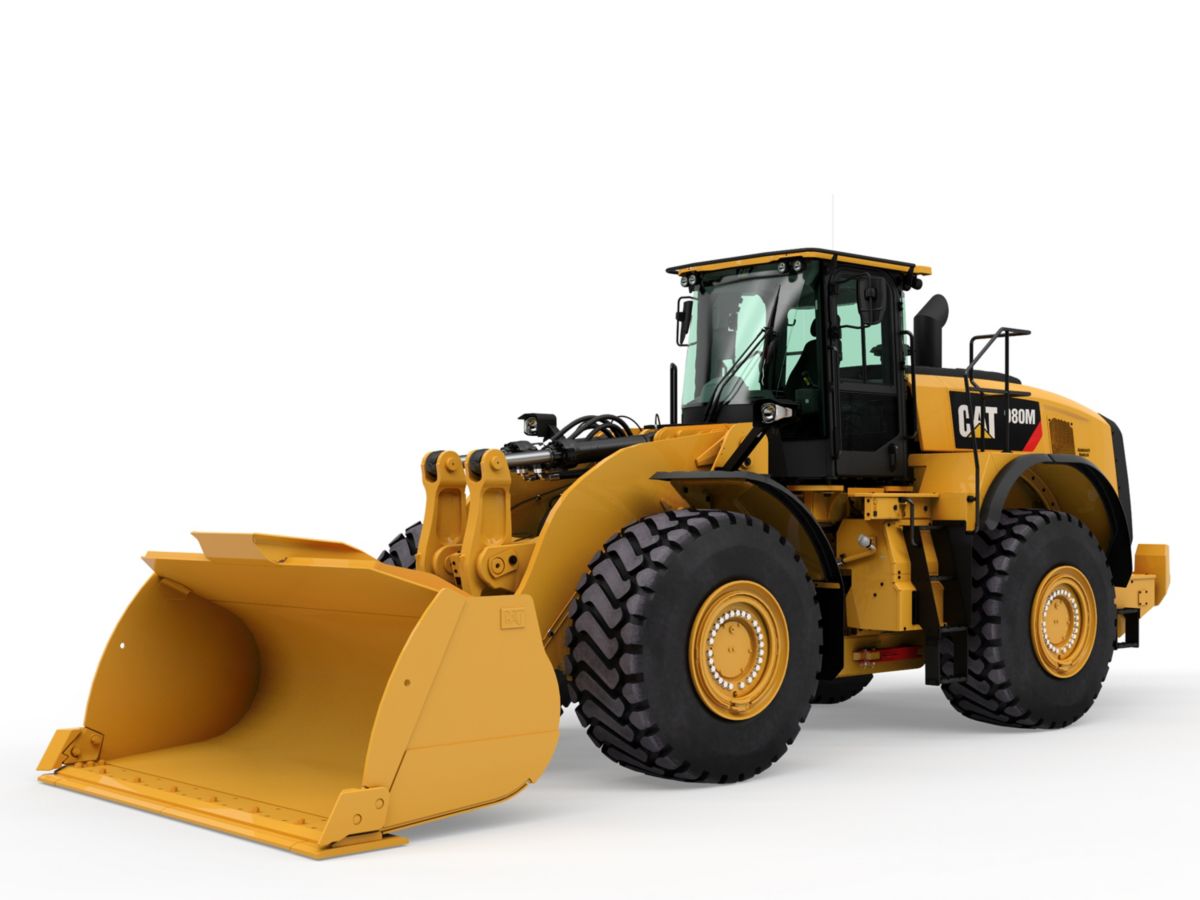

980M Wheel Loader
US
Metric
Overview
The new 980M Wheel Loader has an ACERT™ engine equipped with a combination of proven electronic, fuel, and air components. Applying proven technologies systematically and strategically lets us meet your high expectations for productivity, fuel efficiency, reliability and service life. Deep system integration results in reduced emissions, improved performance and improved fuel economy without interrupting machine performance. Aggregate Handler and other optional configurations are available. (Optional configuration and equipment may vary from region to region. Consult your Caterpillar representative for further details.)
Engine
Net Power - ISO 9249
373.00 hp
278.00 kW
Engine Model
Cat C13 ACERT
Displacement
763.00 in³
12.50 L
Max Gross Power @ 1,800 rpm – SAE J1995
412.00 hp
307.00 kW
Weights
Operating Weight
66337.00 lb
30090.00 kg
Note
Weight based on a machine configuration with Michelin 29.5R25 XLDD1 L4 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link, open differential axles, secondary steering, sound suppression, and a 5.4 m3 (7.1 yd3) GP bucket with BOCE.
Buckets
Bucket Capacities
4.2-12.2 m³ (5.25-16.0 yd³)
Hydraulic System
Implement System: Maximum Pump Output (2,250 rpm)
119.00 gal/min
449.00 L/min
Implement System: Maximum Operating Pressure
4975.00 psi
34300.00 kPa
Hydraulic Cycle Time – Total
10.10 Seconds
10.10 Seconds
Service Refill Capacities
Cooling System
12.00 gal
45.00 L
Crankcase
9.80 gal
37.00 L
Transmission
20.30 gal
77.00 L
Differentials and Final Drives – Front
22.00 gal
84.00 L
Differentials and Final Drives – Rear
22.00 gal
84.00 L
Hydraulic Tank
40.00 gal
153.00 L
Fuel Tank
112.50 gal
426.00 L
Transmission
Forward 1
4.30 mph
6.90 km/h
Forward 2
8.30 mph
13.30 km/h
Forward 3
14.60 mph
23.50 km/h
Forward 4
24.50 mph
39.50 km/h
Reverse 1
4.80 mph
7.80 km/h
Reverse 2
9.40 mph
15.20 km/h
Reverse 3
16.70 mph
26.90 km/h
Operating Specifications
Static Tipping Load – Full 40° Turn – with Tire Deflection
43133.00 lb
19565.00 kg
Static Tipping Load – Full 40° Turn – No Tire Deflection
45847.00 lb
20796.00 kg
Breakout Force
50357.00 lbf
224.00 kN
Sound
With Cooling Fan Speed at Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)
75.00 dB(A)
75.00 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Power Level (ISO 6395:2008)
112.00 dB(A)
112.00 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Pressure Level (SAE J88:2013)
78 dB(A)*
Note
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Operating Specifications
Note
For a machine configuration as defined under “Weight.”
Note
Full compliance to ISO 143971:2007 Sections 1 thru 6.
Transmission
Reverse 4
24.50 mph
39.50 km/h
Dimensions – Standard Lift
Height to Top of Hood
10.25 ft
3110.00 mm
Height to Top of Exhaust Pipe
12.33 ft
3746.00 mm
Height to Top of ROPS
12.58 ft
3813.00 mm
Ground Clearance
1.42 ft
453.00 mm
Center Line of Rear Axle to Edge of Counterweight
8.17 ft
2469.00 mm
Center Line of Rear Axle to Hitch
6.25 ft
1900.00 mm
Wheelbase
12.50 ft
3800.00 mm
Overall Length (without bucket)
26.17 ft
7964.00 mm
Hinge-Pin Height at Maximum Lift
14.83 ft
4539.00 mm
Hinge-Pin Height at Carry
2.08 ft
621.00 mm
Lift Arm Clearance at Maximum Lift
12.42 ft
3795.00 mm
Rack Back at Maximum Lift
61 degrees
Rack Back at Carry Height
48 degrees
Rack Back at Ground
40 degrees
Maximum Width over Tires
10.83 ft
3296.00 mm
Tread Width
8.00 ft
2440.00 mm
Note
All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires.
Dimensions – High Lift
Height to Top of Hood
10.25 ft
3110.00 mm
Height to Top of Exhaust Pipe
12.33 ft
3746.00 mm
Height to Top of ROPS
12.58 ft
3813.00 mm
Ground Clearance
1.42 ft
453.00 mm
Center Line of Rear Axle to Edge of Counterweight
8.17 ft
2469.00 mm
Center Line of Rear Axle to Hitch
6.25 ft
1900.00 mm
Wheelbase
12.50 ft
3800.00 mm
Overall Length (without bucket)
26.83 ft
8164.00 mm
Hinge-Pin Height at Maximum Lift
15.58 ft
4760.00 mm
Hinge-Pin Height at Carry
2.25 ft
678.00 mm
Lift Arm Clearance at Maximum Lift
13.08 ft
4010.00 mm
Rack Back at Maximum Lift
61 degrees
Rack Back at Carry Height
48 degrees
Rack Back at Ground
39 degrees
Maximum Width over Tires
10.83 ft
3296.00 mm
Tread Width
8.00 ft
2440.00 mm
Note
All dimensions are approximate and based on Michelin 29.5R25 XLDD1 L4 radial tires.
Engine
Max Gross Power @ 1,800 rpm – SAE J1995 (metric)
417.00 hp
307.00 kW
Max Power @ 1,800 rpm – ISO 14396
406.00 hp
303.00 kW
Max Power @ 1,800 rpm – ISO 14396 (metric)
412.00 hp
303.00 kW
Bucket Capacities
Bucket Range
4.2-12.2 m³ (5.25-16.0 yd³)
Transmission
Note
Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 933 mm (37 in) roll radius.
Engine
Max Net Power @ 1,800 rpm – SAE J1349
373.00 hp
278.00 kW
Max Net Power @ 1,800 rpm – SAE J1349 (metric)
378.00 hp
278.00 kW
Max Net Power @ 1,800 rpm – ISO 9249
373.00 hp
278.00 kW
Max Net Power @ 1,800 rpm – ISO 9249 (metric)
378.00 hp
278.00 kW
Peak Gross Torque (1,300 rpm) – SAE J1995
1617.00 lbf-ft
2192.00 N·m
Peak Gross Torque (1,300 rpm) – ISO 14396
1602.00 lbf-ft
2172.00 N·m
Maximum Net Torque (1,100 rpm)
1505.00 lbf-ft
2040.00 N·m
Features
RELIABILITY, PRODUCTIVITY AND FUEL EFFICIENCY
- 10% more fuel efficient than K Series*
- Up to 25% more efficient than H Series*
Linkage and Work Tools
- Performance Series buckets and range of work tools
- Coupler ready (option)
Engine and Aftertreatment Advancements
- Cat® engine with ACERT Technology
- Meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards or U.S. EPA Tier 2/EU Stage II equivalent emissions standards, depending on emission standards of specific country.
- Productive economy mode
Transmission Advancements
- Powershift transmission with single clutch speed shifts and torque based down shifts
- Lock up clutch torque converter with lock-to-lock shifting
- Split flow oil system and multi-viscosity oil
Axle Advancements
- Caliper disk parking brake
- Limited slip differentials (option)
Next Generation Hydraulic Systems
- Next generation main valve
- Next generation ride control system with dual accumulators
- Full flow and kidney loop filtration
- Load-sensing hydraulics with simultaneous hydraulic functions
- 3rd function (option)
EASE OF OPERATION – Best-in-class Operator Environment
- Optimized all-around visibility
- E-H joystick steering (steering wheel optional)
- Touch screen multifunction color display with integrated controls and rearview camera
- Stair-like ingress and egress
- New wider door and increased glass area
- Seat-mounted fingertip electro-hydraulic implement controls
- Large convex rearview mirrors with integrated spot mirror
- Remote door opening (option)
- Automatic climate control
- Viscous cab mounts
- Low operator sound levels
EASE OF OPERATION – Advanced Technology with Cat Connect
- Link technologies, like Product Link™ to monitor equipment and manage production using online VisionLink® software
- Payload technologies, like Cat Production Measurement (option) to measure payloads and optimize productivity
- Detect technologies, like the rear vision camera to keep people safe and help the operator work more productively
SERVICE ACCESS
- One-piece tilting hood with side and rear doors
- Centralized service centers for hydraulic and electrical components
- Windshield cleaning platform and harness tie-off
