Material Handling Buckets

2185 mm (86 in) Material Handling Bucket With Bolt-On Cutting Edge

Request A Quote New and Used Inventory

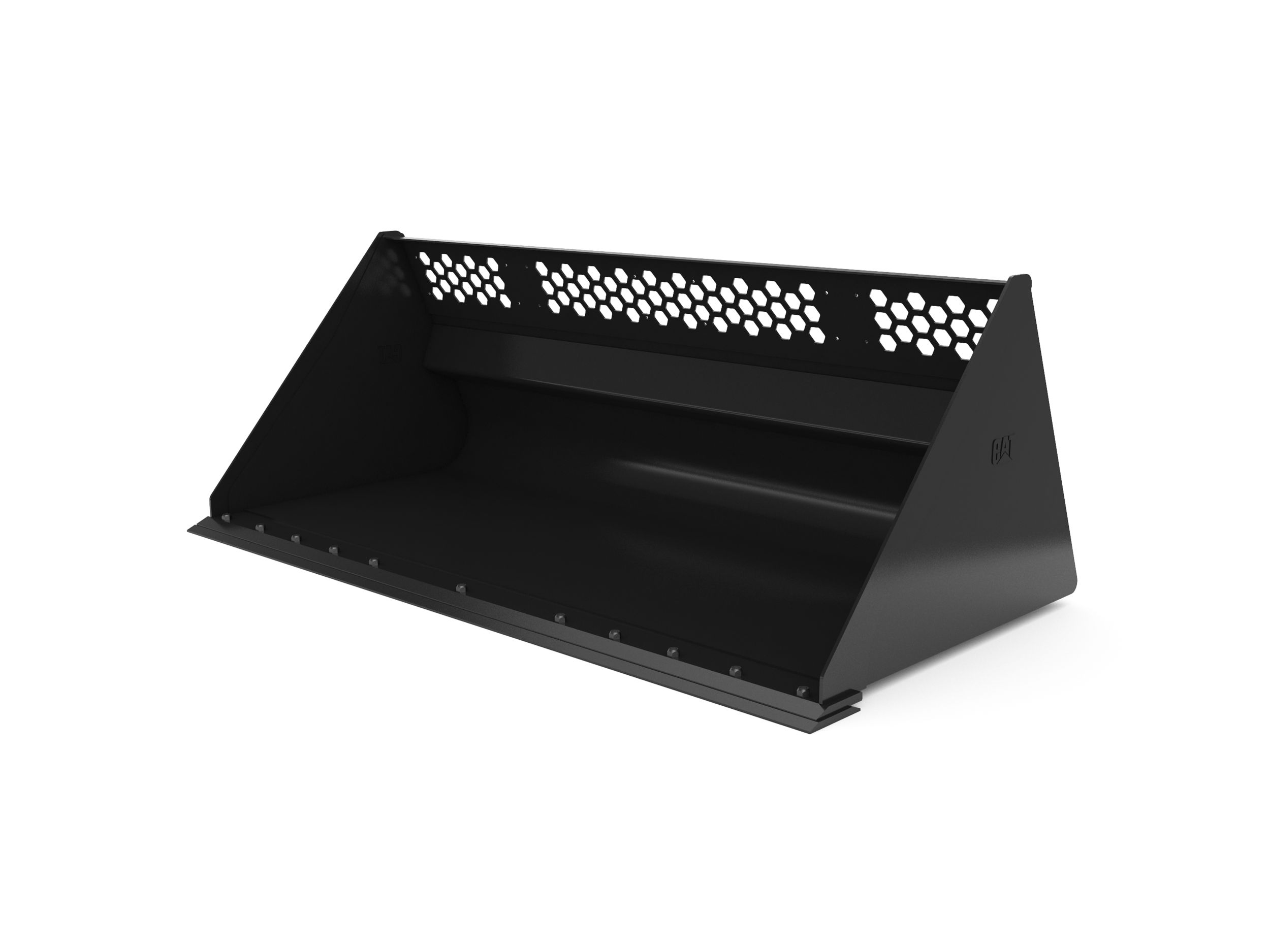

Studio Shot

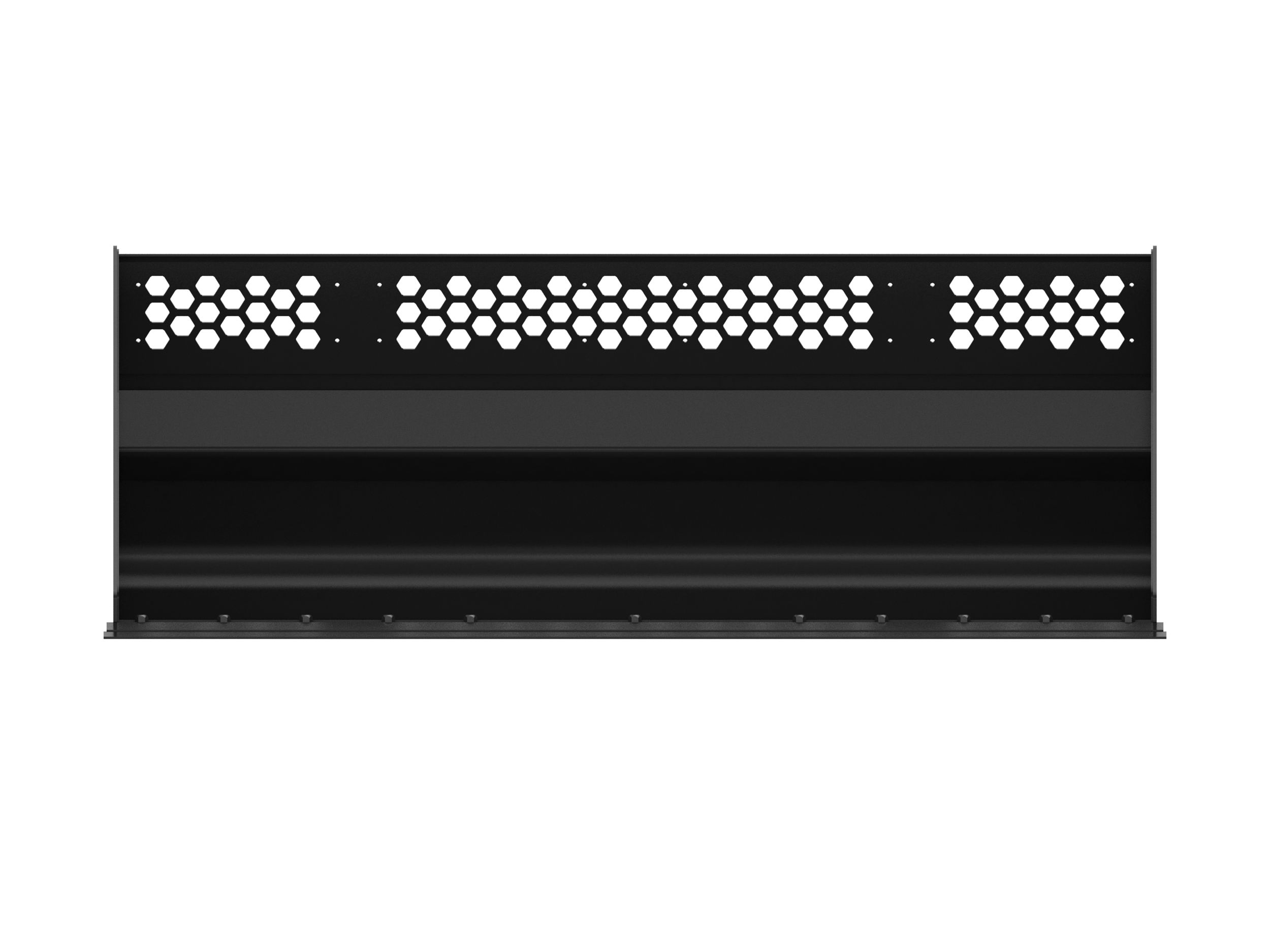

Front View

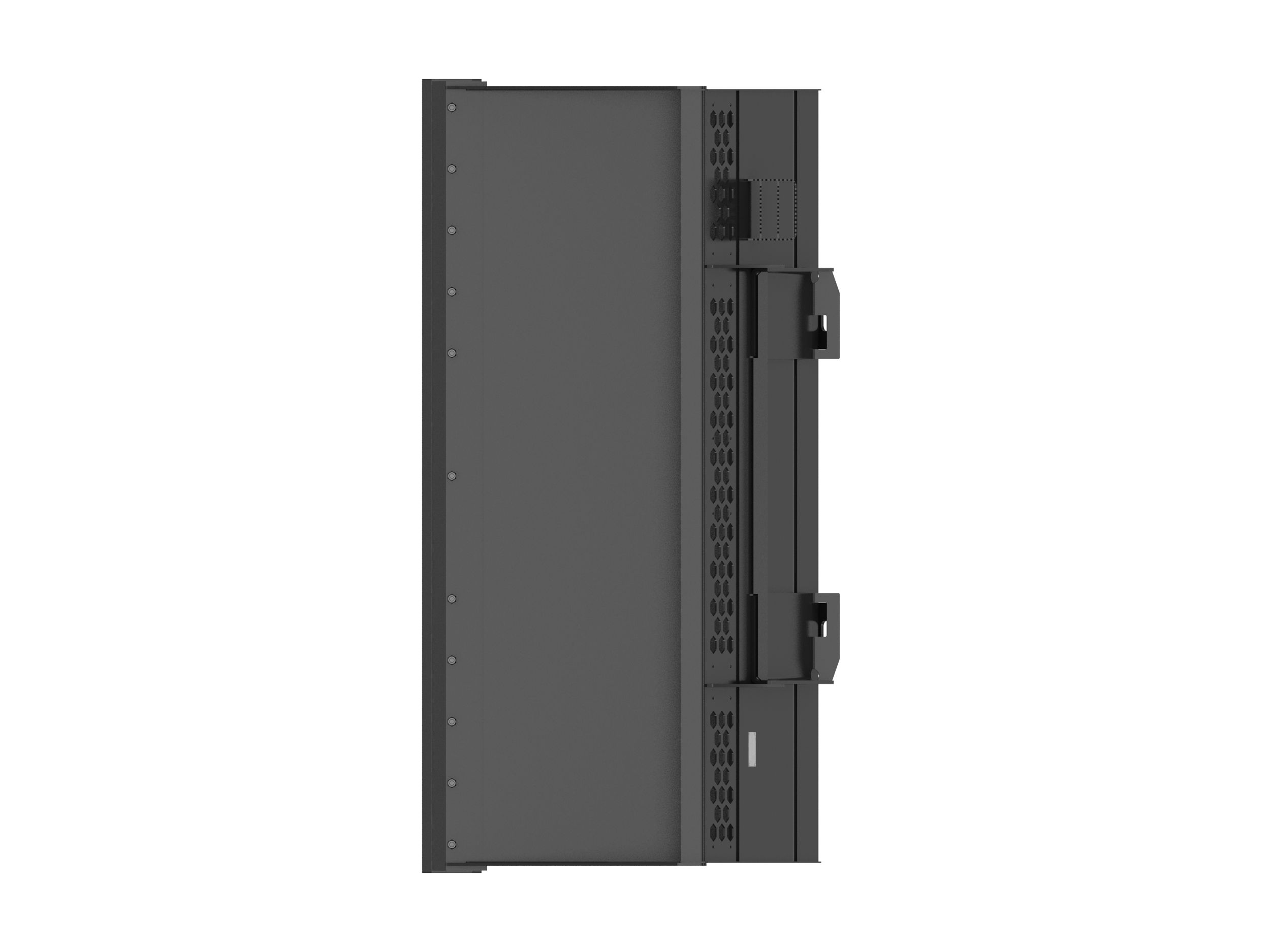

Top View

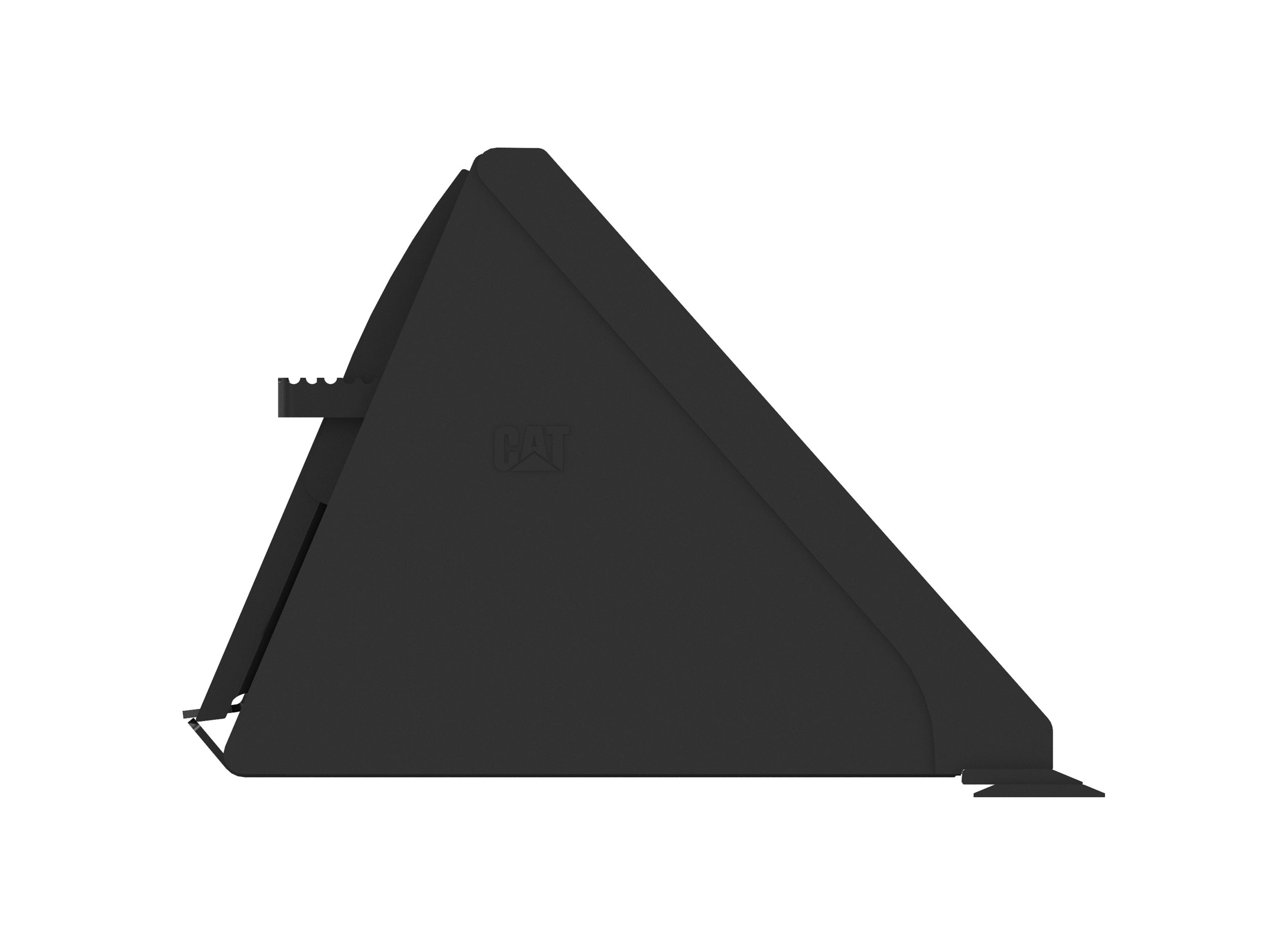

Left View

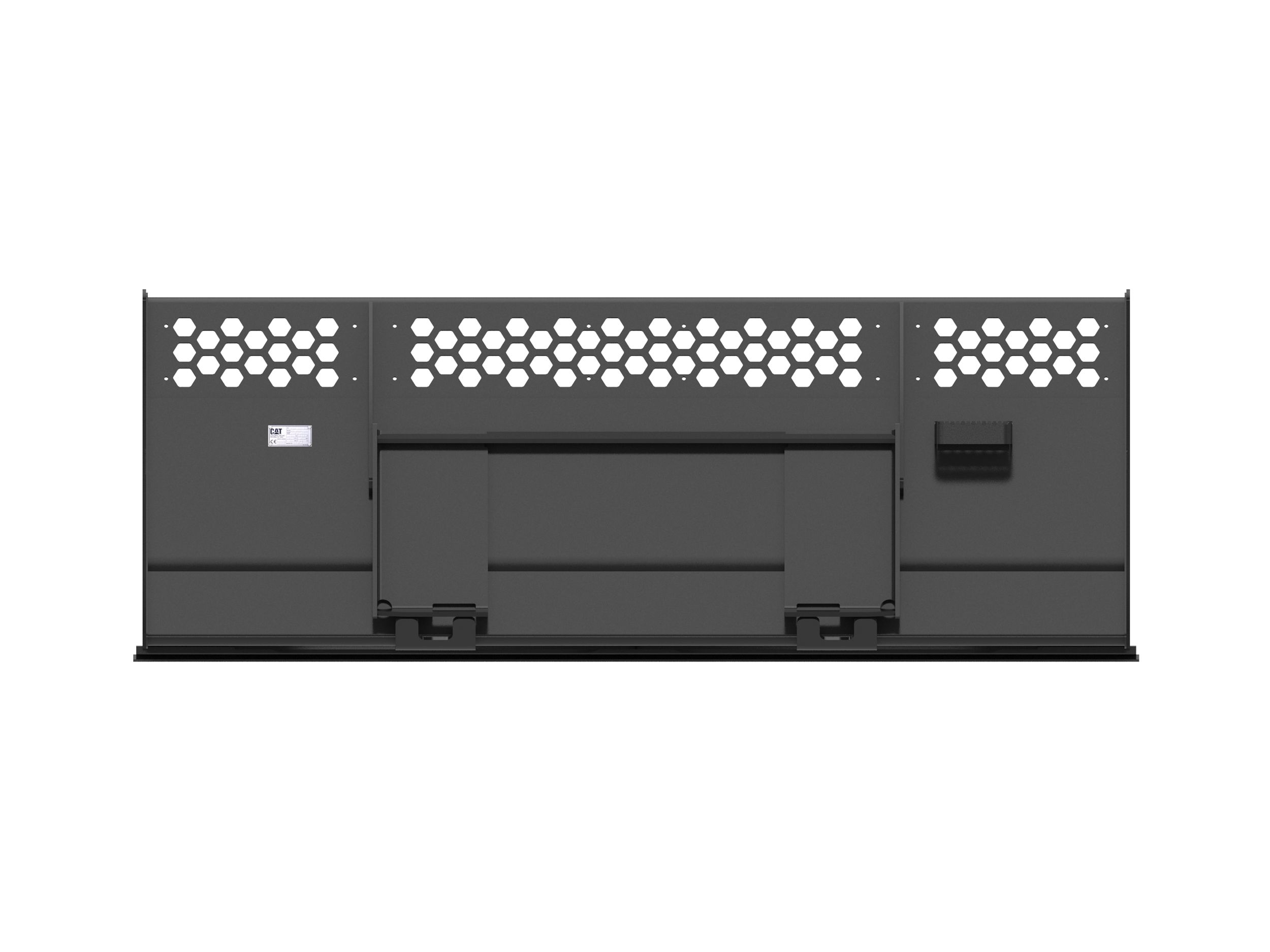

Rear View

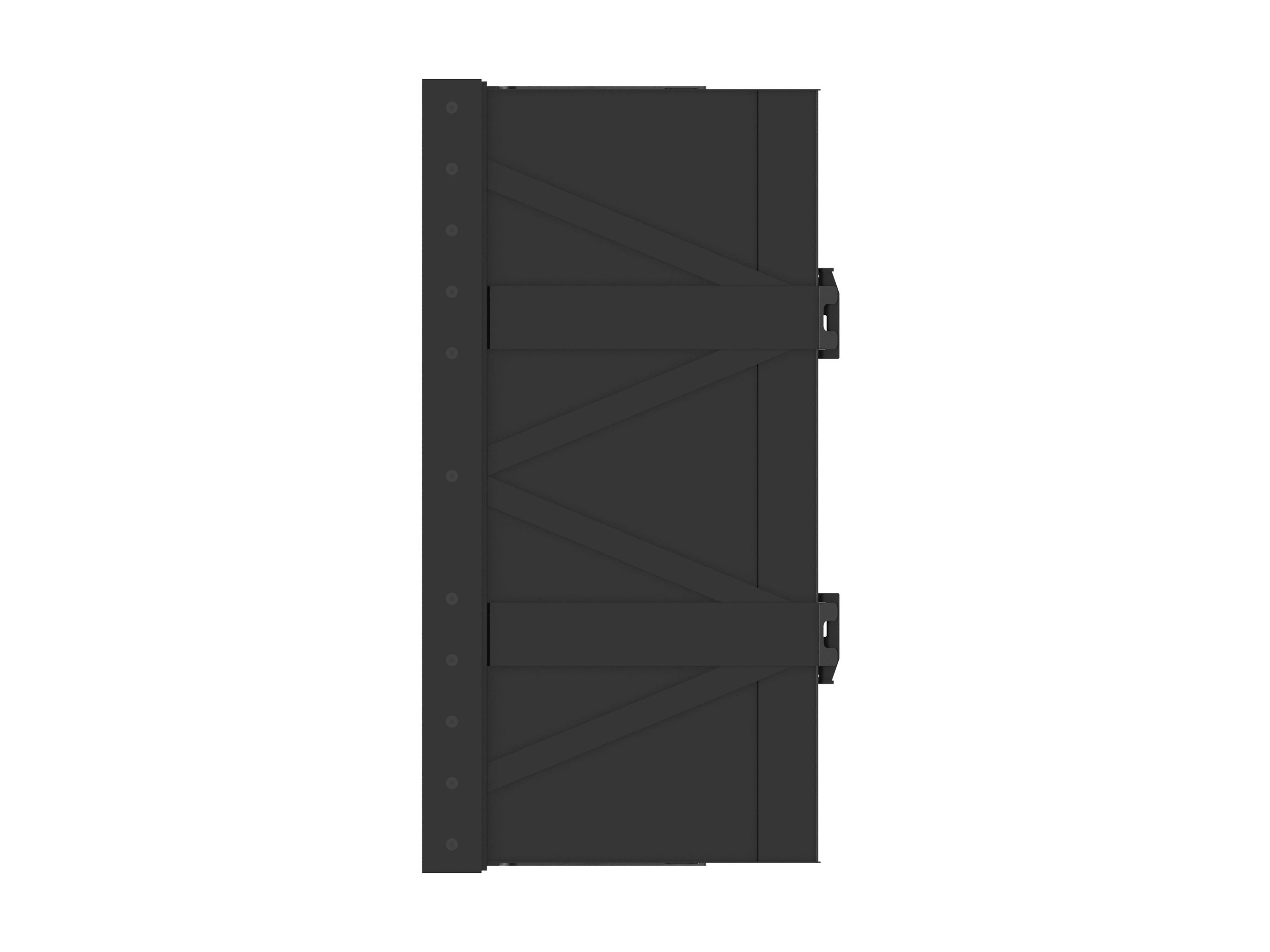

Bottom View

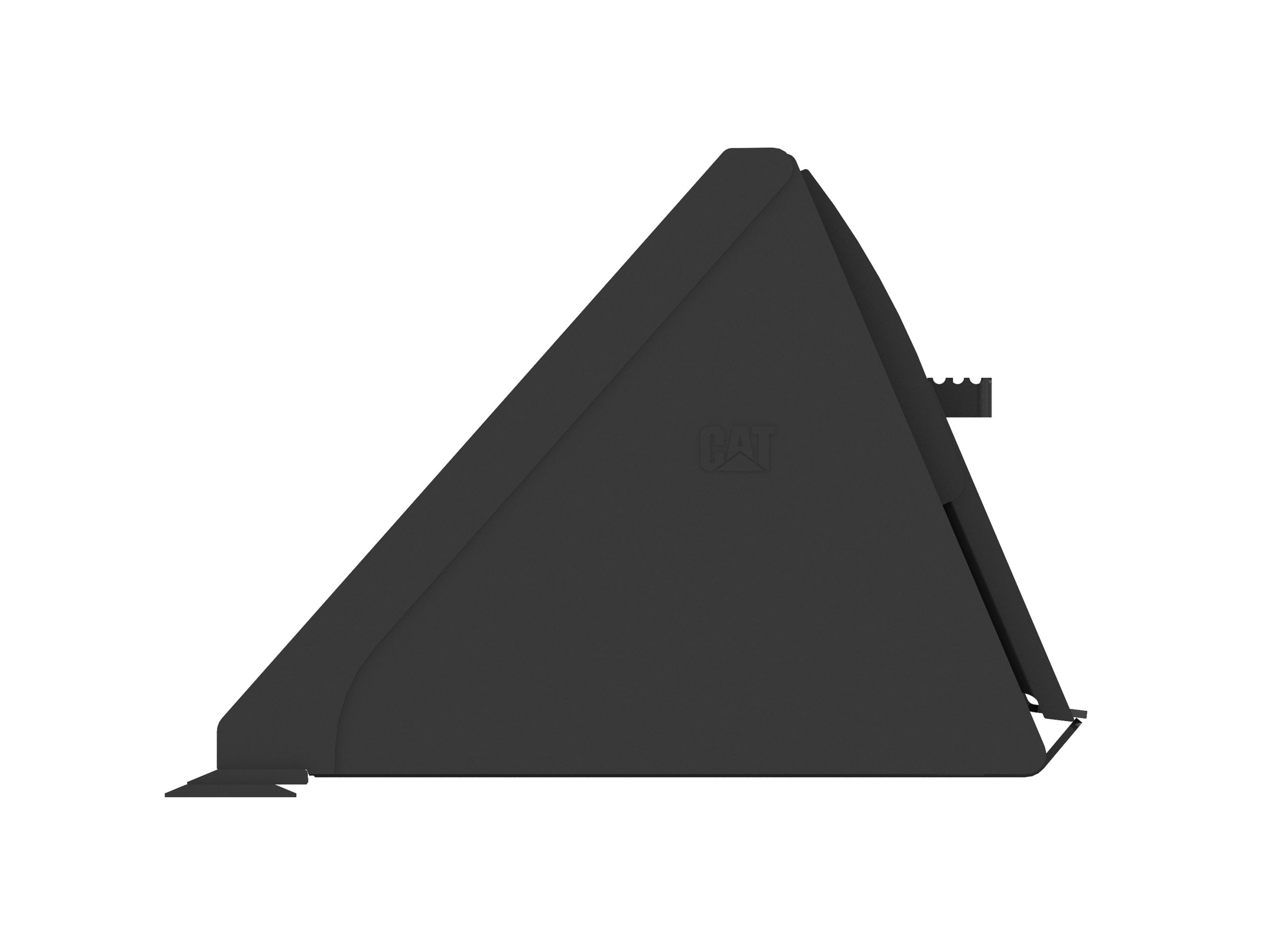

Right View

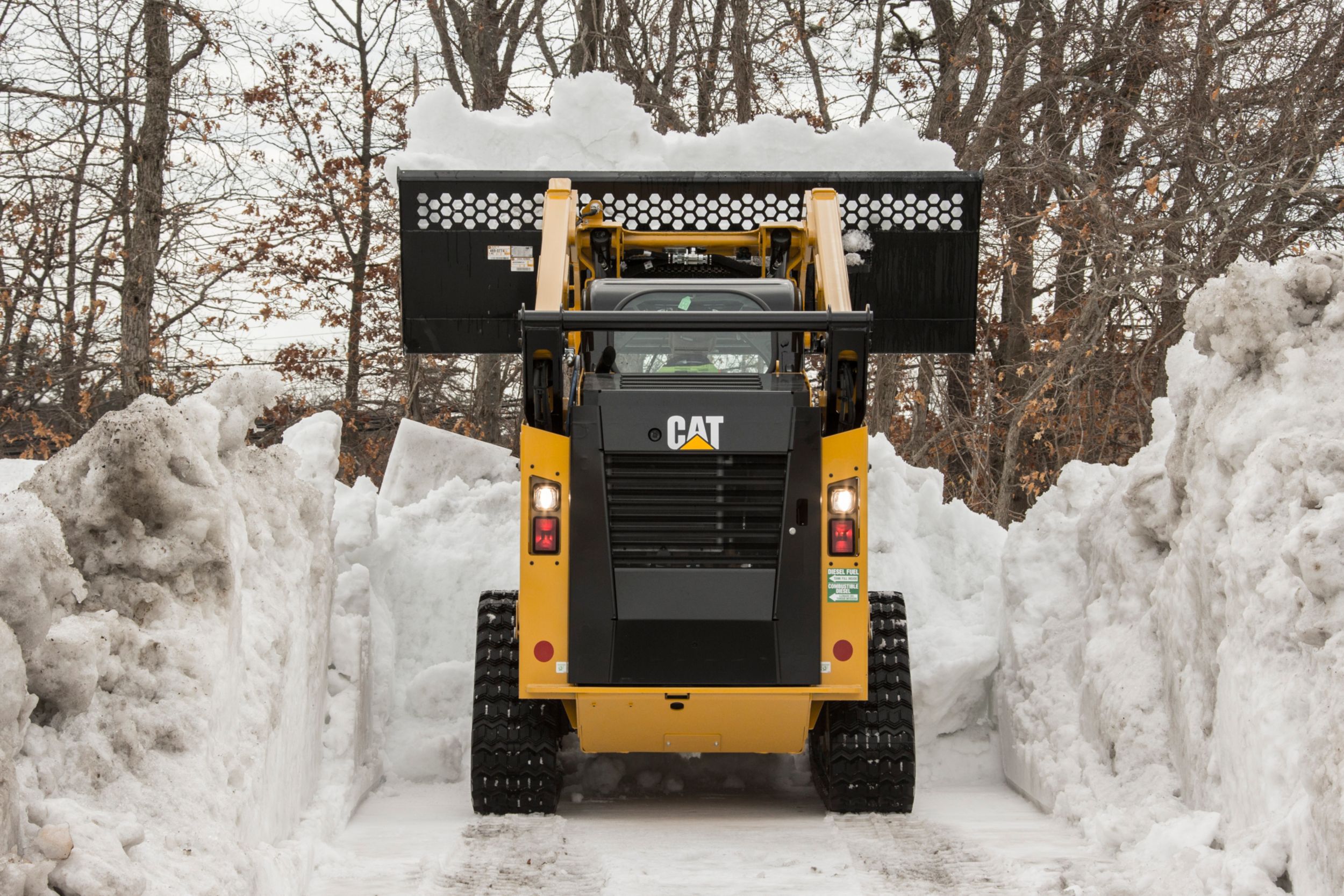

Skid Steer Loader Material Handling Bucket - Dumping Snow

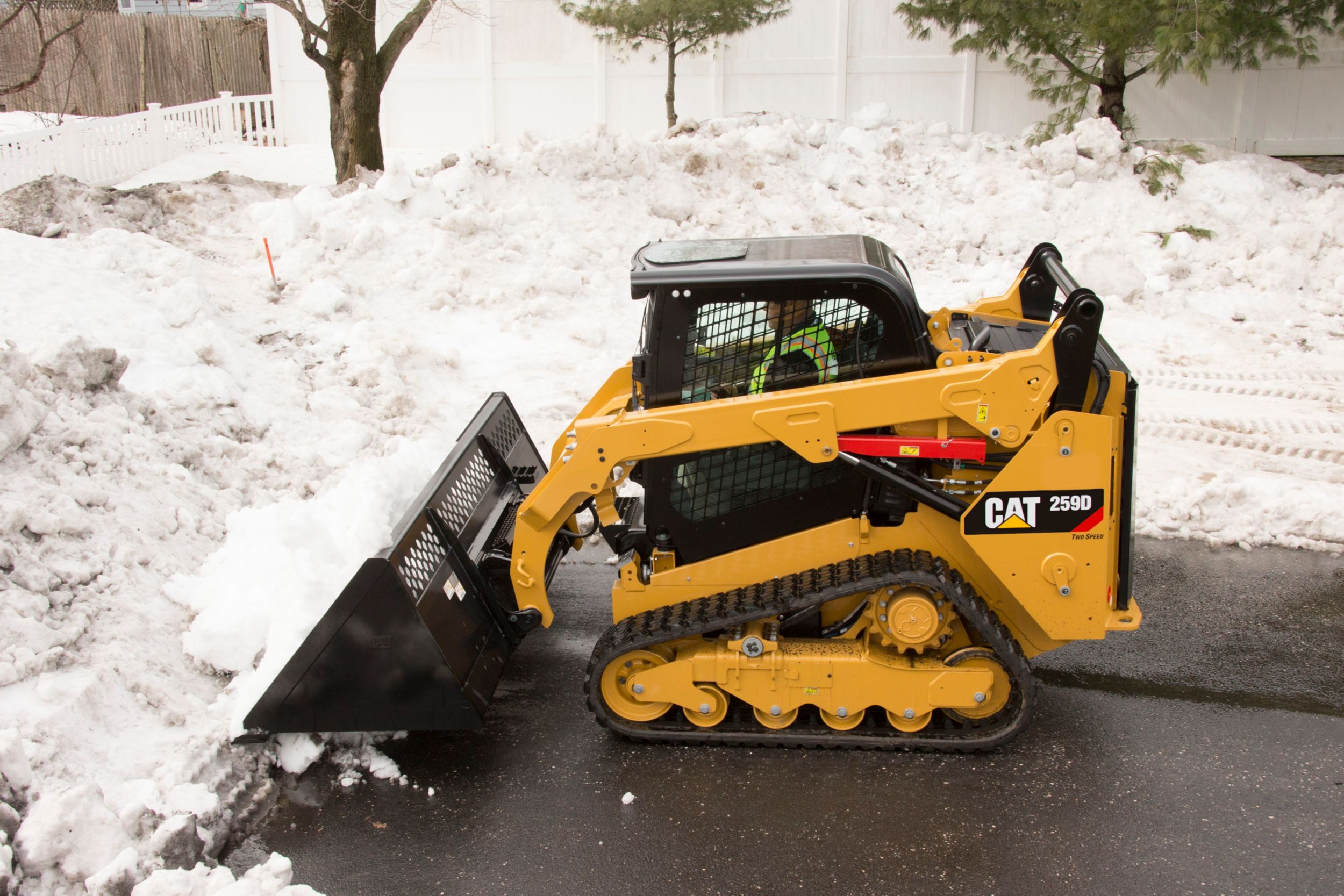

Skid Steer Loader Material Handling Bucket - Pushing Snow in New York
US
Metric

Overview

Cat® Material Handling Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for loading, carrying, dumping and handling light, loosely packed material in agricultural and landscaping applications. They are specifically for applications where a larger capacity than Light Material Buckets is needed.
Width
86.00 in
2185.00 mm
Capacity
1.40 yd³
1.07 m³
Weight
805.00 lb
365.00 kg
Height
32.00 in
814.00 mm
Length
45.50 in
1156.00 mm
Base Edge Thickness
0.70 in
19.00 mm
Cutting Edge Thickness
0.60 in
16.00 mm
Interface Type
Skid Steer Coupler
Features

Rigid Bucket Floor

Material Handling Buckets incorporate underside support straps to elongate the life of the bucket and ensure minimal wear to the wrapper sheet.

Integrated Step

Integrating a serrated step onto the side of the bucket ensures safe entry and exit from the machine cab without having to step over the center of the work tool.

Bolt-On Cutting Edge

Bolt-On cutting edges ensure a ground engaging wear surface that is easily replaced when needed, prolonging the life of the bucket.

Torque Tube for Increased Rigidity

A large torque tube located on the back side of the bucket ensures that it can withstand machine forces and large capacity loads.

Visibility Honeycomb

Located above the Torque Tube structural support, the honeycomb visibility section allows the operator to easily view the cutting edge to ensure accurate placement and loading.
