Low Profile Buckets

1421 mm (56 in) Low Profile Bucket With Bolt-On Cutting Edge

Request A Quote New and Used Inventory

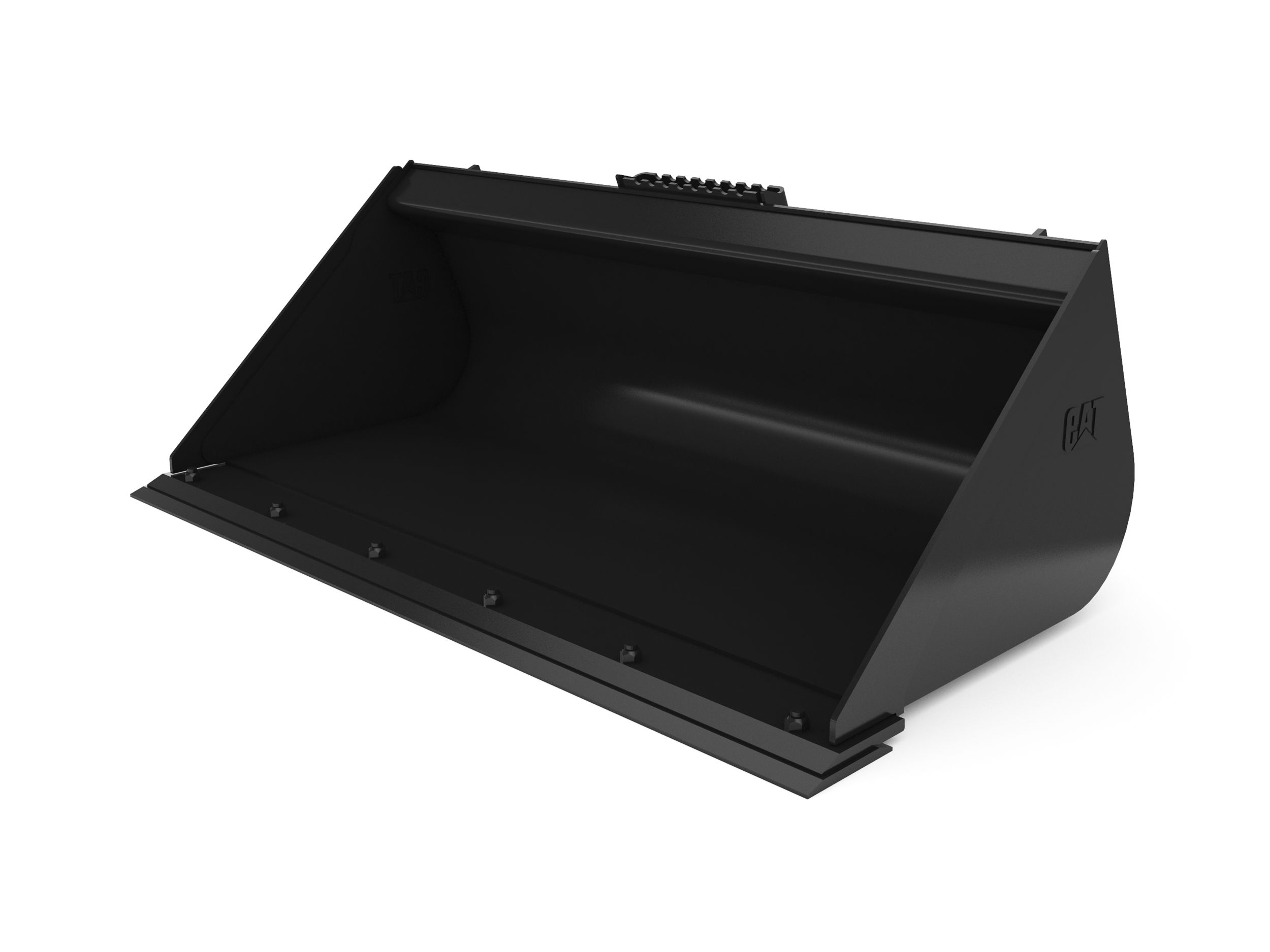

Studio Shot

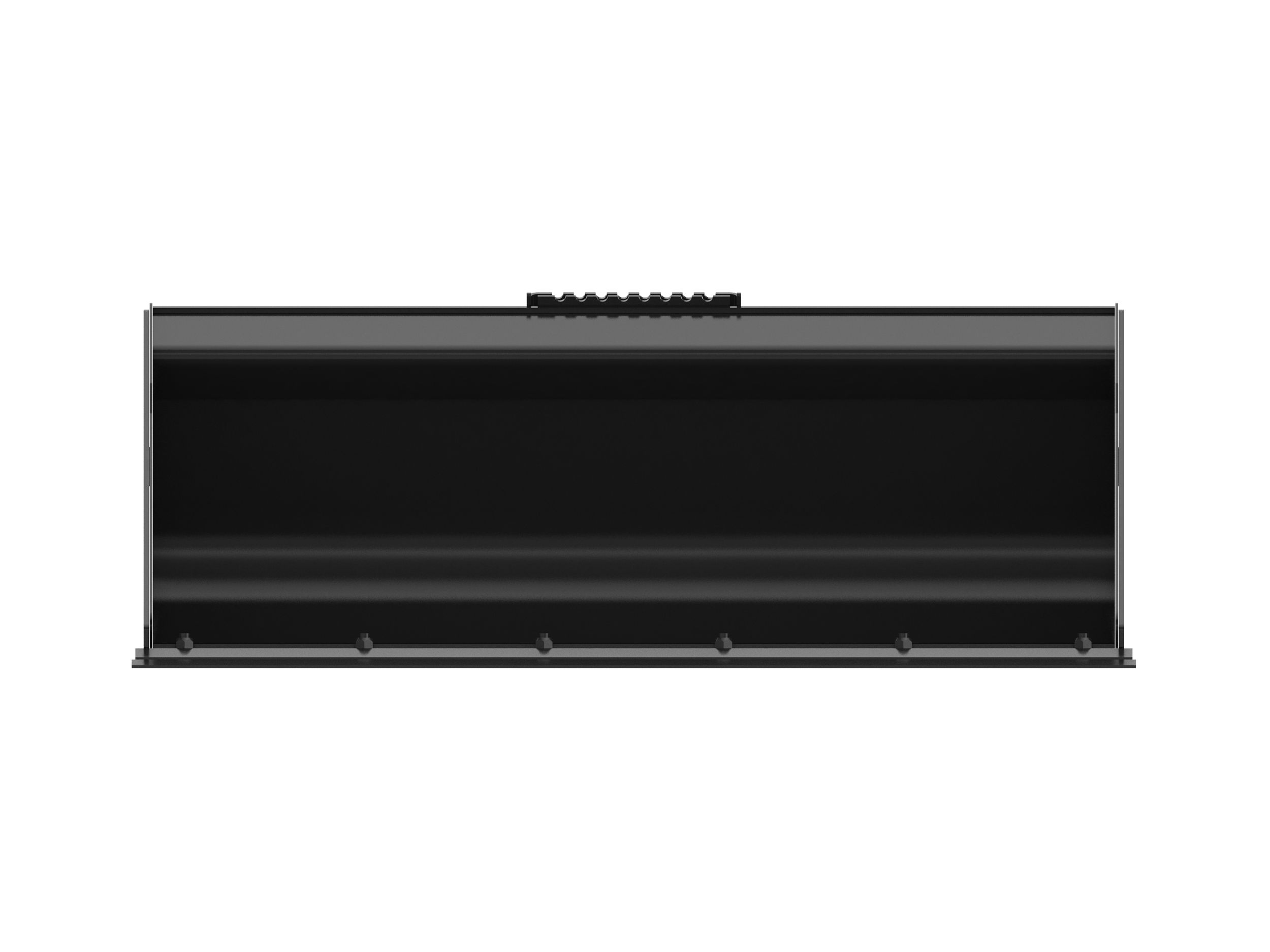

Front View

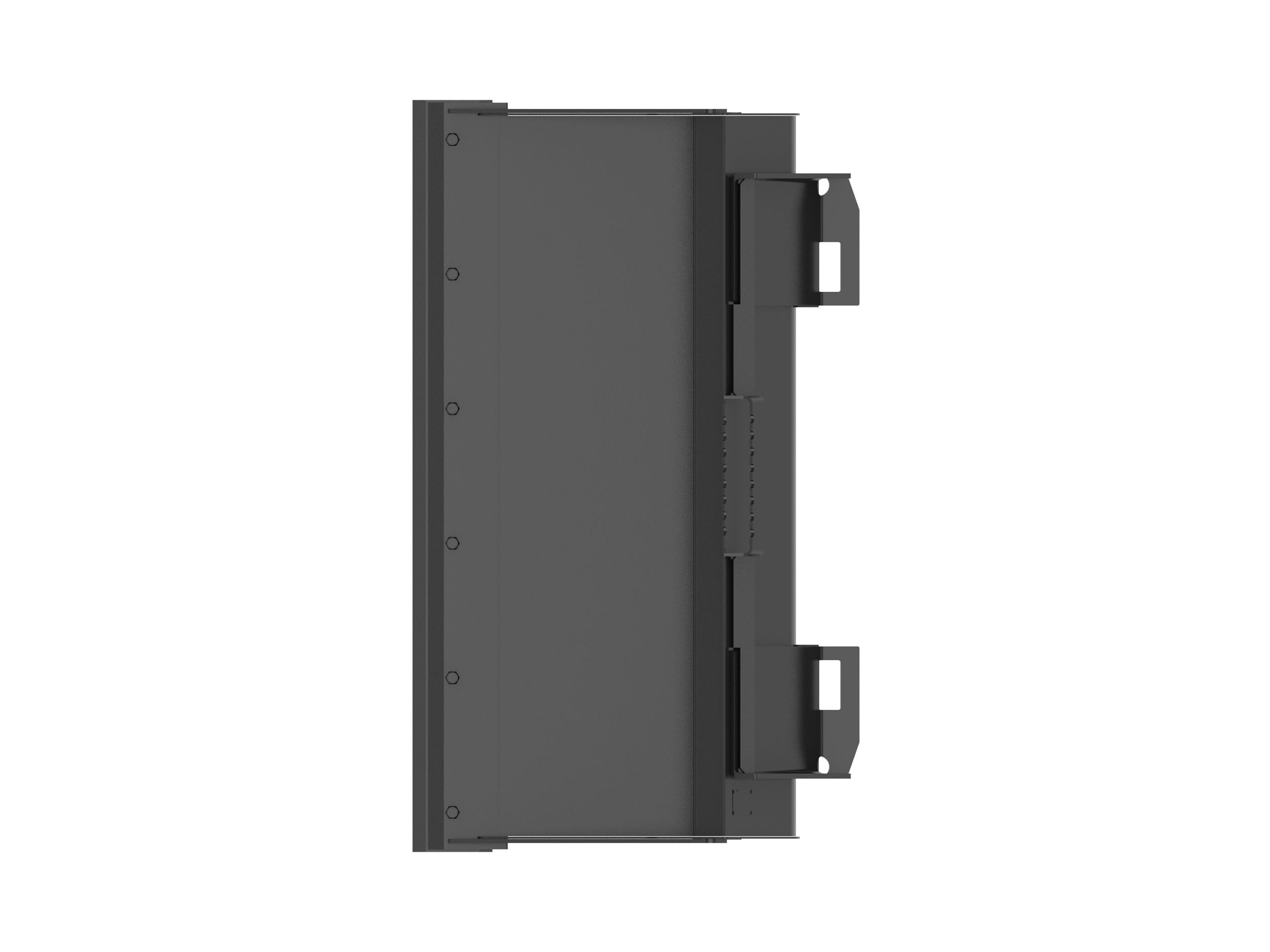

Top View

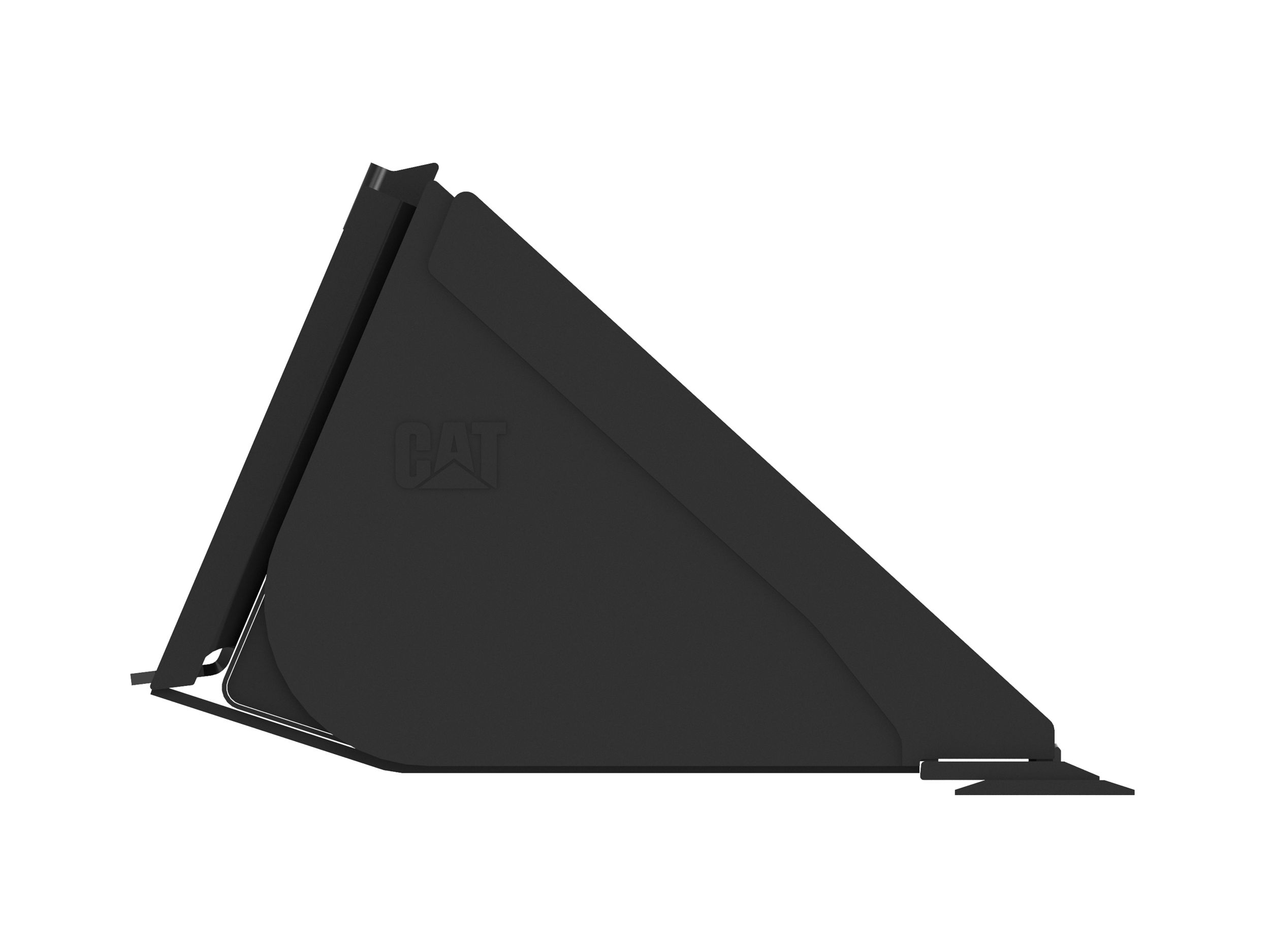

Left View

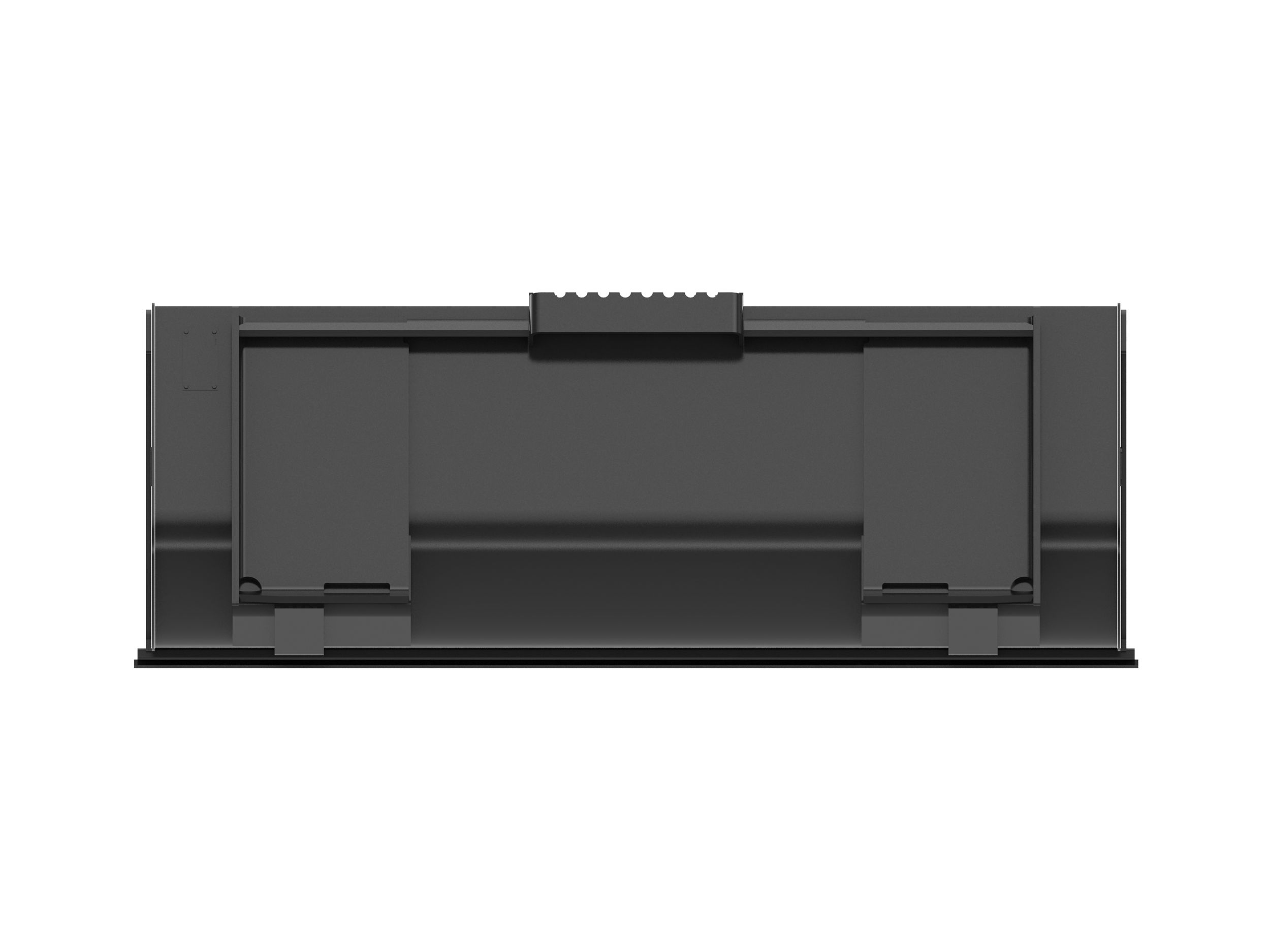

Rear View

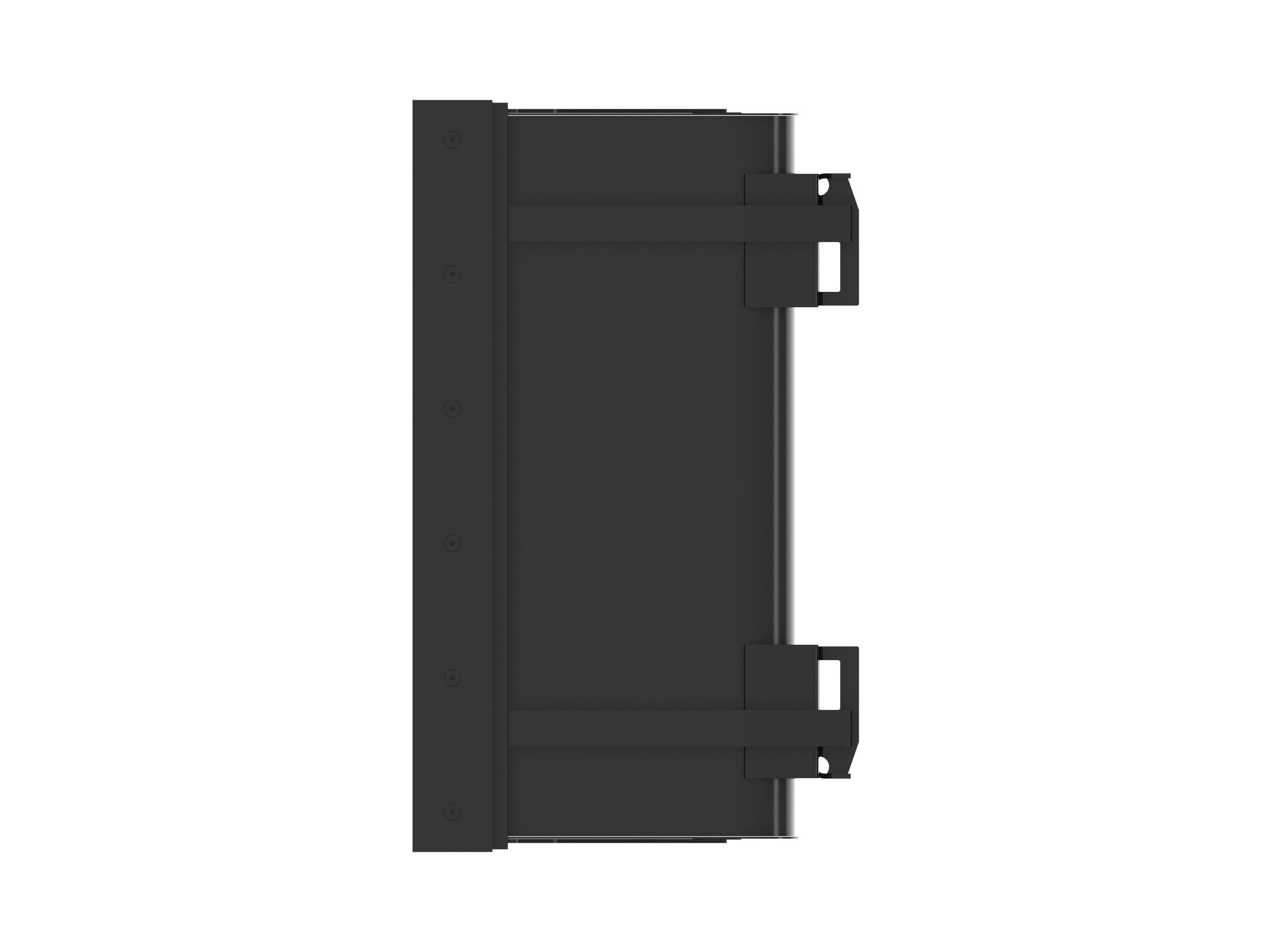

Bottom View

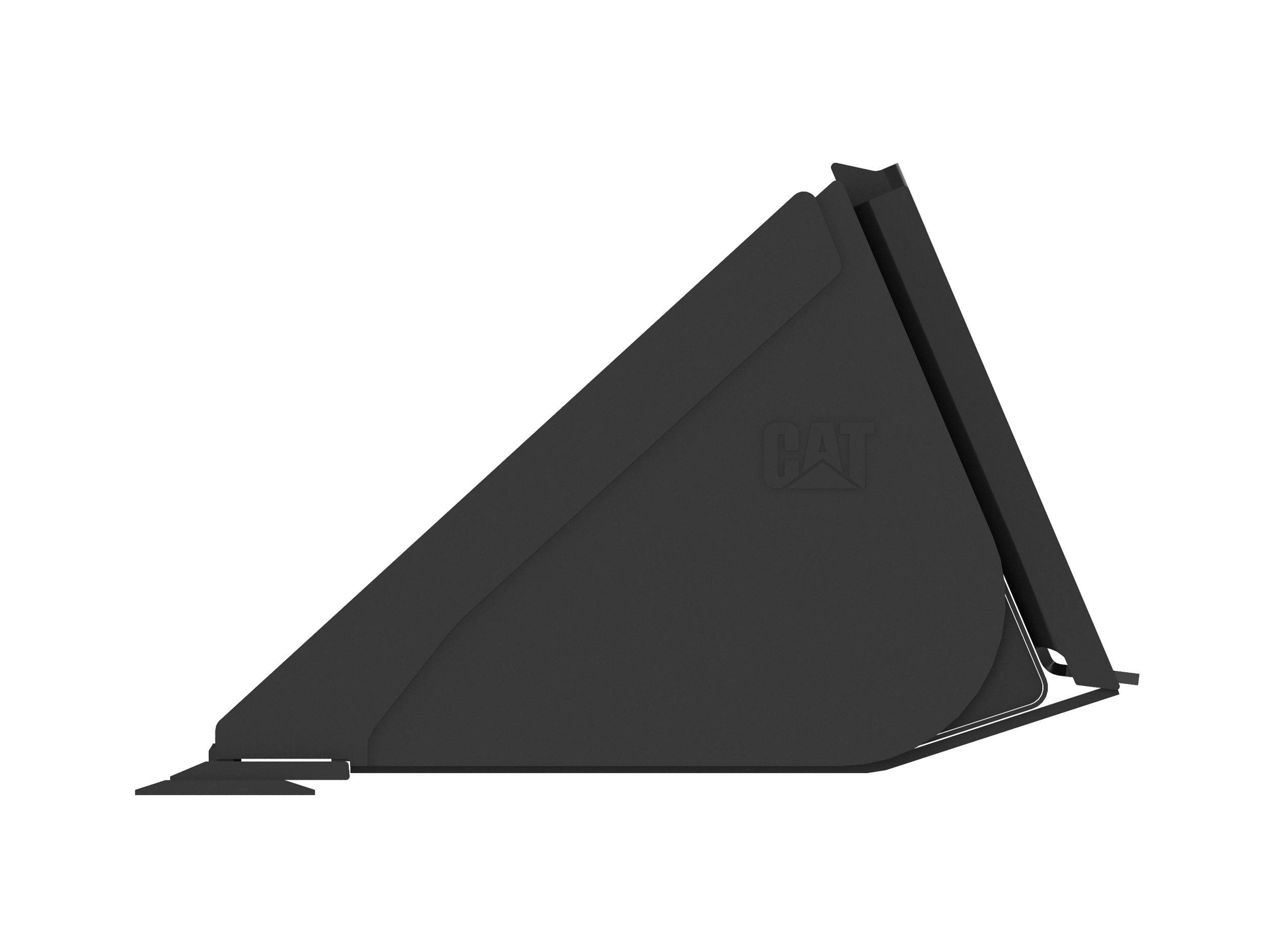

Right View
US
Metric

Overview

Cat® Low Profile Buckets for Cat Skid Steer Loaders and Compact Track Loaders leverage many of the same features found in general purpose buckets, but with lower volume capacity. They are recommended for tight areas where a narrower, lower capacity bucket is required. Applications include digging and light duty excavation in construction or landscaping.
Width
56.00 in
1421.00 mm
Capacity
0.39 yd³
0.30 m³
Weight
392.00 lb
178.00 kg
Height
21.10 in
536.00 mm
Length
28.40 in
722.00 mm
Base Edge Thickness
0.50 in
12.69 mm
Cutting Edge Thickness
0.60 in
16.00 mm
Interface Type
Skid Steer Coupler
Features

Application

Recommended for applications with tight areas where a narrower, lower capacity bucket is required, such as construction and landscaping.

Superior Productivity

Designed to provide superior productivity, high reliability and long life in a variety of materials and handling conditions.

Purpose Built for Digging

Low Profile buckets have shorter back height profile, shorter floor length, and are lighter in weight than general purpose buckets.

Full Length Skid Bars

Full length skid bars provide additional floor rigidity and wear resistance.

Hardened Edges

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
