H180 GC S Hammer

Request A Quote New and Used Inventory
H180 GC S Hammer
US
Metric

Overview

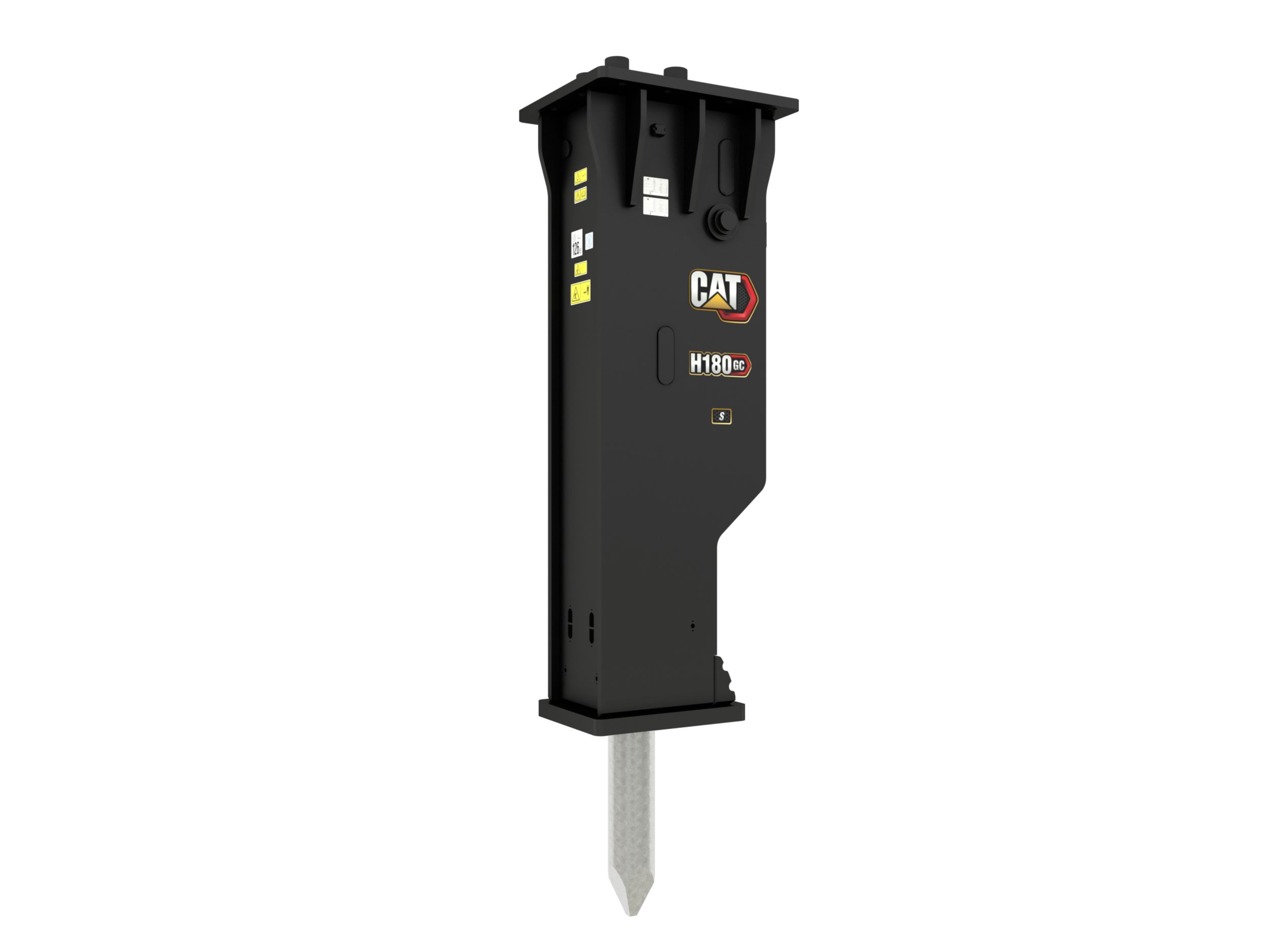

Cat® H180 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H180 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H180 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.
Impact Energy Class
10750.00 ft-lb
14578.00 J
Blows per Minute
200 to 400
Maximum Operating Weight
5471.40 lb
2487.00 kg
Minimum Operating Weight
8616.00 lb
3908.00 kg
Maximum Carrier Weight
121200.00 lb
55.00 t
Minimum Carrier Weight
88100.00 lb
40.00 t
Tool Shaft Diameter
7.10 in
180.00 mm
Maximum Operating Pressure
2320.00 psi
16000.00 kPa
Minimum Operating Pressure
2030.00 psi
14000.00 kPa
Rated Flow - Maximum
79.00 gal/min
300.00 l/min
Rated Flow - Minimum
66.00 gal/min
250.00 l/min
Features

High Performance


  • Automatic shutoff offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
    •
  • Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
    •
  • The standard silencing feature allows you to use a GC S hammer on job sites in noise sensitive areas like neighborhoods or near hospitals where noise is regulated.

Reliability and Durability


  • The internal buffering system helps reduce machine vibration and increase noise suppression.
    •
  • Simple hammer design for easy maintenance and faster rebuilds to help lower owning and operating costs.
    •
  • Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.

Easy to Maintain


  • Standard onboard autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.
    •
  • The slip-fit lower bushing allows for easy replacement in the field, helping reduce service time.
    •
  • Verify the gas charge of the hammer without removing it from your machine.
    •
  • Quick and easy access to maintenance areas helps make hammer maintenance simple.

Boost Efficiency and Productivity with Integrated Technologies


  • Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.
    •
  • Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.
    •
  • Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set-up site boundary.
