584 HD Forwarder
US
Metric
Overview

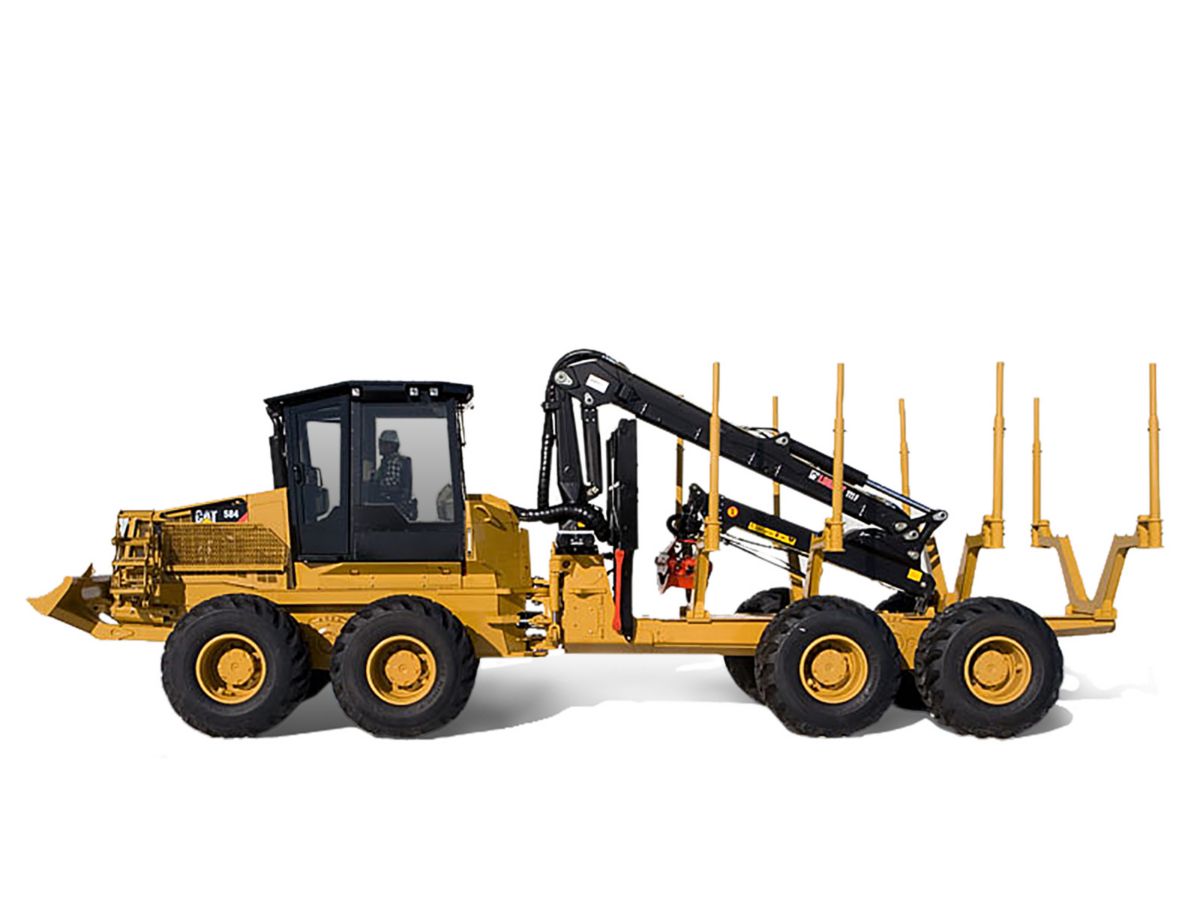

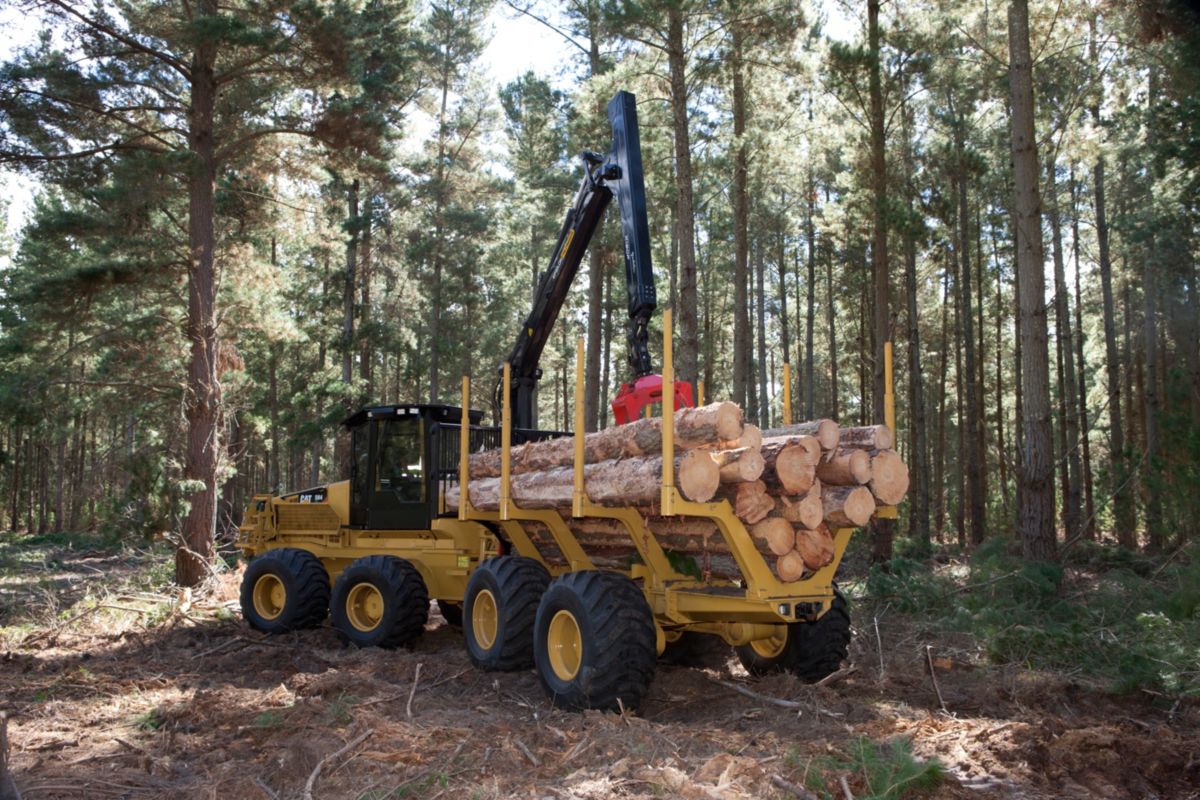

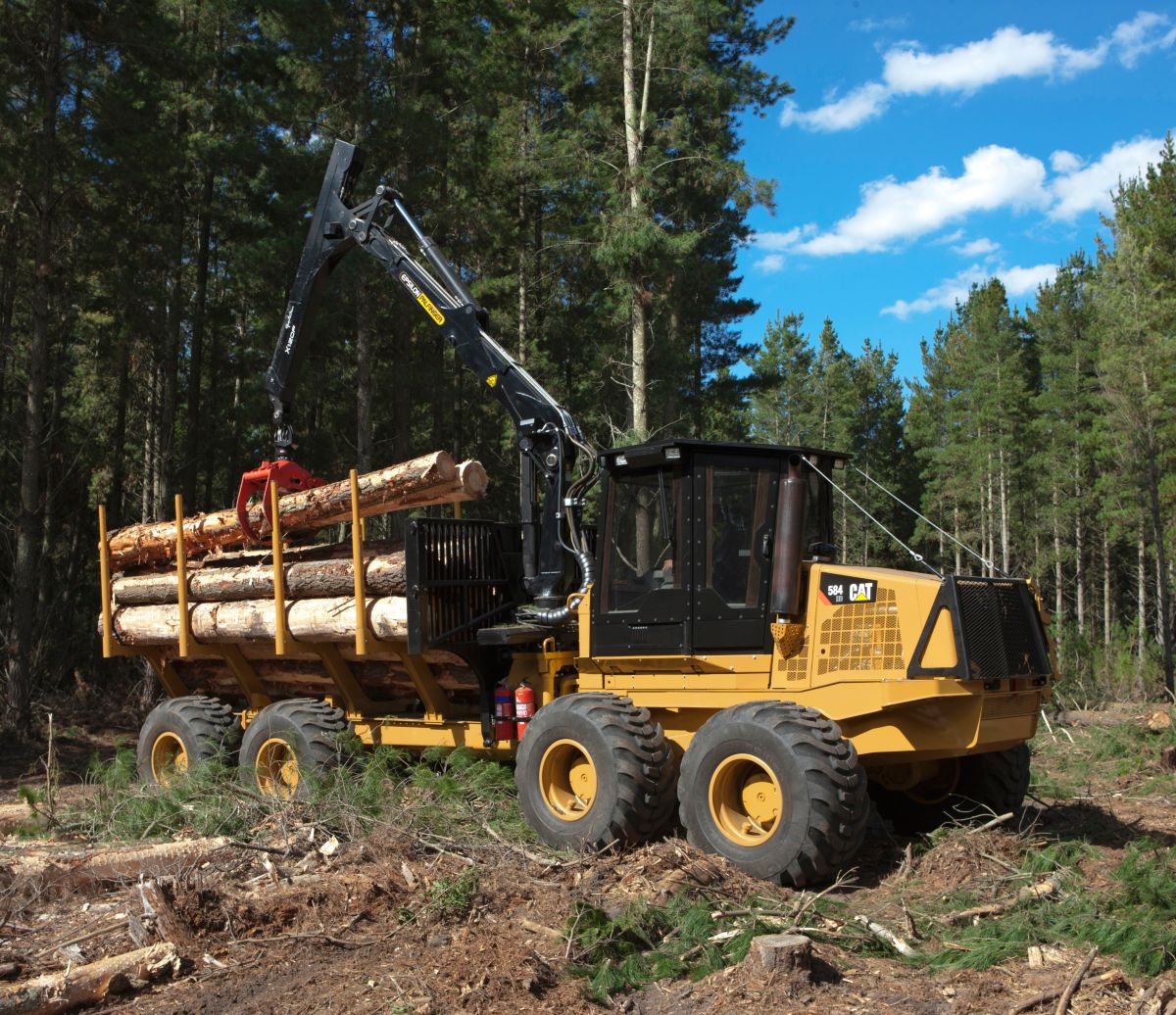

The Cat® 584 forwarder meets the demanding requirements of forest harvesting in many variable applications. These structurally superior units provide unbeaten comfort, controllability, and serviceability to get the job done in a safe, productive, and efficient manner.
Operating Specifications
Load Capacity
44092.00 lb
20000.00 kg
Loader Reach
27.89 ft
8.50 m
Tractive Ability
52605.00 lb
234.00 kN
Load Capacity - HD 8WD
44092.00 lb
20000.00 kg
Low Speed
4.40 mile/h
7.00 km/h
Maximum Speed
13.00 mph
20.90 km/h
Steering Angle
42.00 °
42.00 °
Engine
Gross Power
274.00 hp
204.00 kW
Engine Model
Cat® C7 ACERT™
Displacement
439.00 in3
7.20 L
Torque
872.00 lb/ft
1182.00 N·m
Service Refill Capacities
Fuel Tank
67.30 gal
255.00 L
Hydraulic Fluid Reservoir
46.00 gal (US)
174.00 l
Weights
Operating Weight
50900.00 lb
23088.00 kg
Operating Weight - HD 8WD
50900.00 lb
23088.00 kg
Transmission
Transmission
hydrostatic, 2-speed drop box
Hydraulic System
Flow Rate
75.00 gal/min
284.00 l/min
Working Pressure - Maximum
3120.00 psi
21.50 MPa
Standards
ROPS
ISO 3471:1994, ISO 8082:2003
FOPS
ISO 3449:2005 (LEVEL II), ISO 8083:2006
OPS
ISO 8084:2003, SAE J1084, SEP2002, BC WCB G603, MAR90
Wheels/Tires
Size
750/55 × 26.5
Bunk Area
Bunk Area
59.30 ft²
5.50 m²
Load Bunks
moveable
Optional Bunk Area
67.30 ft²
6.25 m²
Loader and Grapple
Grapple Type
Epsilon FG37
Grapple Type - Optional
Epsilon FG43S
Lifting Torque - Gross
111975.00 lb/ft
159.00 kN·m
Loader Type
Epsilon X120F
Reach
315.00 in
8.00 m
Rotator Type
G141
Slewing Angle
380.00 °
380.00 °
Slewing Torque - Gross
30240.00 lb/ft
45.00 kN·m
Engine
Gross Power
274.00 HP
204.00 kW
Engine Model
Cat® C7 ACERT™
Displacement
439.00 in³
7.20 l
Operating Specifications
Maximum Speed
13.00 mile/h
20.90 km/h
Transmission
Transmission
hydrostatic, 2-speed drop box
Weights
Operating Weight
50900.00 lb
23088.00 kg
Service Refill Capacities
Fuel Tank
67.30 gal (US)
255.00 l
Standards
ROPS
ISO 3471:1994, ISO 8082:2003
FOPS
ISO 3449:2005 (LEVEL II), ISO 8083:2006
OPS
ISO 8084:2003, SAE J1084, SEP2002, BC WCB G603, MAR90
Features
Power Train
Structures
Loader
Hydraulics
Operator Station
Serviceability
Support
Sales Features
Power Train
Exceptional power and fuel efficiencyStructures
Rugged and robustLoader
Solid, Reliable ControlHydraulics
Balanced hydraulics deliver continuous, reliable and responsive controlOperator Station
Efficient, productive and spaciousServiceability
Easy to access, easy to maintainSupport
Services to help you lower costsStandard Equipment
- Electrical
- 24V system
- Master disconnect
- Circuit breaker protection
- 200 Amp Alternator
- 2 12V Batteries
- 12 cab mounted halogen lights
- 2 boom mounted halogen lights
- 2 rear deck mounted halogen lights
- IQAN MDL full function control system with on-screen diagnostics, switch panels and engine control
- Operator Environment
- Pressurized ROPS-FOPS-OPS cab
- Isolation mountings
- Electric cab tilt
- Tinted 12.7 mm (½ in) polycarbonate windows
- Air suspension seat
- Air conditioner/heater with auto temp control
- Window defroster vents
- Horn
- 2 12V power ports
- Dome light
- Radio ready
- Cup holder
- Hydraulic step and access platform
- Power Train
- Cat C7 ACERT engine
- Hydrostatic drive system
- 2-speed drop box
- Rear axle disconnect
- 8.5C drive line components
- NAF axle modules
- Hydraulics
- 200 cc (12.2 in³) variable displacement implement pump
- Closed circuit load sensing valves
- Hydraulic driven cooling fan
- Vacuum pump
- Electric refill pump
- Brake System
- Driving brake/work brake
- Parking brake
- Loader
- Epsilon X120F80 with G141 rotator
- 8.0 m (26.25 ft) reach
- Epsilon FG37 grapple
- Load Deck
- 5.41 m (17.75 ft) load deck
- Shock cushioned head board mounting
- Hydraulic extendable head board
- Adjustable load stake spacing
- Bolt-on tail piece
Optional Equipment
- Wheels/Tires
- 650/65 × 26.5, carrier width is 3180 mm (125.19 in)
