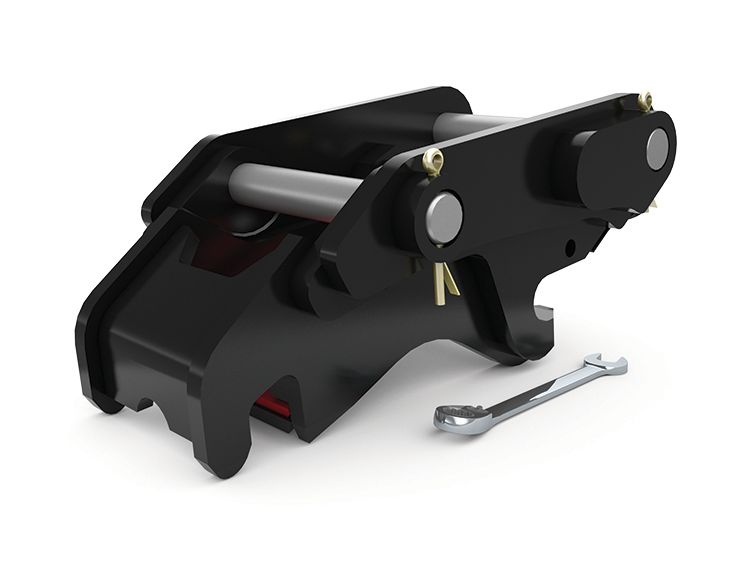

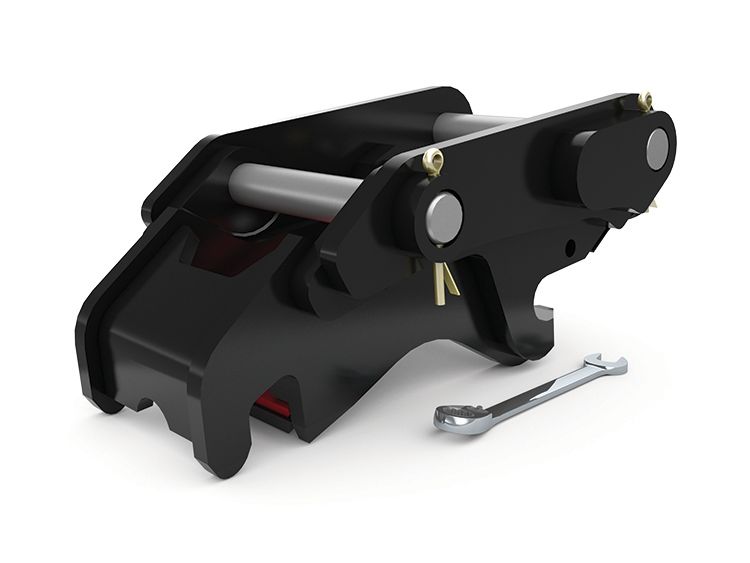

415-444 Backhoe Loaders Manual Dual Lock™ Pin Grabber Coupler
US
Metric
Overview
Cat® Dual Lock™ Pin Grabber Couplers allow work tools to be changed quickly - improving overall production and increasing machine versatility.
Weight
191.80 lb
87.00 kg
Width
14.10 in
359.00 mm
Length
24.20 in
615.00 mm
Overall Height
10.90 in
276.00 mm
Pin Diameter
45/50 mm (1.8/2 in)
Machine Class
415-444 Backhoe Loaders
Interface Type
Pin On
Required Hydraulics
None Required
Features
Cylinder Lock
Manual cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Secondary Lock
The secondary lock is independent of the cylinder and ensures the connection of the attachment to the machine.
Manual Adjustment
Easily engage and disengage the lock by using the supplied wrench.
