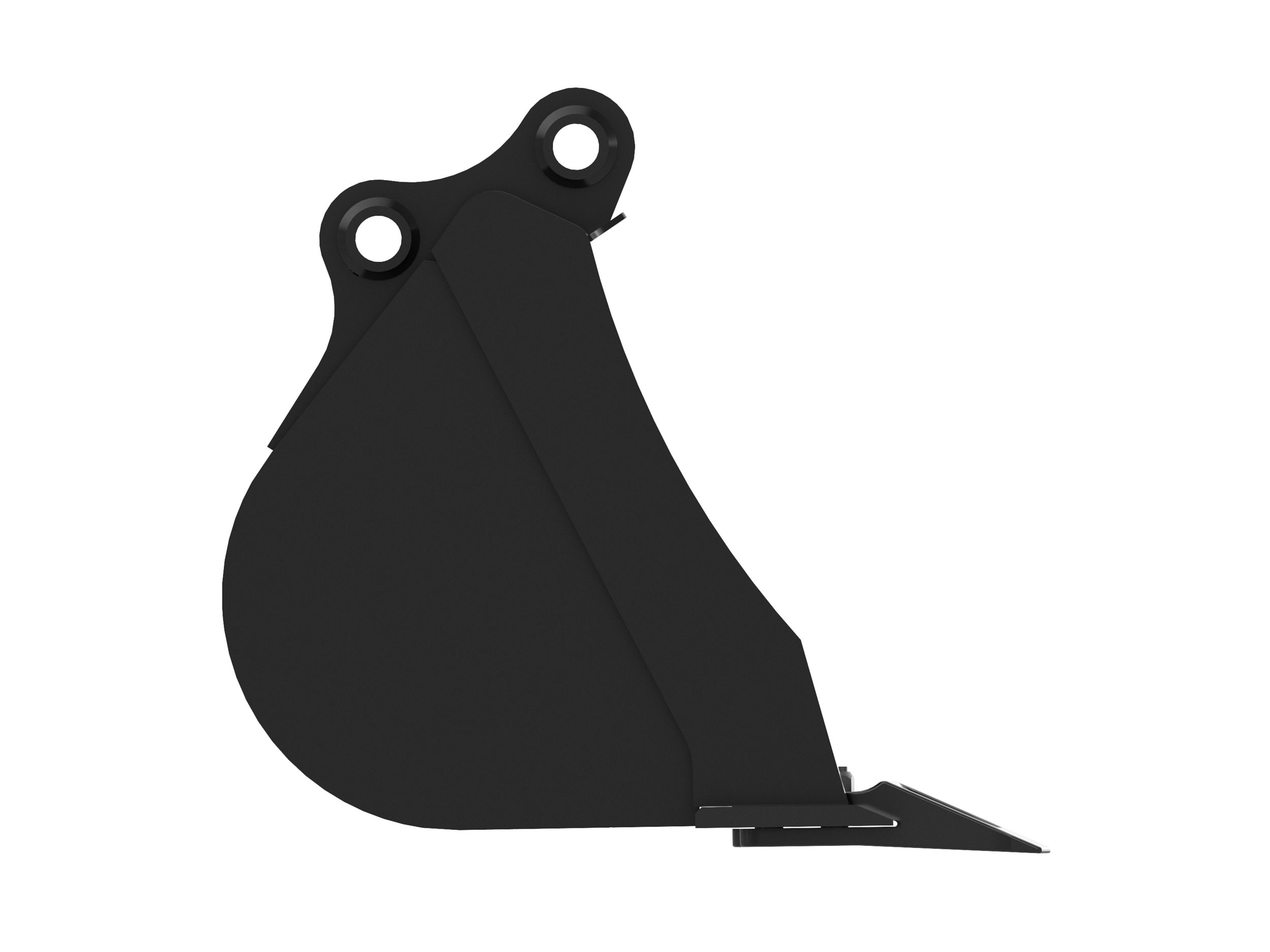

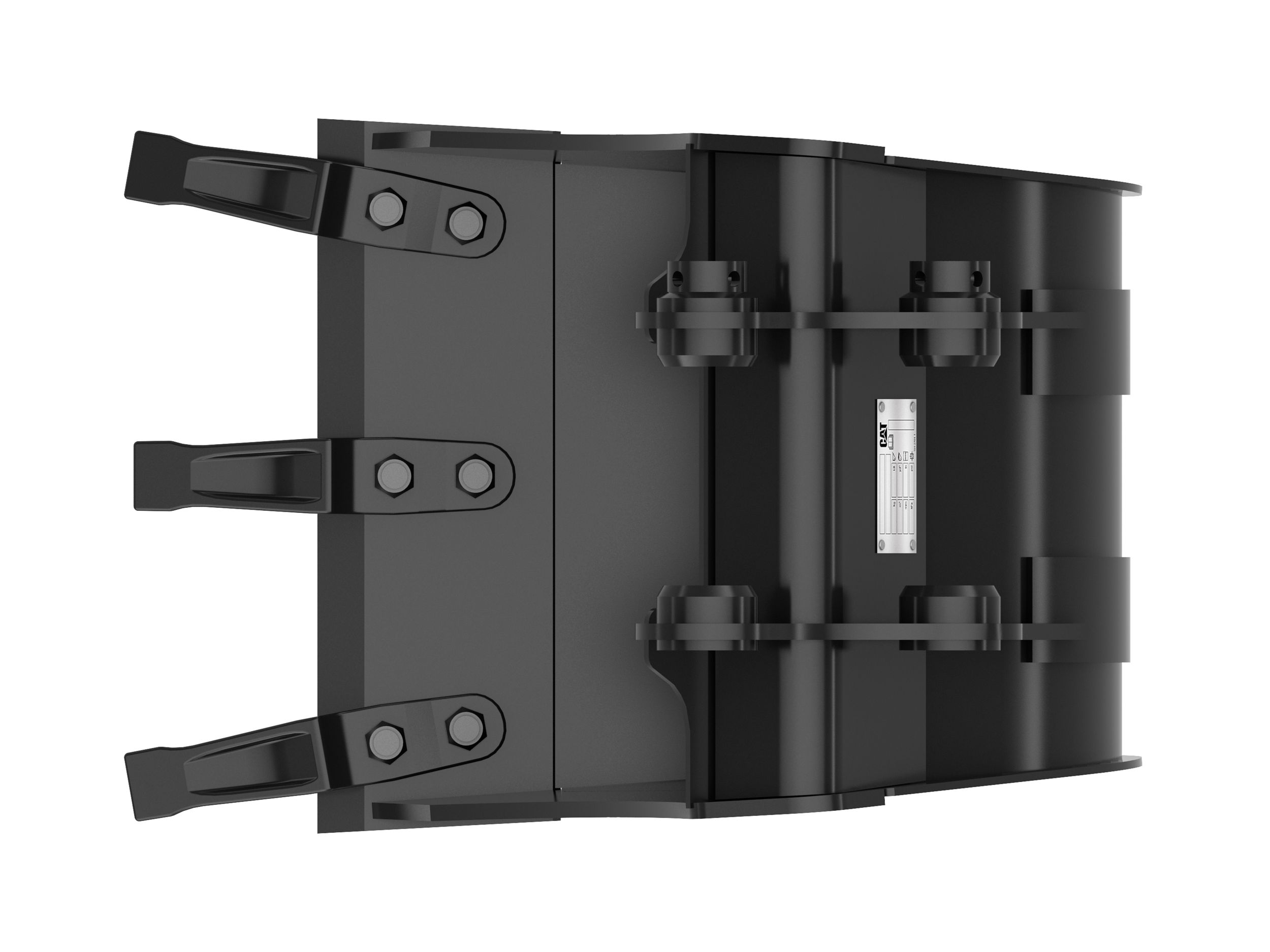

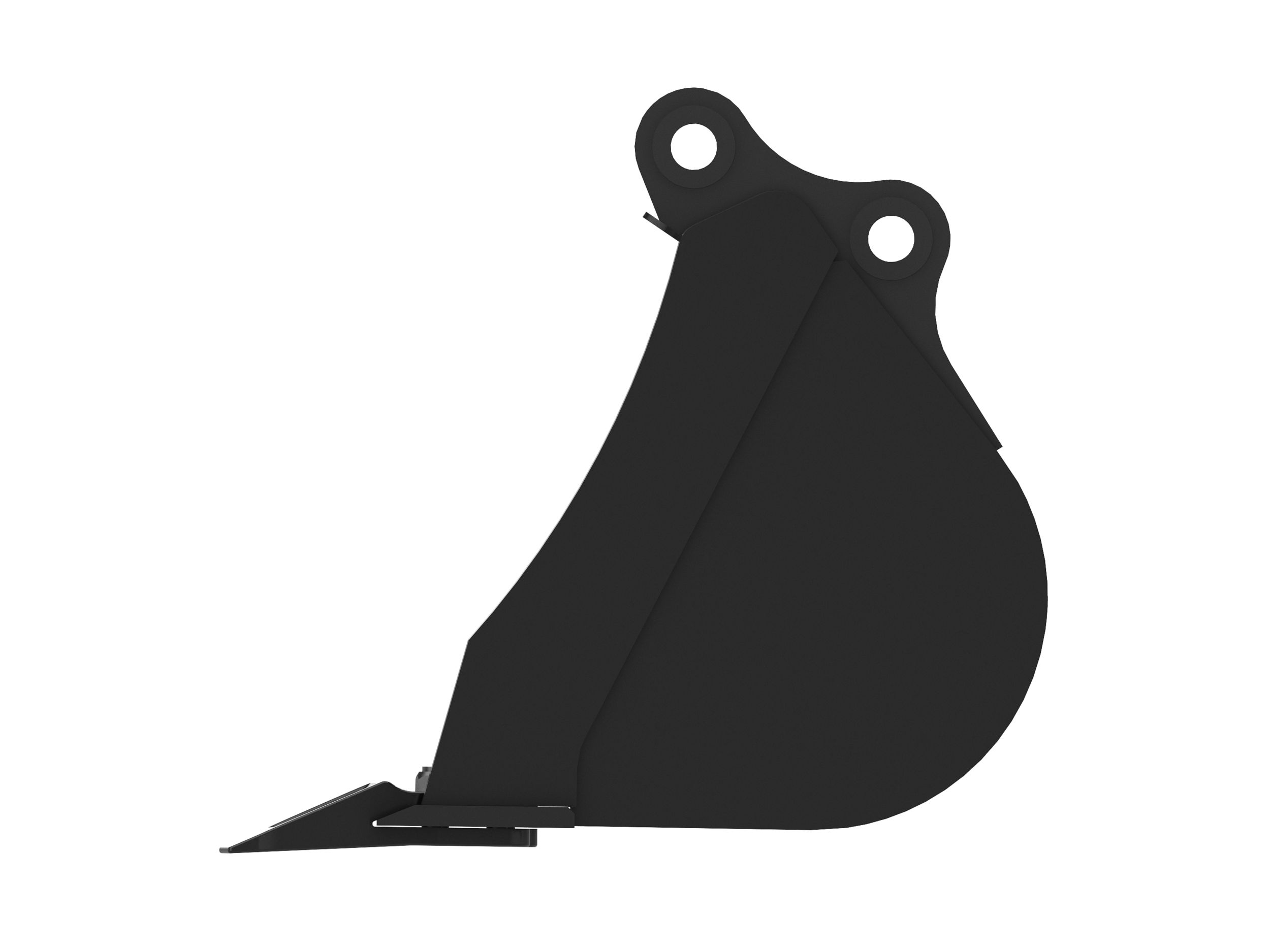

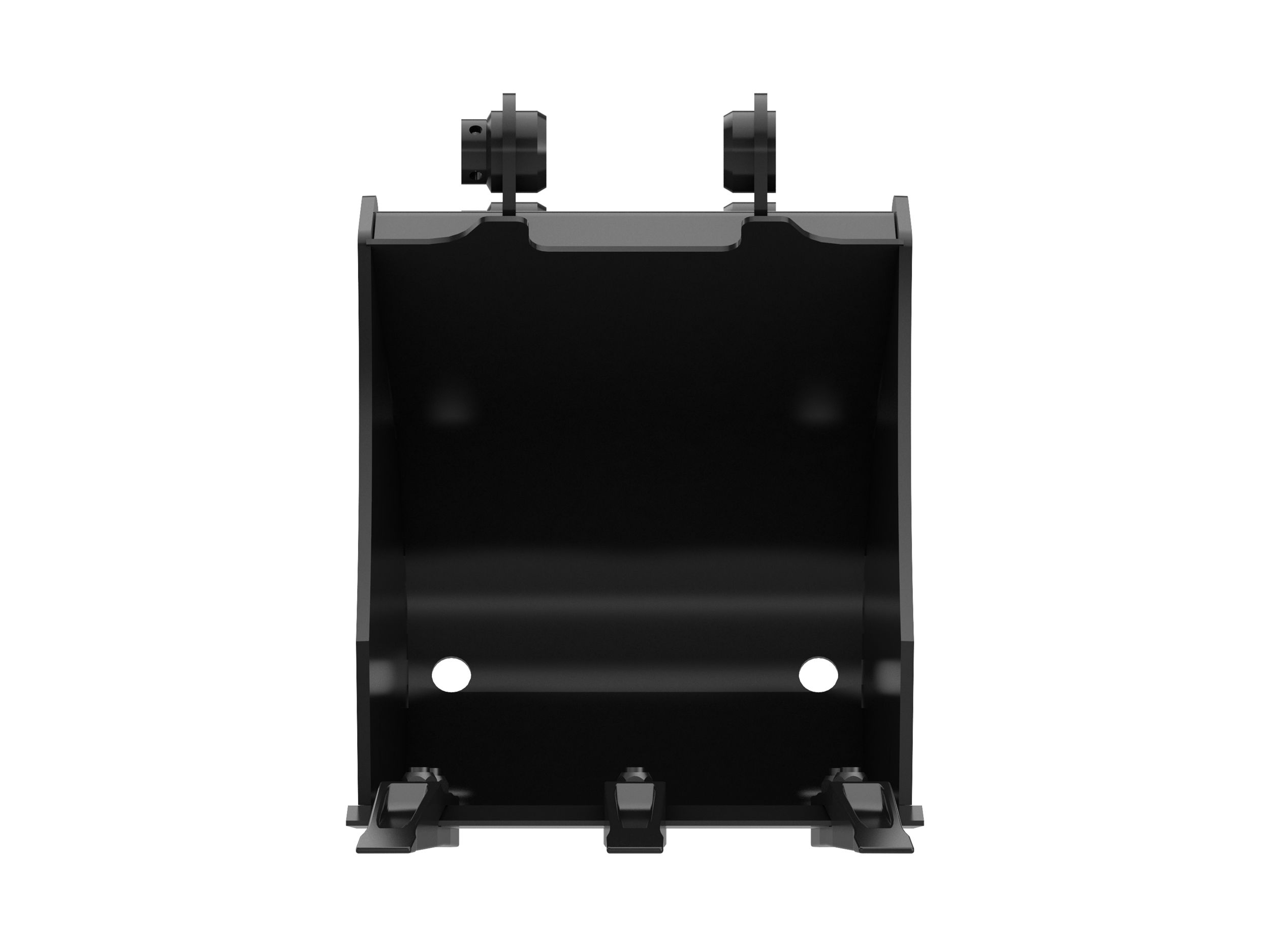

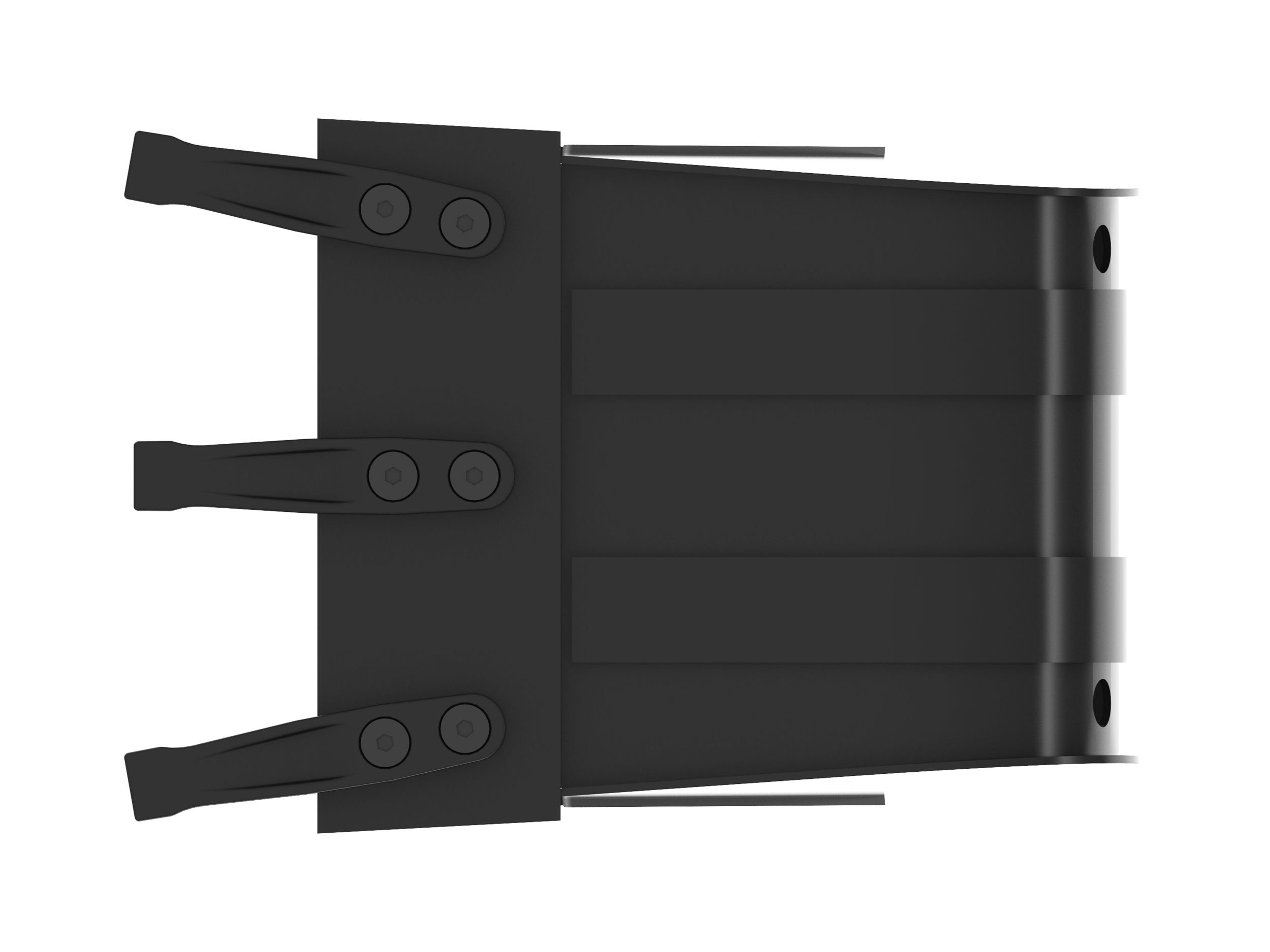

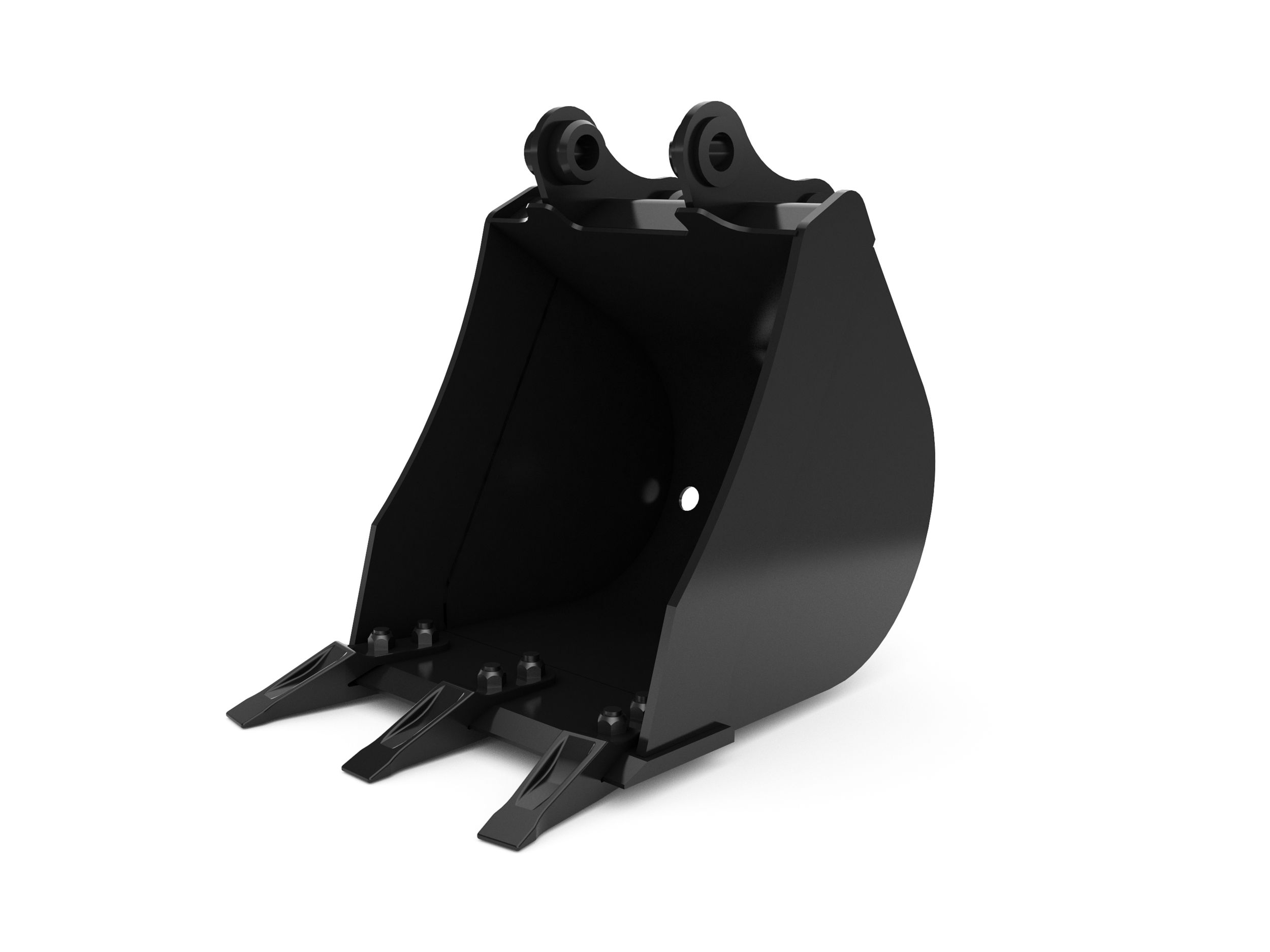

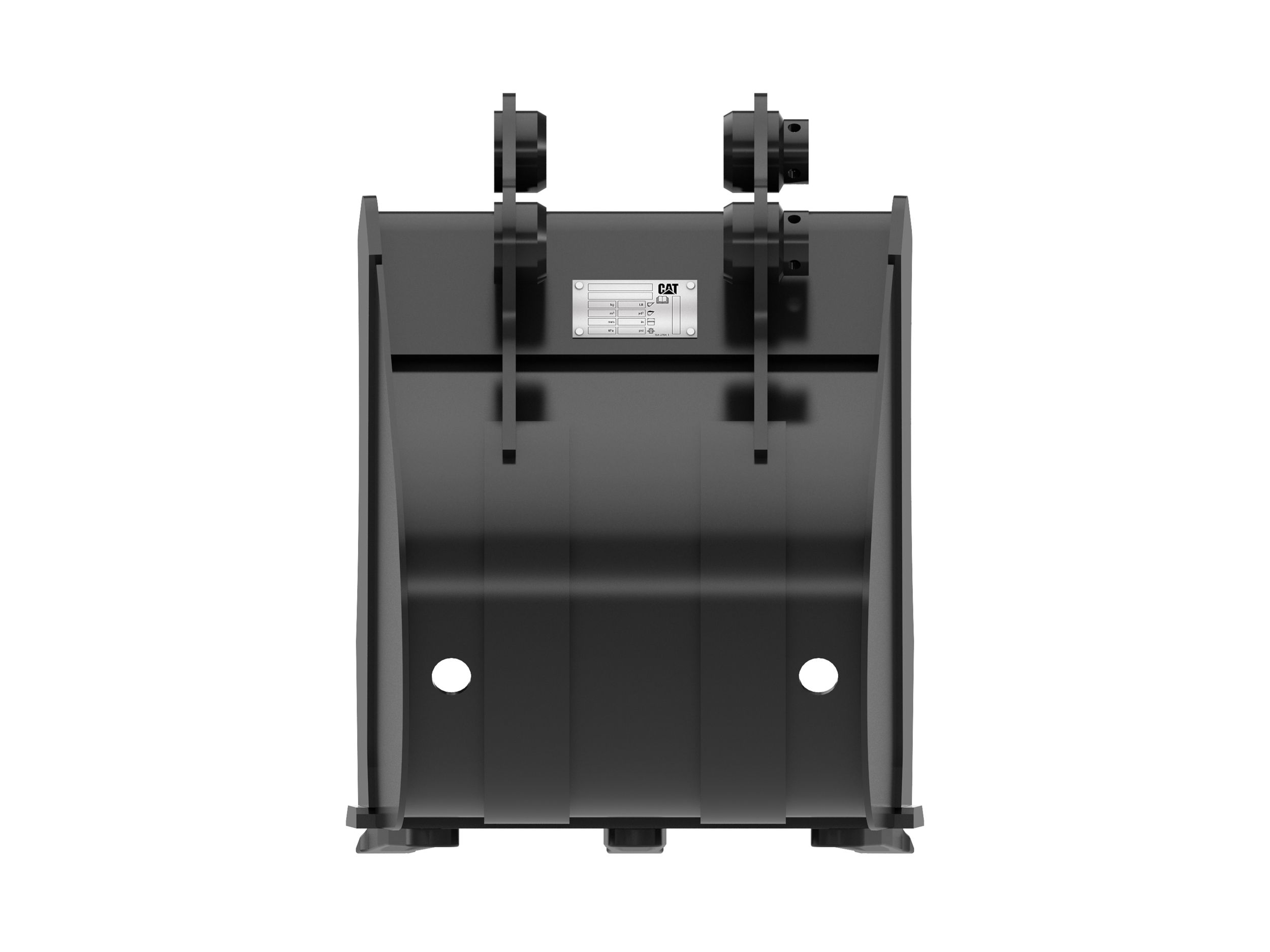

460 mm (18 in) Digging Bucket
US
Metric
Overview
Digging Buckets for Cat® Mini Excavators are ideal for utility trenching, general excavating and back-filling in soft to moderate ground.
Width
18.10 in
460.00 mm
Capacity
2.30 ft³
65.09 l
Weight
130.30 lb
59.09 kg
Base Edge Thickness
0.60 in
16.00 mm
Tip Radius
25.30 in
643.00 mm
Interface Type
Pin On
Features
Application
Designed for a wide variety of applications and materials.
Bucket Design
Formed back wrapper design enhances bucket loadability and production.
Superior Bucket Fill
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Bucket Shape
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
